1-31 — AIR DUCT (#11558) — 99 parça

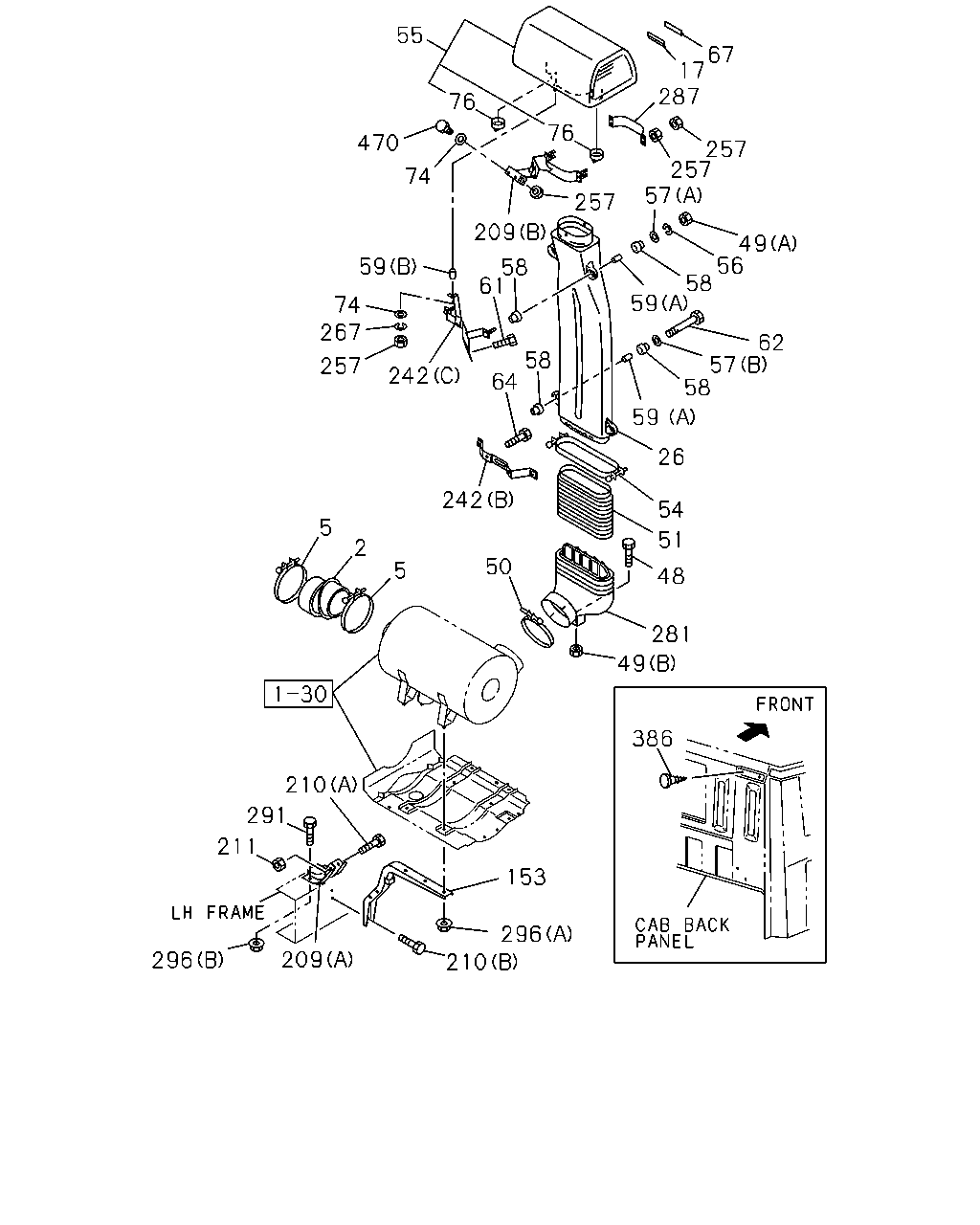

55 67 17 287 76 76 470 257 257 57 74 257 209 49 56 58 59 58 61 59 74 267 62 57 58 58 64 257 242 59 26 242 54 5 51 2 50 5 48 281 49 386 210 291 211 153 296 210 209 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-937-0	01	1	0105-	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	0105-	●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0105-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	0105-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-134-1	01	1	0105-	●	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	0105-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	0105-	●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0105-	●	●
54	CLIP; GASKET,AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0105-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	0105-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	0105-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	0105-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	0105-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	0105-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	0105-	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	0105-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0105-	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0105-	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0105-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	0105-	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	0105-	●	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	0105-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	0105-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	0105-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	0105-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	0105-	●	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0105-	●	●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0105-	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14231-947-0	01	1	0105-	●	●
281	DUCT; AIR,VERTICAL INT EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0105-	●	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0105-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0105-	●	●

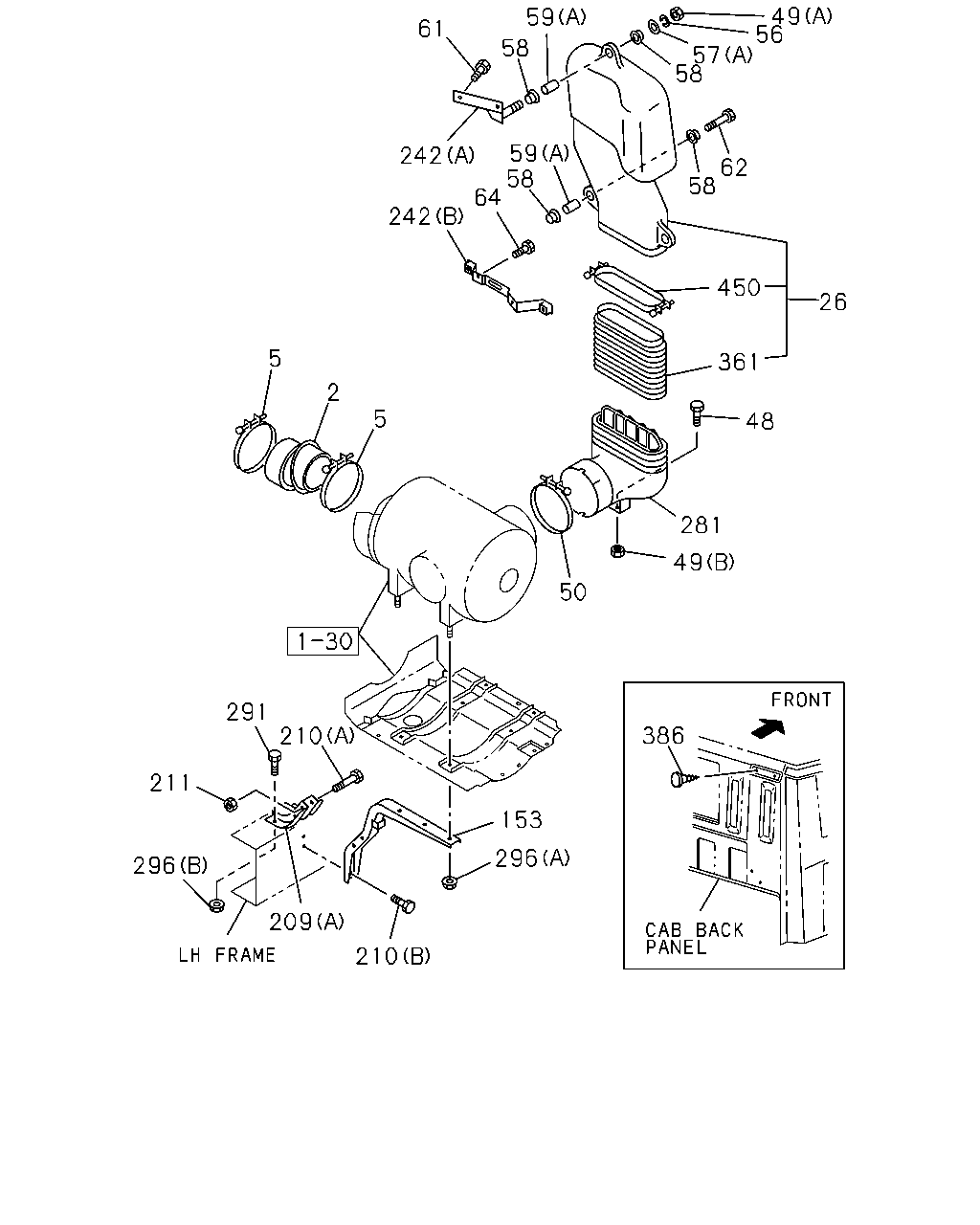

49 56 59 61 58 57 58 59 58 64 242 62 58 242 450 26 5 361 2 5 48 281 49 50 291 386 210 211 153 296 296 209 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-937-0	01	1	0105-	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	0105-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	0105-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-134-1	01	1	0105-	●	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	0105-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	0105-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	0105-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	0105-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	0105-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	0105-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	0105-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	0105-	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	0105-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	0105-	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	0105-	●	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	0105-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	0105-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	0105-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	0105-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	0105-	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14231-947-0	01	1	0105-	●	●
281	DUCT; AIR,VERTICAL INT EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0105-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●
