◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10864 - EXR LHD FUEL TANK 200L+200L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#11557) — 27 parça

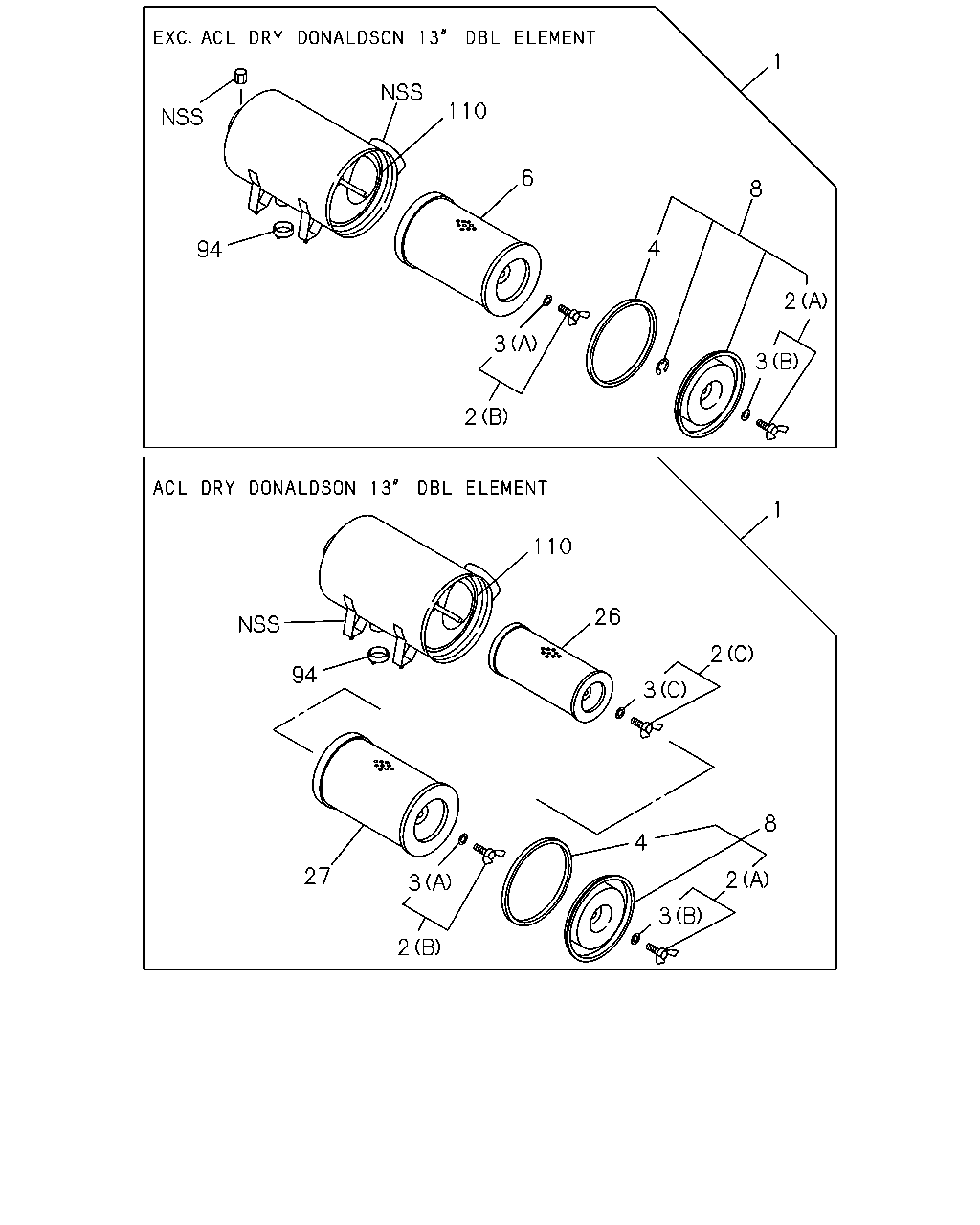

çizim 73070
1 110 6 8 4 94 2 3 3 2 3 1 110 26 2 94 3 8 4 27 2 3 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-767-2 01 1 0105- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-783-2 01 1 0105- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0105- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0105- ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (C) 		1-14217-003-0 01 1 0105- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0105- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0105- ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (C) 		1-14219-032-0 01 1 0105- ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0105- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 0105- ● ●
8 COVER ASM; ACL 1-14212-064-0 01 1 0105- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-089-1 01 1 0105- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 0105- ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 0105- ● ●
110 ADAPTER; ACL 1-14219-175-0 01 1 0105- ● ●

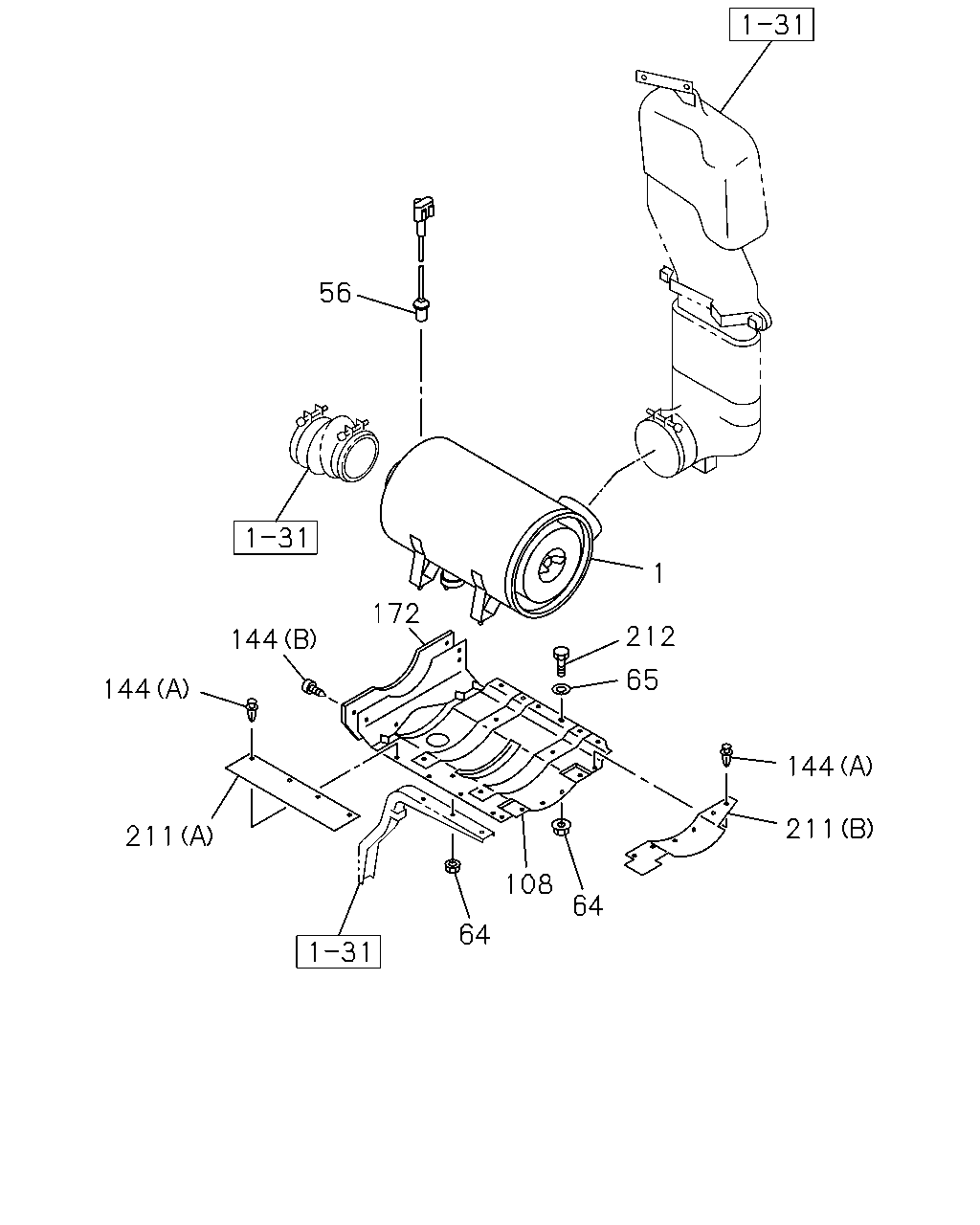

çizim 74456
56 1 172 212 144 65 144 144 211 211 108 64 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-767-2 01 1 0105- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-783-2 01 1 0105- ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 0105- ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 06 1 0105- ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0105- ● ●
108 COVER; ACL 1-53419-300-0 01 1 0105- ● ●
144 CLIP; ACL
(A) 		5-09987-033-0 09 1 0105- ● ●
144 CLIP; ACL
(B) 		8-94279-048-0 07 1 0105- ● ●
172 INSULATOR; NOISE 1-53446-781-2 01 1 0105- ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0105- ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0105- ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 06 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
