6-01 — FRONT BUMPER (#115499) — 95 parça

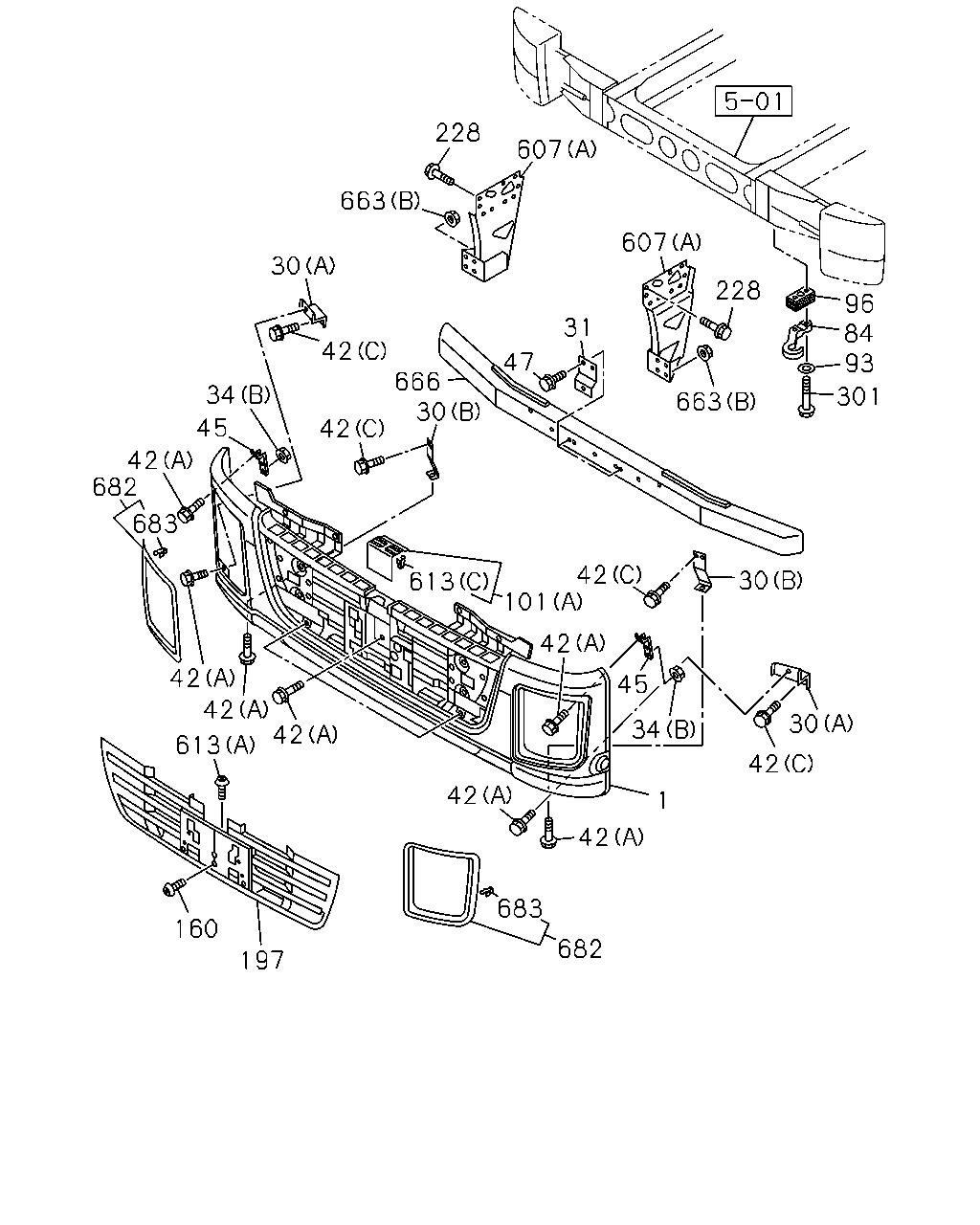

çizim 336524
228 663 30 42 42 34 45 42 682 683 42 42 613 42 160 197 682 683 42 42 34 45 42 101 42 613 30 666 47 31 607 228 96 84 93 301 663 30 30 42 1 607
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		8-97424-794-3 01 1 1303-
30 BRACKET; FRT BUMPER
(A) 		8-98135-977-1 01 1 1303-
30 BRACKET; FRT BUMPER
(A) 		8-98135-978-1 01 1 1303-
30 BRACKET; FRT BUMPER
(B) 		8-98139-907-0 01 1 1303-
30 BRACKET; FRT BUMPER
(B) 		8-98139-909-0 01 1 1303-
31 SUPPORT; FRT BUMPER,LWR 8-98139-742-0 02 1 1303-
34 NUT; BRKT,BUMPER
(A) M6 FLANGE 		0-91180-106-0 02 1 1303-
34 NUT; BRKT,BUMPER
(B) M10 FLANGE 		0-91180-110-0 04 1 1303-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1303-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 14 1 1303-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1303-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1303-
45 BRACKET; BRKT TO BUMPER 8-98126-935-2 02 1 1303-
47 BOLT; SUPPORT TO BODY
M10X30 FLANGE 		0-28051-030-0 04 1 1303-
84 HOOK 8-98126-930-0 01 1 1303-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1303-
96 PLATE; DIST,HOOK 8-98169-197-0 01 1 1303-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1303-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1303-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1303-
160 SCREW
M5X16 		8-94380-268-0 01 1 1303-
197 GRILLE; BUMPER 8-98144-188-4 01 1 1303-
228 BOLT; BRKT
M16X35 FLANGE 		0-28851-635-0 06 1 1303-
301 BOLT; HOOK TO FRAME
M16X110 		8-98074-591-0 02 1 1303-
607 BRACKET
(C) 		8-98147-053-0 02 1 1303-
607 BRACKET
(B) 		8-98147-054-0 02 1 1303-
607 BRACKET
(A) 		8-98211-758-0 01 1 1303-
607 BRACKET
(A) 		8-98211-759-0 01 1 1303-
613 CLIP
(D) 		8-97581-651-2 04 1 1303-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1303-
613 CLIP
(B) 		8-98025-698-0 08 1 1303-
613 CLIP
(C) 		8-98144-173-1 06 1 1303-
663 NUT
(C) M6 FLANGE 		0-91180-106-0 13 1 1303-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1303-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1303-
666 PROTECTOR; UNDER 8-98198-583-0 01 1 1303-
682 BEZEL; BUMPER 8-98123-444-2 01 1 1303-
682 BEZEL; BUMPER 8-98123-445-2 01 1 1303-
683 CLIP; BEZEL,BUMPER 8-98144-173-1 16 1 1303-

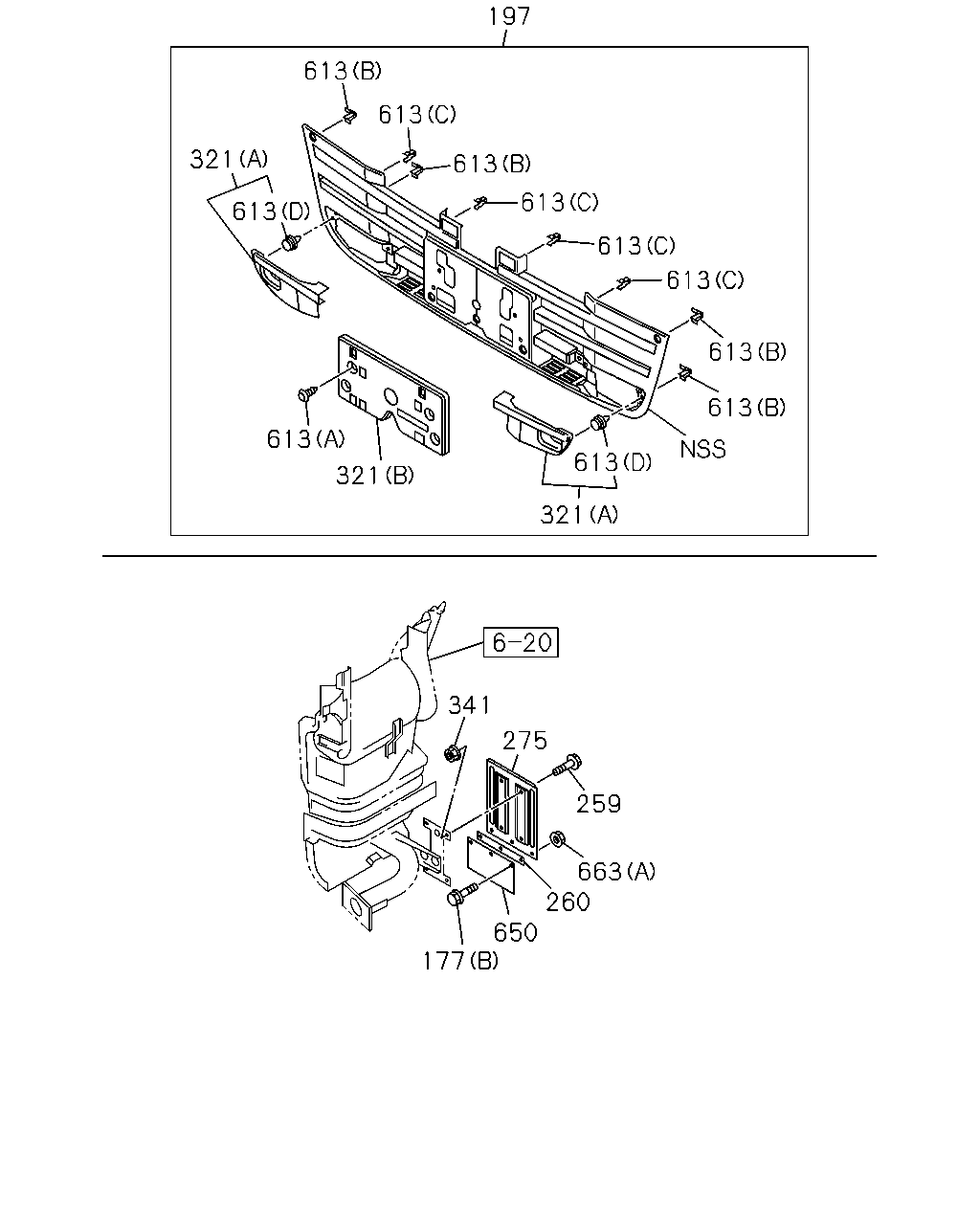

çizim 336708
197 613 613 613 613 613 613 613 613 613 321 321 613 341 275 259 663 260 650 177 321 613
BalonParca AdiParca NoAdetTipApplied Date
177 BOLT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1303-
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1303-
197 GRILLE; BUMPER 8-98144-188-4 01 1 1303-
259 BOLT; COVER
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1303-
260 RETAINER; UPR SKIRT 8-98125-829-0 02 1 1303-
275 GUARD; FRT 8-98125-825-0 02 1 1303-
321 COVER; BUMPER FRT SIDE
(A) 		8-98123-446-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(A) 		8-98123-447-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(C) 		8-98123-455-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(C) 		8-98123-456-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(B) 		8-98132-737-1 01 1 1303-
341 NUT; COVER
M8 FLANGE 		0-91180-108-0 08 1 1303-
613 CLIP
(D) 		8-97581-651-2 04 1 1303-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1303-
613 CLIP
(B) 		8-98025-698-0 08 1 1303-
613 CLIP
(C) 		8-98144-173-1 06 1 1303-
650 RUBBER; MUD COVER 8-98125-828-0 02 1 1303-
663 NUT
(C) M6 FLANGE 		0-91180-106-0 13 1 1303-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1303-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1303-

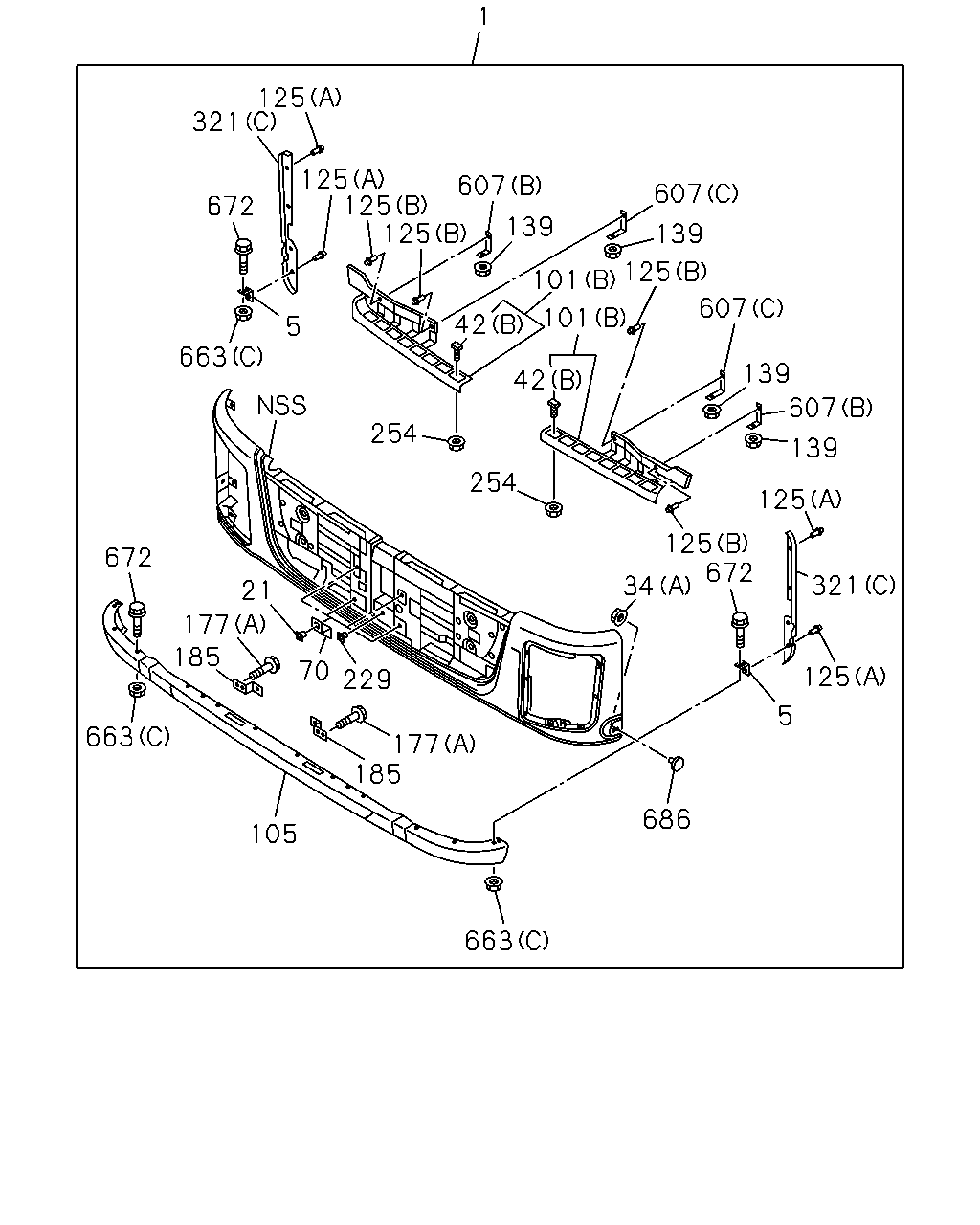

çizim 336897
1 125 321 672 5 663 254 34 125 125 139 607 139 607 125 139 607 125 125 125 607 321 125 5 686 663 105 185 177 229 70 185 177 21 672 663 254 42 101 139 101 42 672
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		8-97424-794-3 01 1 1303-
5 BRACKET; AIR DAM 8-98154-762-0 02 1 1303-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1303-
34 NUT; BRKT,BUMPER
(A) M6 FLANGE 		0-91180-106-0 02 1 1303-
34 NUT; BRKT,BUMPER
(B) M10 FLANGE 		0-91180-110-0 04 1 1303-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1303-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 14 1 1303-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1303-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1303-
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1303-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1303-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1303-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1303-
105 AIR DAM
WHITE 		8-97417-859-4 01 1 1303-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1303-
125 CLIP; STEP
(A) 		8-98157-186-0 08 1 1303-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1303-
177 BOLT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1303-
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1303-
185 BRACKET; BUMPER,INNER 8-98139-739-0 02 1 1303-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1303-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1303-
321 COVER; BUMPER FRT SIDE
(A) 		8-98123-446-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(A) 		8-98123-447-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(C) 		8-98123-455-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(C) 		8-98123-456-1 01 1 1303-
321 COVER; BUMPER FRT SIDE
(B) 		8-98132-737-1 01 1 1303-
607 BRACKET
(C) 		8-98147-053-0 02 1 1303-
607 BRACKET
(B) 		8-98147-054-0 02 1 1303-
607 BRACKET
(A) 		8-98211-758-0 01 1 1303-
607 BRACKET
(A) 		8-98211-759-0 01 1 1303-
663 NUT
(C) M6 FLANGE 		0-91180-106-0 13 1 1303-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1303-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1303-
672 STUD; STEP
M6X16 FLANGE 		0-28050-616-0 13 1 1303-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1303-
