7-43 — SUN VISOR AND ASSIST GRIP (#115494) — 38 parça

152 357 355 138 344 356 356 344 1 15 356 128 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.742 BOARD; HEADER SHELF HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY	8-97994-818-1	01	1	1302-
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> (A) LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	1302-
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	1302-
128	16.742 FASTENER; HEADER SHELF HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY	8-97892-153-2	02	1	1302-
138	16.742 NUT; BRKT,HEADER SHELF HEADER TRAY DRIVER & PASSENGER<8LY> 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-
152	16.450 CLIP; BRKT HEADER TRAY DRIVER & PASSENGER<8LY> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	1302-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 (B) SCREW M6X16	0-38050-616-0	04	1	1302-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 16.263 (A) SCREW M5X16	8-94279-341-0	02	1	1302-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> M6X16 W/TORQUES	8-98064-273-0	03	1	1302-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97856-797-3	01	1	1302-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97856-798-3	01	1	1302-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-97859-388-4	01	1	1302-
357	16.742 COVER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY> EXC. ROOF VENTILATOR<C55> 16.450 LIGHT GRAY	8-97867-250-0	01	1	1302-

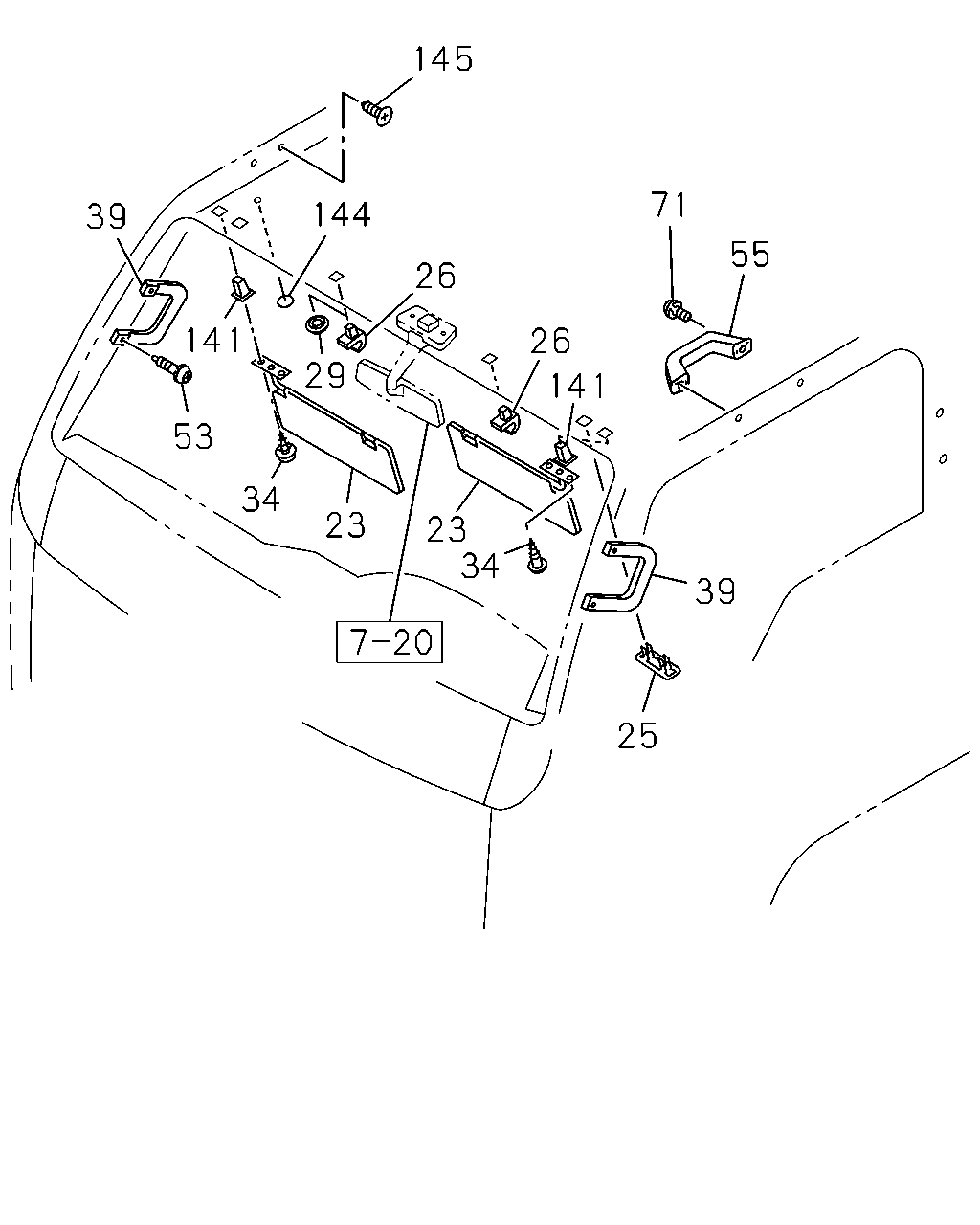

145 71 55 144 26 26 141 39 25 34 23 23 34 53 141 39 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY	8-97404-452-0	01	1	1302-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY	8-97404-450-0	01	1	1302-
23	16.070 SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY	8-97404-400-0	01	1	1302-
23	16.070 SUN VISOR EXC. HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY	8-97404-398-0	01	1	1302-
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-201-3	01	1	1302-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-198-2	02	1	1302-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	02	1	1302-
26	16.070 HOLDER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	1302-
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1302-
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.547 OD=15.0	8-94279-040-0	01	1	1302-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	1302-
34	16.070 SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	1302-
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 06.514 M5X18 TAPPING	0-72180-518-0	02	1	1302-
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	1302-
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1302-
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1302-
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	1302-
141	16.070 COVER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	1302-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	1302-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	1302-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.588	8-94279-039-0	02	1	1302-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1302-
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1302-1312
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1401-
145	16.070 PLUG; HOLE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	1302-
