Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#115491) — 708 parça

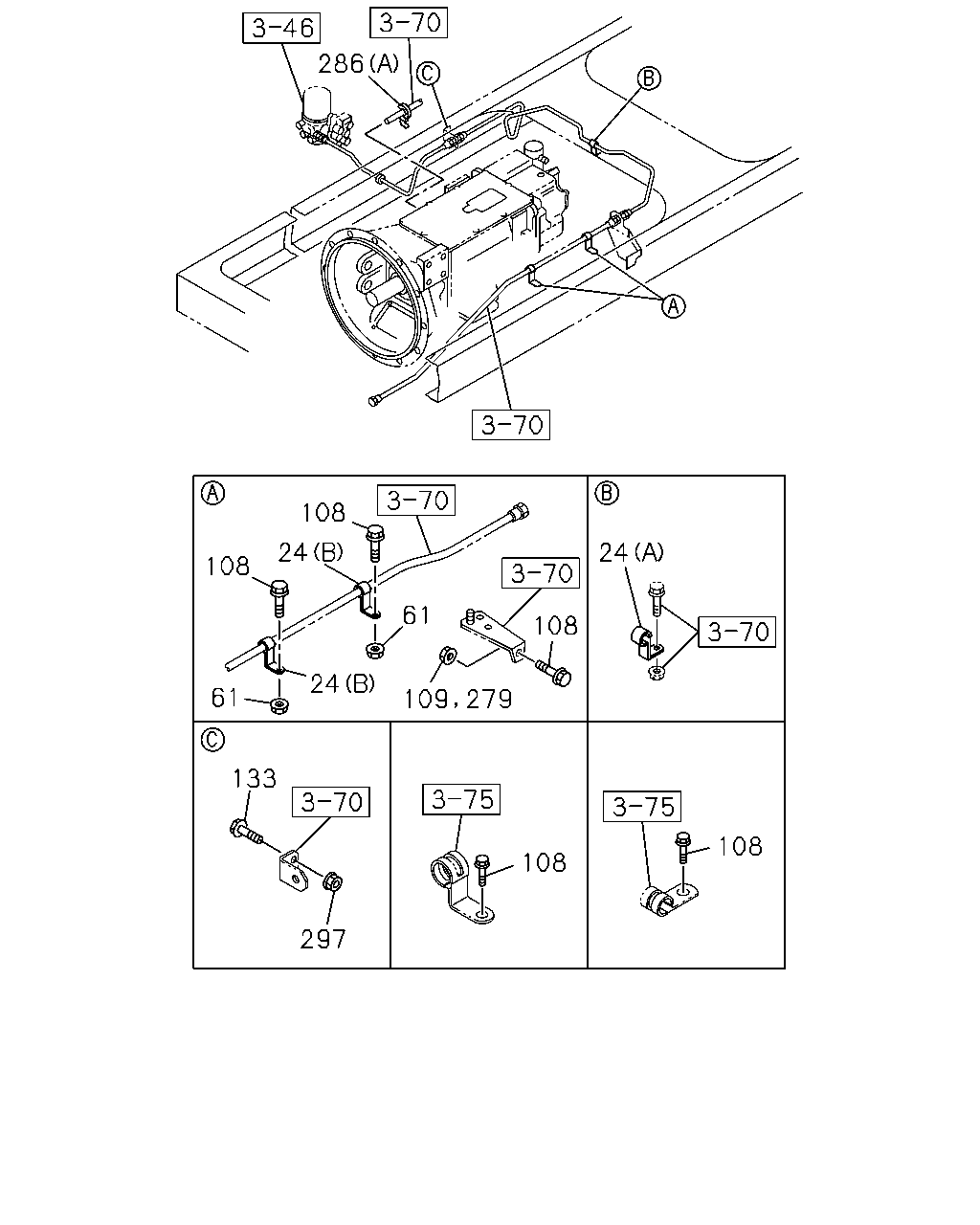

286 108 108 61 133 297 108 108 109 279 24 24 61 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-1511	●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1512-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1303-1511	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1512-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1303-1511	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1512-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
133	BOLT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1512-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-1511	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1512-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1512-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1512-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1303-1511	●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1512-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-1511	●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1512-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1512-		●
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1303-1511	●
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
286	CLIP; NYLON TUBE (A) ID=15 & 7	1-09709-311-0	01	1	1303-1511	●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) ID=15 & 7	1-09709-311-0	01	1	1512-	●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1512-		●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1512-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	07	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1512-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1512-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	02	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-		●

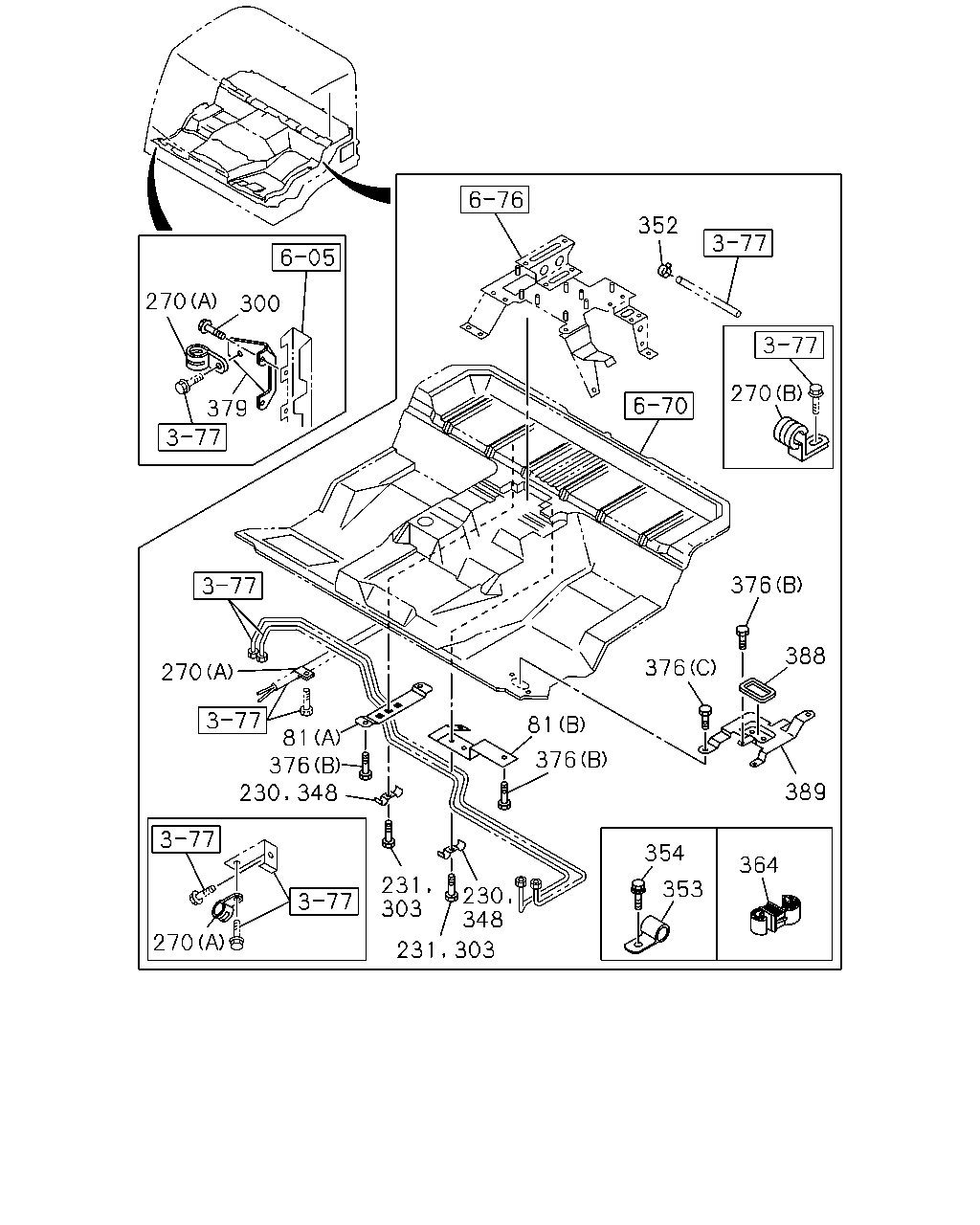

270 300 379 270 81 376 230 348 270 231 303 231 303 348 230 353 354 364 389 388 376 376 376 81 270 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (H)	8-98052-412-0	01	1	1512-	●
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1512-		●
81	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98052-414-0	01	1	1512-	●
81	BRACKET; CLIP (F)	8-98052-414-0	01	1	1512-		●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1303-1511	●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1512-	●	●
81	BRACKET; CLIP (D)	1-47478-113-0	01	1	1303-1511	●
81	BRACKET; CLIP (D)	1-47478-113-0	01	1	1512-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1303-1511	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1512-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1303-1511	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1512-	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1303-1511	●
81	BRACKET; CLIP TAIWAN EQUIPMENT(WW5) (F)	8-98043-314-0	01	1	1512-	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1303-1511	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1512-	●	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1303-1511	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1512-	●	●
230	CLIP; PIPE,AIR FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1512-	●
231	BOLT; CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1512-	●
270	CLIP; NYLON TUBE MAP6U M/T(Y4B) (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1303-1511	●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1512-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1303-1511	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1512-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1303-1511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1512-	●	●
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1303-1511	●
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1512-	●	●
303	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1512-	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1303-1511	●
303	BOLT; PIPE CLIP EXC. FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1512-	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1512-		●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	1303-1511	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	1512-	●	●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1303-1511	●
348	CLIP; AIR PIPE EXC. FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1512-	●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1512-		●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1303-1511	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1512-	●	●
353	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=9 L=16	0-95234-822-0	01	1	1512-	●
354	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1512-	●
364	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=8.3 & 10	8-94176-792-0	01	1	1512-	●
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1303-1511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1512-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1303-1511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1512-	●	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1303-1511	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1512-	●	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	1303-1511	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	1512-	●	●
388	SEAL MAP6U M/T(Y4B) L=215	1-79738-794-1	01	1	1303-1511	●
388	SEAL MJT7S M/T(Y3E),MAP6U M/T(Y4B) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=215	1-79738-794-1	01	1	1512-	●
388	SEAL MJT7S M/T(Y3E) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=215	1-79738-794-1	01	1	1512-		●
389	BRACKET; UNION MAP6U M/T(Y4B)	1-79738-795-1	01	1	1303-1510	●
389	BRACKET; UNION	1-79738-795-1	01	1	1511-1511	●
389	BRACKET; UNION TRANSMISSION CONTROL CABLE TYPE(C1A)	1-79738-795-1	01	1	1512-	●	●

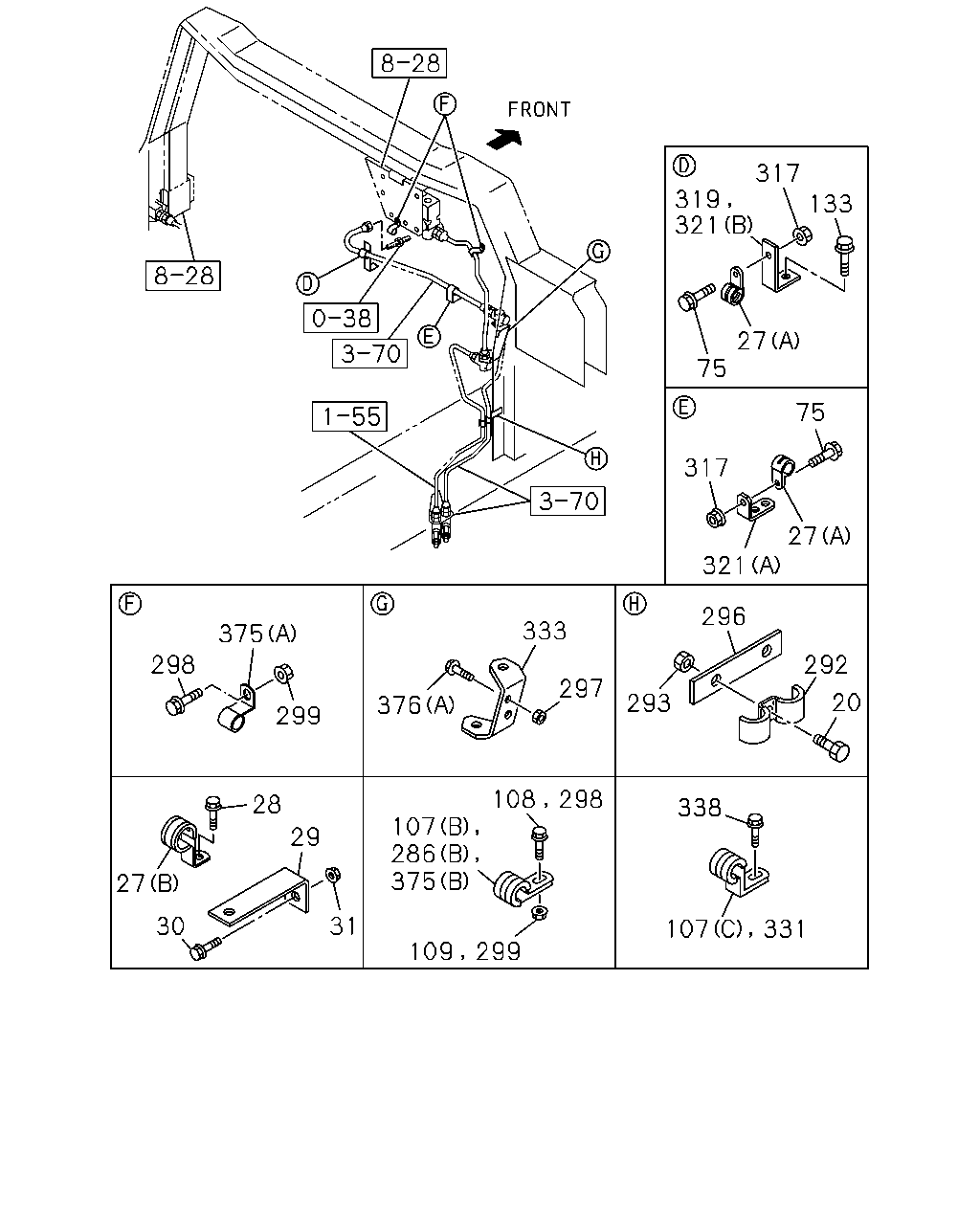

109 299 31 30 27 28 29 299 375 298 376 108 107 286 375 298 338 107 331 20 292 293 296 7 333 297 317 321 75 27 75 321 319 317 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
27	CLIP; FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1512-	●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1512-		●
27	CLIP; FLEX HOSE (A) ID=26 L=27	1-09701-006-0	01	1	1303-1511	●
27	CLIP; FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> (A) ID=26 L=27	1-09701-006-0	01	1	1512-	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1303-1511	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1512-	●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	1512-		●
28	BOLT; CLIP,FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
28	BOLT; CLIP,FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
29	BRACKET; CLIP,AIR PIPE L=95	1-82699-085-0	01	1	1303-1511	●
29	BRACKET; CLIP,AIR PIPE BATTERY LAYOUT REAR VAR1<NCT> L=95	1-82699-085-0	01	1	1512-	●
30	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
30	BOLT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
31	NUT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1512-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1512-	●

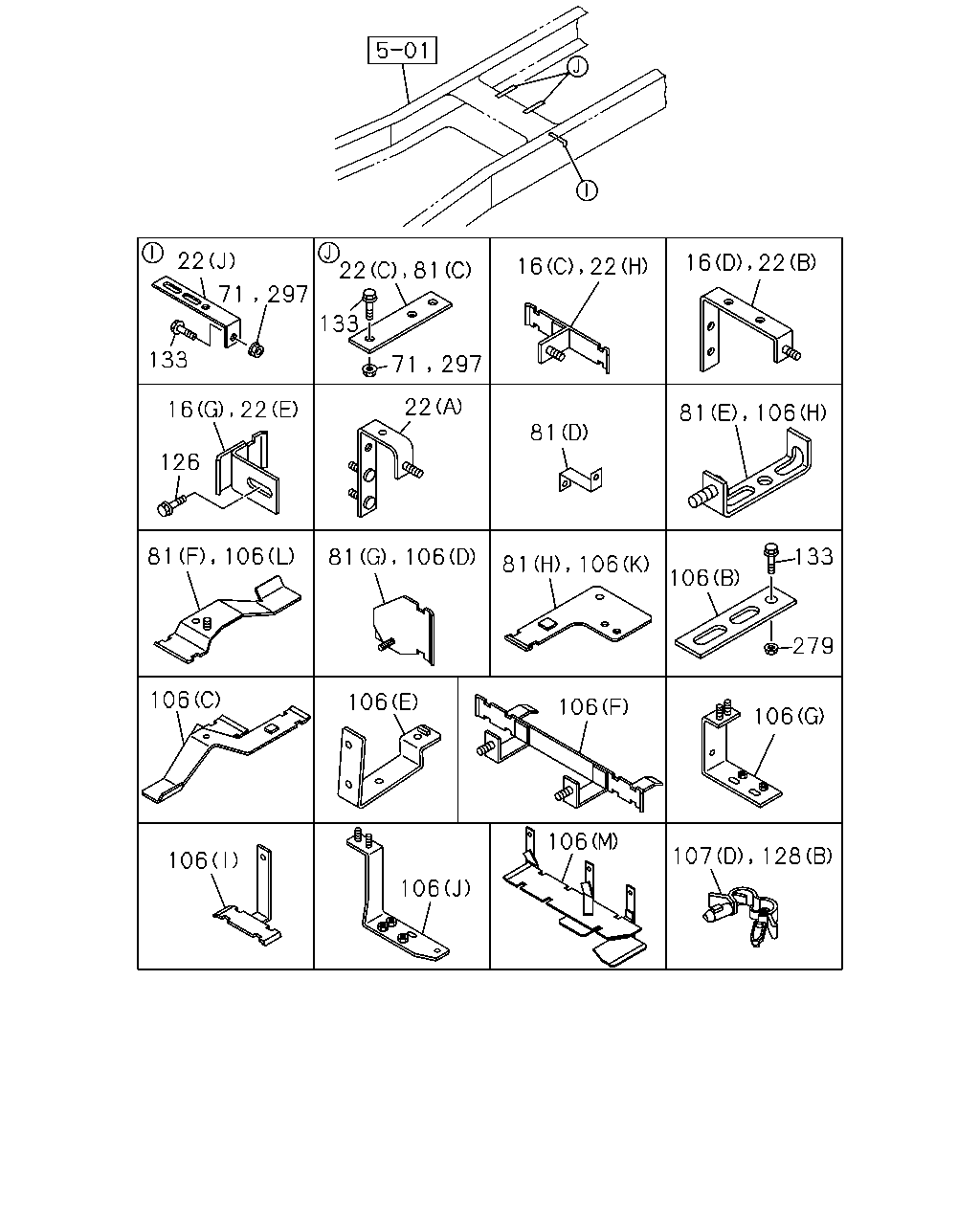

75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE TAIWAN EQUIPMENT(WW5) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1512-	●
107	CLIP; NYLON TUBE (B) ID=15 L=28	1-09701-216-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1303-1511	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1512-	●	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
108	BOLT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1303-1511	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1512-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
133	BOLT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1512-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-1511	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1512-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1512-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1512-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1303-1511	●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
286	CLIP; NYLON TUBE (A) ID=15 & 7	1-09709-311-0	01	1	1303-1511	●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) ID=15 & 7	1-09709-311-0	01	1	1512-	●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1512-		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1303-1511	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1512-	●	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
296	BRACKET; CLIP	1-47475-648-0	01	1	1303-1511	●
296	BRACKET; CLIP	1-47475-648-0	01	1	1512-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1512-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	07	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1512-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1512-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	02	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-		●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	1512-		●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1512-		●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1512-	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1512-		●
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	1512-		●
321	BRACKET; CLIP MAP6U M/T(Y4B) (A)	1-47477-337-1	01	1	1303-1511	●
321	BRACKET; CLIP MJX16P M/T(Y3Z),MAP6U M/T(Y4B) (A)	1-47477-337-1	01	1	1512-	●
321	BRACKET; CLIP MJX16P M/T(Y3Z) (A)	1-47477-337-1	01	1	1512-		●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1303-1511	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1512-	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	1512-		●
331	CLIP; NYLON TUBE ID=13 H=75 L=25	1-09700-601-0	02	1	1303-1511	●
331	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> ID=13 H=75 L=25	1-09700-601-0	02	1	1512-	●
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	1303-1511	●
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	1512-	●	●
338	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
338	BOLT; PIPE CLIP BATTERY LAYOUT REAR VAR1<NCT> M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	1512-		●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1512-		●
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1303-1511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1512-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1303-1511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1512-	●	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1303-1511	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1512-	●	●

126 133 16 16 22 22 270 2 61 74 16 22 18 20 18 21 20 127 16 126 269 269 16 74 16 22 22 133 21 297 357 106 74 128 107 269

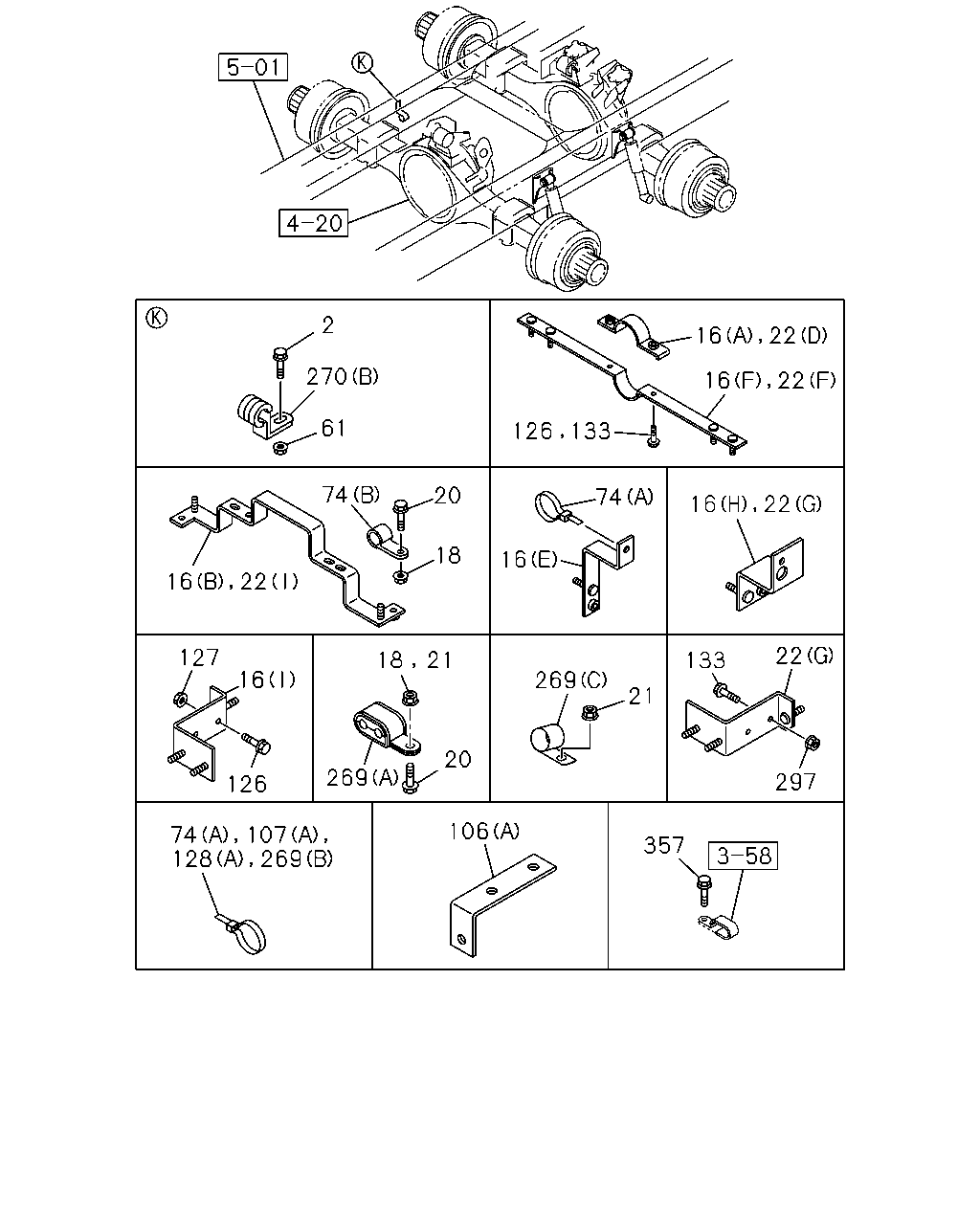

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1512-		●
16	BRACKET; PIPE CLIP EXC. TAIWAN EQUIPMENT(WW5) (I)	8-98142-172-0	01	1	1512-	●
16	BRACKET; PIPE CLIP (I)	8-98142-172-0	01	1	1512-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	1512-	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1303-1511	●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	1512-	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (D)	1-47479-800-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (D)	1-47479-800-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP TAIWAN EQUIPMENT(WW5) (E)	1-47479-721-0	01	1	1512-	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1303-1511	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1512-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	1303-1511	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	1512-	●	●
22	BRACKET; CLIP (C) L=150	1-47471-217-0	01	1	1512-		●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	1512-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (A)	1-47479-329-0	01	1	1512-		●
22	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (G)	8-98142-173-0	01	1	1512-	●
22	BRACKET; CLIP (G)	8-98142-173-0	01	1	1512-		●
22	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (J) L=100 H=30	1-47477-645-2	01	1	1512-	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	1512-		●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (J) L=100 H=30	1-47477-645-2	02	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (C) L=150	1-47471-217-0	03	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1303-	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (C) L=150	1-47471-217-0	02	1	1303-1511	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (C) L=150	1-47471-217-0	02	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=150	1-47471-217-0	02	1	1512-	●
22	BRACKET; CLIP (D)	1-47479-546-0	01	1	1303-1511	●
22	BRACKET; CLIP (D)	1-47479-546-0	01	1	1512-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1303-1511	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1512-	●	●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	1303-1511	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	1512-	●
22	BRACKET; CLIP (F)	1-47479-720-0	01	1	1303-1511	●
22	BRACKET; CLIP (F)	1-47479-720-0	01	1	1512-	●	●
22	BRACKET; CLIP (G)	1-47479-722-1	01	1	1303-1511	●
22	BRACKET; CLIP TAIWAN EQUIPMENT(WW5) (G)	1-47479-722-1	01	1	1512-	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1303-1511	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1512-	●	●
22	BRACKET; CLIP (I)	1-47479-898-0	01	1	1303-1511	●
22	BRACKET; CLIP (I)	1-47479-898-0	01	1	1512-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1303-1511	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1512-	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	AR	1	1512-	●	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (J)	1-47471-108-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (J)	1-47471-108-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (I)	1-47479-870-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (I)	1-47479-870-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) (M)	8-98243-283-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (M)	8-98243-283-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. TAIWAN EQUIPMENT(WW5) (L)	8-98052-410-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (L)	8-98052-410-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. TAIWAN EQUIPMENT(WW5) (K)	8-98297-188-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (K)	8-98297-188-0	01	1	1512-		●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	1303-1511	●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	1512-	●	●
106	BRACKET; TUBE CLIP (A) L=82 B=20	1-47478-420-0	01	1	1303-1404	●
106	BRACKET; TUBE CLIP (A) L=82 B=20	8-98259-390-0	01	1	1405-1511	●
106	BRACKET; TUBE CLIP (A) L=82 B=20	8-98259-390-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-553-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (F)	1-47479-553-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (G)	1-47479-754-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (G)	1-47479-754-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (C)	8-98043-312-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP TAIWAN EQUIPMENT(WW5) (C)	8-98043-312-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (E)	8-98224-856-1	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (E)	8-98224-856-1	01	1	1512-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE TAIWAN EQUIPMENT(WW5) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1512-	●
107	CLIP; NYLON TUBE (B) ID=15 L=28	1-09701-216-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1303-1511	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1512-	●	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
126	BOLT; CLIP BRKT TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	1512-		●
127	NUT; CLIP BRKT EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	02	1	1512-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1512-		●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	05	1	1512-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1303-1511	●
127	NUT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	04	1	1512-	●
128	CLIP; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
128	CLIP; NYLON TUBE (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
128	CLIP; NYLON TUBE (B) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511	●
128	CLIP; NYLON TUBE TAIWAN EQUIPMENT(WW5) (B) ID=5-12 L=18	1-09709-287-0	02	1	1512-	●
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	AR	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1512-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
133	BOLT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1512-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-1511	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1512-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1512-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1512-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1303-1511	●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1303-1511	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1512-	●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1303-1511	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1512-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1303-1511	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1512-	●	●
270	CLIP; NYLON TUBE MAP6U M/T(Y4B) (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1303-1511	●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1512-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1303-1511	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1512-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1303-1511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1512-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1512-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	07	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1512-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1512-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	02	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1303-1511	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1512-	●	●

22 71 297 133 16 22 126 81 106 22 81 133 71 297 22 81 106 106 106 106 106 106 106 81 106 81 16 22 16 22 81 106 106 133 279 106 107 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1512-		●
16	BRACKET; PIPE CLIP EXC. TAIWAN EQUIPMENT(WW5) (I)	8-98142-172-0	01	1	1512-	●
16	BRACKET; PIPE CLIP (I)	8-98142-172-0	01	1	1512-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	1512-	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1303-1511	●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	1512-	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (D)	1-47479-800-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (D)	1-47479-800-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1303-1511	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1512-	●	●
16	BRACKET; PIPE CLIP TAIWAN EQUIPMENT(WW5) (E)	1-47479-721-0	01	1	1512-	●
22	BRACKET; CLIP (C) L=150	1-47471-217-0	01	1	1512-		●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	1512-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (A)	1-47479-329-0	01	1	1512-		●
22	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (G)	8-98142-173-0	01	1	1512-	●
22	BRACKET; CLIP (G)	8-98142-173-0	01	1	1512-		●
22	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (J) L=100 H=30	1-47477-645-2	01	1	1512-	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	1512-		●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (J) L=100 H=30	1-47477-645-2	02	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (C) L=150	1-47471-217-0	03	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1303-	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (C) L=150	1-47471-217-0	02	1	1303-1511	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (C) L=150	1-47471-217-0	02	1	1512-	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=150	1-47471-217-0	02	1	1512-	●
22	BRACKET; CLIP (D)	1-47479-546-0	01	1	1303-1511	●
22	BRACKET; CLIP (D)	1-47479-546-0	01	1	1512-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1303-1511	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1512-	●	●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	1303-1511	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	1512-	●
22	BRACKET; CLIP (F)	1-47479-720-0	01	1	1303-1511	●
22	BRACKET; CLIP (F)	1-47479-720-0	01	1	1512-	●	●
22	BRACKET; CLIP (G)	1-47479-722-1	01	1	1303-1511	●
22	BRACKET; CLIP TAIWAN EQUIPMENT(WW5) (G)	1-47479-722-1	01	1	1512-	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1303-1511	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1512-	●	●
22	BRACKET; CLIP (I)	1-47479-898-0	01	1	1303-1511	●
22	BRACKET; CLIP (I)	1-47479-898-0	01	1	1512-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1303-1511	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1512-	●	●
81	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (H)	8-98052-412-0	01	1	1512-	●
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1512-		●
81	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98052-414-0	01	1	1512-	●
81	BRACKET; CLIP (F)	8-98052-414-0	01	1	1512-		●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1303-1511	●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1512-	●	●
81	BRACKET; CLIP (D)	1-47478-113-0	01	1	1303-1511	●
81	BRACKET; CLIP (D)	1-47478-113-0	01	1	1512-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1303-1511	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1512-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1303-1511	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1512-	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1303-1511	●
81	BRACKET; CLIP TAIWAN EQUIPMENT(WW5) (F)	8-98043-314-0	01	1	1512-	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1303-1511	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1512-	●	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1303-1511	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1512-	●	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (J)	1-47471-108-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (J)	1-47471-108-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (I)	1-47479-870-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (I)	1-47479-870-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) (M)	8-98243-283-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (M)	8-98243-283-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. TAIWAN EQUIPMENT(WW5) (L)	8-98052-410-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (L)	8-98052-410-0	01	1	1512-		●
106	BRACKET; TUBE CLIP EXC. TAIWAN EQUIPMENT(WW5) (K)	8-98297-188-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (K)	8-98297-188-0	01	1	1512-		●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	1303-1511	●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	1512-	●	●
106	BRACKET; TUBE CLIP (A) L=82 B=20	1-47478-420-0	01	1	1303-1404	●
106	BRACKET; TUBE CLIP (A) L=82 B=20	8-98259-390-0	01	1	1405-1511	●
106	BRACKET; TUBE CLIP (A) L=82 B=20	8-98259-390-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-553-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (F)	1-47479-553-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (G)	1-47479-754-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (G)	1-47479-754-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (C)	8-98043-312-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP TAIWAN EQUIPMENT(WW5) (C)	8-98043-312-0	01	1	1512-	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1512-	●	●
106	BRACKET; TUBE CLIP (E)	8-98224-856-1	01	1	1303-1511	●
106	BRACKET; TUBE CLIP (E)	8-98224-856-1	01	1	1512-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE TAIWAN EQUIPMENT(WW5) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1512-	●
107	CLIP; NYLON TUBE (B) ID=15 L=28	1-09701-216-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1512-		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1303-1511	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1512-	●	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1303-1511	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1512-	●	●
107	CLIP; NYLON TUBE (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-1511	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
126	BOLT; CLIP BRKT TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
128	CLIP; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
128	CLIP; NYLON TUBE (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
128	CLIP; NYLON TUBE (B) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511	●
128	CLIP; NYLON TUBE TAIWAN EQUIPMENT(WW5) (B) ID=5-12 L=18	1-09709-287-0	02	1	1512-	●
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	AR	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1512-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
133	BOLT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1512-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-1511	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1512-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1512-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1512-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1303-1511	●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
133	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1512-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-1511	●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1512-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1512-		●
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1303-1511	●
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	08	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1512-	●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1512-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	07	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1512-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1512-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
297	NUT; BRKT EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	02	1	1512-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
