6-76 — FLOOR EQUIPMENT AND SEALING (#115482) — 19 parça

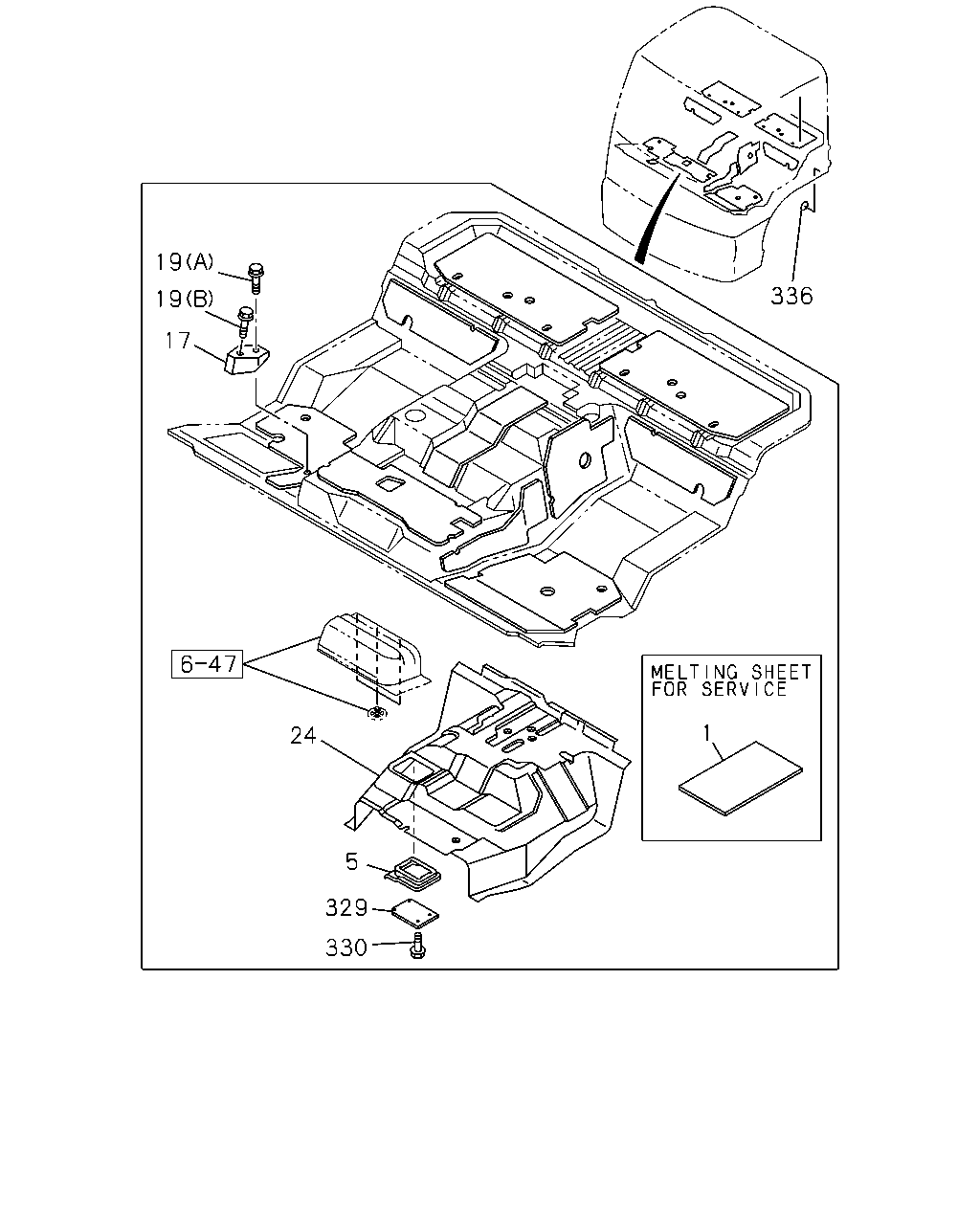

çizim 336654
19 17 19 24 5 329 330 336 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 1303-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 1303-
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 1303-
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1303-
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 1303-
24 INSULATOR; HEAT,FRT 1-71907-711-2 01 1 1303-
329 BRACKET; PANEL 1-33619-465-0 01 1 1303-
330 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1303-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 1303-
çizim 337230
211 326 141 211 366 342 144 146 144 146
BalonParca AdiParca NoAdetTipApplied Date
141 HOLDER 1-79907-076-2 01 1 1303-
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 1303-
144 COVER; HAND BRK VLV
(A) 		8-98239-343-0 01 1 1303-
144 COVER; HAND BRK VLV
(A) 		8-98239-343-0 AR 1 1302-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 1303-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1303-
326 SEAL; COVER 1-79997-978-1 01 1 1303-
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 1303-
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 1303-
