3-60 — BRAKE PIPING; VACUUM (#115481) — 55 parça

85 66 39 80 66 136 136 122 136 44 70 106 106 136 136 78 128 136 136 122 136 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

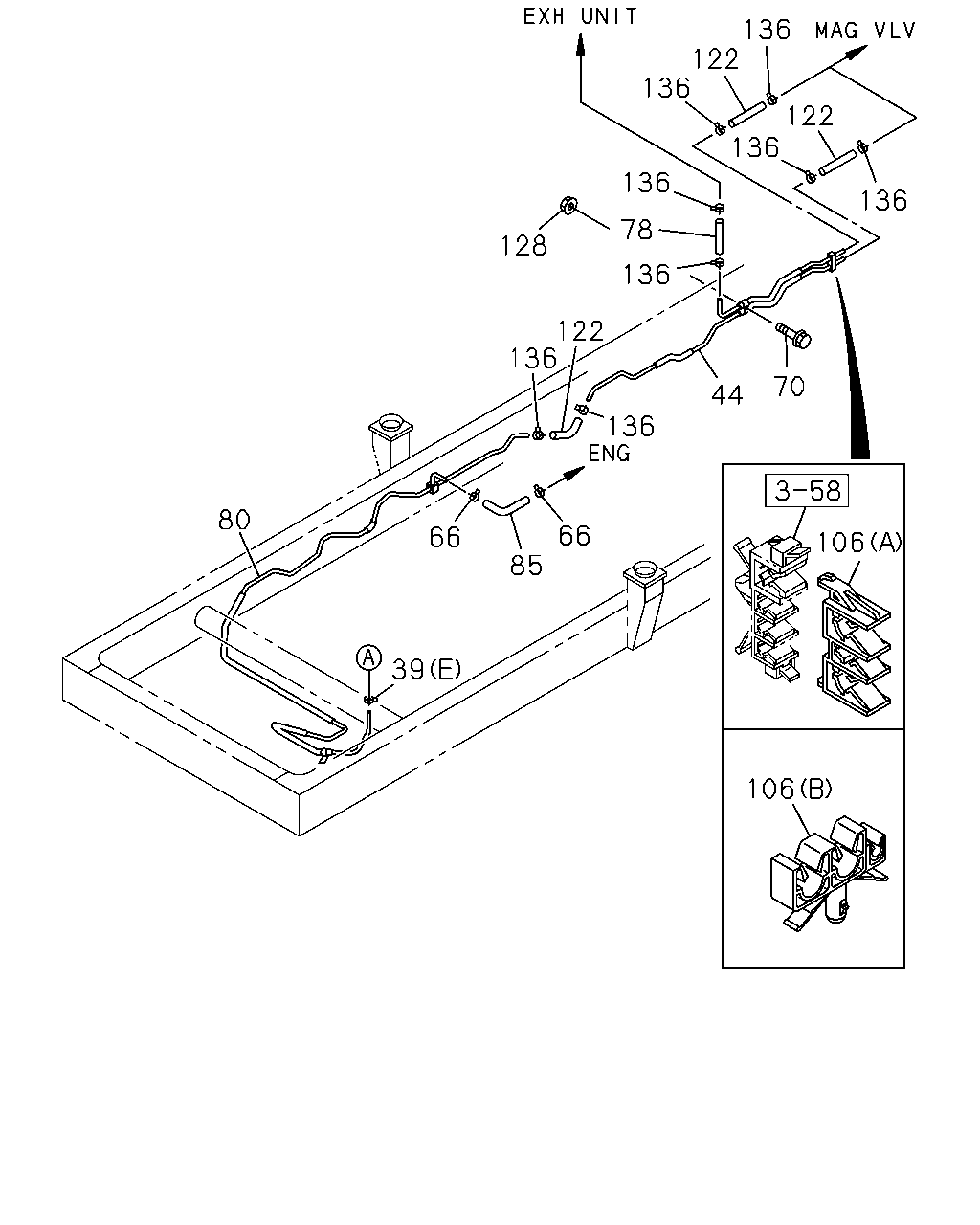

39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1302-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1302-
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1302-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1302-
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1302-
44	04.930 PIPE; VAC,MAG VLV EXC. REAR WIDE TREAD(V4T) 04.685	8-97325-995-1	01	1	1309-
44	04.930 PIPE; VAC,MAG VLV 04.685	8-97325-999-1	01	1	1302-1308
44	04.930 PIPE; VAC,MAG VLV REAR WIDE TREAD(V4T) 04.685	8-97325-999-1	01	1	1309-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1302-
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1302-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. REAR WIDE TREAD(V4T) 03.630 L=510 SERVICED BY L=3000	0-08258-300-0	01	1	1309-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 L=380 SERVICED BY L=3000	0-08258-300-0	01	1	1302-1308
78	04.931 HOSE; VAC,PIPE TO PIPE REAR WIDE TREAD(V4T) 03.630 L=380 SERVICED BY L=3000	0-08258-300-0	01	1	1309-
80	04.930 PIPE; VAC,ENG SIDE	8-97325-988-0	01	1	1302-
85	04.931 HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	1302-
106	04.930 CLIP; PIPE EXC. REAR WIDE TREAD(V4T) (B) ID=10X2 & 4.76	8-97170-259-0	02	1	1309-
106	04.930 CLIP; PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1302-1308
106	04.930 CLIP; PIPE REAR WIDE TREAD(V4T) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1309-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	03	1	1302-1308
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE REAR WIDE TREAD(V4T) 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	03	1	1309-1309
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	03	1	1309-
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1302-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	08	1	1302-1308
136	04.681 CLIP; VAC HOSE REAR WIDE TREAD(V4T) 03.162 ID=16	8-98008-098-0	08	1	1309-1309
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	08	1	1309-

165 184 200 166 249 155 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

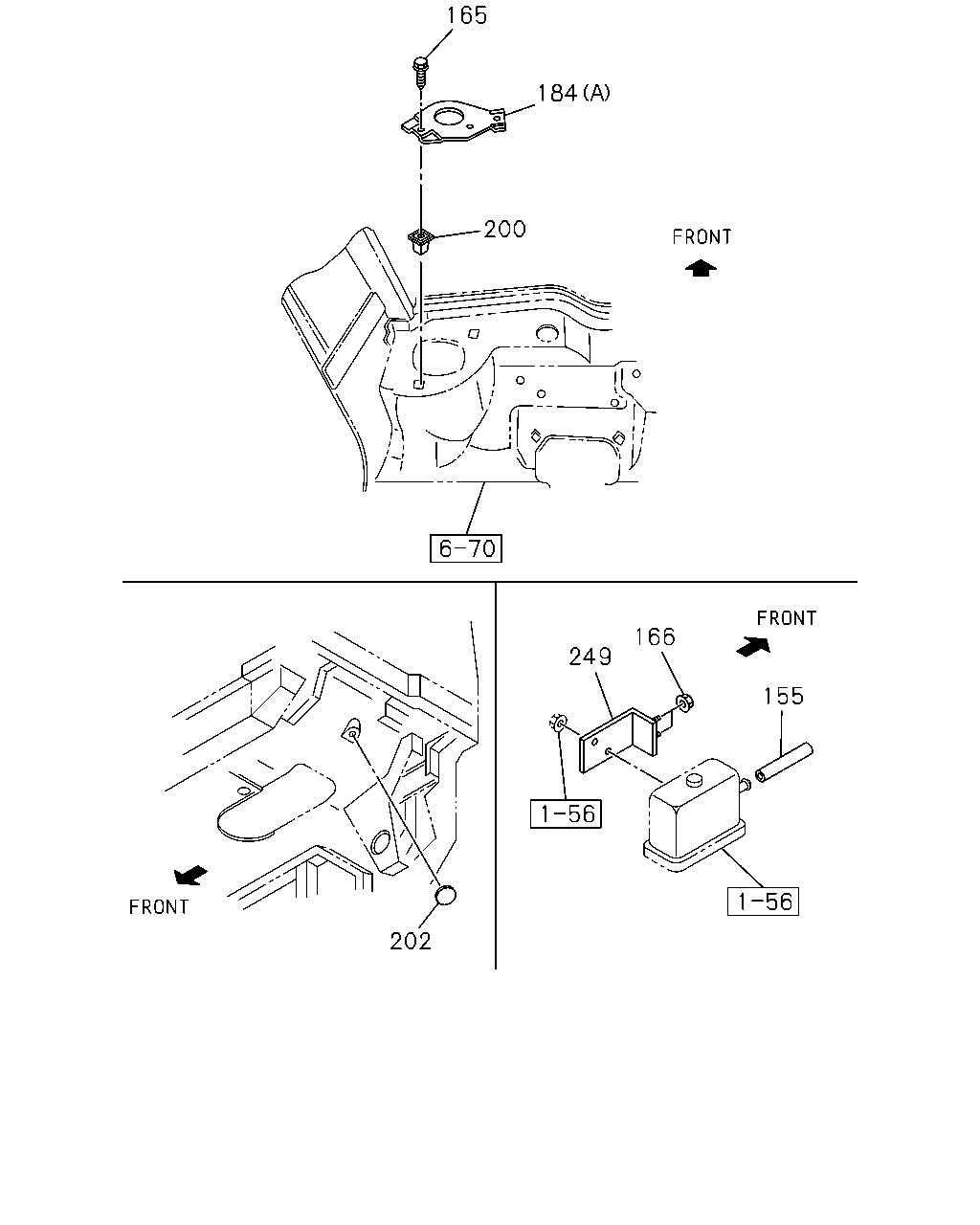

155	04.931 HOSE; VAC,AIR FILTER 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1302-
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1302-
165	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1302-1308
165	04.686 BOLT; BRKT REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1302-
166	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-1308
166	04.686 NUT; BRKT REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1302-
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1302-
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	1302-
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-
249	04.686 BRACKET; VAC,AIR FILTER 03.634	8-97106-474-2	01	1	1302-1308
249	04.686 BRACKET; VAC,AIR FILTER REAR WIDE TREAD(V4T) 03.634	8-97106-474-2	01	1	1309-

116 12 203 13 12 12 39 39 165 184 39 39 116 173 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

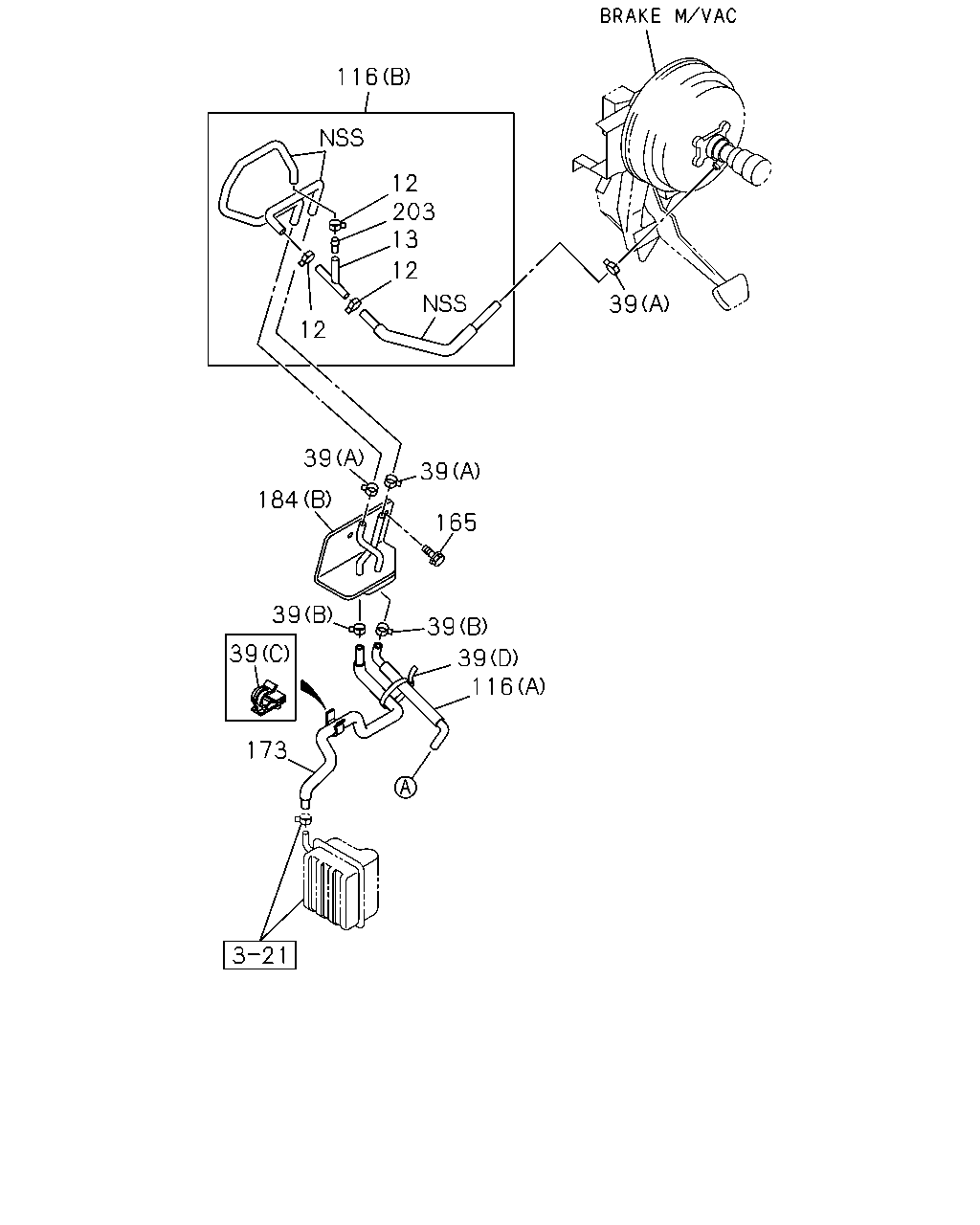

12	04.681 CLIP; HOSE 04.930 ID=14.5	8-94167-480-0	03	1	1302-
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	1302-
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1302-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1302-
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1302-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1302-
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1302-
116	04.931 HOSE; VAC,M/VAC (A)	8-97078-785-0	01	1	1302-
116	04.931 HOSE; VAC,M/VAC (B)	8-97314-597-1	01	1	1302-
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1302-
165	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1302-1308
165	04.686 BOLT; BRKT REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1302-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	1302-
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1302-
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1302-
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	1302-
