3-26 — TRAILER CONTROL (#115477) — 98 parça

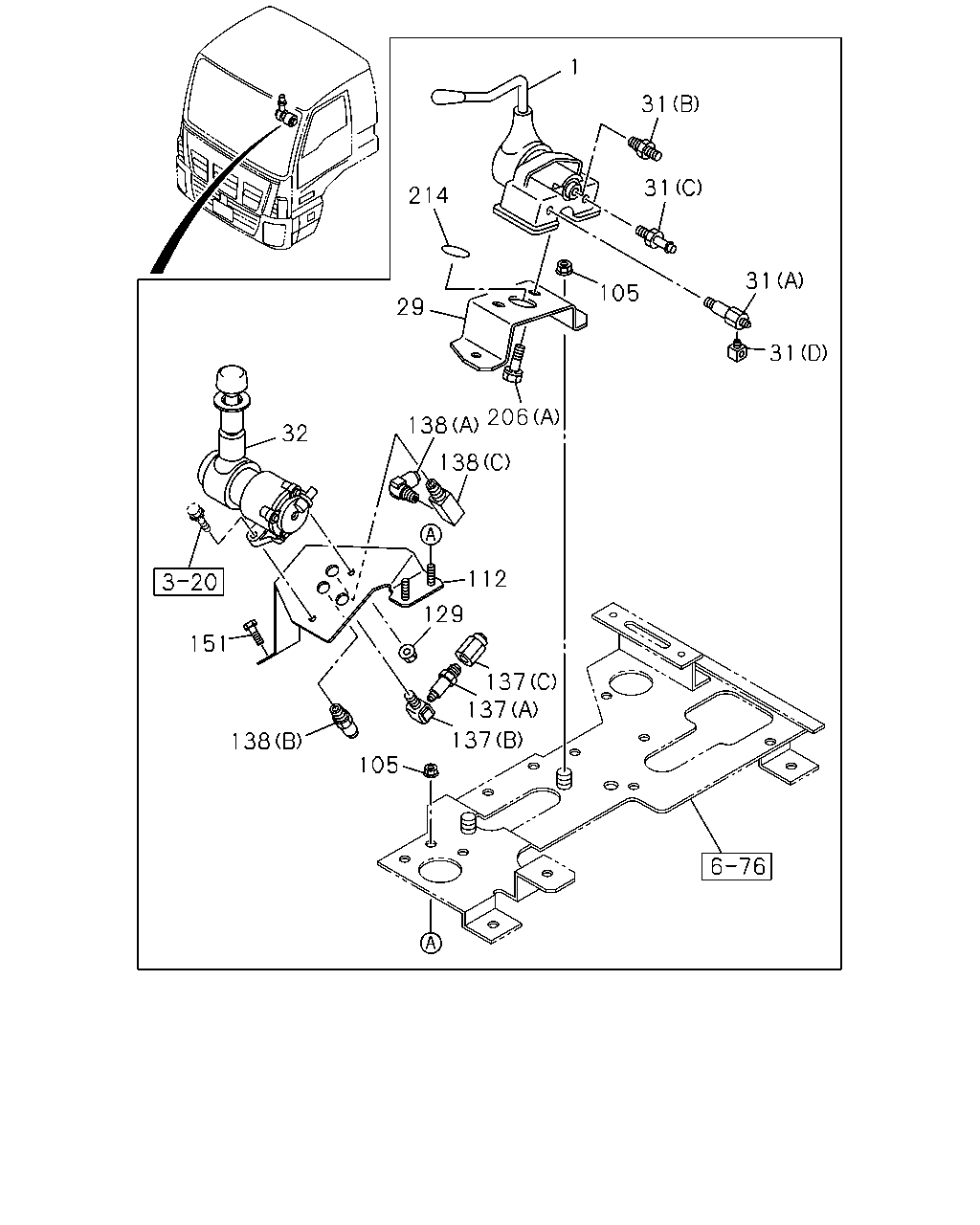

çizim 336304
1 214 31 31 31 31 29 105 138 206 138 32 151 112 129 137 137 137 138 105
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-859-0 01 1 1303-
29 BRACKET; HAND BRK 1-79997-357-1 01 1 1303-
31 CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 1303-
31 CONNECTOR; HAND BRK VLV
(A) M14 		1-09656-391-2 01 1 1303-
31 CONNECTOR; HAND BRK VLV
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1303-
31 CONNECTOR; HAND BRK VLV
(C) L=45 		8-94338-874-0 01 1 1303-
32 VALVE; BRK,HAND CONT 1-48460-339-1 01 1 1303-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
112 BRACKET; CONT VLV 1-79996-387-0 01 1 1303-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 01 1 1303-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1303-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 03 1 1303-
137 CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 1303-
137 CONNECTOR; SUPPLY
(B) PT1/4 2WAY 		1-09660-693-0 01 1 1303-
137 CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1303-
138 CONNECTOR; DELIVERY
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1303-
138 CONNECTOR; DELIVERY
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1303-
138 CONNECTOR; DELIVERY
(C) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1303-
151 BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1303-
206 BOLT; HAND BRK VALVE
(A) M10X20 W/LK WASHER 		0-50541-020-0 02 1 1303-
206 BOLT; HAND BRK VALVE
(B) 		1-48469-160-0 01 1 1303-
214 SEAL; COVER,HAND BRK
OD=25 BLACK 		1-76798-019-0 01 1 1303-

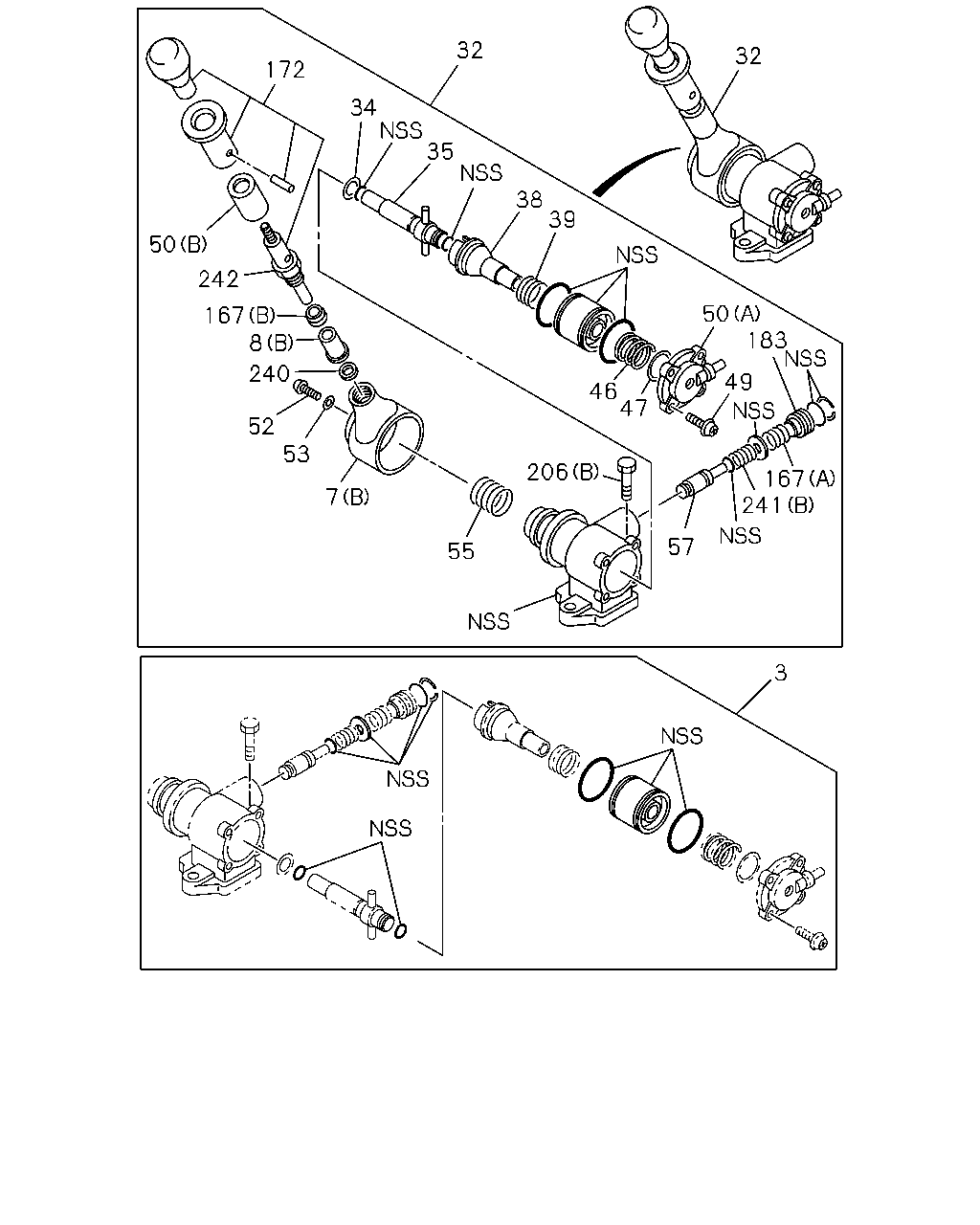

çizim 336306
172 32 35 34 38 50 39 183 49 167 241 57 206 46 3 47 32 53 52 240 8 167 242 50 55 7
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV 1-85576-376-0 01 1 1303-
7 HEAD; BRK VLV
(A) 		1-48119-577-1 01 1 1303-
7 HEAD; BRK VLV
(B) 		1-48469-201-0 01 1 1303-
8 STOPPER; BRK VLV
(A) 		1-48119-327-0 01 1 1303-
8 STOPPER; BRK VLV
(B) 		1-48469-200-0 01 1 1303-
32 VALVE; BRK,HAND CONT 1-48460-339-1 01 1 1303-
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 1303-
35 HOLDER; CAM 1-48469-171-0 01 1 1303-
38 SEAT; EXH VLV 1-48469-172-0 01 1 1303-
39 SPRING; RETURN,CAM RING 1-48469-150-0 01 1 1303-
46 SPRING; MAIN,PISTON 1-48469-173-0 01 1 1303-
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 1303-
49 SCREW; COVER 1-48469-169-0 04 1 1303-
50 COVER; HAND BRK VLV
(A) 		1-48469-153-0 01 1 1303-
50 COVER; HAND BRK VLV
(B) 		1-48469-196-0 01 1 1303-
52 SCREW; HANDLE 1-48469-062-0 01 1 1303-
53 WASHER; HANDLE 1-48469-061-0 01 1 1303-
55 SPRING; RETURN,HANDLE 1-48469-155-0 01 1 1303-
57 PLUNGER; HAND BRK VLV 1-48469-180-0 01 1 1303-
167 SPRING; VALVE
(A) 		1-48469-177-0 01 1 1303-
167 SPRING; VALVE
(B) 		1-48469-184-0 01 1 1303-
172 KNOB; VALVE 1-48469-203-0 01 1 1303-
183 RETAINER; VALVE 1-48469-185-0 01 1 1303-
206 BOLT; HAND BRK VALVE
(A) M10X20 W/LK WASHER 		0-50541-020-0 02 1 1303-
206 BOLT; HAND BRK VALVE
(B) 		1-48469-160-0 01 1 1303-
240 RING; STOPPER 1-48469-199-0 01 1 1303-
241 SPRING; RETURN
(A) 		1-48119-576-0 01 1 1303-
241 SPRING; RETURN
(B) 		1-48469-182-0 01 1 1303-
242 NUT; LK 1-48469-179-0 01 1 1303-

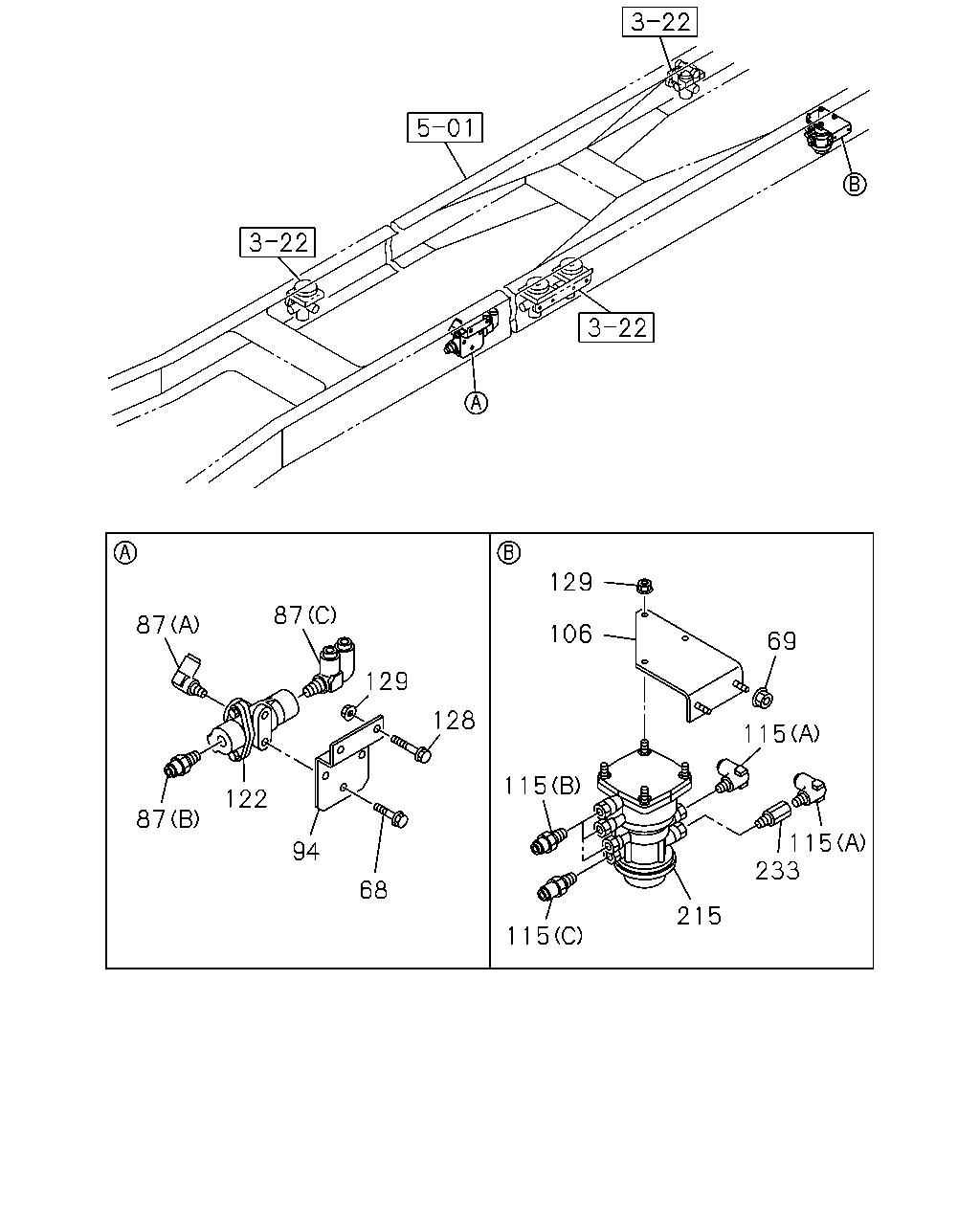

çizim 336310
87 87 87 94 68 128 129 122 115 115 106 129 69 115 115 233 215
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; DOUBLE CHECK VLV
M8X14 FLANGE 		0-28080-814-0 02 1 1303-
69 NUT; VLV BRKT
M10 FLANGE 		0-91180-210-0 02 1 1303-
87 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1303-
87 CONNECTOR; DBL CHECK VLV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1303-
87 CONNECTOR; DBL CHECK VLV
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1303-
94 BRACKET; CHECK VLV 1-47479-367-0 01 1 1303-
106 BRACKET; VLV 8-98110-679-1 01 1 1303-
115 CONNECTOR; DUAL RELAY VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1303-
115 CONNECTOR; DUAL RELAY VLV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 03 1 1303-
115 CONNECTOR; DUAL RELAY VLV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1303-
122 VALVE ASM; DOUBLE CHECK 1-48410-531-1 01 1 1303-
128 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1303-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 01 1 1303-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1303-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 03 1 1303-
215 VALVE; TRAILER CONT 8-98091-694-0 01 1 1303-
233 ADAPTER; VLV
PT3/8 		1-48319-058-0 01 1 1303-
çizim 337118
180
BalonParca AdiParca NoAdetTipApplied Date
180 REPAIR KIT; RELAY VLV 1-85576-449-0 01 1 1303-

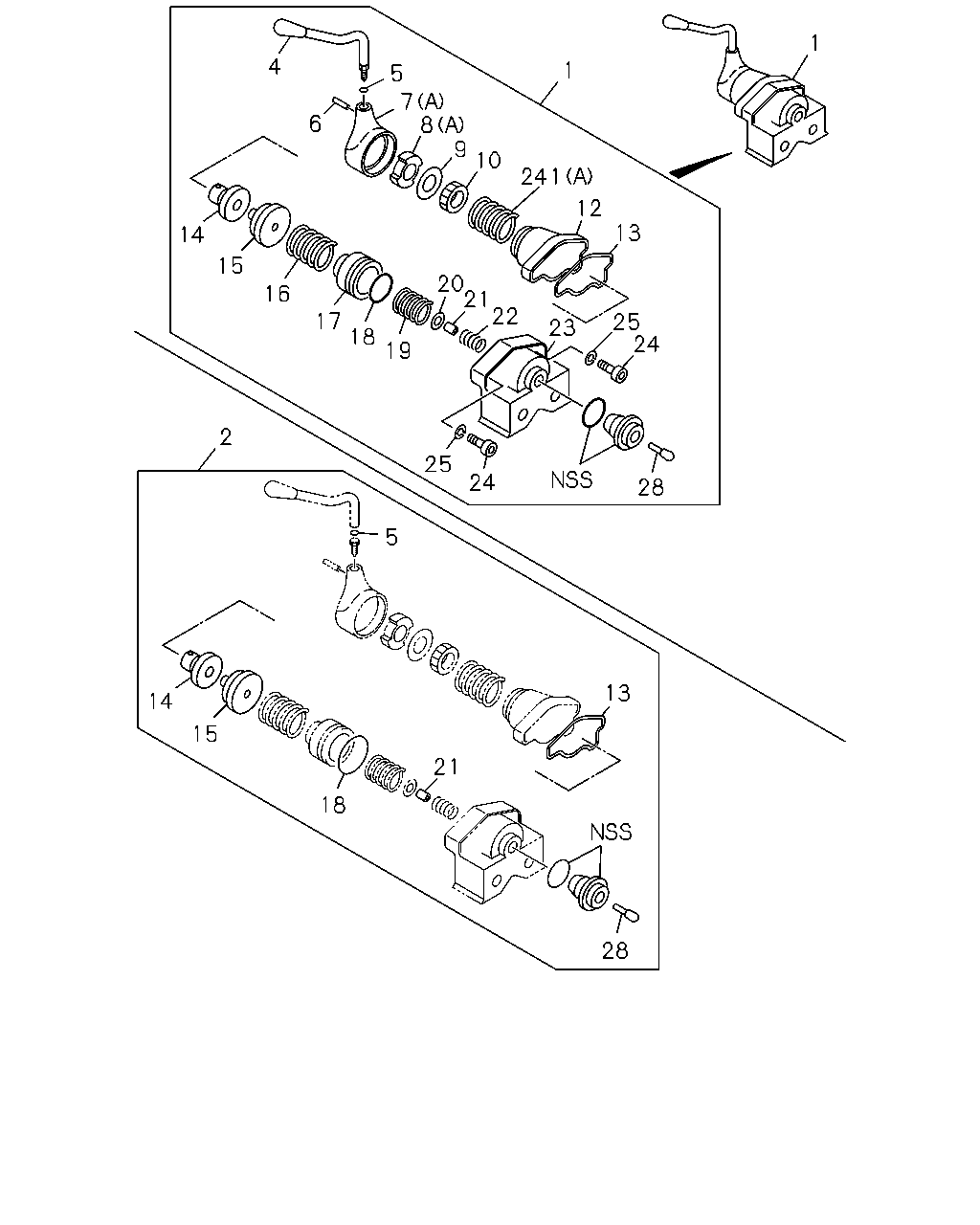

çizim 337160
1 1 4 5 6 7 8 9 10 241 12 13 14 15 16 17 18 19 25 24 20 21 22 23 25 24 2 5 13 14 15 18 21 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-859-0 01 1 1303-
2 REPAIR KIT; HAND BRK VLV 1-85576-305-0 01 1 1303-
4 HANDLE ASM; BRK VLV 1-48119-580-1 01 1 1303-
5 GASKET; HANDLE 1-48119-128-0 01 1 1303-
6 PIN; SPR 1-48119-143-0 01 1 1303-
7 HEAD; BRK VLV
(A) 		1-48119-577-1 01 1 1303-
7 HEAD; BRK VLV
(B) 		1-48469-201-0 01 1 1303-
8 STOPPER; BRK VLV
(A) 		1-48119-327-0 01 1 1303-
8 STOPPER; BRK VLV
(B) 		1-48469-200-0 01 1 1303-
9 WASHER; LK,ADJ 1-48119-123-0 01 1 1303-
10 RING; ADJ 1-48119-122-0 01 1 1303-
12 COVER; BRK VLV 1-48129-319-1 01 1 1303-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 1303-
14 FOLLOWER; CAM 1-48129-135-0 01 1 1303-
15 CAM; FOLLOWER 1-48129-134-0 01 1 1303-
16 SPRING; GRUDUATING 1-48129-101-0 01 1 1303-
17 PISTON; SPR 1-48129-095-0 01 1 1303-
18 GASKET; BODY 1-48129-096-0 01 1 1303-
19 SPRING; PISTON 1-48129-094-0 01 1 1303-
20 GUIDE; VLV 1-48129-090-0 01 1 1303-
21 VALVE; IN & EXH 1-48121-017-0 01 1 1303-
22 SPRING; VLV 1-48123-024-0 01 1 1303-
23 BODY; BRK VLV 1-48111-060-1 01 1 1303-
24 BOLT; EXH VLV 1-48129-092-0 02 1 1303-
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 1303-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 1303-
241 SPRING; RETURN
(A) 		1-48119-576-0 01 1 1303-
241 SPRING; RETURN
(B) 		1-48469-182-0 01 1 1303-
