◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#115473) — 18 parça

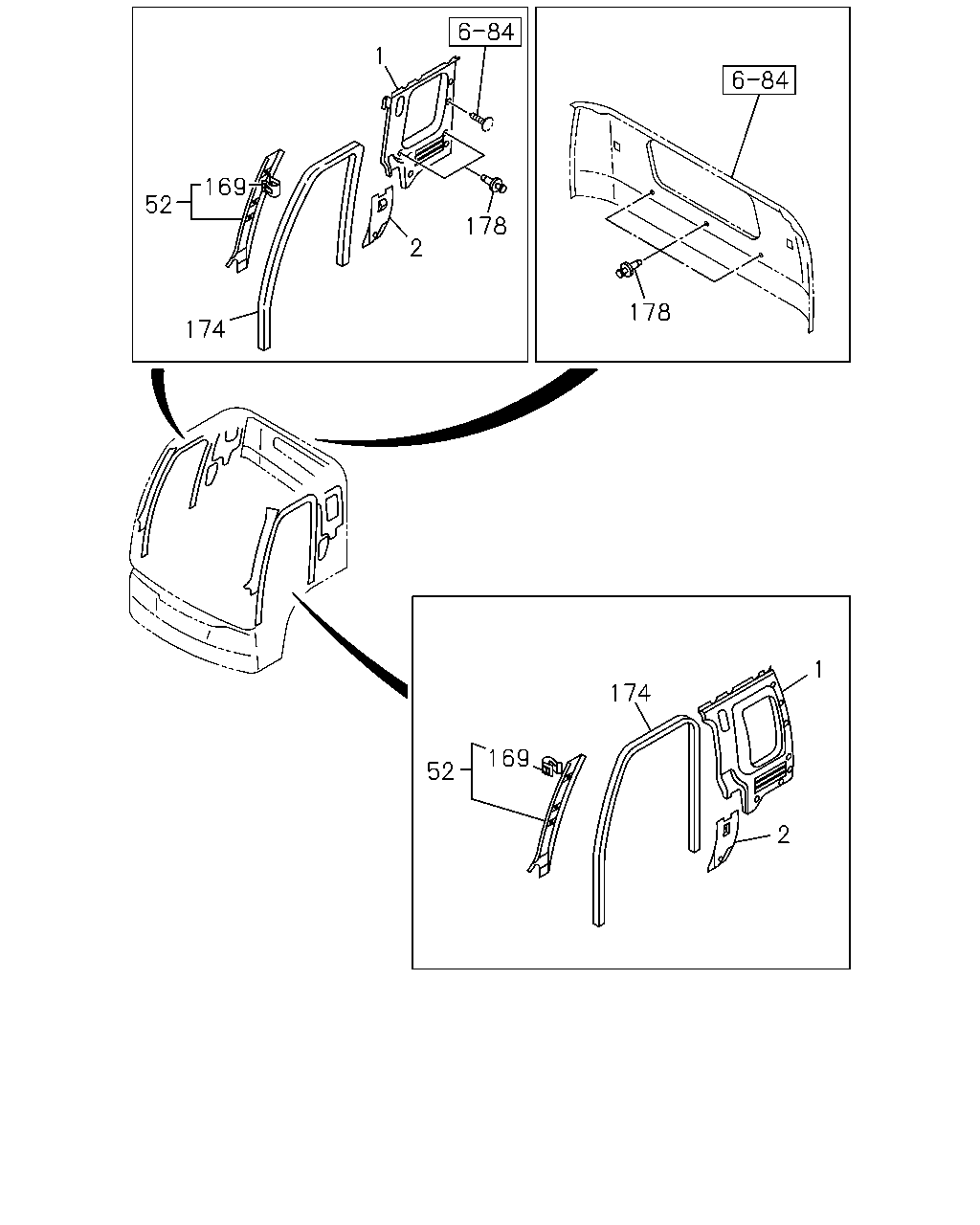

çizim 336915
52 174 169 1 2 78 178 174 2 52 169 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-901-4 01 1 1303-1511 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-901-4 01 1 1512- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-902-3 01 1 1303-1511 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-902-3 01 1 1512- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-022-1 01 1 1303-1511 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-022-1 01 1 1512- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-023-1 01 1 1303-1511 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-023-1 01 1 1512- ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 1303-1511 ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 1512- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 1303-1511 ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 1512- ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 1303-1511 ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 1512- ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 1303-1511 ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 1512- ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 07 1 1303-1511 ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 07 1 1512- ● ●
