◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#115472) — 40 parça

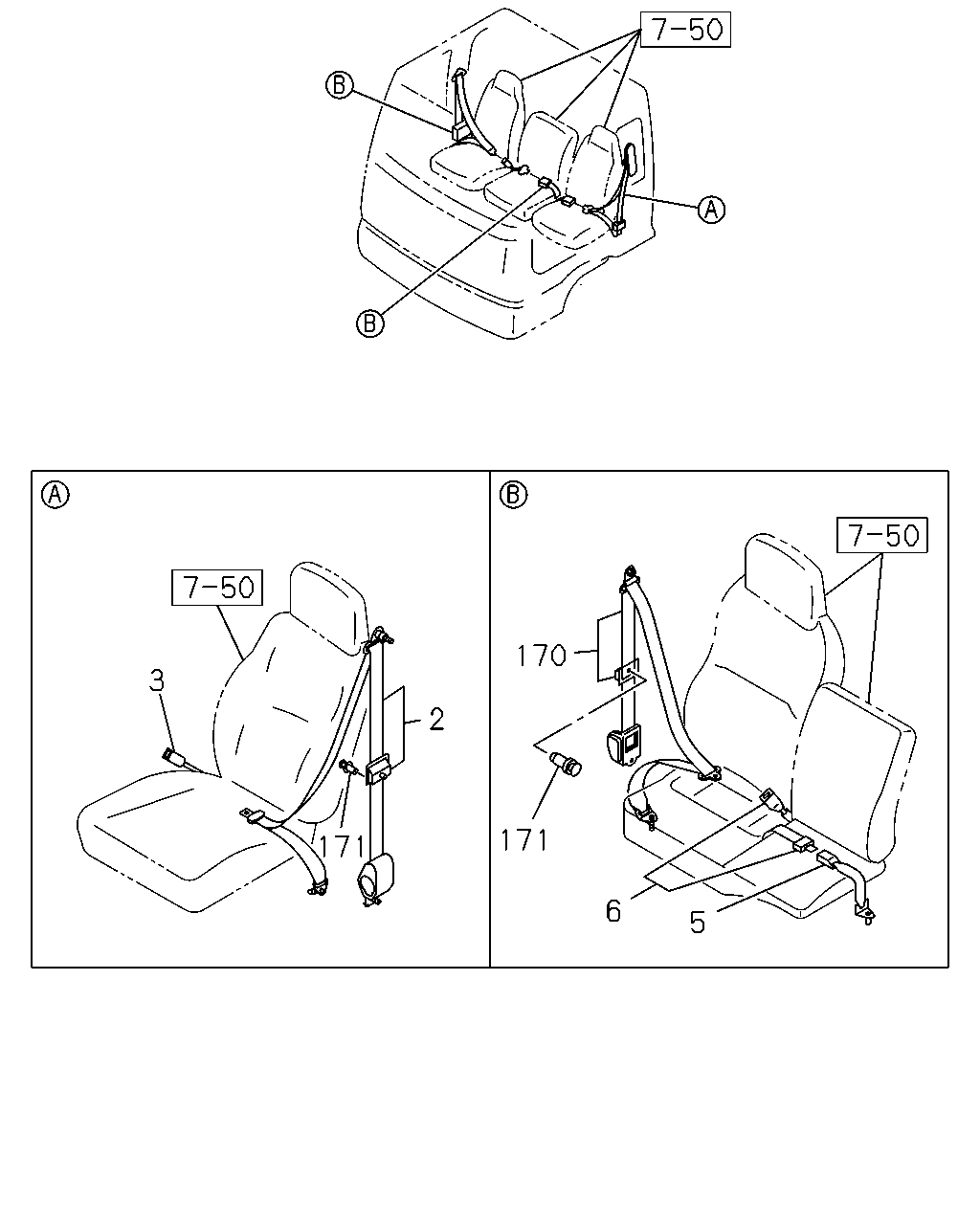

çizim 336693
3 2 171 171 6 5 170
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 8-98046-540-1 01 1 1303-1511 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) TAIWAN EQUIPMENT(WW5) 		8-98046-540-1 01 1 1512- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		8-98119-037-1 01 1 1512- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		8-98119-037-1 01 1 1512- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 1303-1511 ●
3 BELT; SEAT,BUCKLE SIDE
TAIWAN EQUIPMENT(WW5) 		1-75618-914-0 01 1 1512- ●
3 BELT; SEAT,BUCKLE SIDE
EXC. TAIWAN EQUIPMENT(WW5) 		1-75617-545-0 01 1 1512- ●
3 BELT; SEAT,BUCKLE SIDE 1-75617-545-0 01 1 1512- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		1-75617-553-1 01 1 1303-1511 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
TAIWAN EQUIPMENT(WW5) CENTER SEAT(SA1) 		1-75617-553-1 01 1 1512- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) EXC. TAIWAN EQUIPMENT(WW5) 		8-98127-493-0 01 1 1512- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		8-98127-493-0 01 1 1512- ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		8-98046-543-1 01 1 1303-1511 ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) TAIWAN EQUIPMENT(WW5) 		8-98046-543-1 01 1 1512- ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		8-98119-039-0 01 1 1512- ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		8-98119-039-0 01 1 1512- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98046-541-1 01 1 1303-1511 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(WW5) 		8-98046-541-1 01 1 1512- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		8-98119-038-1 01 1 1512- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98119-038-1 01 1 1512- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1303-1511 ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1512- ● ●

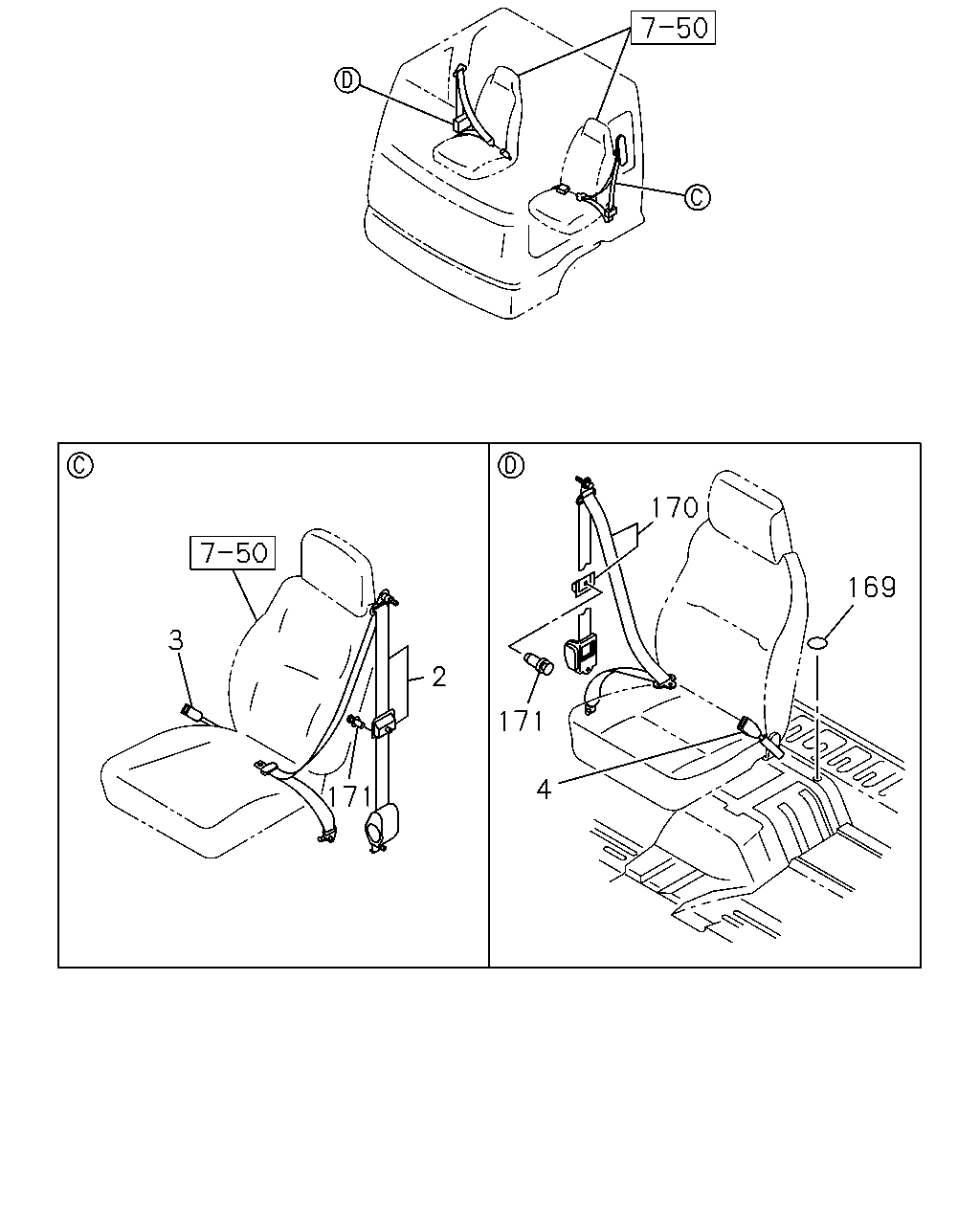

çizim 351514
2 171 4 169 171 170 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 8-98046-540-1 01 1 1303-1511 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) TAIWAN EQUIPMENT(WW5) 		8-98046-540-1 01 1 1512- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		8-98119-037-1 01 1 1512- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		8-98119-037-1 01 1 1512- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 1303-1511 ●
3 BELT; SEAT,BUCKLE SIDE
TAIWAN EQUIPMENT(WW5) 		1-75618-914-0 01 1 1512- ●
3 BELT; SEAT,BUCKLE SIDE
EXC. TAIWAN EQUIPMENT(WW5) 		1-75617-545-0 01 1 1512- ●
3 BELT; SEAT,BUCKLE SIDE 1-75617-545-0 01 1 1512- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 1303-1511 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 1512- ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1303-1511 ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1512- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98046-541-1 01 1 1303-1511 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(WW5) 		8-98046-541-1 01 1 1512- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		8-98119-038-1 01 1 1512- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98119-038-1 01 1 1512- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1303-1511 ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1512- ● ●
