Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#115467) — 426 parça

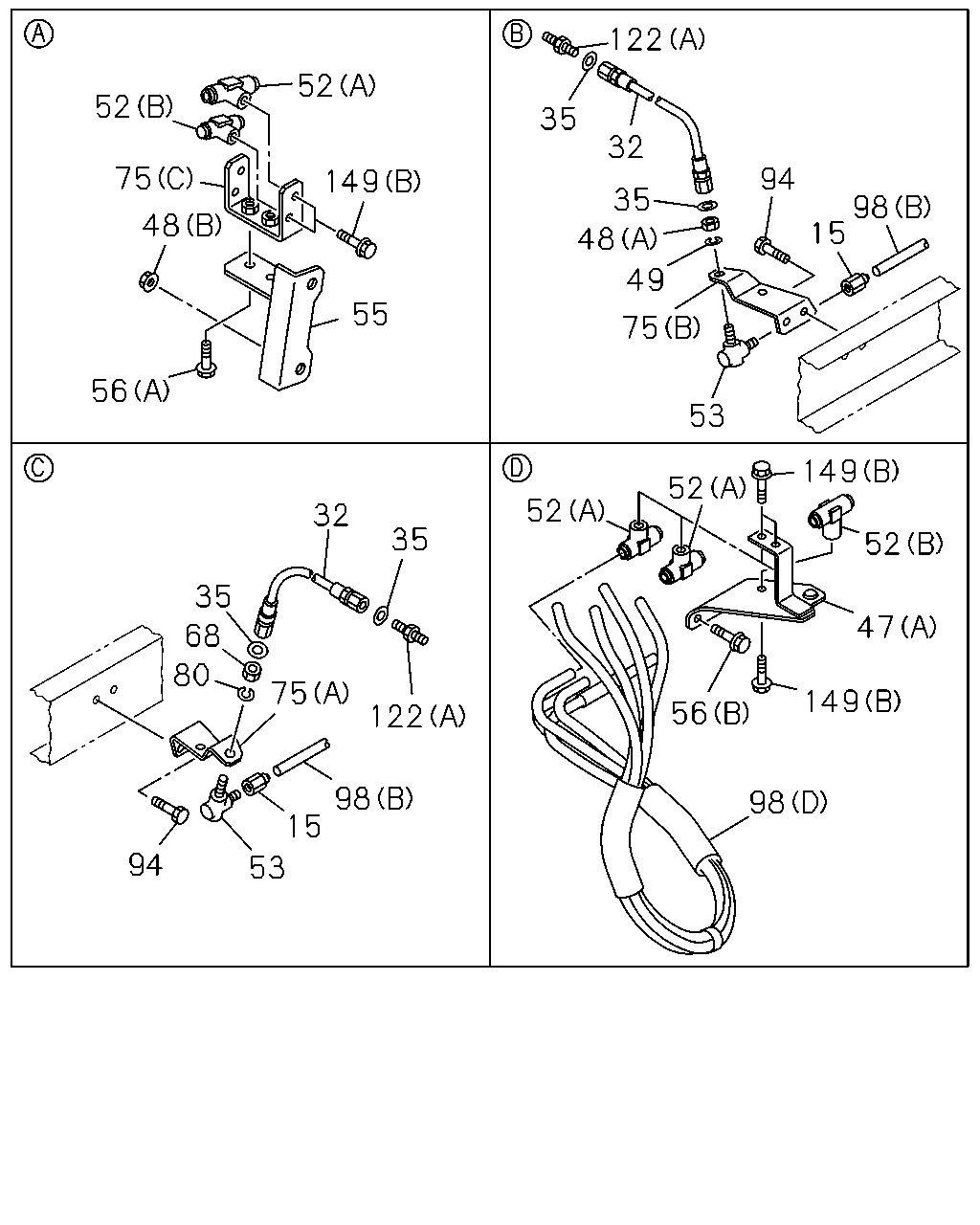

52 52 149 55 56 48 75 122 35 35 94 48 75 53 15 98 52 149 52 47 149 98 56 52 35 32 35 80 122 98 15 53 94 75 32 49 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1303-1511	●
15	CONNECTOR; AIR PIPE TAIWAN EQUIPMENT(WW5) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1512-	●
32	HOSE; FLEX,FRT EXC. TAIWAN EQUIPMENT(WW5) L=470	0-57847-470-1	04	1	1512-	●
32	HOSE; FLEX,FRT L=470	0-57847-470-1	04	1	1512-		●
32	HOSE; FLEX,FRT L=430	0-57847-430-1	02	1	1303-1511	●
32	HOSE; FLEX,FRT TAIWAN EQUIPMENT(WW5) L=430	0-57847-430-1	02	1	1512-	●
35	GASKET; FLEX HOSE TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	04	1	1512-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1303-1511	●
35	GASKET; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	08	1	1512-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1512-		●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B)	1-47471-023-0	01	1	1512-	●
47	BRACKET; PIPE UNION (A)	8-98238-525-0	01	1	1303-1511	●
47	BRACKET; PIPE UNION (A)	8-98238-525-0	01	1	1512-	●	●
48	NUT; UNION BRKT (A) M20	0-91111-520-0	01	1	1303-1511	●
48	NUT; UNION BRKT TAIWAN EQUIPMENT(WW5) (A) M20	0-91111-520-0	01	1	1512-	●
48	NUT; UNION BRKT (B) M12 FLANGE	0-91180-212-0	02	1	1303-1511	●
48	NUT; UNION BRKT (B) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1303-1511	●
49	WASHER; LK,UNION BRKT TAIWAN EQUIPMENT(WW5) ID=20.2	0-91510-520-0	01	1	1512-	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1512-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1303-1511	●
52	CONNECTOR; NYLON TUBE TAIWAN EQUIPMENT(WW5) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1512-	●
52	CONNECTOR; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1512-	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1512-		●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-	●
52	CONNECTOR; NYLON TUBE TAIWAN EQUIPMENT(WW5) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-		●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1512-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1512-	●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	1303-1511	●
53	UNION; ELBOW TAIWAN EQUIPMENT(WW5) M20 & M20 ELBOW	1-09654-128-1	02	1	1512-	●
55	BRACKET; TUBE UNION	8-98199-427-0	01	1	1303-1511	●
55	BRACKET; TUBE UNION	8-98199-427-0	01	1	1512-	●	●
56	BOLT; UNION BRKT FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
56	BOLT; UNION BRKT EXC. TAIWAN EQUIPMENT(WW5) (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
56	BOLT; UNION BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●	●
68	NUT; UNION TAIWAN EQUIPMENT(WW5) M20	0-91111-520-0	01	1	1512-	●
68	NUT; UNION M20	0-91111-520-0	01	1	1303-1511	●
68	NUT; UNION EXC. TAIWAN EQUIPMENT(WW5) M20	0-91111-520-0	02	1	1512-	●
68	NUT; UNION EXC. TAIWAN EQUIPMENT(WW5) M20	0-91111-520-0	02	1	1512-	●
68	NUT; UNION M20	0-91111-520-0	02	1	1512-		●
68	NUT; UNION M20	0-91111-520-0	02	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (E)	1-47471-145-0	01	1	1512-	●
75	BRACKET; UNION (E)	1-47471-145-0	01	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98176-142-0	01	1	1512-	●
75	BRACKET; UNION (F)	8-98176-142-0	01	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (D)	8-98176-152-0	01	1	1512-	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1512-		●
75	BRACKET; UNION (C)	1-47471-023-0	01	1	1303-1511	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (C)	1-47471-023-0	01	1	1512-	●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (C)	1-47471-023-0	01	1	1512-	●
75	BRACKET; UNION (C)	1-47471-023-0	01	1	1512-		●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1303-1511	●
75	BRACKET; UNION TAIWAN EQUIPMENT(WW5) (A)	1-47479-765-1	01	1	1512-	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1303-1511	●
75	BRACKET; UNION TAIWAN EQUIPMENT(WW5) (B)	1-47479-766-1	01	1	1512-	●
80	WASHER; LK,UNION TAIWAN EQUIPMENT(WW5) ID=20.2	0-91510-520-0	01	1	1512-	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1303-1511	●
80	WASHER; LK,UNION EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	0-91510-520-0	02	1	1512-	●
80	WASHER; LK,UNION EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	0-91510-520-0	02	1	1512-	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1512-		●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1512-		●
94	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1303-1511	●
94	BOLT; BRKT TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (G)	8-98169-619-0	02	1	1512-	●
98	TUBE; NYLON (G)	8-98169-619-0	02	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (E)	8-98238-522-0	01	1	1512-	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-190-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-190-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-191-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-191-0	01	1	1512-		●
98	TUBE; NYLON (B)	8-98147-264-0	02	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (B)	8-98147-264-0	02	1	1512-	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1303-1511	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1512-	●	●
98	TUBE; NYLON (D)	8-98238-520-0	01	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (D)	8-98238-520-0	01	1	1512-	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C)	8-98162-043-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B)	8-98162-044-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C)	8-98162-734-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B)	8-98162-735-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	02	1	1303-1511	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24<B7Q> (A) M20 & PT3/8	1-09660-731-1	02	1	1512-	●	●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-		●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
149	BOLT; UNION (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
149	BOLT; UNION EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1303-1511	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●

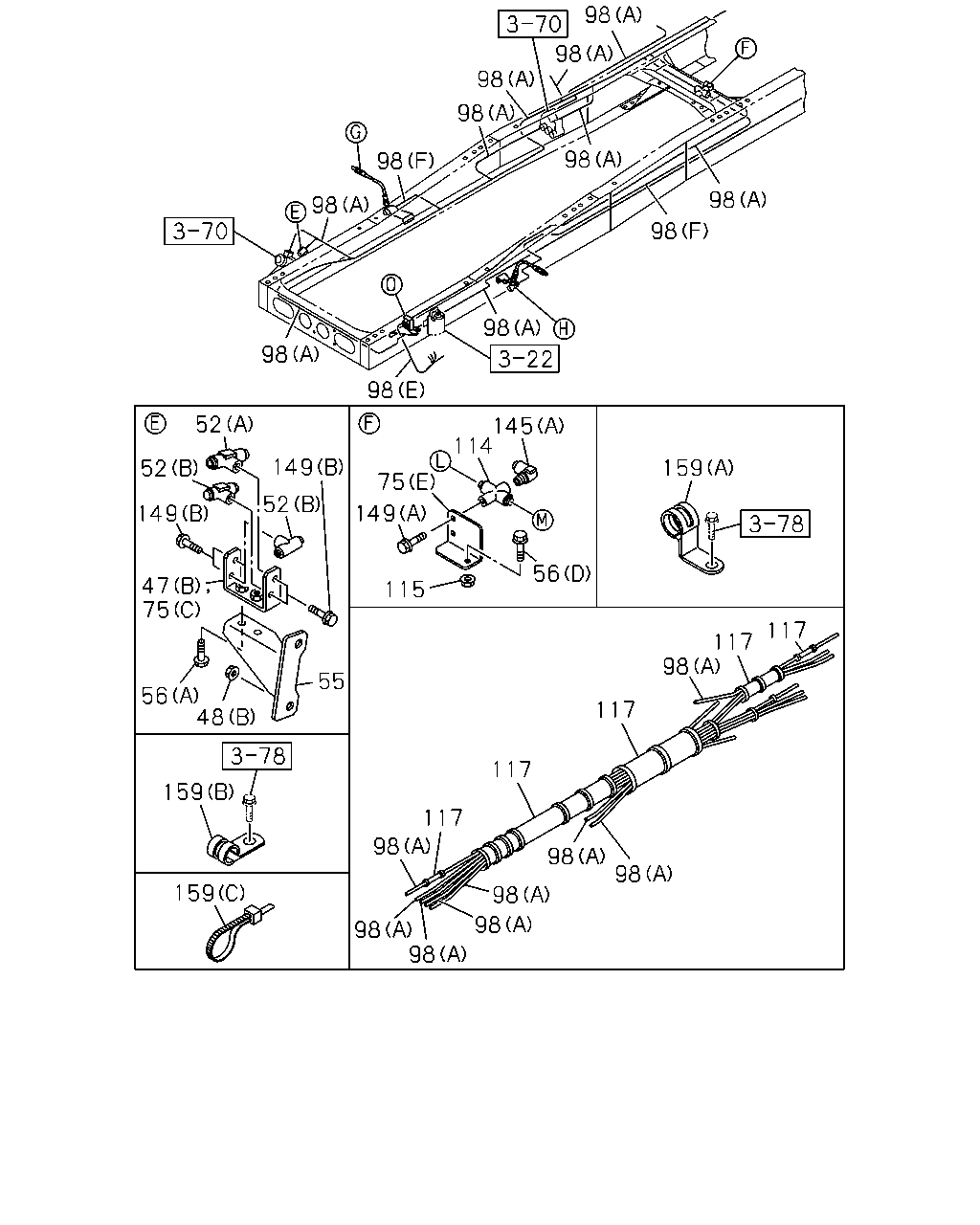

159 159 98 98 98 98 98 98 98 98 98 159 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (G)	8-98169-619-0	02	1	1512-	●
98	TUBE; NYLON (G)	8-98169-619-0	02	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (E)	8-98238-522-0	01	1	1512-	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-190-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-190-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-191-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-191-0	01	1	1512-		●
98	TUBE; NYLON (B)	8-98147-264-0	02	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (B)	8-98147-264-0	02	1	1512-	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1303-1511	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1512-	●	●
98	TUBE; NYLON (D)	8-98238-520-0	01	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (D)	8-98238-520-0	01	1	1512-	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1303-	●	●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	20	1	1512-	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1512-		●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (C) L=350	1-09707-183-0	15	1	1512-	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	1512-	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1512-	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1512-	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	14	1	1303-1511	●
159	CLIP; NYLON TUBE TAIWAN EQUIPMENT(WW5) (C) L=350	1-09707-183-0	14	1	1512-	●
159	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1512-	●	●

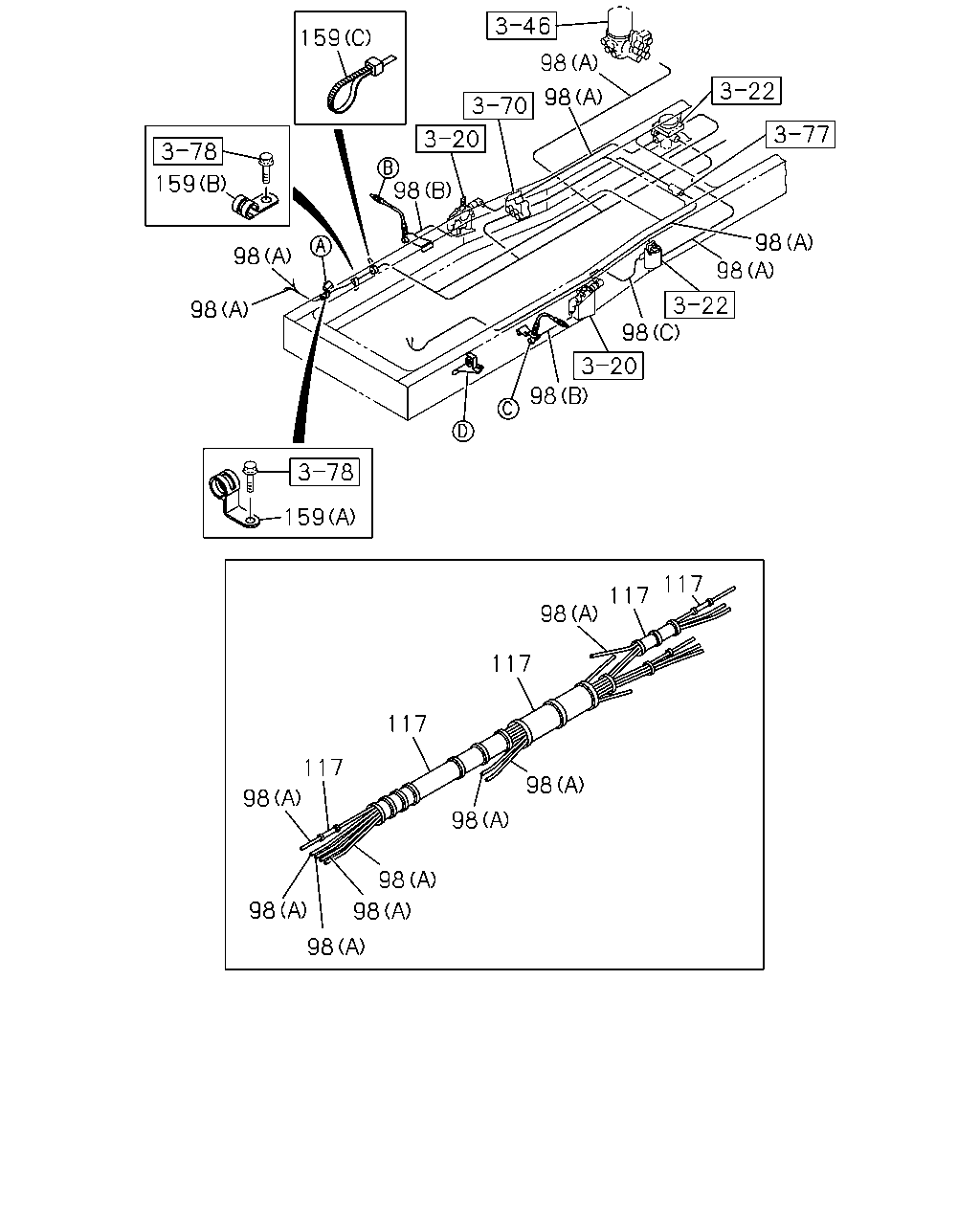

98 52 149 47 98 56 149 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B)	1-47471-023-0	01	1	1512-	●
47	BRACKET; PIPE UNION (A)	8-98238-525-0	01	1	1303-1511	●
47	BRACKET; PIPE UNION (A)	8-98238-525-0	01	1	1512-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1512-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1303-1511	●
52	CONNECTOR; NYLON TUBE TAIWAN EQUIPMENT(WW5) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1512-	●
52	CONNECTOR; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1512-	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1512-		●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-	●
52	CONNECTOR; NYLON TUBE TAIWAN EQUIPMENT(WW5) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-		●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1512-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1512-	●
56	BOLT; UNION BRKT FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
56	BOLT; UNION BRKT EXC. TAIWAN EQUIPMENT(WW5) (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
56	BOLT; UNION BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●	●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (G)	8-98169-619-0	02	1	1512-	●
98	TUBE; NYLON (G)	8-98169-619-0	02	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (E)	8-98238-522-0	01	1	1512-	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-190-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-190-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-191-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-191-0	01	1	1512-		●
98	TUBE; NYLON (B)	8-98147-264-0	02	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (B)	8-98147-264-0	02	1	1512-	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1303-1511	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1512-	●	●
98	TUBE; NYLON (D)	8-98238-520-0	01	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (D)	8-98238-520-0	01	1	1512-	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-		●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
149	BOLT; UNION (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
149	BOLT; UNION EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1303-1511	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●

98 98 98 98 98 98 98 98 98 98 98 98 145 159 56 115 114 75 149 52 52 149 149 47 75 52 56 55 48 159 159 98 117 117 117 98 98 98 98 117 98 98 98 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B)	1-47471-023-0	01	1	1512-	●
47	BRACKET; PIPE UNION (A)	8-98238-525-0	01	1	1303-1511	●
47	BRACKET; PIPE UNION (A)	8-98238-525-0	01	1	1512-	●	●
48	NUT; UNION BRKT (A) M20	0-91111-520-0	01	1	1303-1511	●
48	NUT; UNION BRKT TAIWAN EQUIPMENT(WW5) (A) M20	0-91111-520-0	01	1	1512-	●
48	NUT; UNION BRKT (B) M12 FLANGE	0-91180-212-0	02	1	1303-1511	●
48	NUT; UNION BRKT (B) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1512-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1303-1511	●
52	CONNECTOR; NYLON TUBE TAIWAN EQUIPMENT(WW5) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1512-	●
52	CONNECTOR; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1512-	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1512-		●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1511	●
52	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-	●
52	CONNECTOR; NYLON TUBE TAIWAN EQUIPMENT(WW5) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1512-		●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1512-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1512-	●
55	BRACKET; TUBE UNION	8-98199-427-0	01	1	1303-1511	●
55	BRACKET; TUBE UNION	8-98199-427-0	01	1	1512-	●	●
56	BOLT; UNION BRKT FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
56	BOLT; UNION BRKT EXC. TAIWAN EQUIPMENT(WW5) (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
56	BOLT; UNION BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●	●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (E)	1-47471-145-0	01	1	1512-	●
75	BRACKET; UNION (E)	1-47471-145-0	01	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98176-142-0	01	1	1512-	●
75	BRACKET; UNION (F)	8-98176-142-0	01	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (D)	8-98176-152-0	01	1	1512-	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1512-		●
75	BRACKET; UNION (C)	1-47471-023-0	01	1	1303-1511	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (C)	1-47471-023-0	01	1	1512-	●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (C)	1-47471-023-0	01	1	1512-	●
75	BRACKET; UNION (C)	1-47471-023-0	01	1	1512-		●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1303-1511	●
75	BRACKET; UNION TAIWAN EQUIPMENT(WW5) (A)	1-47479-765-1	01	1	1512-	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1303-1511	●
75	BRACKET; UNION TAIWAN EQUIPMENT(WW5) (B)	1-47479-766-1	01	1	1512-	●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (G)	8-98169-619-0	02	1	1512-	●
98	TUBE; NYLON (G)	8-98169-619-0	02	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (E)	8-98238-522-0	01	1	1512-	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-190-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-190-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-191-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-191-0	01	1	1512-		●
98	TUBE; NYLON (B)	8-98147-264-0	02	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (B)	8-98147-264-0	02	1	1512-	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1303-1511	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1512-	●	●
98	TUBE; NYLON (D)	8-98238-520-0	01	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (D)	8-98238-520-0	01	1	1512-	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
114	UNION; NYLON TUBE EXC. TAIWAN EQUIPMENT(WW5) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1512-	●
114	UNION; NYLON TUBE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1512-		●
115	NUT; TUBE UNION EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	01	1	1512-	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1512-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1303-	●	●
145	PLUG EXC. TAIWAN EQUIPMENT(WW5) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
145	PLUG (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-		●
145	PLUG FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B) PT1/4	9-99204-513-0	02	1	1512-	●	●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-		●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
149	BOLT; UNION (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
149	BOLT; UNION EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1303-1511	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	20	1	1512-	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1512-		●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (C) L=350	1-09707-183-0	15	1	1512-	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	1512-	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1512-	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1512-	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	14	1	1303-1511	●
159	CLIP; NYLON TUBE TAIWAN EQUIPMENT(WW5) (C) L=350	1-09707-183-0	14	1	1512-	●
159	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1303-1511	●
159	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1512-	●	●

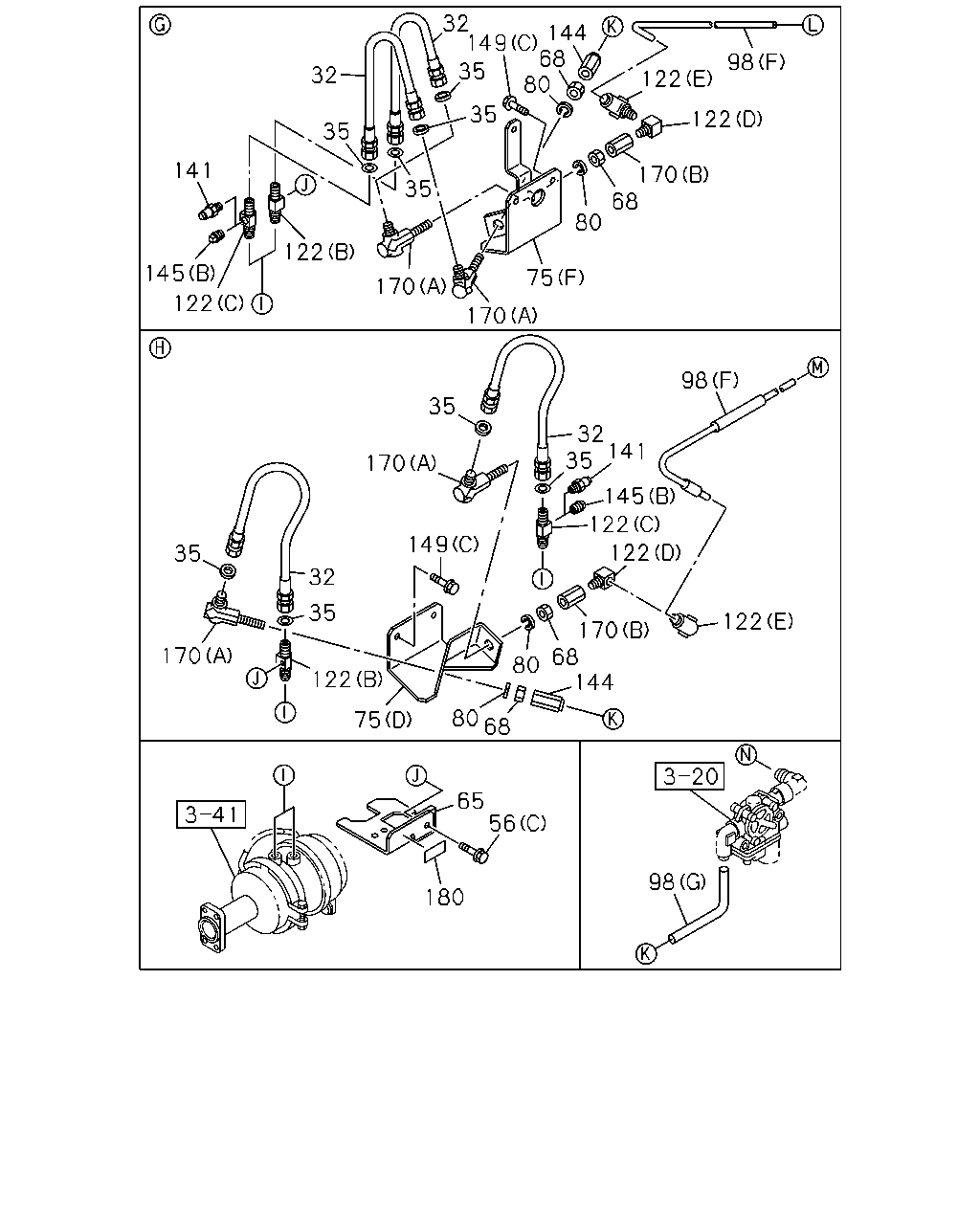

32 141 122 35 145 170 122 35 35 35 32 144 68 80 149 122 98 122 170 68 80 75 170 35 170 32 35 141 98 145 122 122 122 170 80 144 68 68 80 75 122 35 35 32 170 65 56 98 180 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT EXC. TAIWAN EQUIPMENT(WW5) L=470	0-57847-470-1	04	1	1512-	●
32	HOSE; FLEX,FRT L=470	0-57847-470-1	04	1	1512-		●
32	HOSE; FLEX,FRT L=430	0-57847-430-1	02	1	1303-1511	●
32	HOSE; FLEX,FRT TAIWAN EQUIPMENT(WW5) L=430	0-57847-430-1	02	1	1512-	●
35	GASKET; FLEX HOSE TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	04	1	1512-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1303-1511	●
35	GASKET; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	08	1	1512-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1512-		●
56	BOLT; UNION BRKT FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
56	BOLT; UNION BRKT EXC. TAIWAN EQUIPMENT(WW5) (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●
56	BOLT; UNION BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●	●
65	BRACKET; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R>	8-98163-031-2	01	1	1512-	●	●
65	BRACKET; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R>	8-98163-032-2	01	1	1512-	●	●
68	NUT; UNION TAIWAN EQUIPMENT(WW5) M20	0-91111-520-0	01	1	1512-	●
68	NUT; UNION M20	0-91111-520-0	01	1	1303-1511	●
68	NUT; UNION EXC. TAIWAN EQUIPMENT(WW5) M20	0-91111-520-0	02	1	1512-	●
68	NUT; UNION EXC. TAIWAN EQUIPMENT(WW5) M20	0-91111-520-0	02	1	1512-	●
68	NUT; UNION M20	0-91111-520-0	02	1	1512-		●
68	NUT; UNION M20	0-91111-520-0	02	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (E)	1-47471-145-0	01	1	1512-	●
75	BRACKET; UNION (E)	1-47471-145-0	01	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98176-142-0	01	1	1512-	●
75	BRACKET; UNION (F)	8-98176-142-0	01	1	1512-		●
75	BRACKET; UNION EXC. TAIWAN EQUIPMENT(WW5) (D)	8-98176-152-0	01	1	1512-	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1512-		●
75	BRACKET; UNION (C)	1-47471-023-0	01	1	1303-1511	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (C)	1-47471-023-0	01	1	1512-	●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (C)	1-47471-023-0	01	1	1512-	●
75	BRACKET; UNION (C)	1-47471-023-0	01	1	1512-		●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1303-1511	●
75	BRACKET; UNION TAIWAN EQUIPMENT(WW5) (A)	1-47479-765-1	01	1	1512-	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1303-1511	●
75	BRACKET; UNION TAIWAN EQUIPMENT(WW5) (B)	1-47479-766-1	01	1	1512-	●
80	WASHER; LK,UNION TAIWAN EQUIPMENT(WW5) ID=20.2	0-91510-520-0	01	1	1512-	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1303-1511	●
80	WASHER; LK,UNION EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	0-91510-520-0	02	1	1512-	●
80	WASHER; LK,UNION EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	0-91510-520-0	02	1	1512-	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1512-		●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (G)	8-98169-619-0	02	1	1512-	●
98	TUBE; NYLON (G)	8-98169-619-0	02	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (E)	8-98238-522-0	01	1	1512-	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-190-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-190-0	01	1	1512-		●
98	TUBE; NYLON EXC. TAIWAN EQUIPMENT(WW5) (F)	8-98240-191-0	01	1	1512-	●
98	TUBE; NYLON (F)	8-98240-191-0	01	1	1512-		●
98	TUBE; NYLON (B)	8-98147-264-0	02	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (B)	8-98147-264-0	02	1	1512-	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1303-1511	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1512-	●	●
98	TUBE; NYLON (D)	8-98238-520-0	01	1	1303-1511	●
98	TUBE; NYLON TAIWAN EQUIPMENT(WW5) (D)	8-98238-520-0	01	1	1512-	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
122	CONNECTOR; FLEX HOSE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-		●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C)	8-98162-043-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B)	8-98162-044-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (C)	8-98162-734-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B)	8-98162-735-0	01	1	1512-	●	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	02	1	1303-1511	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24<B7Q> (A) M20 & PT3/8	1-09660-731-1	02	1	1512-	●	●
141	CONNECTOR; TEST FRT BRK AIR D410 WEDGE-160-24/24<B7R> RUSSIA EQUIPMENT(B12) DISC WHEEL STEEL<SDN> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1512-	●	●
144	ADAPTER EXC. TAIWAN EQUIPMENT(WW5) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1512-	●
144	ADAPTER EXC. TAIWAN EQUIPMENT(WW5) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1512-	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1512-		●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1512-		●
145	PLUG EXC. TAIWAN EQUIPMENT(WW5) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
145	PLUG (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-		●
145	PLUG FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B) PT1/4	9-99204-513-0	02	1	1512-	●	●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1512-		●
149	BOLT; UNION EXC. TAIWAN EQUIPMENT(WW5) (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
149	BOLT; UNION (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
149	BOLT; UNION EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1303-1511	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●
170	UNION; FLARE EXC. TAIWAN EQUIPMENT(WW5) (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1512-	●
170	UNION; FLARE EXC. TAIWAN EQUIPMENT(WW5) (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1512-	●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1512-		●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1512-		●
170	UNION; FLARE EXC. TAIWAN EQUIPMENT(WW5) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
170	UNION; FLARE EXC. TAIWAN EQUIPMENT(WW5) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
180	PLATE; CAUTION FRT BRK AIR D410 WEDGE-160-24/24<B7R>	8-98164-504-0	02	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
