1 |

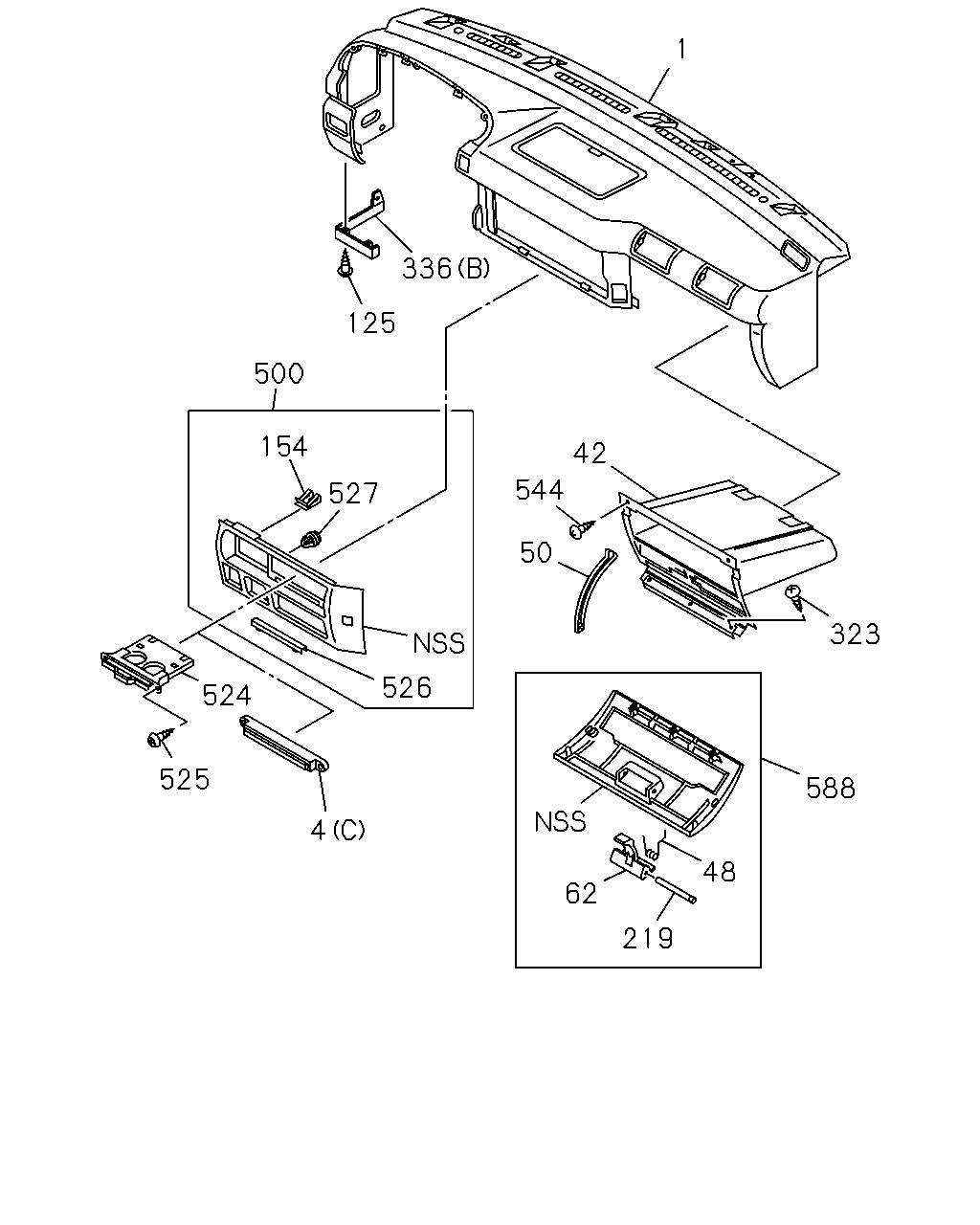

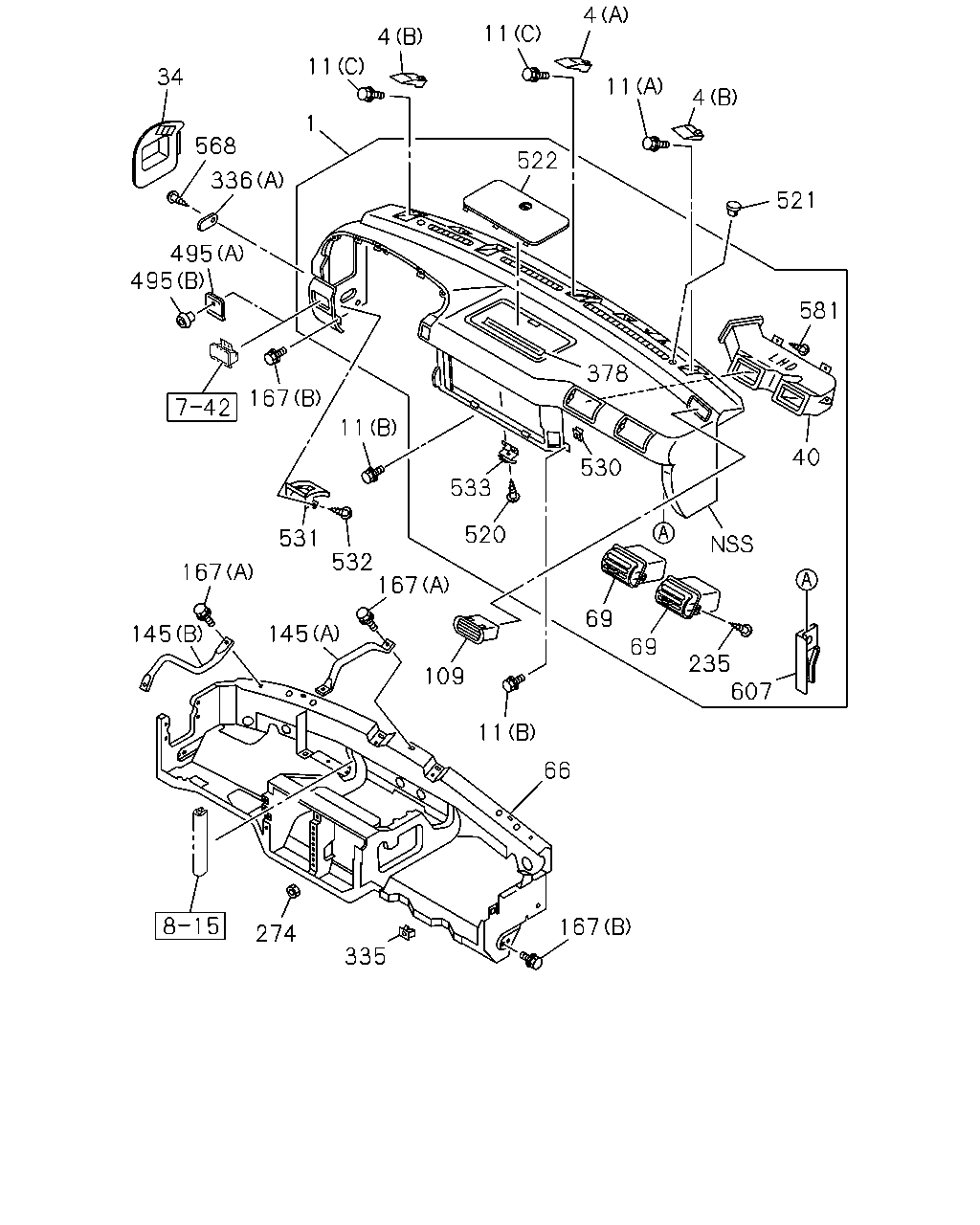

16.080 PANEL; INST
DARK GRAY
|
8-97587-476-2 |
01 |
1 |
1302- |
| |
4 |
16.080 COVER; INST PNL
(A)
DARK GRAY
|
8-97582-215-3 |
02 |
1 |
1302- |
| |
4 |
16.080 COVER; INST PNL
(B)
DARK GRAY
|
8-97582-216-3 |
01 |
1 |
1302- |
| |
4 |
16.080 COVER; INST PNL
(B)
DARK GRAY
|
8-97582-217-3 |
01 |
1 |
1302- |
| |
4 |
16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ>
16.085
(C)
|
1-72438-139-1 |
01 |
1 |
1302- |
| |
11 |
16.090 BOLT; INST PNL
06.500
(C)
M6X25
|
8-94279-204-0 |
02 |
1 |
1302- |
| |
11 |
16.090 BOLT; INST PNL
16.085
(A)
M6X24 FLANGE
|
8-94279-231-1 |
02 |
1 |
1302- |
| |
11 |
16.090 BOLT; INST PNL
02.587
(B)
M6X19.5 W/LK&PL WASHER
|
8-97360-226-0 |
06 |
1 |
1302- |
| |
34 |
16.085 LID; OIL TANK
DARK GRAY
|
8-97585-433-5 |
01 |
1 |
1302- |
| |
40 |
09.264 DUCT; VENT,SIDE CLUSTER BEZEL
|
8-97262-698-0 |
01 |
1 |
1302- |
| |
66 |
16.085 REINFORCEMENT; INST PANEL
|
8-97898-464-7 |
01 |
1 |
1302- |
| |
69 |
09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY
|
8-97582-612-0 |
02 |
1 |
1302- |
| |
109 |
16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY
|
8-97585-436-0 |
01 |
1 |
1302- |
| |
145 |
16.085 STAY; INST PANEL SIDE
(A)
|
8-97856-196-2 |
01 |
1 |
1302- |
| |
145 |
16.085 STAY; INST PANEL SIDE
(B)
|
8-97856-197-2 |
01 |
1 |
1302- |
| |
167 |
16.085 BOLT; REINF TO INST
(A)
M6X12 W/LK&PL WASHER
|
0-50640-612-0 |
02 |
1 |
1302- |
| |
167 |
16.085 BOLT; REINF TO INST
16.090
(B)
M8X23 FLANGE
|
8-97264-766-0 |
04 |
1 |
1302- |
| |
235 |
16.081 SCREW; GRILLE
16.067
M5X14
|
8-94279-325-0 |
04 |
1 |
1302- |
| |
274 |
16.100 NUT; GLOVE BOX
16.081
M5 SPIRE NUT
|
8-94279-051-0 |
02 |
1 |
1302- |
| |
335 |
16.115 GROMMET; GLOVE BOX LK
01.269
D=8.6X7.7 L=7.5
|
8-94279-078-0 |
02 |
1 |
1302- |
| |
336 |
16.081 COVER; INST PANEL SIDE
(A)
DARK GRAY
|
8-97582-218-4 |
02 |
1 |
1302- |
| |
336 |
16.081 COVER; INST PANEL SIDE
(B)
DARK GRAY
|
8-97585-432-1 |
01 |
1 |
1302- |
| |
378 |
09.743 SEAL; INST PANEL
|
8-97209-399-0 |
01 |
1 |
1302- |
| |
495 |
09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU>
(A)
DARK GRAY
|
8-97582-214-4 |
01 |
1 |
1302- |
| |
495 |
09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU>
16.085
(B)
DARK GRAY
|
8-97582-247-0 |
01 |
1 |
1302- |
| |
520 |
16.085 SCREW; CLIP,SPRING
16.067
M5X14
|
8-94279-325-0 |
03 |
1 |
1302- |
| |
521 |
16.081 COVER; SUN SENSOR
DARK GRAY
|
8-97582-334-2 |
01 |
1 |
1302- |
| |
522 |
16.085 LID; RELAY BOX
DARK GRAY
|
8-97582-494-6 |
01 |
1 |
1302- |
| |
530 |
16.100 CLIP; GLOVE BOX
|
8-97856-135-0 |
01 |
1 |
1302- |
| |
531 |
16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU>
|
8-97853-130-0 |
01 |
1 |
1302- |
| |
532 |
16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU>
09.655
M5X14 TAPPING W/TORQUES
|
8-98061-856-0 |
02 |
1 |
1302- |
| |
533 |
16.100 CLIP; SPRING,CTR CLUSTER
|
8-97853-170-5 |
02 |
1 |
1302- |
| |
568 |
09.744 BOLT; COVER
09.647
M5X20 TAPPING HEXALOBULAR
|
0-72180-520-0 |
02 |
1 |
1302- |
| |
581 |
09.744 SCREW
16.067
M5X14
|
8-94279-325-0 |
02 |
1 |
1302- |
| |
607 |
16.085 FIXING ASM; CLIP INST TO M/CSTR
|
8-97857-893-2 |
01 |
1 |
1302- |
