Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#115458) — 95 parça
Tümü
A - CYZ6MF
B - CYZ6MC
◀

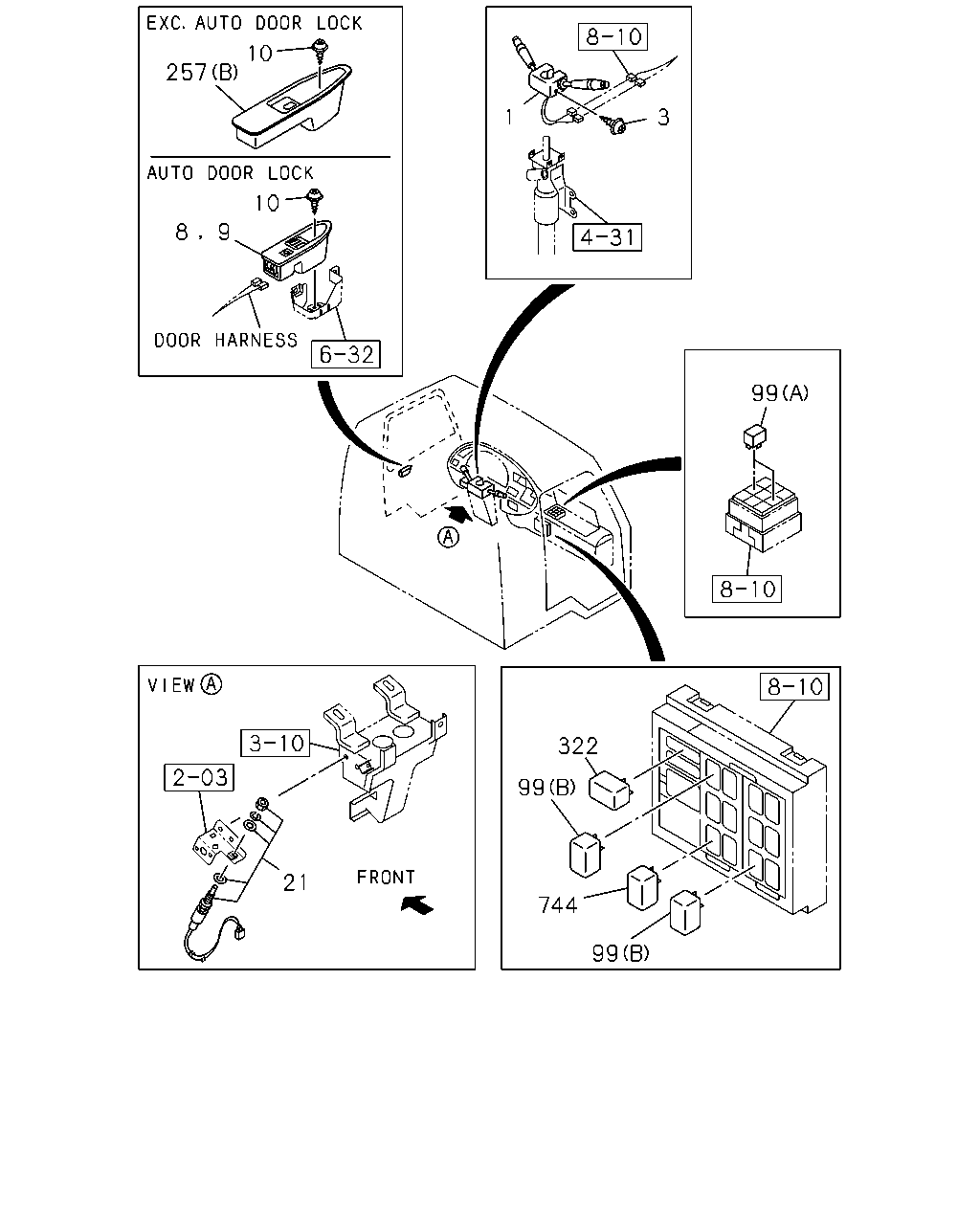

[825A] CAB SIDE NO.2 (27 parça)

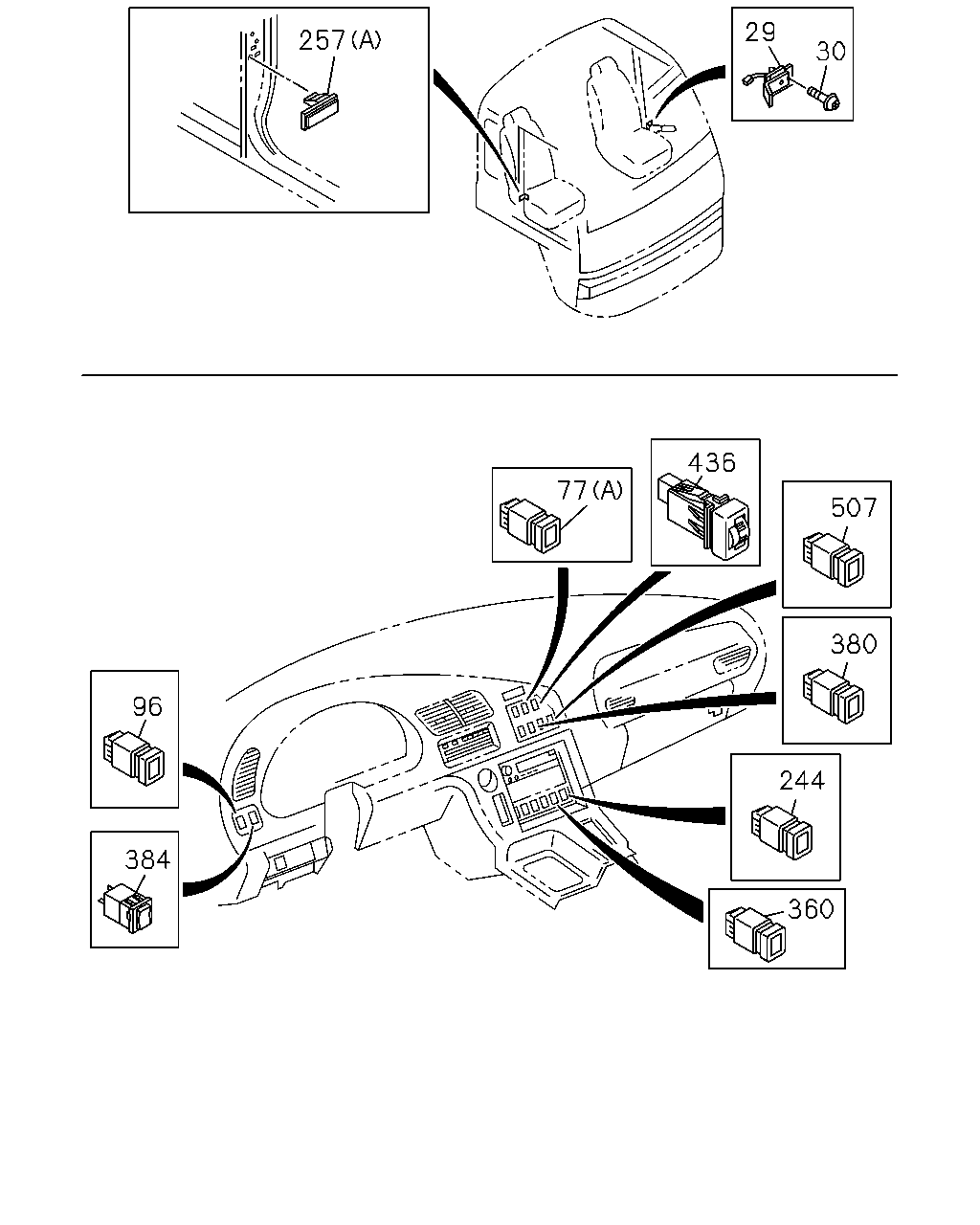

[825A] CAB SIDE NO.1 (28 parça)
[825A] CAB SIDE NO.3 (9 parça)

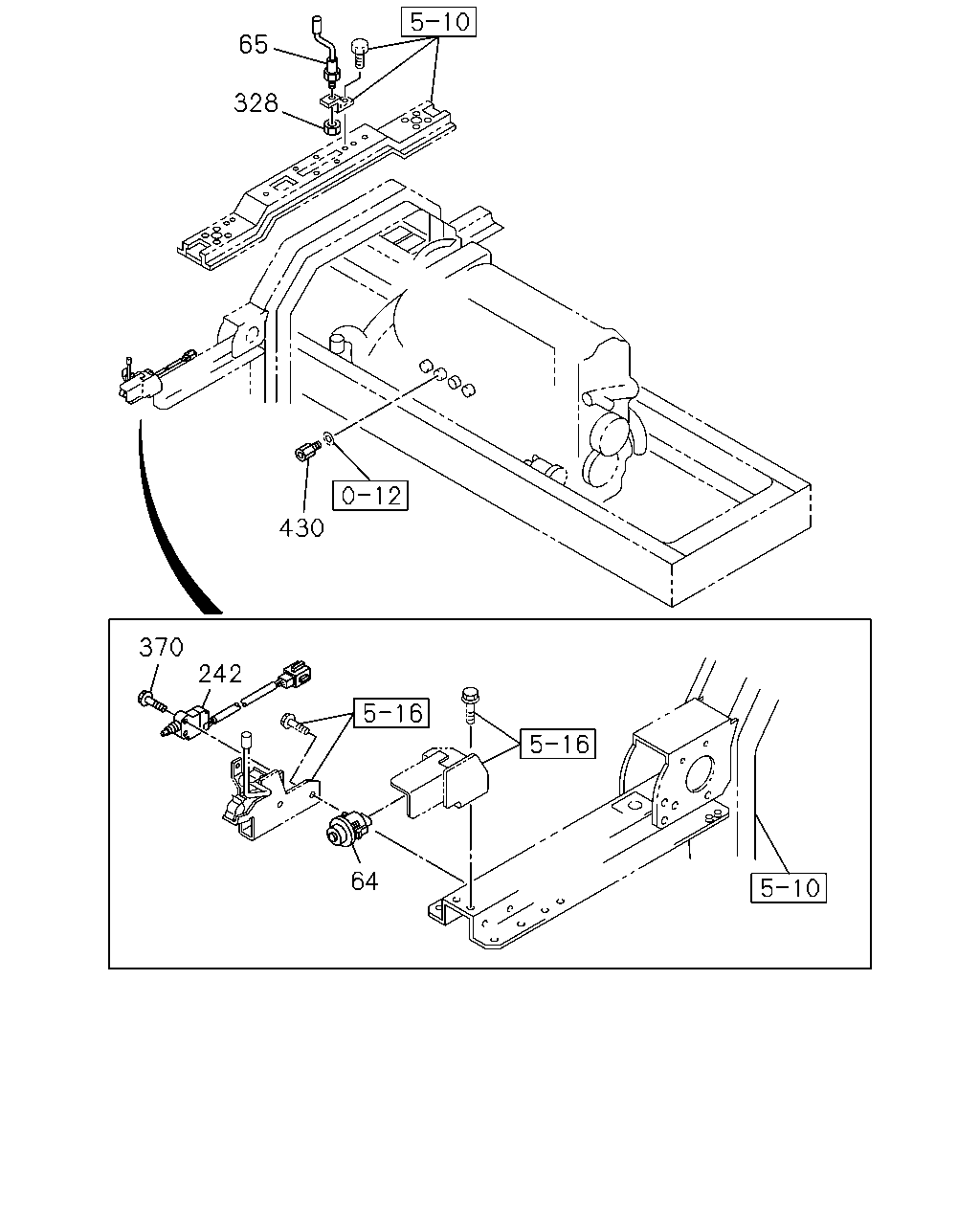

[825A] FRAME SIDE (12 parça)
[825A] AXLE SIDE (19 parça)
▶
257
29
30
436
77
507
380
244
360
384
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
SWITCH; DOOR
8-97855-032-3
01
1
1303-1511
●
29
SWITCH; DOOR
8-97855-032-3
01
1
1512-
●
●
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
1303-1511
●
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
1512-
●
●
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
1512-
●
●
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-97386-993-4
01
1
1303-1511
●
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A)
8-97386-993-4
01
1
1512-
●
77
SWITCH; PTO
CONCRETE PUMP<RA5> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-97386-993-4
01
1
1512-
●
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)
8-97386-993-4
01
1
1512-
●
77
SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-97386-993-4
01
1
1512-
●
96
SWITCH; FOG LAMP
8-98215-213-1
01
1
1303-1511
●
96
SWITCH; FOG LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)
8-98215-213-1
01
1
1512-
●
96
SWITCH; FOG LAMP
RUSSIA EQUIPMENT(B12)
8-98215-213-1
01
1
1512-
●
244
SWITCH; BATTERY
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FUEL TANK TRUCK<RD5> EXC. RUSSIA EQUIPMENT(B12)
8-98138-304-0
01
1
1512-
●
244
SWITCH; BATTERY
WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12) FULL TRACTOR TRUCK<RD6>
8-98138-304-0
01
1
1512-
●
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-011-2
01
1
1512-
●
●
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-012-2
01
1
1512-
●
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
1303-1511
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
1512-
●
●
360
SWITCH ASM; DIFF LK
8-98222-520-1
01
1
1303-1511
●
360
SWITCH ASM; DIFF LK
8-98222-520-1
01
1
1512-
●
●
380
SWITCH; MARKER LAMP
ROOF MARKER LAMP<U01>
8-98222-519-1
01
1
1512-
●
384
SWITCH; IDLING CONT,ELEC
8-97620-588-1
01
1
1303-1511
●
384
SWITCH; IDLING CONT,ELEC
8-97620-588-1
01
1
1512-
●
●
436
SWITCH; HEADLAMP LEVELING
8-97386-981-2
01
1
1303-1511
●
436
SWITCH; HEADLAMP LEVELING
8-97386-981-2
01
1
1512-
●
●
507
SWITCH; MIRROR HEATER
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> HEATER
8-97386-924-3
01
1
1512-
●
●
257
10
10
8
9
1
3
99
322
99
744
99
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
1-82360-704-1
01
1
1303-1511
●
1
SWITCH; COMB
1-82360-704-1
01
1
1512-
●
●
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
1303-1511
●
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
1512-
●
●
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-157-4
01
1
1303-1511
●
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE
1-82380-157-4
01
1
1512-
●
●
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-158-3
01
1
1303-1511
●
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE
1-82380-158-3
01
1
1512-
●
●
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
1303-1511
●
10
SCREW; POWER WINDOW SW
POWER WINDOW<A30> M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
1512-
●
●
21
SWITCH; CLU
1-82380-114-3
01
1
1303-1511
●
21
SWITCH; CLU
MJX16P M/T(Y3Z)
1-82380-114-3
01
1
1512-
●
●
21
SWITCH; CLU
1-82380-114-3
01
1
1512-
●
●
99
RELAY; FOG LAMP
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1512-
●
99
RELAY; FOG LAMP
EXC. RUSSIA EQUIPMENT(B12) (A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1512-
●
99
RELAY; FOG LAMP
(B) 24V 10A PANASONIC
8-97173-035-1
02
1
1303-1511
●
99
RELAY; FOG LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) 24V 10A PANASONIC
8-97173-035-1
02
1
1512-
●
99
RELAY; FOG LAMP
RUSSIA EQUIPMENT(B12) (B) 24V 10A PANASONIC
8-97173-035-1
02
1
1512-
●
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
02
1
1303-1511
●
99
RELAY; FOG LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 24V 12.5A PANASONIC
8-97262-933-0
02
1
1512-
●
99
RELAY; FOG LAMP
RUSSIA EQUIPMENT(B12) (A) 24V 12.5A PANASONIC
8-97262-933-0
02
1
1512-
●
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-011-2
01
1
1512-
●
●
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-012-2
01
1
1512-
●
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
1303-1511
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
1512-
●
●
322
RELAY; SPLITTER
MJX16P M/T(Y3Z) 24V 10A PANASONIC
8-97173-035-1
01
1
1512-
●
●
744
RELAY; TILT,LID OPEN
24V 10A PANASONIC
8-97173-035-1
01
1
1303-1511
●
744
RELAY; TILT,LID OPEN
24V 10A PANASONIC
8-97173-035-1
01
1
1512-
●
●
77
106
520
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
1512-
●
●
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-97386-993-4
01
1
1303-1511
●
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A)
8-97386-993-4
01
1
1512-
●
77
SWITCH; PTO
CONCRETE PUMP<RA5> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-97386-993-4
01
1
1512-
●
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)
8-97386-993-4
01
1
1512-
●
77
SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-97386-993-4
01
1
1512-
●
106
SWITCH; REMOTE CONT MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>
1-82350-223-0
01
1
1512-
●
●
359
SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL(NLG) STAMP 0.3
8-98010-857-0
01
1
1512-
●
520
PLUG; CONNECTOR
FULL TRAILER PIPING<Z25> PT1/4
9-99204-513-0
01
1
1512-
●
65
328
430
370
242
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1303-1511
●
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1512-
●
●
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
1303-1511
●
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
1512-
●
●
242
SWITCH
STAMP NO
1-82380-172-1
01
1
1303-1511
●
242
SWITCH
STAMP NO
1-82380-172-1
01
1
1512-
●
●
328
NUT; SW
M16
0-91110-516-0
01
1
1303-1511
●
328
NUT; SW
M16
0-91110-516-0
01
1
1512-
●
●
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1303-1511
●
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1512-
●
●
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
1303-1511
●
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
1512-
●
●
482
667
666
236
397
482
236
397
666
667
237
667
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
236
BRACKET; AXLE HARNESS,RR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (B)
1-47476-200-0
01
1
1512-
●
236
BRACKET; AXLE HARNESS,RR
WHEEL BASE 5200MM(52W) (B)
1-47476-200-0
01
1
1512-
●
236
BRACKET; AXLE HARNESS,RR
WHEEL BASE 5900MM(59W) (A)
1-46147-101-0
02
1
1303-
●
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1303-1511
●
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1512-
●
●
397
NUT; BRKT FIX
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) M8 FLANGE
0-91180-108-0
01
1
1512-
●
397
NUT; BRKT FIX
WHEEL BASE 5200MM(52W) M8 FLANGE
0-91180-108-0
01
1
1512-
●
397
NUT; BRKT FIX
WHEEL BASE 5900MM(59W) M8 FLANGE
0-91180-108-0
02
1
1303-
●
482
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) M8X35 FLANGE
0-28650-835-0
01
1
1512-
●
482
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1512-
●
482
BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X40 FLANGE
0-28650-840-0
02
1
1303-
●
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
02
1
1303-1511
●
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
02
1
1303-1511
●
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
02
1
1512-
●
●
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
02
1
1512-
●
●
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1303-1511
●
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1512-
●
●
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1303-1511
●
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1512-
●
●
