2-07 — CLUTCH BOOSTER; MINIPACK (#115456) — 70 parça

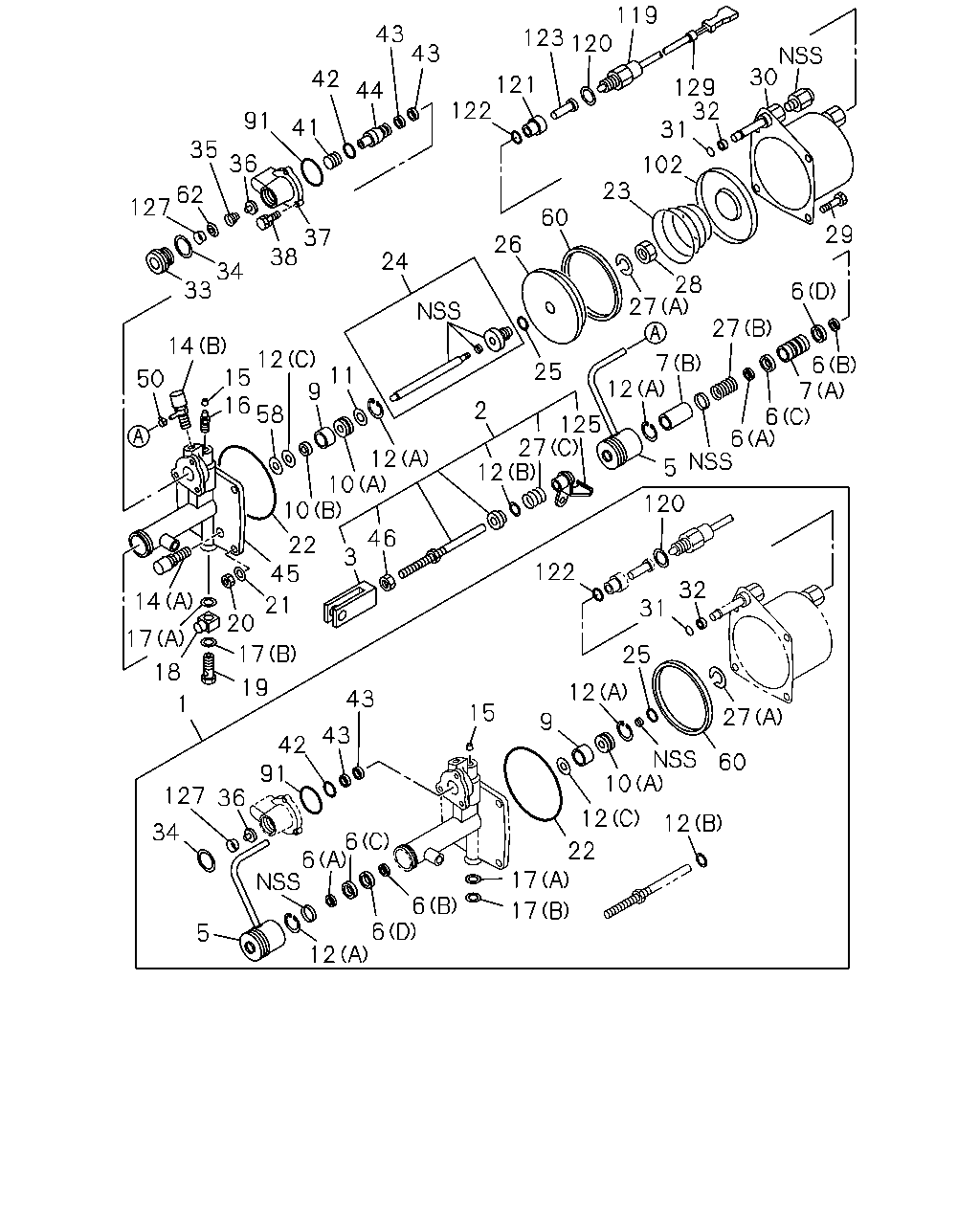

çizim 336867
119 120 123 121 43 43 42 41 91 35 62 127 36 34 33 38 37 44 122 24 26 60 23 102 31 32 129 30 29 28 6 27 25 2 27 6 7 6 6 7 5 12 125 27 12 122 120 32 31 25 12 27 60 12 12 22 17 17 6 6 12 6 6 5 34 91 36 127 42 43 43 15 9 10 19 1 18 17 17 14 20 3 45 21 46 22 10 10 12 11 9 12 15 14 50 58 16
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1303-
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1303-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1303-
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-441-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-442-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-443-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-444-0 01 1 1303-
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 1303-
7 PISTON; CLU BOOSTER
(A) 		1-31821-081-0 01 1 1303-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1303-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1303-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1303-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1303-
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 1303-
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 1303-
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1303-
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 1303-
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 1303-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1303-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1303-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1303-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1303-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1303-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1303-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1303-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1303-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1303-
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 1303-
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 1303-
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1303-
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 1303-
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 1303-
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 1303-
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 1303-
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1303-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1303-
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 1303-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1303-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1303-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1303-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1303-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1303-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1303-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1303-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1303-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 1303-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1303-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1303-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1303-
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 1303-
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1303-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 1303-
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 1303-
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1303-
62 RETAINER; POPPET 1-31829-489-0 01 1 1303-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1303-
102 PLATE; BOOSTER 1-31829-508-0 01 1 1303-
119 SWITCH; CLU BOOSTER 1-31824-178-0 01 1 1303-
120 GASKET; SWITCH 1-31829-361-0 01 1 1303-
121 GUIDE; ROD 1-31824-165-0 01 1 1303-
122 GASKET; ROD 1-31829-360-0 01 1 1303-
123 ROD; SWITCH
L=23.2 		1-31824-167-0 AR 1 1303-
123 ROD; SWITCH
L=24.0 		1-31824-168-0 AR 1 1303-
123 ROD; SWITCH
L=22.5 		1-31824-176-0 AR 1 1303-
123 ROD; SWITCH
L=24.5 		1-31824-189-0 AR 1 1303-
123 ROD; SWITCH
L=25.0 		1-31824-212-0 AR 1 1303-
125 BRACKET; CLU BOOSTER 1-31829-622-0 01 1 1303-
127 FILTER; POPPET 1-31829-488-0 01 1 1303-
129 CONNECTOR ASM; CLU BOOSTER 1-09656-753-0 01 1 1303-
