11534 - CYJ RHD EURO5
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#115453) — 22 parça
◀

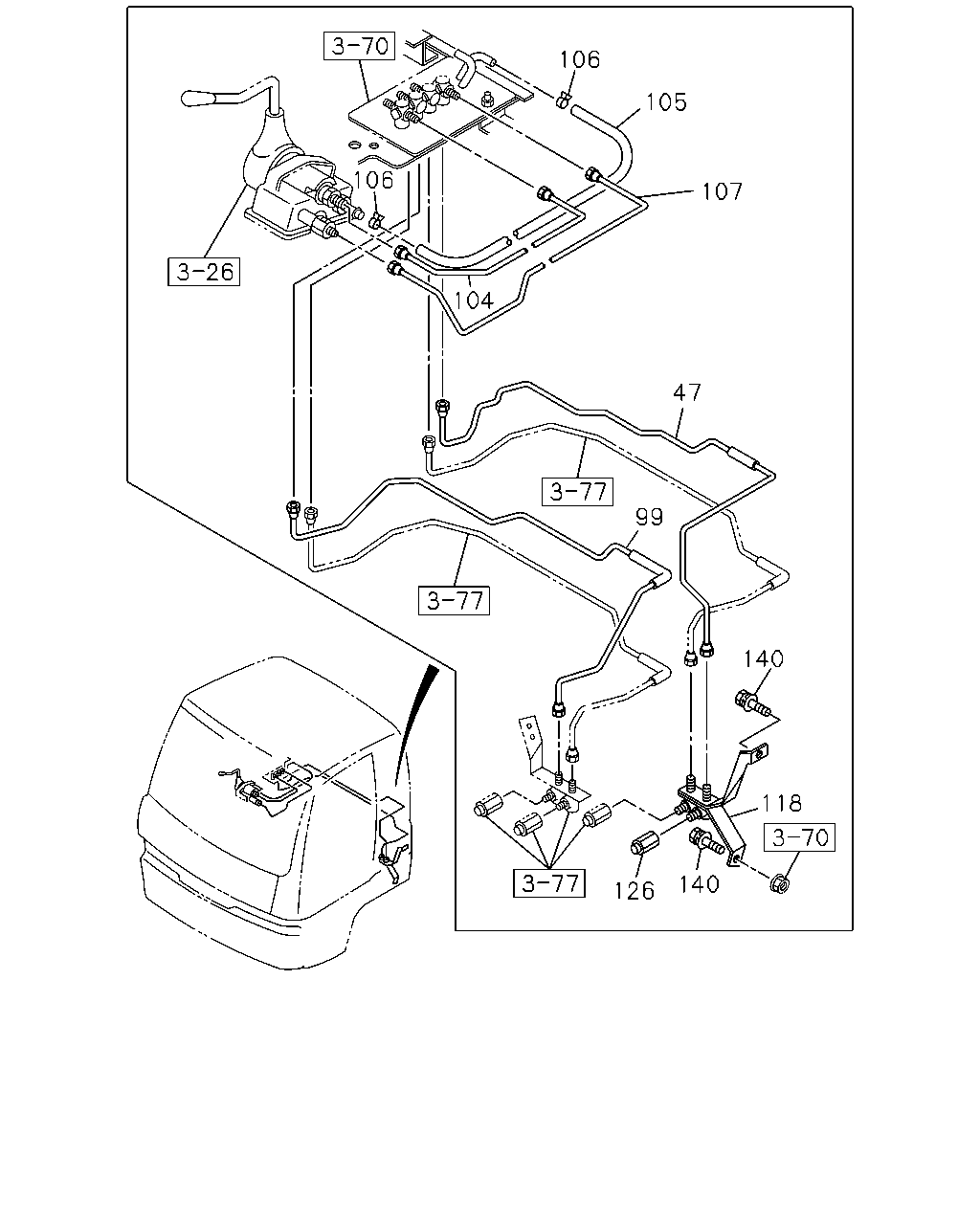

[380A] CAB SIDE (9 parça)
[380A] FRAME SIDE (13 parça)
▶
140
118
140
126
99
47
107
105
106
104
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
1-49121-763-2
01
1
1303-
99
PIPE; AIR,JOINT TO JOINT
1-49122-058-1
01
1
1303-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
1303-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
1303-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
1303-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
1303-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
1303-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1303-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1303-
91
91
91
91
79
80
29
79
80
84
29
29
29
91
91
83
82
82
125
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CONNECTOR; COCK
(A)
1-09650-222-1
02
1
1303-
29
CONNECTOR; COCK
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1303-
79
COUPLING; AIR,TRAILER
(A) RED
1-47478-466-1
01
1
1303-
79
COUPLING; AIR,TRAILER
(B) YELLOW
1-47478-467-1
01
1
1303-
80
NIPPLE; AIR COUPLING
1-09656-377-1
02
1
1303-
82
NUT; LK,CONNECTOR
M16
0-91111-516-0
02
1
1303-
83
WASHER; LK,CONNECTOR
ID=16.2
0-91510-516-0
02
1
1303-
84
BRACKET; COUPLER
1-47465-883-1
01
1
1303-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1303-
91
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1303-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1303-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1303-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1303-
