Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND BATTERY CABLE
▶
0-61 — BATTERY AND BATTERY CABLE
(#11545) — 46 parça
◀

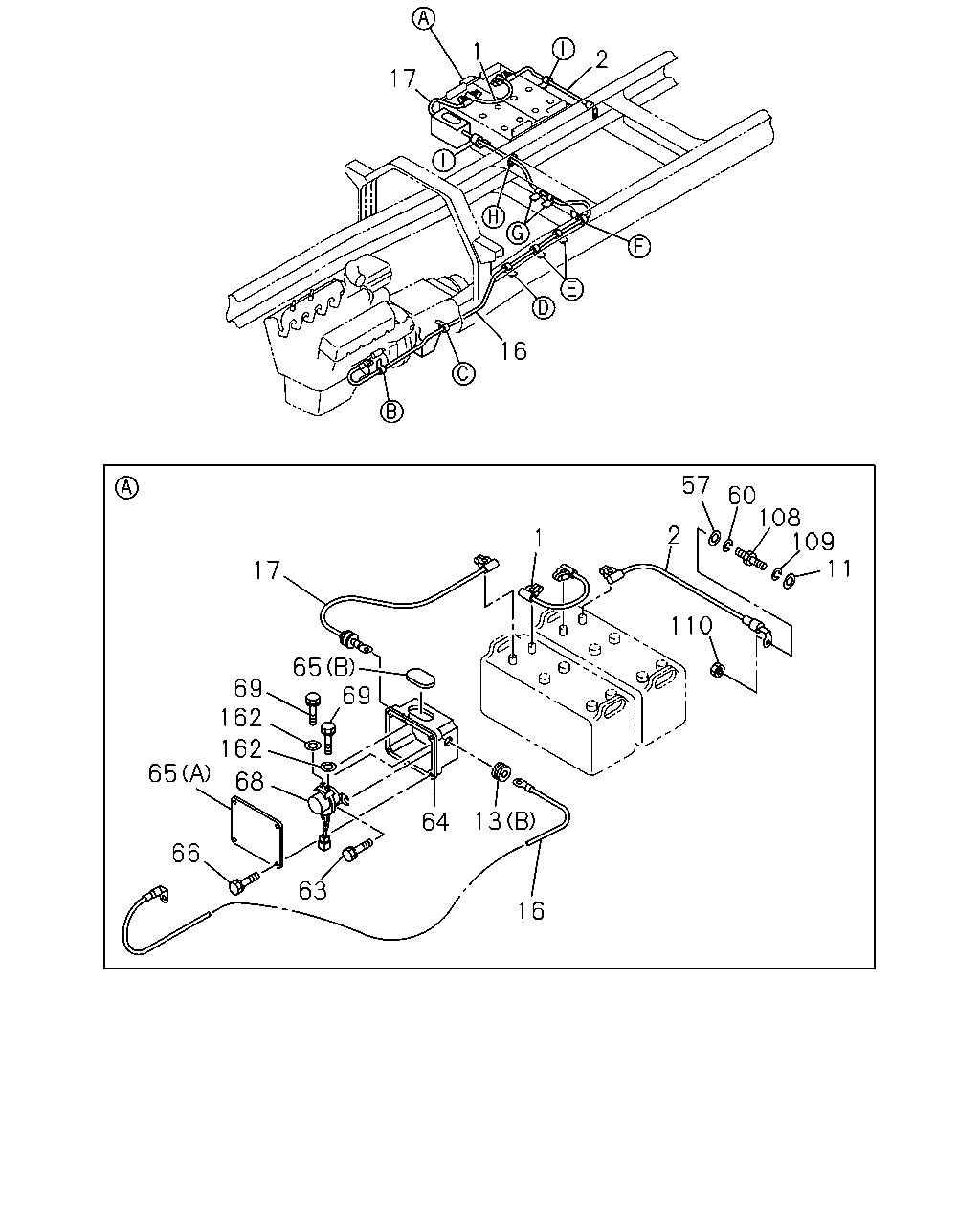

[061A] BATTERY RELAY BOX AND BATTERY CABLE (23 parça)
[061A] BRACKET,CLIP,BOLT,NUT (23 parça)
▶
1
2
17
16
57
60
108
109
11
2
1
17
110
65
69
69
162
162
65
68
13
64
66
63
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450
1-82650-281-2
01
1
0105-
1
CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180
1-82650-280-2
01
1
0105-
2
CABLE; BATTERY
L=690
1-82650-147-0
01
1
0105-
11
WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22
9-09164-708-0
01
1
0105-
13
GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25
1-09332-011-1
01
1
0105-
13
GROMMET; BATTERY CABLE
(B) ID=26
1-09333-140-0
01
1
0105-
16
CABLE; STARTER TO RELAY
L=3450
1-82652-742-3
01
1
0105-0109
16
CABLE; STARTER TO RELAY
ISUZU M/T<X9A> L=3450
1-82652-742-4
01
1
0110-
16
CABLE; STARTER TO RELAY
ZF M/T<X9E> L=3630
1-82652-770-1
01
1
0110-
17
CABLE; BATTERY (+) TO RELAY
L=390
1-82652-531-0
01
1
0105-
57
WASHER; PL,BATTERY CABLE
ID=6.4
9-09164-506-0
01
1
0106-
60
WASHER; LK,BATTERY CABLE
ID=6.1
9-09150-606-0
01
1
0106-
63
BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER
1-09030-025-0
02
1
0105-
64
BOX; BATTERY RELAY
1-82699-947-0
01
1
0105-
65
COVER; BATTERY RELAY
(A)
1-82699-353-1
01
1
0105-
65
COVER; BATTERY RELAY
(B)
1-82699-980-0
01
1
0105-
66
BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER
0-50140-616-0
04
1
0105-
68
RELAY; BATTERY
1-82550-282-0
01
1
0105-
69
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
0-50140-820-0
02
1
0105-
108
STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42
5-09309-006-1
01
1
0105-
109
WASHER; LK,EARTH BATTERY CABLE
ID=8.2
9-09150-808-0
01
1
0105-
110
NUT; HARNESS TO BATTERY EARTH
M6 FLANGE
5-09440-004-0
01
1
0105-
162
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
9-09164-608-0
02
1
0105-
18
21
21
76
21
18
18
73
21
21
100
28
28
18
18
99
23
23
101
12
12
24
24
99
13
81
22
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
CLIP; BATTERY CABLE
ID=18 L=28
1-09701-067-0
02
1
0110-
9
CLIP; BATTERY CABLE
ID=19 L=28
9-09525-856-0
01
1
0110-
12
NUT; BATTERY CABLE CLIP
M8 FLANGE
0-91150-108-0
03
1
0105-
13
GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25
1-09332-011-1
01
1
0105-
13
GROMMET; BATTERY CABLE
(B) ID=26
1-09333-140-0
01
1
0105-
18
CLIP; BATTERY CABLE
(B) ID=18 L=28
1-09701-067-0
02
1
0105-0109
18
CLIP; BATTERY CABLE
(C) ID=19 L=28
9-09525-856-0
02
1
0105-0109
18
CLIP; BATTERY CABLE
ISUZU M/T<X9A> (D) ID=19 L=28
9-09525-856-0
01
1
0105-0109
18
CLIP; BATTERY CABLE
ISUZU M/T<X9A> (D) ID=19 L=28
9-09525-856-0
02
1
0110-
18
CLIP; BATTERY CABLE
ZF M/T<X9E> (A) ID=19 L=60
9-09525-896-0
01
1
0105-0109
18
CLIP; BATTERY CABLE
ZF M/T<X9E> (A) ID=19 L=60
9-09525-896-0
02
1
0110-
21
BOLT; CLIP CABLE
M8X20 FLANGE
0-28680-820-0
05
1
0105-
22
CLIP; BATTERY CABLE
ID=18 H=23 L=28
1-09701-070-0
02
1
0105-
23
BRACKET; CABLE CLIP TO FRAME
L=95
1-82699-085-0
03
1
0105-
24
BOLT; BRKT TO FRAME
M8X30 FLANGE
0-28680-830-0
03
1
0105-
28
NUT; BRKT TO FRAME
M8 FLANGE
0-91150-108-0
03
1
0105-
73
BRACKET; BATTERY CABLE
ISUZU M/T<X9A>
1-82698-139-0
01
1
0105-
76
NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE
0-91150-210-0
02
1
0105-
81
BOLT; BATTERY CABLE
M8X20 FLANGE
0-28680-820-0
02
1
0105-
99
CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28
1-09701-070-0
01
1
0105-
99
CLIP; BATTERY CABLE
(B) ID=20 L=50
9-09917-430-0
02
1
0105-
100
BOLT; BATTERY CABLE CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0105-
101
NUT; BATTERY CABLE CLIP
M8 FLANGE
0-91150-108-0
01
1
0105-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
