Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11534 - CYJ RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#115446) — 167 parça
◀
[605A] LID LOCK AND CABLE (28 parça)
[605A] FRONT LID (20 parça)
[605A] FRONT SIDE PANEL (24 parça)
[605A] FENDER (48 parça)
[605A] DASH PANEL (47 parça)
▶

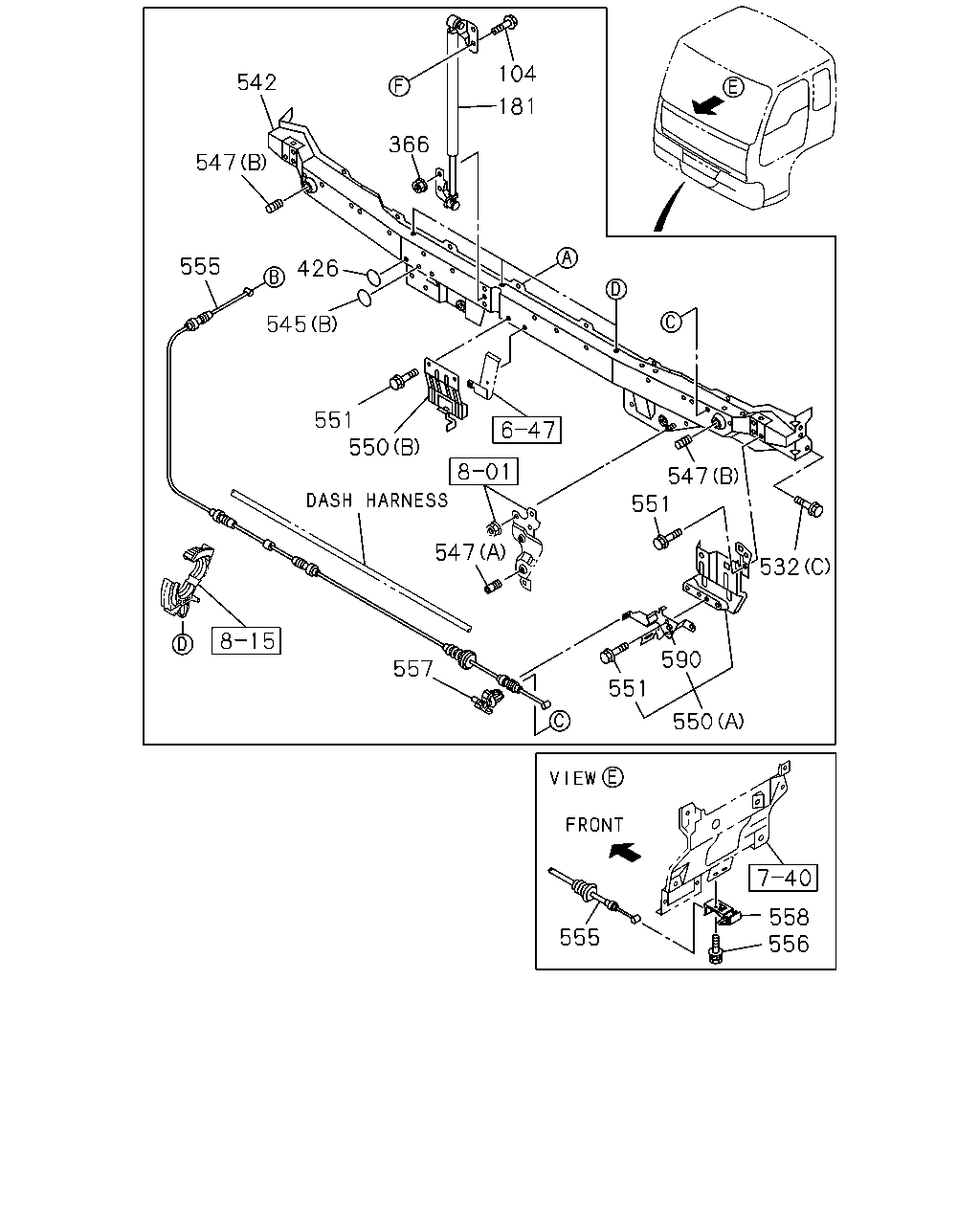

104
366
181
542
547
426
545
555
551
557
547
550
551
547
532
550
590
551
558
556
555
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
1303-
181
SUPPORT ASM; DOOR CHECK,FRT
1-71107-864-0
01
1
1303-
366
NUT; SUPPORT
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
1303-
426
GASKET
OD=25 BLACK
1-76798-019-0
02
1
1303-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
1303-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
1303-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1303-
542
RAIL; FRT MOUNTING
1-61470-721-1
01
1
1303-
545
SEAL; FRT LID
(A) L=2038
1-71907-481-1
01
1
1303-
545
SEAL; FRT LID
(B) OD=25 BLACK
1-76798-019-0
01
1
1303-
545
SEAL; FRT LID
(C)
8-98133-467-0
01
1
1303-
545
SEAL; FRT LID
(D)
8-98133-468-0
01
1
1303-
545
SEAL; FRT LID
(E)
8-98133-469-0
01
1
1303-
545
SEAL; FRT LID
(F)
8-98133-470-0
01
1
1303-
545
SEAL; FRT LID
(G)
8-98136-568-0
01
1
1303-
547
RUBBER; CUSHION
(A) OD=22 L=39
1-71907-419-0
02
1
1303-
547
RUBBER; CUSHION
(B) OD=22 L=29
8-94324-556-2
02
1
1303-
550
LOCK ASM; FRT LID
(A)
1-79317-025-1
01
1
1303-
550
LOCK ASM; FRT LID
(A)
1-79317-026-1
01
1
1303-
550
LOCK ASM; FRT LID
(B)
8-98174-767-0
01
1
1303-
551
BOLT; LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1303-
551
BOLT; LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
1303-
555
CABLE; FRT LID
L=2512
1-79347-007-3
01
1
1303-
556
BOLT; CABLE
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1303-
557
CLIP; CABLE
ID=4.8
8-94128-483-0
02
1
1303-
558
LEVER; FRT LID
1-79338-007-1
01
1
1303-
590
LOCK; FRT LID
1-79318-009-4
01
1
1303-
590
LOCK; FRT LID
1-79318-010-2
01
1
1303-

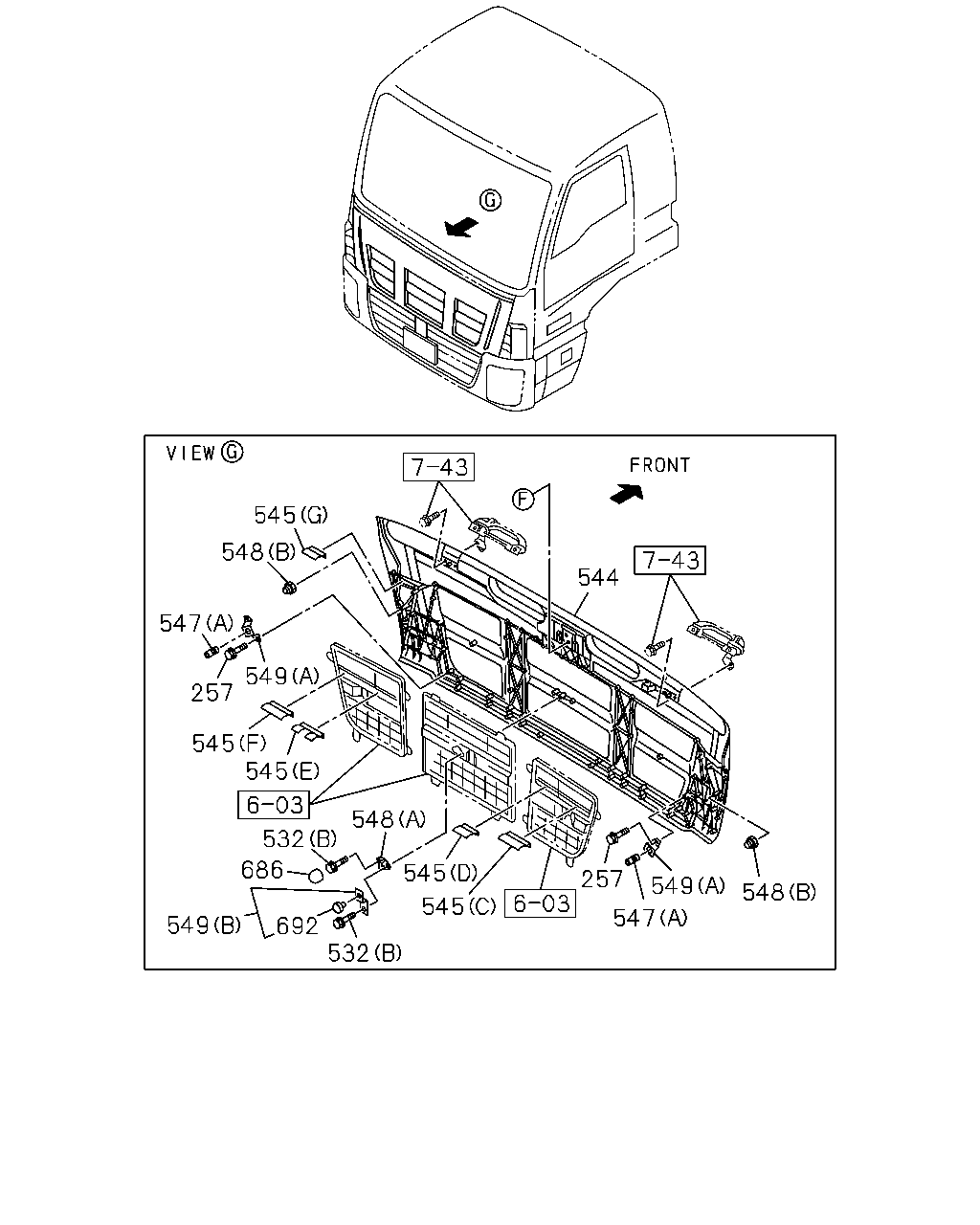

545
548
547
257
545
549
545
548
532
545
257
549
548
547
545
532
692
549
686
544
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
257
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
1303-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
1303-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
1303-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1303-
544
LID; FRT
WHITE
8-97417-923-3
01
1
1303-
545
SEAL; FRT LID
(A) L=2038
1-71907-481-1
01
1
1303-
545
SEAL; FRT LID
(B) OD=25 BLACK
1-76798-019-0
01
1
1303-
545
SEAL; FRT LID
(C)
8-98133-467-0
01
1
1303-
545
SEAL; FRT LID
(D)
8-98133-468-0
01
1
1303-
545
SEAL; FRT LID
(E)
8-98133-469-0
01
1
1303-
545
SEAL; FRT LID
(F)
8-98133-470-0
01
1
1303-
545
SEAL; FRT LID
(G)
8-98136-568-0
01
1
1303-
547
RUBBER; CUSHION
(A) OD=22 L=39
1-71907-419-0
02
1
1303-
547
RUBBER; CUSHION
(B) OD=22 L=29
8-94324-556-2
02
1
1303-
548
STRIKER; FRT LID PANEL
(A)
1-79317-003-1
01
1
1303-
548
STRIKER; FRT LID PANEL
(B)
1-79318-008-1
02
1
1303-
549
BRACKET; STOPPER,FRT LID
(B)
8-98274-092-0
01
1
1411-
549
BRACKET; STOPPER,FRT LID
(A)
8-98135-101-0
02
1
1303-
686
CAP; BOLT
8-98217-298-0
01
1
1303-1410
692
BUFFER
8-98251-459-0
01
1
1411-
16
19
19
18
571
571
22
22
22
22
650
21
22
308
299
164
43
546
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PANEL; FRONT,SIDE
WHITE
8-97417-867-2
01
1
1303-
16
PANEL; FRONT,SIDE
WHITE
8-97417-875-2
01
1
1303-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-898-2
01
1
1303-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-899-2
01
1
1303-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-410-0
01
1
1303-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-411-0
01
1
1303-
19
SEAL; FRT SIDE PANEL
(B) OD=45 BLACK
1-76798-017-0
03
1
1303-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-433-0
01
1
1303-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-434-0
01
1
1303-
21
GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5
1-09983-160-3
14
1
1303-
22
SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER
1-09981-532-0
04
1
1303-
22
SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING
8-97893-344-0
14
1
1303-
24
SEAL; FRT PANEL LWR
OD=25 BLACK
1-76798-019-0
05
1
1303-
43
GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK
1-76798-017-0
02
1
1303-
164
SEAL; FRT PILLAR
1-71907-414-0
02
1
1303-
299
COVER; FRT PANEL SIDE
WHITE
8-97423-348-1
01
1
1303-
299
COVER; FRT PANEL SIDE
WHITE
8-97423-349-1
01
1
1303-
308
PLATE; FRT PANEL
WHITE
8-97417-899-1
01
1
1303-
308
PLATE; FRT PANEL
WHITE
8-97417-907-1
01
1
1303-
546
PLUG; DUMMY HOLE
OD=16 L=11
1-76378-155-0
02
1
1303-
571
CLIP; SEAL
(A)
1-09987-228-0
20
1
1303-
571
CLIP; SEAL
(B) PINK
1-09987-256-0
08
1
1303-
571
CLIP; SEAL
(B) NATURAL
1-09987-257-0
08
1
1303-
650
NUT; SPIRE
M5
1-09984-162-0
04
1
1303-

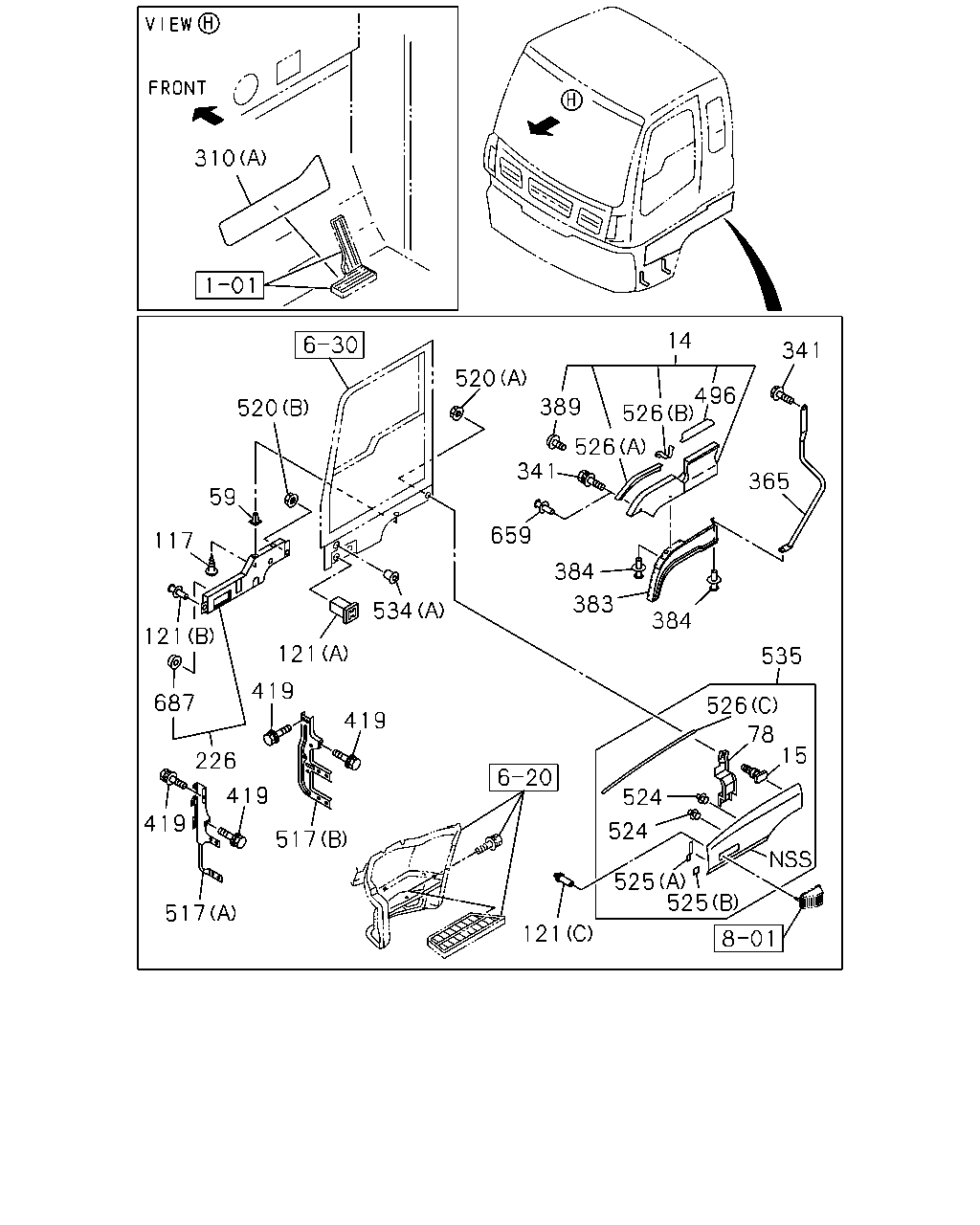

525
525
524
524
15
78
526
535
121
517
517
419
419
226
419
419
687
121
121
534
117
59
520
384
383
384
659
341
365
341
496
14
526
526
389
520
310
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
FENDER; FRT
8-98154-744-1
01
1
1303-
14
FENDER; FRT
8-98154-745-1
01
1
1303-
15
BOLT; FENDER
M6X7
1-71268-294-0
04
1
1303-
59
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
10
1
1303-
78
BRACKET; FENDER
1-71267-214-0
01
1
1303-
78
BRACKET; FENDER
1-71267-215-0
01
1
1303-
117
SCREW; COVER
M5X16 W/PL WASHER TAPPING
8-94279-123-0
10
1
1303-
121
GROMMET; FENDER
(B) D8X13.5
1-09987-248-1
08
1
1303-
121
GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1303-
121
GROMMET; FENDER
(C)
8-98111-356-0
02
1
1303-1306
226
PROTECTOR; FRT
8-98109-132-1
01
1
1303-1306
226
PROTECTOR; FRT
8-98234-709-0
01
1
1307-
226
PROTECTOR; FRT
8-98109-134-1
01
1
1303-1306
226
PROTECTOR; FRT
8-98234-710-0
01
1
1307-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
1303-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
1303-
341
BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER
1-09980-495-0
14
1
1303-
365
SUPPORT; FENDER
8-98120-231-0
01
1
1303-
365
SUPPORT; FENDER
8-98120-232-0
01
1
1303-
383
GUARD; MUD,FENDER LWR
1-71907-456-2
01
1
1303-
383
GUARD; MUD,FENDER LWR
1-71907-457-2
01
1
1303-
384
CLIP; FENDER LWR
D8X13.5
1-09987-248-1
13
1
1303-
389
SCREW; STAND,FENDER
M6X22
1-65481-386-0
06
1
1303-
419
BOLT; STEP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
11
1
1303-
496
RUBBER; STEP
1-71998-861-2
01
1
1303-
496
RUBBER; STEP
1-71998-862-2
01
1
1303-
517
SUPPORT; STEP PANEL
(A)
8-98125-814-2
01
1
1303-
517
SUPPORT; STEP PANEL
(A)
8-98125-815-1
01
1
1303-
517
SUPPORT; STEP PANEL
(B)
8-98125-816-2
01
1
1303-
517
SUPPORT; STEP PANEL
(B)
8-98125-817-2
01
1
1303-
520
NUT; FENDER
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1303-
520
NUT; FENDER
(B) M6
8-94343-366-1
02
1
1303-
524
CLIP; FENDER COVER
D5.4X8
1-09983-154-0
08
1
1303-
525
SEAL; FENDER
(A) 10X145
1-71267-342-0
02
1
1303-
525
SEAL; FENDER
(B) 10X30
8-97631-981-0
02
1
1303-
526
FINISHER; FENDER
(C)
1-71268-275-1
02
1
1303-
526
FINISHER; FENDER
(A)
1-71907-641-0
02
1
1303-
526
FINISHER; FENDER
(B)
1-71907-642-0
01
1
1303-
526
FINISHER; FENDER
(B)
1-71907-643-0
01
1
1303-
534
FASTENER
(A) ID=5.4 OD=6.8
1-09989-021-0
08
1
1303-1303
534
FASTENER
(A) ID=5.4 OD=6.8
8-98241-984-0
08
1
1303-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
1303-
535
FENDER; BLISTER
WHITE
8-98105-663-1
01
1
1303-1303
535
FENDER; BLISTER
WHITE
8-98234-066-0
01
1
1304-
535
FENDER; BLISTER
WHITE
8-98105-664-1
01
1
1303-1303
535
FENDER; BLISTER
WHITE
8-98234-067-0
01
1
1304-
659
CLIP; FENDER
D8X13.5
1-09987-248-1
02
1
1303-
687
COVER; FENDER
8-98234-587-0
02
1
1307-

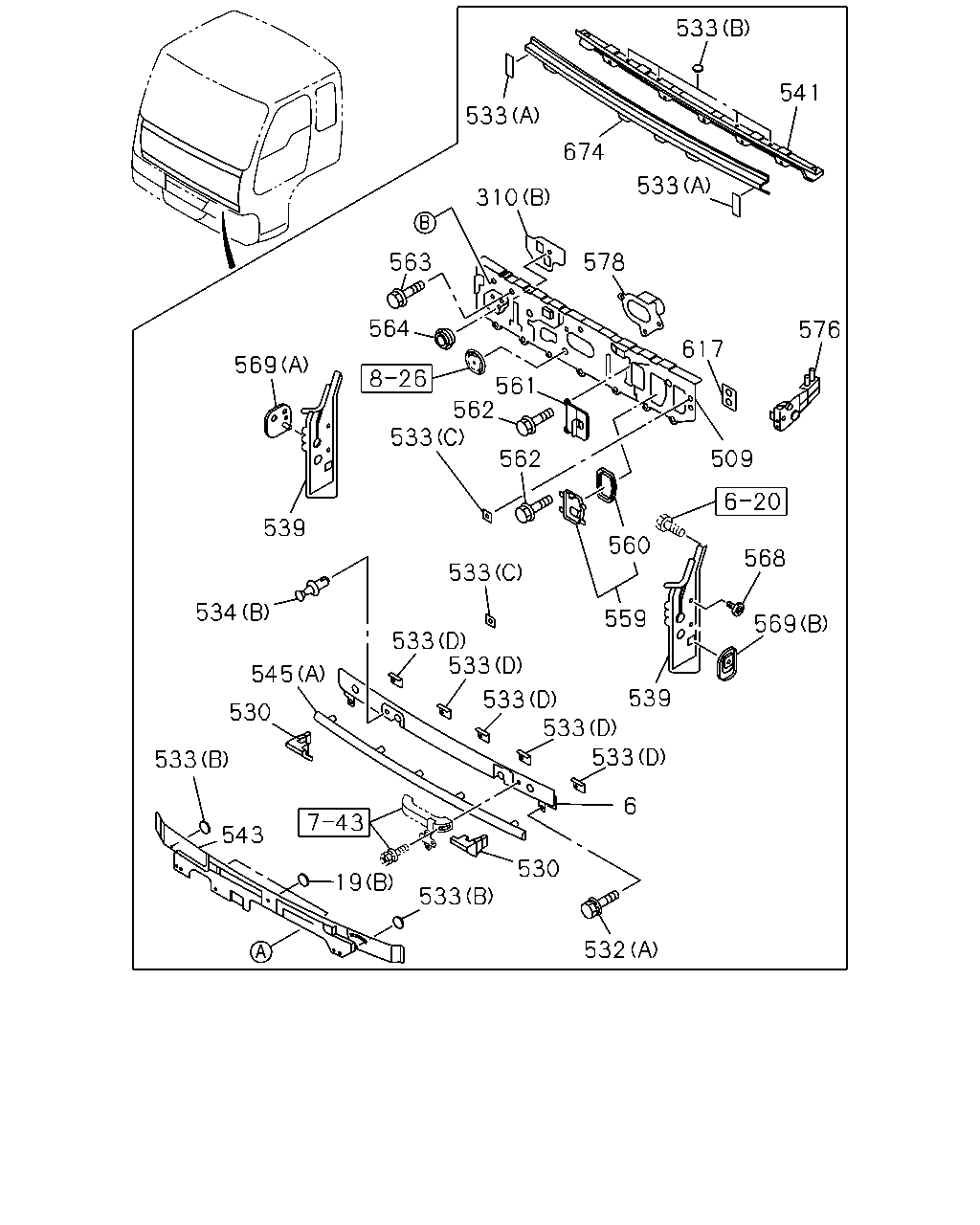

509
576
533
541
533
674
533
310
578
617
568
569
539
559
560
562
561
562
533
563
569
539
534
545
533
533
533
533
533
533
6
532
530
533
19
543
533
530
564
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PANEL; FRONT
1-65473-144-0
01
1
1303-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-410-0
01
1
1303-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-411-0
01
1
1303-
19
SEAL; FRT SIDE PANEL
(B) OD=45 BLACK
1-76798-017-0
03
1
1303-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-433-0
01
1
1303-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-434-0
01
1
1303-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
1303-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
1303-
509
PANEL; DASH
1-62270-478-6
01
1
1303-
530
STOPPER; FRT PANEL,SIDE
1-71907-482-1
01
1
1303-
530
STOPPER; FRT PANEL,SIDE
1-71907-487-0
01
1
1303-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
1303-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
1303-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1303-
533
SEAL; FRT PANEL
(D) L=30
1-71996-079-2
07
1
1303-
533
SEAL; FRT PANEL
(A) 20X65
1-76778-046-3
02
1
1303-
533
SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK
5-76777-035-0
12
1
1303-
533
SEAL; FRT PANEL
(C) 25X25
8-94272-533-0
02
1
1303-
534
FASTENER
(A) ID=5.4 OD=6.8
1-09989-021-0
08
1
1303-1303
534
FASTENER
(A) ID=5.4 OD=6.8
8-98241-984-0
08
1
1303-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
1303-
539
CLOSING; PILLAR
1-61480-673-6
01
1
1303-
539
CLOSING; PILLAR
1-61480-674-6
01
1
1303-
541
PANEL; FRONT,INNER
1-61470-690-0
01
1
1303-
543
CLOSING; FRT MTG RAIL
1-61470-727-0
01
1
1303-
545
SEAL; FRT LID
(A) L=2038
1-71907-481-1
01
1
1303-
545
SEAL; FRT LID
(B) OD=25 BLACK
1-76798-019-0
01
1
1303-
545
SEAL; FRT LID
(C)
8-98133-467-0
01
1
1303-
545
SEAL; FRT LID
(D)
8-98133-468-0
01
1
1303-
545
SEAL; FRT LID
(E)
8-98133-469-0
01
1
1303-
545
SEAL; FRT LID
(F)
8-98133-470-0
01
1
1303-
545
SEAL; FRT LID
(G)
8-98136-568-0
01
1
1303-
559
COVER; EVAPOLATOR
1-71996-194-1
01
1
1303-
560
SEAL; COVER
1-71998-827-1
01
1
1303-
561
COVER; HEATER CORE
1-71998-829-1
01
1
1303-
562
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
1303-
563
BOLT; DASH PANEL
M8X20
1-79198-002-0
16
1
1303-
563
BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER
8-94279-209-0
02
1
1303-
564
GROMMET; DASH PANEL
OD=23.5
1-09983-101-0
02
1
1303-
568
PATCH; INST REINF
1-61480-675-2
02
1
1303-
569
PATCH; LWR GRIP
(A)
1-61480-689-2
01
1
1303-
569
PATCH; LWR GRIP
(B)
1-61480-736-2
01
1
1303-
576
FRAME; INST SIDE
1-62280-176-6
01
1
1303-
576
FRAME; INST SIDE
1-62280-177-7
01
1
1303-
578
COVER; WIPER MOTOR
1-62280-254-1
01
1
1303-
617
SEAL; DASH
1-61281-497-1
02
1
1303-
674
PANEL; UPR
1-61470-688-2
01
1
1303-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
