6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#115444) — 18 parça

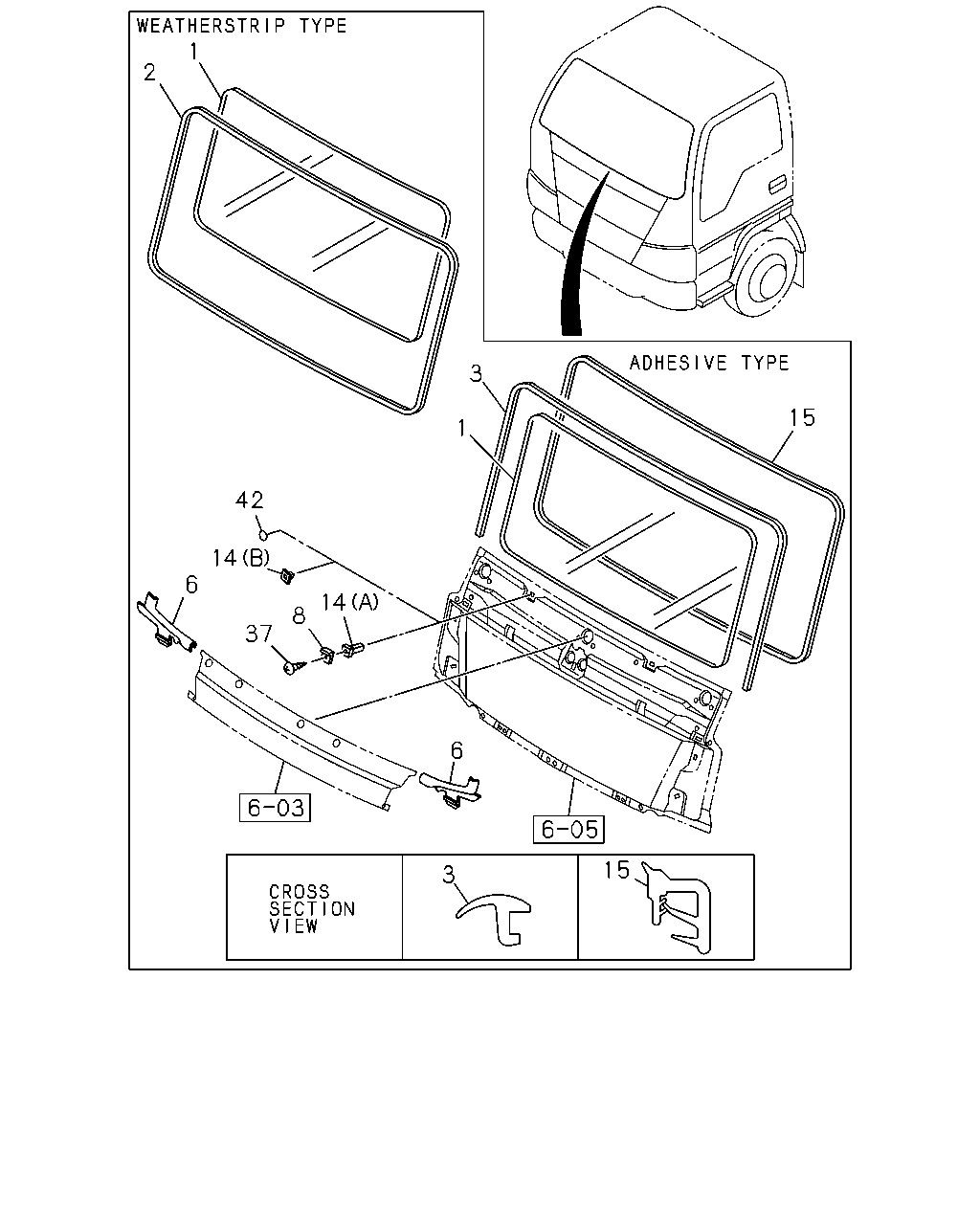

çizim 336547
1 2 42 6 14 37 8 14 6 3 15 1 3 15
BalonParca AdiParca NoAdetTipApplied Date
1 16.005 GLASS; WINDSHIELD 8-97997-944-1 01 1 1302-
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-4 01 1 1302-
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-678-3 01 1 1302-
6 16.475 MOLDING; SIDE,WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.041 		8-97581-617-4 01 1 1302-
6 16.475 MOLDING; SIDE,WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.041 		8-97581-618-3 01 1 1302-
8 16.041 STOPPER; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 1302-
8 16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 1302-
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 12.182 (B) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 1305-
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (B) 14.5X14.5 BLACK 		8-94279-714-0 02 1 1302-
14 16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1302-
15 16.041 FINISHER; WINDSHIELD
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.040 		8-97856-351-4 01 1 1302-1312
15 16.041 FINISHER; WINDSHIELD
WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 1401-1403
15 16.041 FINISHER; WINDSHIELD
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.040 		8-97856-351-4 01 1 1404-
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 1302-1312
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.040 		8-97856-351-4 01 1 1401-1403
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 1404-
37 08.130 BOLT
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 1302-
42 16.041 SEAL; HOLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1302-1304
