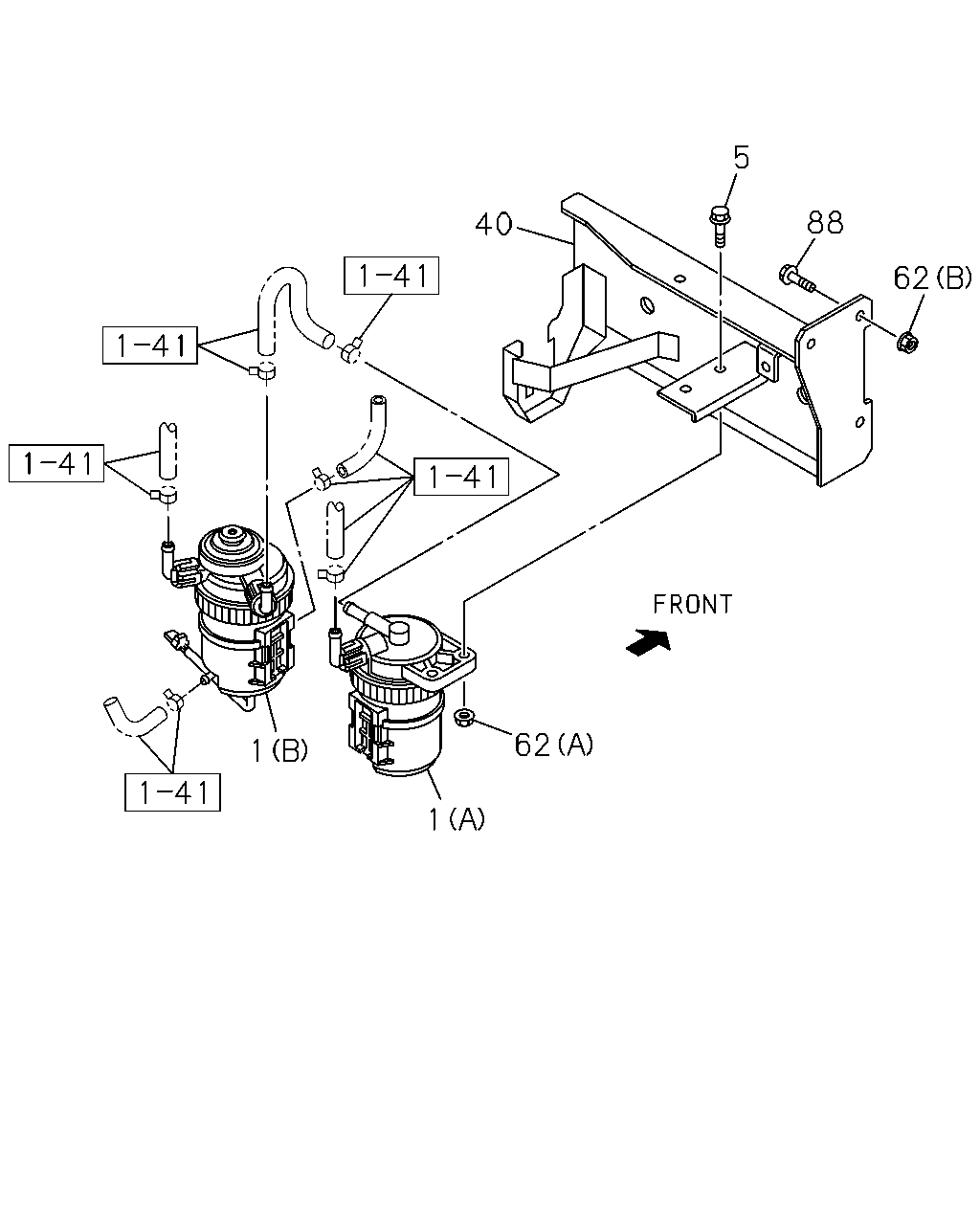

0-41 — FUEL FILTER AND BRACKET
(#115443) — 14 parça
◀
[041A] FUEL FILTER (7 parça)
[041A] BRACKET (7 parça)
▶
2
2
119
39
1
1
39
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
(A)
8-98184-212-1
01
1
1302-
1
03.890 FILTER ASM; FUEL
(B)
8-98211-343-1
01
1
1302-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98159-693-0
01
1
1302-
2
03.890 ELEMENT KIT; FUEL FILTER
(B)
8-98194-119-0
01
1
1302-
2
03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS (IMIT LCV ONLY)
5-87615-017-0
01
1
1302-
39
03.890 GASKET; DRAIN PLUG
8-98188-943-0
02
1
1302-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98188-941-0
02
1
1302-
62
88
5
40
62
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
(A)
8-98184-212-1
01
1
1302-
1
03.890 FILTER ASM; FUEL
(B)
8-98211-343-1
01
1
1302-
5
03.890 BOLT; FUEL FILTER
01.060 M8X35 FLANGE
0-28650-835-0
02
1
1302-
40
03.890 BRACKET; FUEL FILTER
8-98213-930-1
01
1
1302-
62
03.895 NUT; FUEL FILTER
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1302-
62
03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE
0-91180-110-0
03
1
1302-
88
03.895 BOLT; BRKT,FUEL FILTER
00.029 M10X30 FLANGE
0-28651-030-0
03
1
1302-
