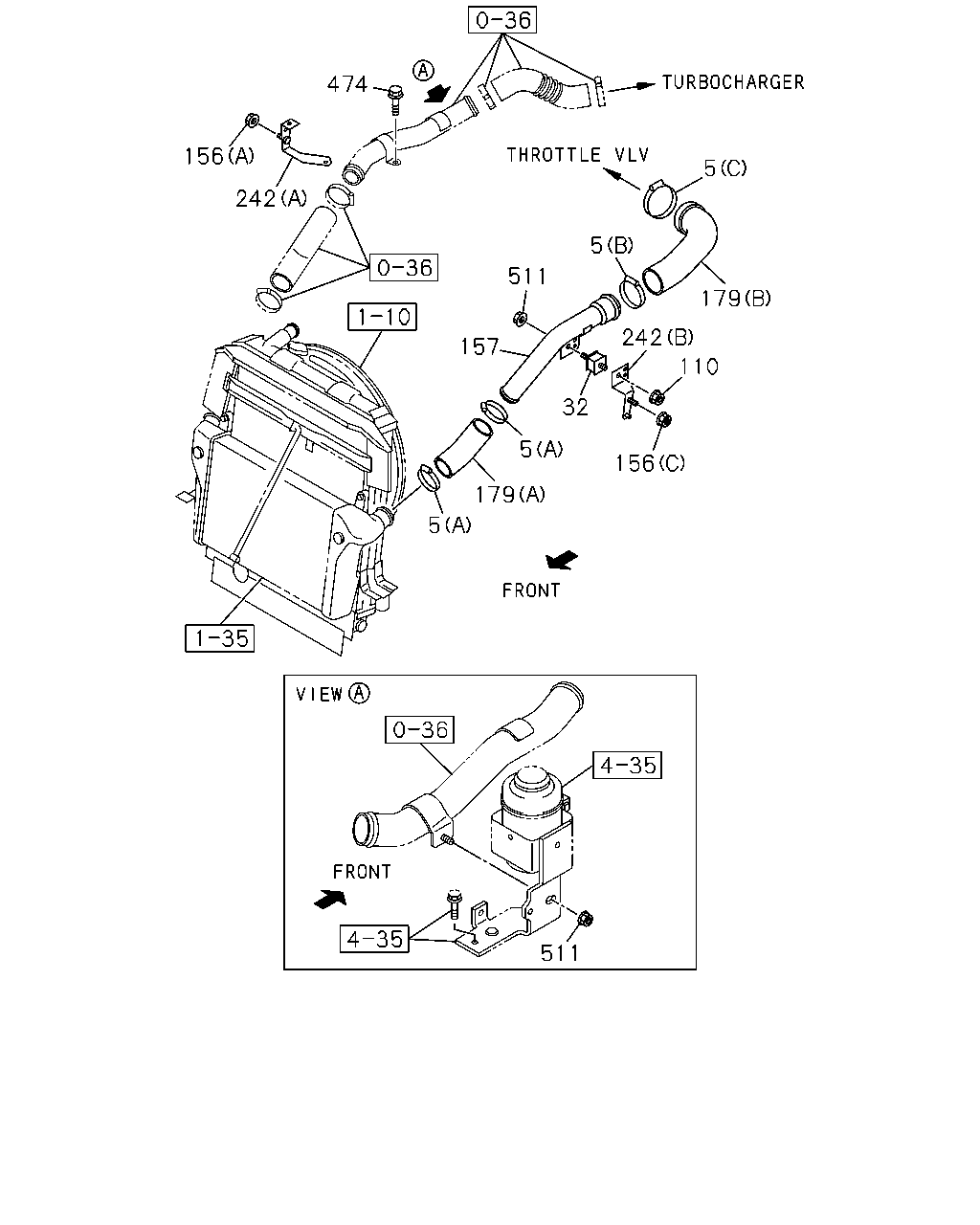

1-31 — AIR DUCT (#115441) — 108 parça

474 156 242 5 5 511 157 179 242 110 156 32 5 179 5 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	02	1	1302-
5	03.407 CLIP; AIR DUCT (B) ID=55-75	8-98133-349-0	01	1	1302-
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	1302-
5	03.407 CLIP; AIR DUCT (D) D=101.6	9-09915-502-1	01	1	1302-
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1302-
110	03.403 NUT; RUBBER MTG 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-
156	03.417 NUT; BRKT 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	1302-
156	03.417 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1302-
156	03.417 NUT; BRKT 01.840 (C) M8 W/DISHED WASHER	8-97329-625-0	01	1	1302-
157	03.417 PIPE; AIR	8-98214-565-0	01	1	1302-
179	03.417 HOSE; AIR INT (A)	8-98183-777-0	01	1	1302-
179	03.417 HOSE; AIR INT (B)	8-98217-289-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (E)	8-97312-894-1	01	1	1302-
242	03.417 BRACKET; AIR DUCT (F)	8-97329-201-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (D)	8-97329-306-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (B)	8-98183-781-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (A)	8-98184-423-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (C)	8-98214-543-0	01	1	1302-
474	03.417 BOLT; PIPE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1302-
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-

351 317 26 242 426 409 40 61 543 35 5 287 248 228 156 174 203 571 379 248 557 287 232 480 314 64 242 381 389 389 381 242 35 389 64 381 242 381 399 314 281 314 317 317 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	02	1	1302-
5	03.407 CLIP; AIR DUCT (B) ID=55-75	8-98133-349-0	01	1	1302-
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	1302-
5	03.407 CLIP; AIR DUCT (D) D=101.6	9-09915-502-1	01	1	1302-
26	03.417 DUCT; AIR INT	8-98183-773-0	01	1	1302-
35	03.406 SEAL; DUCT,INT 03.403 (A)	8-97853-699-2	01	1	1302-
35	03.406 SEAL; DUCT,INT (B)	8-98068-167-0	01	1	1302-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1302-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1302-
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1302-
156	03.417 NUT; BRKT 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	1302-
156	03.417 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1302-
156	03.417 NUT; BRKT 01.840 (C) M8 W/DISHED WASHER	8-97329-625-0	01	1	1302-
174	03.682 SENSOR; AIR FLOW CONT	8-98184-062-0	01	1	1302-
203	03.406 RUBBER; SEAL 03.417	8-97240-056-0	01	1	1302-
228	03.278 CLIP; PCV HOSE ID=31 L=44	8-98170-379-0	01	1	1302-
232	03.417 HOSE; CONN	8-98214-562-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (E)	8-97312-894-1	01	1	1302-
242	03.417 BRACKET; AIR DUCT (F)	8-97329-201-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (D)	8-97329-306-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (B)	8-98183-781-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (A)	8-98184-423-0	01	1	1302-
242	03.417 BRACKET; AIR DUCT (C)	8-98214-543-0	01	1	1302-
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1302-

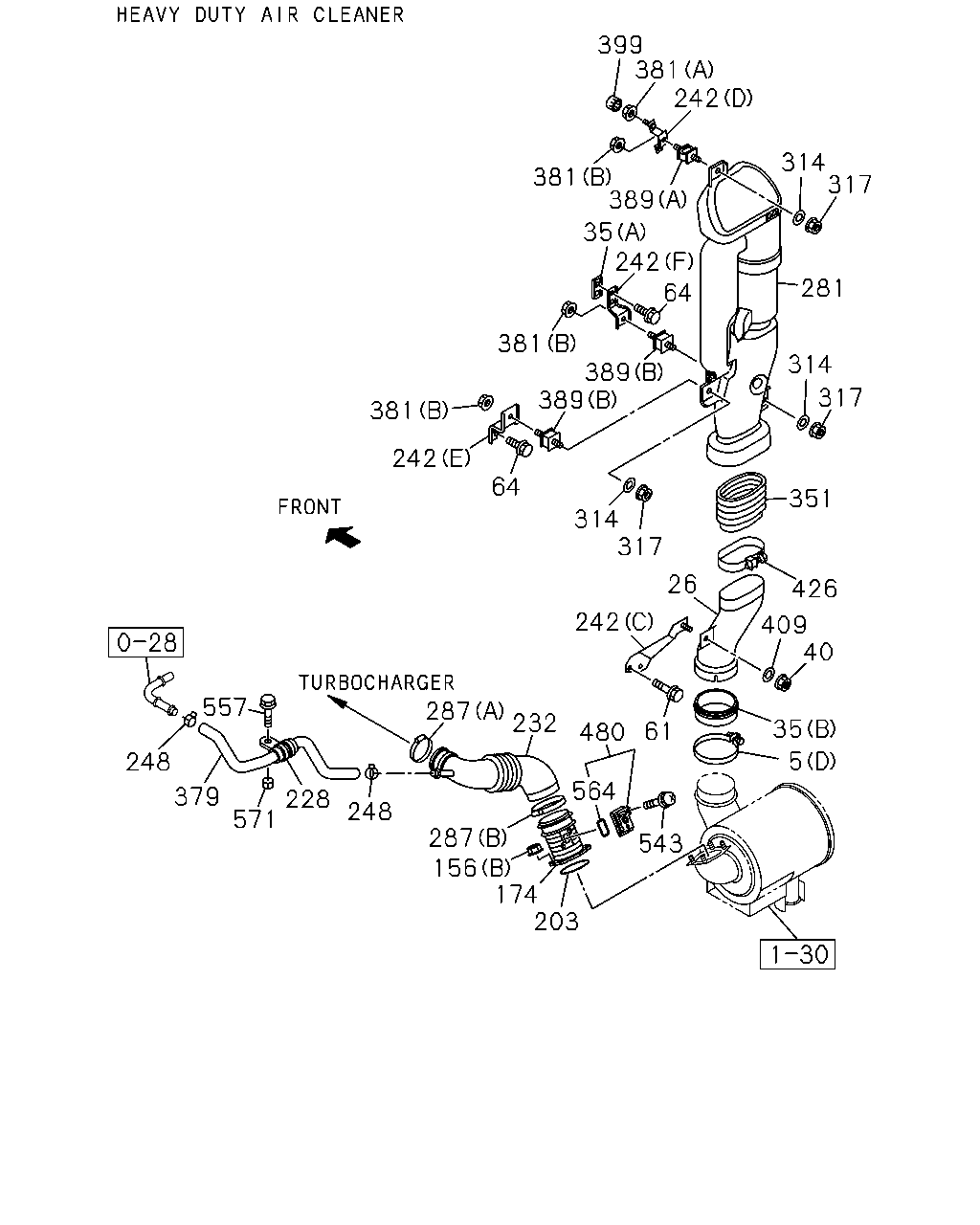

281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-994-2	01	1	1302-

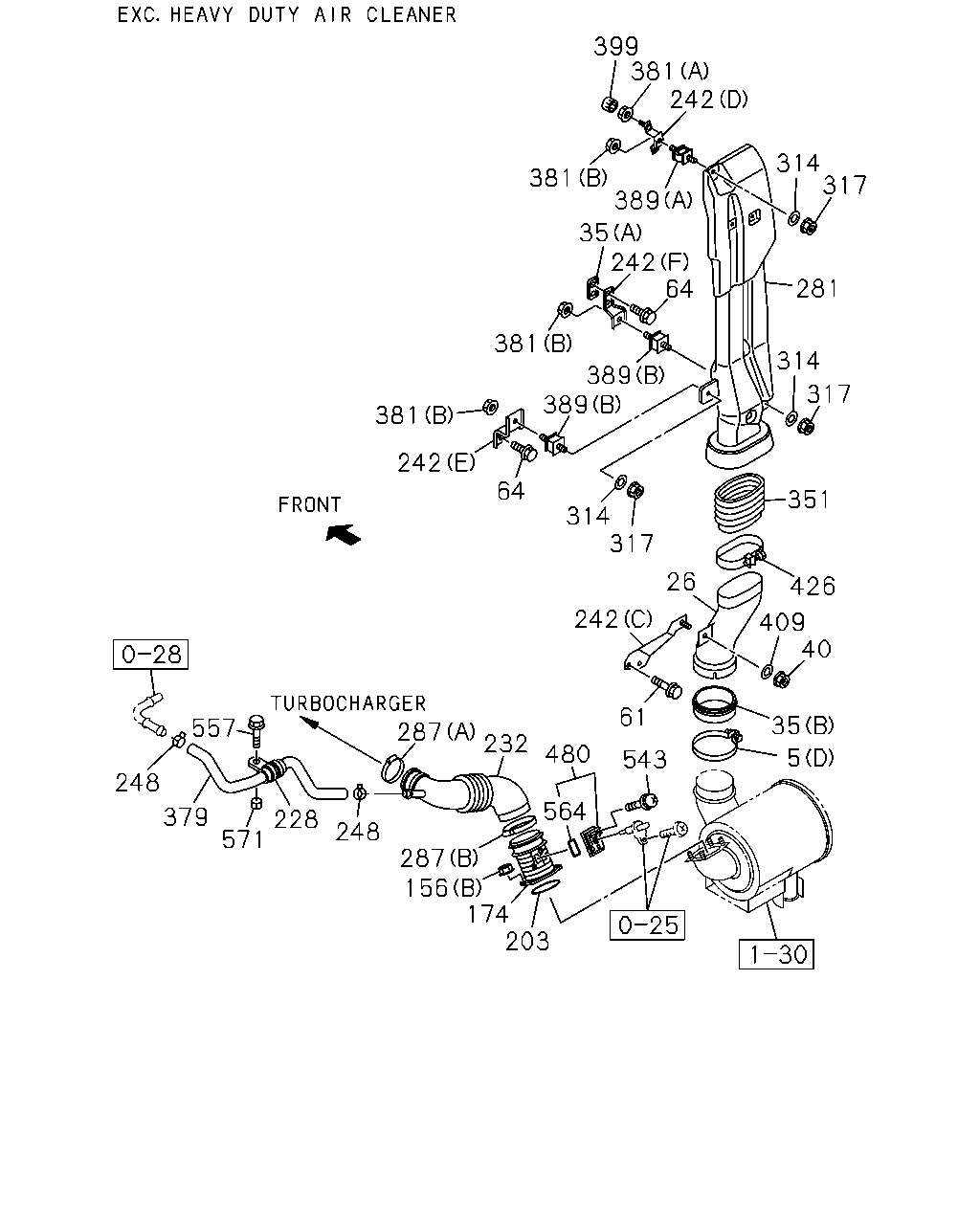

281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-97369-706-0	01	1	1302-
