Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#11544) — 36 parça
◀

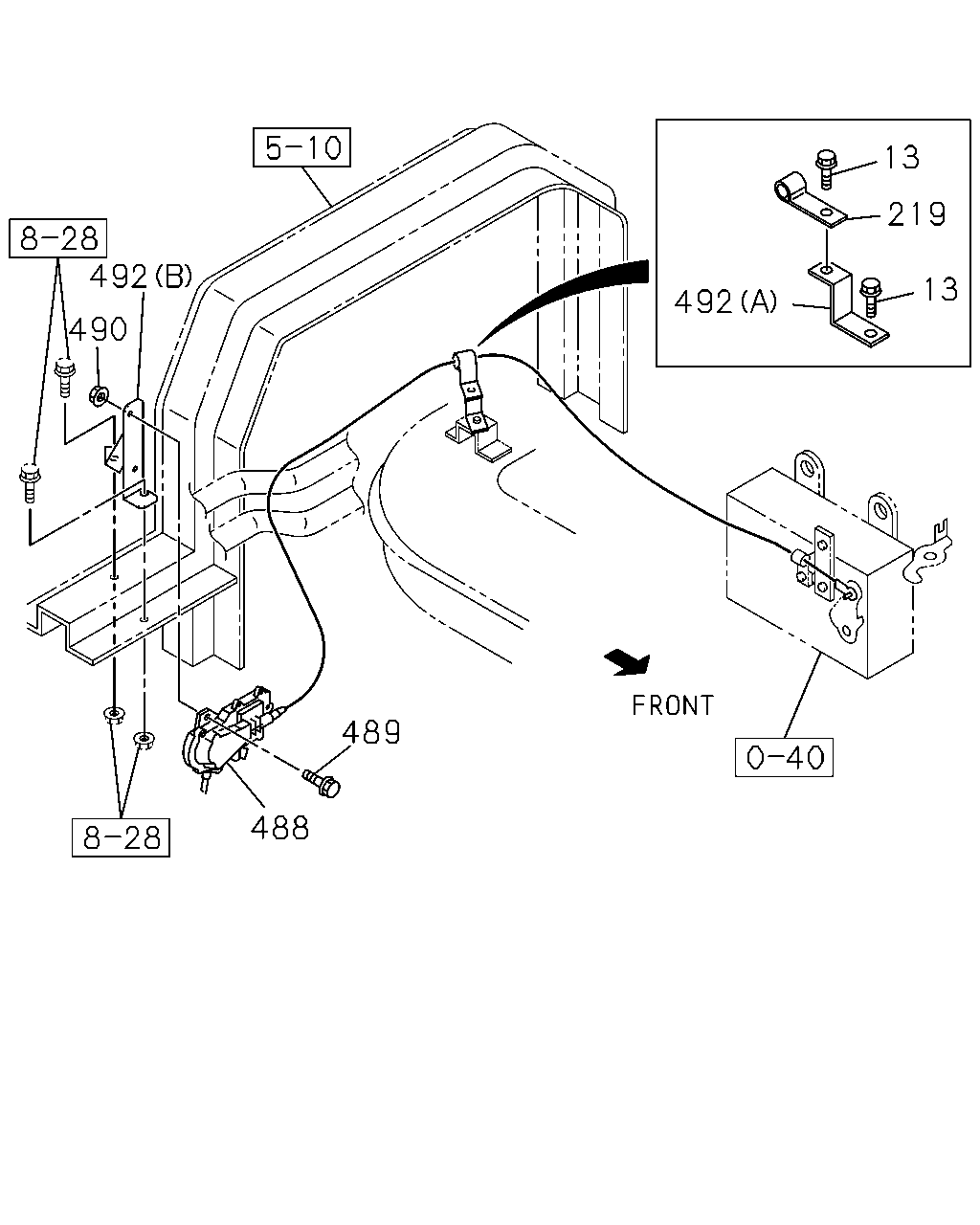

[060A] FIXING;ENG STOPPER (9 parça)
[060A] WIRING;ENG HARNESS,STARTER RELAY,CABLE (11 parça)

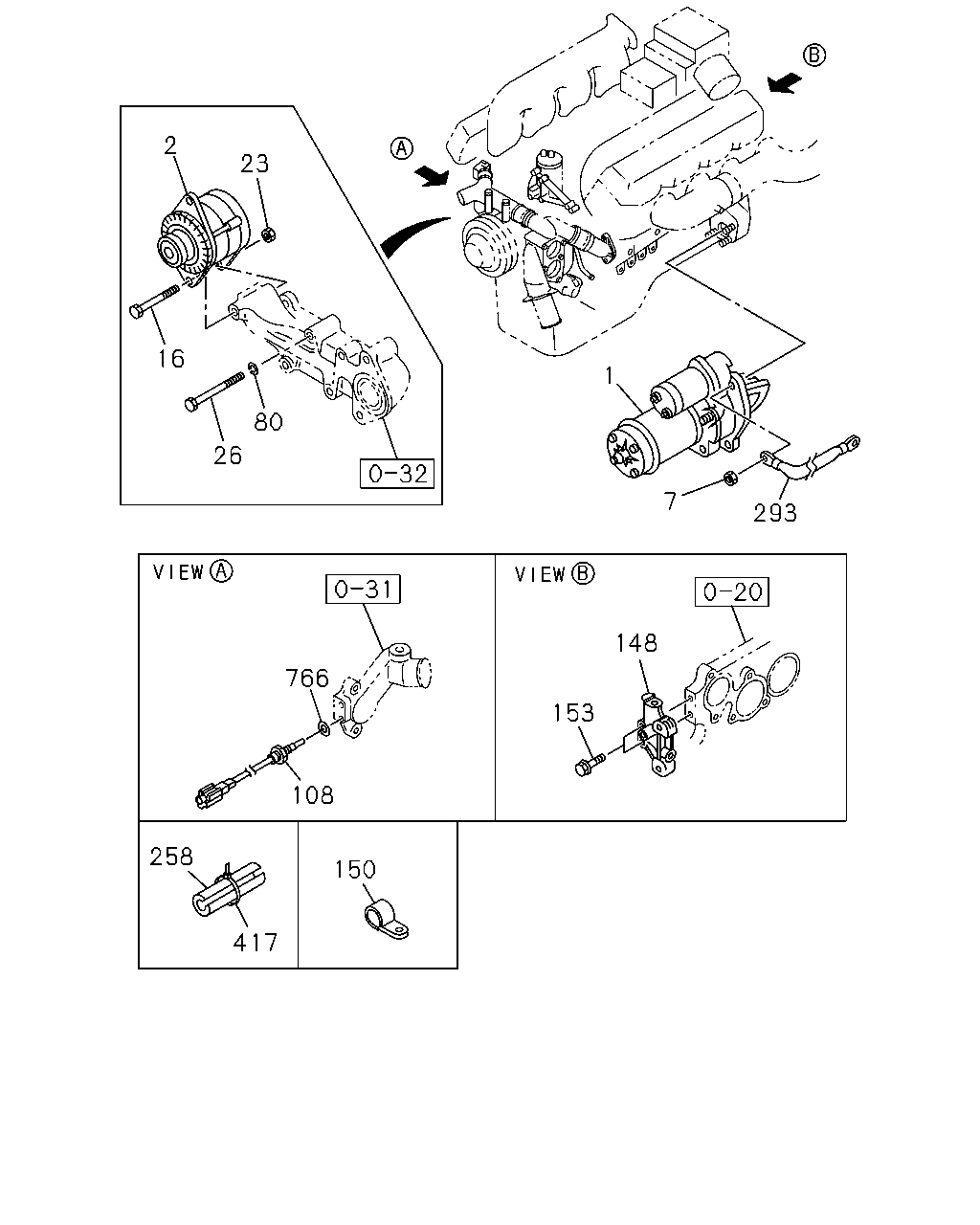

[060A] STARTER AND GENERATOR (16 parça)
▶
13
219
492
13
492
490
489
488
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; BRKT
EXC. RLD GOVERNOR(SD7) M8X25 FLANGE
0-28690-825-0
02
1
0105-
219
CLIP; ENG STOP CABLE
ID=7 L=40
9-09524-675-0
01
1
0105-
488
STOPPER; ENG
RLD GOVERNOR(SD7)
1-82840-133-2
01
1
0105-
488
STOPPER; ENG
EXC. RLD GOVERNOR(SD7)
1-82840-151-1
01
1
0105-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0105-
490
NUT; ENG STOP
M8 FLANGE
0-91150-108-0
02
1
0105-
492
BRACKET; ENG STOPPER
(A)
1-47477-415-0
01
1
0105-
492
BRACKET; ENG STOPPER
EXC. RLD GOVERNOR(SD7) (B)
1-47475-654-2
01
1
0105-0112
492
BRACKET; ENG STOPPER
(B)
1-47475-654-2
01
1
0201-
441
441
441
428
428
428
442
296
11
10
438
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
HITACHI
1-81171-087-0
01
1
0105-
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28680-825-0
02
1
0105-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0105-
428
CLIP; HARNESS
(A) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0105-
428
CLIP; HARNESS
(B) ID=26 L=26
1-09701-236-0
01
1
0105-
428
CLIP; HARNESS
(C) ID=32 L=35
1-09701-244-0
01
1
0105-
438
CABLE; OIL FILTER SW
1-82657-062-1
01
1
0105-
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28080-820-0
01
1
0105-0112
441
BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE
0-28680-825-0
01
1
0201-
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0105-
442
CLIP; GRAND
ID=11 L=41
1-09700-403-0
01
1
0105-
2
23
16
1
80
26
7
293
148
766
153
108
258
150
417
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
1-81100-345-3
01
1
0105-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI
1-81200-522-5
01
1
0105-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
0105-
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
0105-
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0105-
26
BOLT; GEN BRKT
M10X70
9-01661-070-0
03
1
0105-
80
WASHER; LK,DUCT & BRKT
ID=10.2
9-09150-610-0
03
1
0105-
108
SWITCH; THERMO
1-83161-031-1
01
1
0105-
148
BRACKET; SOLENOID VLV
1-81919-028-0
01
1
0105-
150
CLIP; HARNESS,SOLENOID VLV
ID=11 L=16
9-09525-025-0
01
1
0105-
153
BOLT; BRKT FIX
M10X40 FLANGE
0-28181-040-0
02
1
0105-
258
SLEEVE; RUBBER OIL PIPE
ID=6 L=30
5-09360-352-0
01
1
0105-
258
SLEEVE; RUBBER OIL PIPE
ID=10 OD=14 L=30
9-09956-682-0
01
1
0105-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
0105-
417
CLIP
L=140
5-09707-031-1
02
1
0105-
766
GASKET; SENSOR
ID=12.2
1-09630-084-0
01
1
0105-
