Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

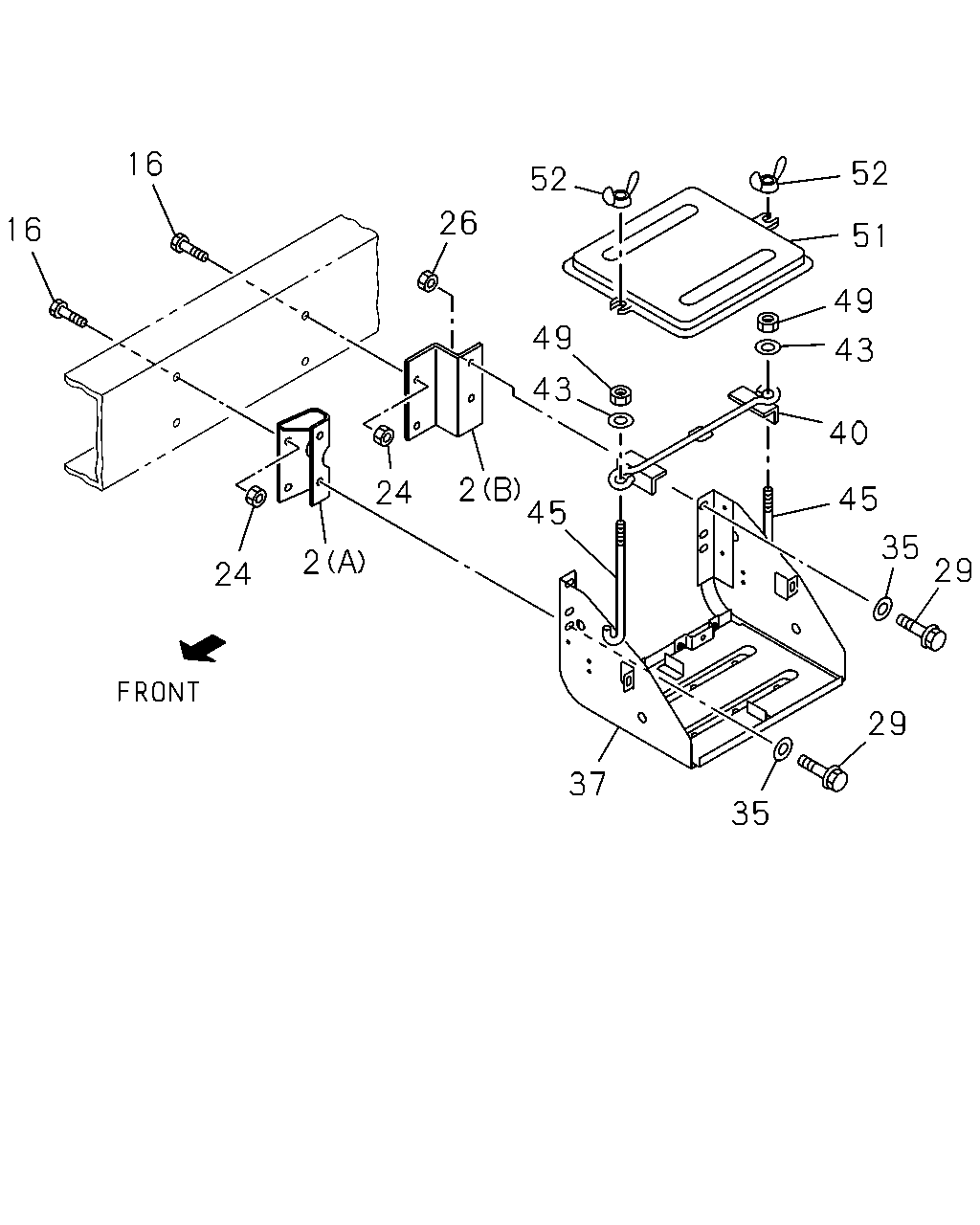

5-20 — BATTERY CARRIER
(#115439) — 14 parça
52
51
49
43
40
45
35
29
29
35
37
45
43
49
26
52
2
24
2
24
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.333 BRACKET; BATTERY
(A)
8-98227-895-0
01
1
1302-
2
02.333 BRACKET; BATTERY
(B)
8-98227-896-0
01
1
1302-
16
02.334 BOLT; BRKT TO FRAME
02.277 M10X35 FLANGE
0-28651-035-0
04
1
1302-
24
02.334 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
04
1
1302-
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
02
1
1302-
29
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
1302-
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1302-
37
02.333 BRACKET; BATTERY
8-97384-067-2
01
1
1302-
40
02.335 CLAMP; BATTERY
5-53615-004-1
01
1
1302-
43
02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22
0-91614-708-0
02
1
1302-
45
02.334 ROD; TENSION,BATTERY
L=120
9-53616-615-0
02
1
1302-
49
02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE
0-91180-108-0
02
1
1302-
51
02.335 COVER; BATTERY
8-97218-309-0
01
1
1302-
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
1302-
