6-03 — RADIATOR GRILLE (#115436) — 19 parça

179 129 184 188 116 2 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97585-546-3	01	1	1302-
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97582-873-5	01	1	1302-
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-655-1	01	1	1302-
129	01.269 CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	1302-1312
129	01.269 CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	1401-
179	01.269 RETAINER; GRILLE,RAD WHITE	8-97102-415-0	03	1	1302-
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	02	1	1302-
188	08.010 SEAL; ORNAMENT	8-97584-800-0	02	1	1302-

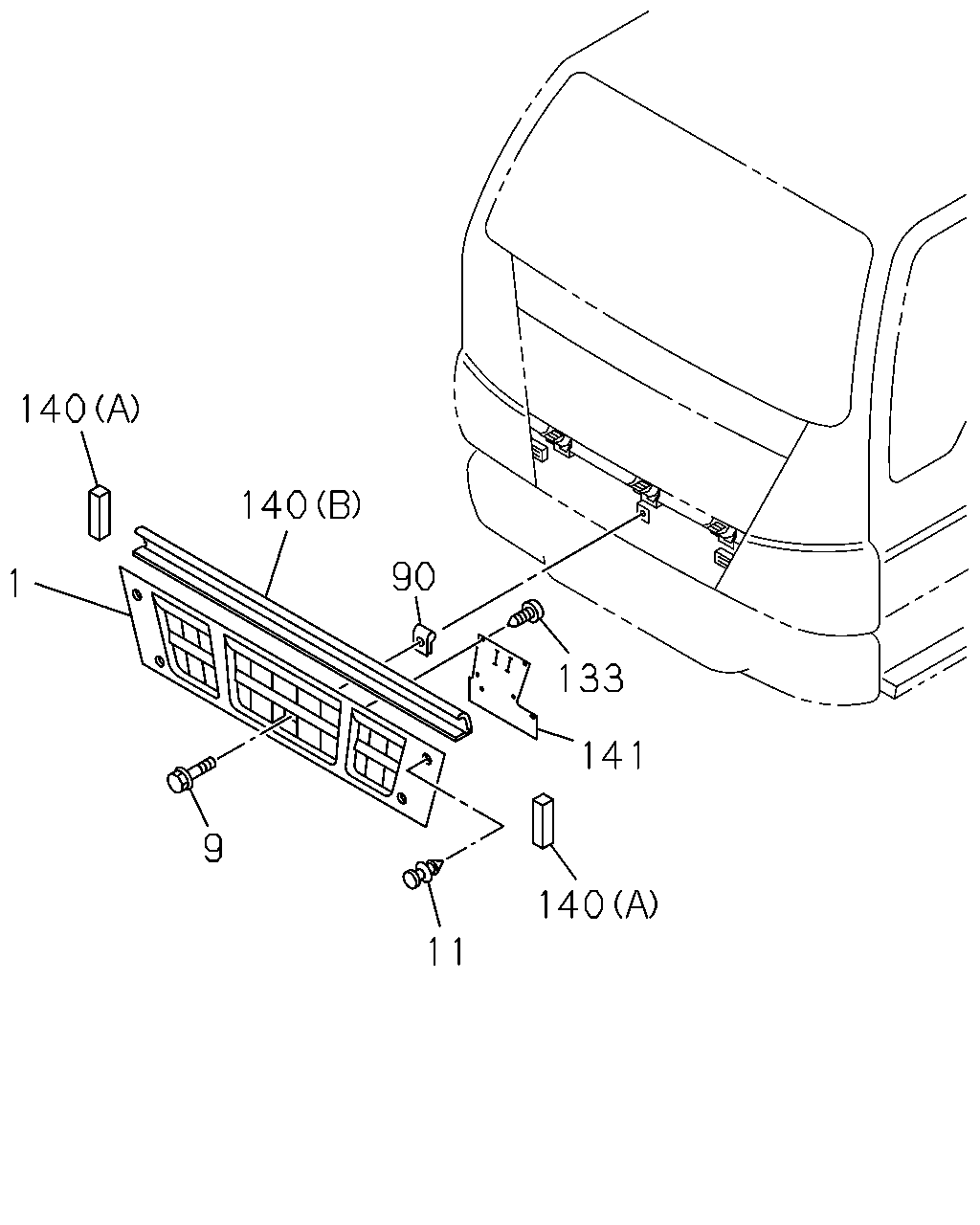

140 141 133 90 140 9 1 140 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97582-410-4	01	1	1401-
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97581-825-2	01	1	1302-
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97582-414-4	01	1	1302-
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97582-418-4	01	1	1302-
9	01.269 SCREW; RAD GRILLE 08.153 M6X20 W/PL WASHER	8-98059-504-0	01	1	1302-
11	01.269 CLIP; RAD GRILLE	8-97581-651-2	04	1	1302-
90	01.269 NUT; RAD GRILLE	8-98014-760-0	01	1	1302-
133	01.269 SCREW; COVER 01.303 M5X12 W/PL WASHER	8-94385-565-0	06	1	1302-
140	01.266 SEAL; RAD GRILLE (B)	8-97581-664-0	01	1	1302-
140	01.266 SEAL; RAD GRILLE (A)	8-97583-411-1	02	1	1302-
141	01.266 COVER; RAD GRILLE	8-97581-648-1	01	1	1302-
