◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#115434) — 448 parça

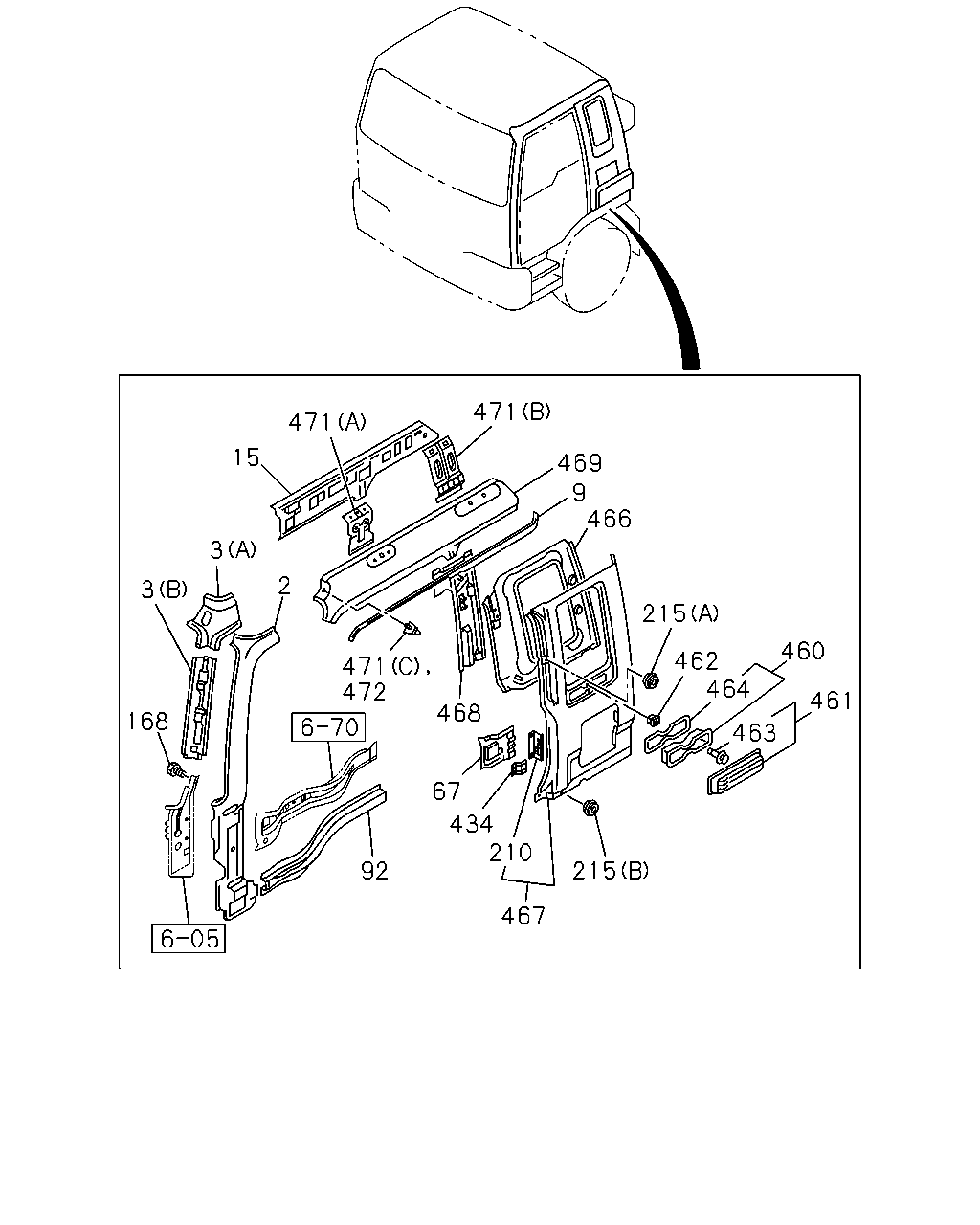

çizim 336545
471 15 3 3 168 2 471 469 9 471 472 92 468 67 434 210 215 461 460 463 464 462 215 466 467
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-155-4 01 1 1303-1511 ●
2 PILLAR; FRT 1-61281-155-4 01 1 1512- ● ●
2 PILLAR; FRT 1-61281-410-2 01 1 1303-1511 ●
2 PILLAR; FRT 1-61281-410-2 01 1 1512- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 1303-1511 ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 1512- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 1303-1511 ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 1512- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 1303-1511 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 1512- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 1303-1511 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 1512- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 1303-1511 ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 1512- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 1303-1511 ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 1512- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 1303-1511 ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 1512- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 1303-1511 ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 1512- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 1303-1511 ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 1512- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 1303-1511 ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 1512- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 1303-1511 ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 1512- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 1303-1511 ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 1512- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 1303-1511 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 1512- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 1303-1511 ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 1512- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 1303-1511 ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 1512- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 1303-1511 ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 1512- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1303-1511 ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1303-1511 ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1512- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1512- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 1303-1511 ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 1512- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 1303-1511 ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 1512- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 1303-1511 ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 1512- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 1303-1511 ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 1512- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1303-1511 ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1512- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 1303-1511 ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 1512- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 1303-1511 ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 1512- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 1303-1511 ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 1512- ● ●
467 PANEL; OUTER,BACK CORNER
RUSSIA EQUIPMENT(B12) 		1-61281-477-3 01 1 1512- ● ●
467 PANEL; OUTER,BACK CORNER
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		1-61281-204-4 01 1 1512- ●
467 PANEL; OUTER,BACK CORNER
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) 		1-61281-204-4 01 1 1512- ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 1303-1511 ●
467 PANEL; OUTER,BACK CORNER
VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) 		1-61281-203-4 01 1 1512- ●
467 PANEL; OUTER,BACK CORNER
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) 		1-61281-203-4 01 1 1512- ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 1303-1511 ●
467 PANEL; OUTER,BACK CORNER
TAIWAN EQUIPMENT(WW5) 		1-61281-478-5 01 1 1512- ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 1303-1511 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 1512- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 1303-1511 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 1512- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 1303-1511 ●
469 ROOF; SIDE 1-61281-198-8 01 1 1512- ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 1303-1511 ●
469 ROOF; SIDE 1-61281-199-8 01 1 1512- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 1303-1511 ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 1512- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 1303-1511 ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 1512- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 1303-1511 ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 1512- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1303-1511 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1303-1511 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1512- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1512- ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 1303-1511 ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 1512- ● ●

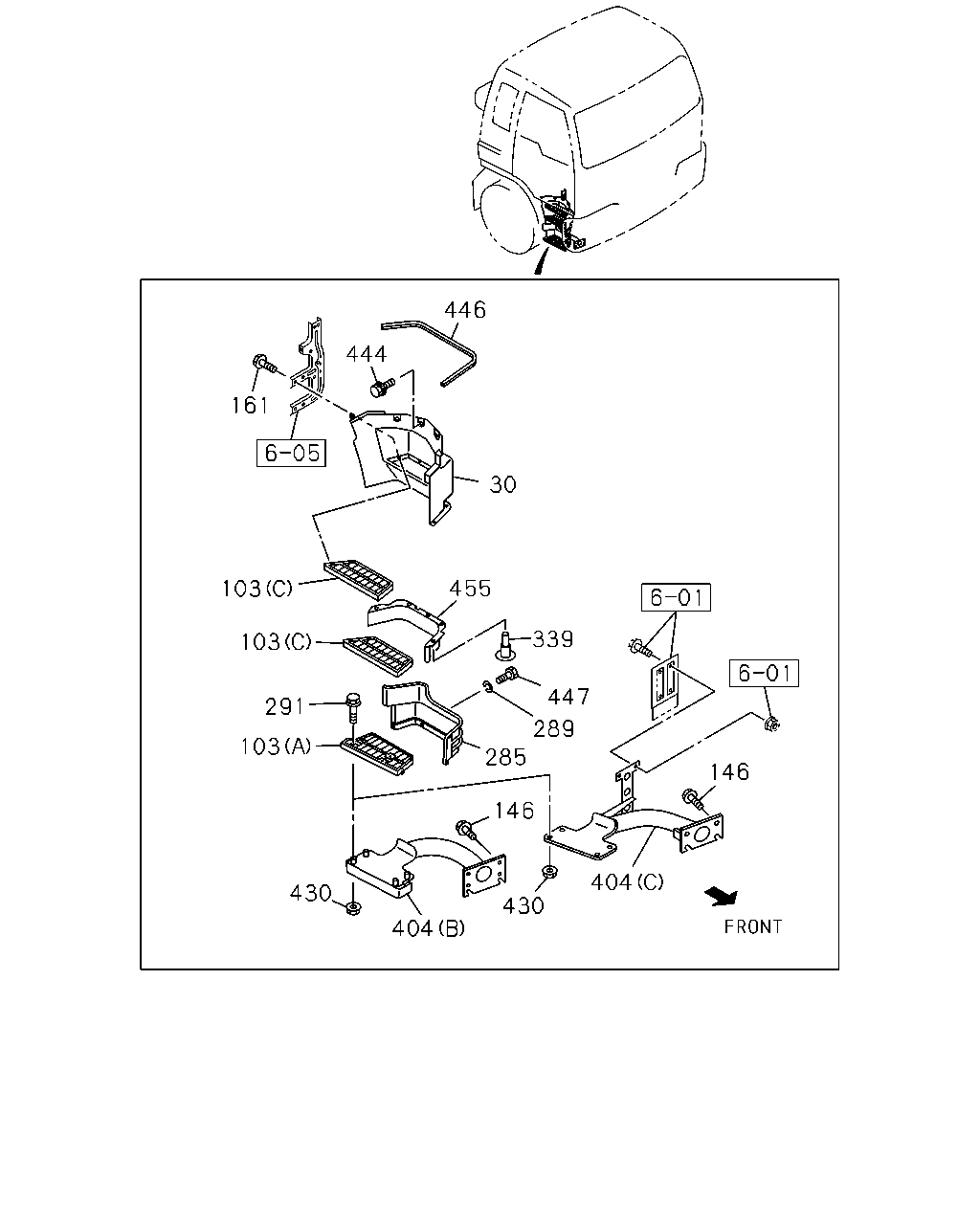

çizim 336552
446 444 161 103 103 291 103 430 285 404 146 289 339 455 30 146 404 430 447
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-239-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-239-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-240-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-240-0 01 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1512- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1512- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-174-1 01 1 1512- ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-249-1 01 1 1512- ●
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 1303-1504 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1505-1511 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1512- ● ●
161 BOLT; FIX
EXC. TAIWAN EQUIPMENT(WW5) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1512- ●
161 BOLT; FIX
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1512- ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-528-0 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-529-0 01 1 1512- ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1303-1511 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1512- ● ●
291 BOLT; STEP PLATE
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28650-840-0 08 1 1303-1511 ●
291 BOLT; STEP PLATE
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) M8X40 FLANGE 		0-28650-840-0 08 1 1512- ●
339 FASTENER; SIDE
EXC. TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1303-1511 ●
339 FASTENER; SIDE
TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 12 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
(A) 		8-98118-456-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-456-1 01 1 1512- ●
404 BRACKET
(A) 		8-98118-457-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-457-1 01 1 1512- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1303-1511 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1512- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1303-1511 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1303-1511 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1512- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1303-1511 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1512- ● ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-837-1 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-838-1 01 1 1512- ●

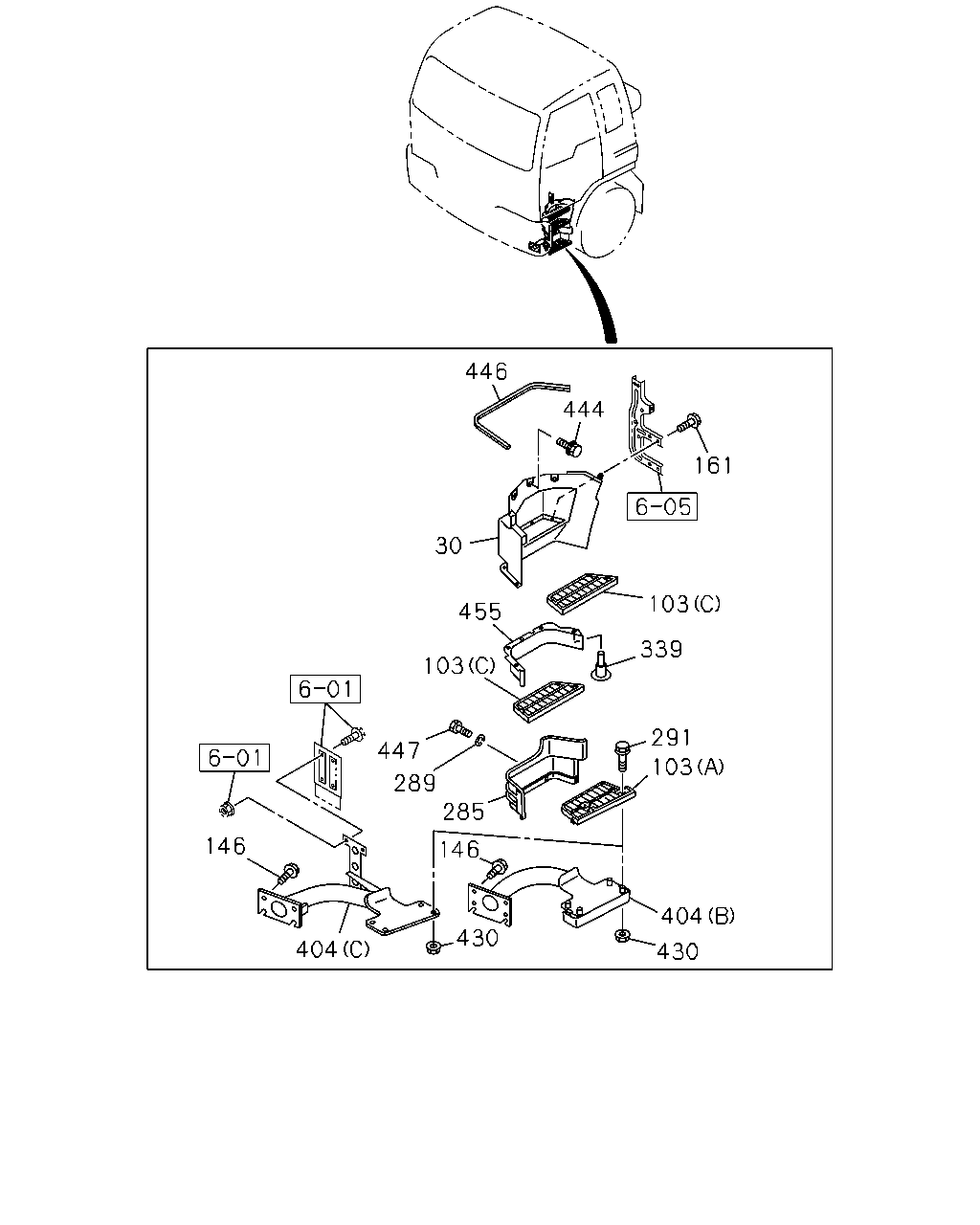

çizim 336555
446 444 161 103 339 291 103 404 430 430 146 289 285 447 103 455 30 146 404
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-239-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-239-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-240-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-240-0 01 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1512- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1512- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-174-1 01 1 1512- ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-249-1 01 1 1512- ●
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 1303-1504 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1505-1511 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1512- ● ●
161 BOLT; FIX
EXC. TAIWAN EQUIPMENT(WW5) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1512- ●
161 BOLT; FIX
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1512- ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-528-0 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-529-0 01 1 1512- ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1303-1511 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1512- ● ●
291 BOLT; STEP PLATE
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28650-840-0 08 1 1303-1511 ●
291 BOLT; STEP PLATE
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) M8X40 FLANGE 		0-28650-840-0 08 1 1512- ●
339 FASTENER; SIDE
EXC. TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1303-1511 ●
339 FASTENER; SIDE
TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 12 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
(A) 		8-98118-456-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-456-1 01 1 1512- ●
404 BRACKET
(A) 		8-98118-457-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-457-1 01 1 1512- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1303-1511 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1512- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1303-1511 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1303-1511 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1512- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1303-1511 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1512- ● ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-837-1 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-838-1 01 1 1512- ●

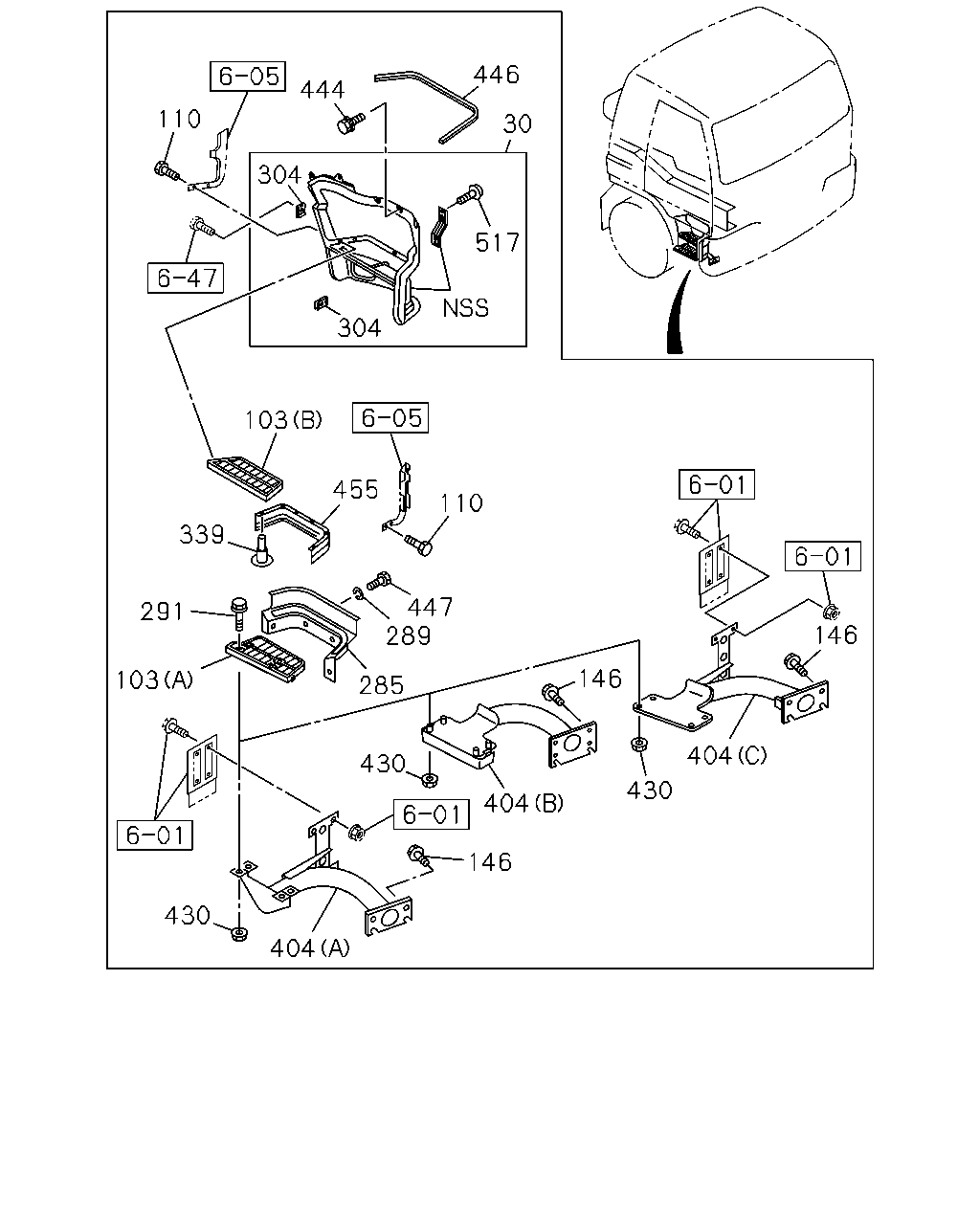

çizim 514603
444 446 30 517 304 304 110 103 455 110 447 285 289 339 291 103 430 404 146 404 430 146 430 404 146
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-239-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-239-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-240-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-240-0 01 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1512- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1512- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-174-1 01 1 1512- ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-249-1 01 1 1512- ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1303-1511 ●
110 BOLT; 1ST STEP PLATE
TAIWAN EQUIPMENT(WW5) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1512- ●
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 1303-1504 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1505-1511 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1512- ● ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-528-0 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-529-0 01 1 1512- ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1303-1511 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1512- ● ●
291 BOLT; STEP PLATE
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28650-840-0 08 1 1303-1511 ●
291 BOLT; STEP PLATE
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) M8X40 FLANGE 		0-28650-840-0 08 1 1512- ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 1303-1511 ●
304 NUT; SPIRE
TAIWAN EQUIPMENT(WW5) M6 		1-09984-182-0 04 1 1512- ●
339 FASTENER; SIDE
EXC. TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1303-1511 ●
339 FASTENER; SIDE
TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 12 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
(A) 		8-98118-456-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-456-1 01 1 1512- ●
404 BRACKET
(A) 		8-98118-457-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-457-1 01 1 1512- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1303-1511 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1512- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1303-1511 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1303-1511 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1512- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1303-1511 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1512- ● ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-837-1 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-838-1 01 1 1512- ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1303-1511 ●
517 SCREW; TAP
TAIWAN EQUIPMENT(WW5) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1512- ●

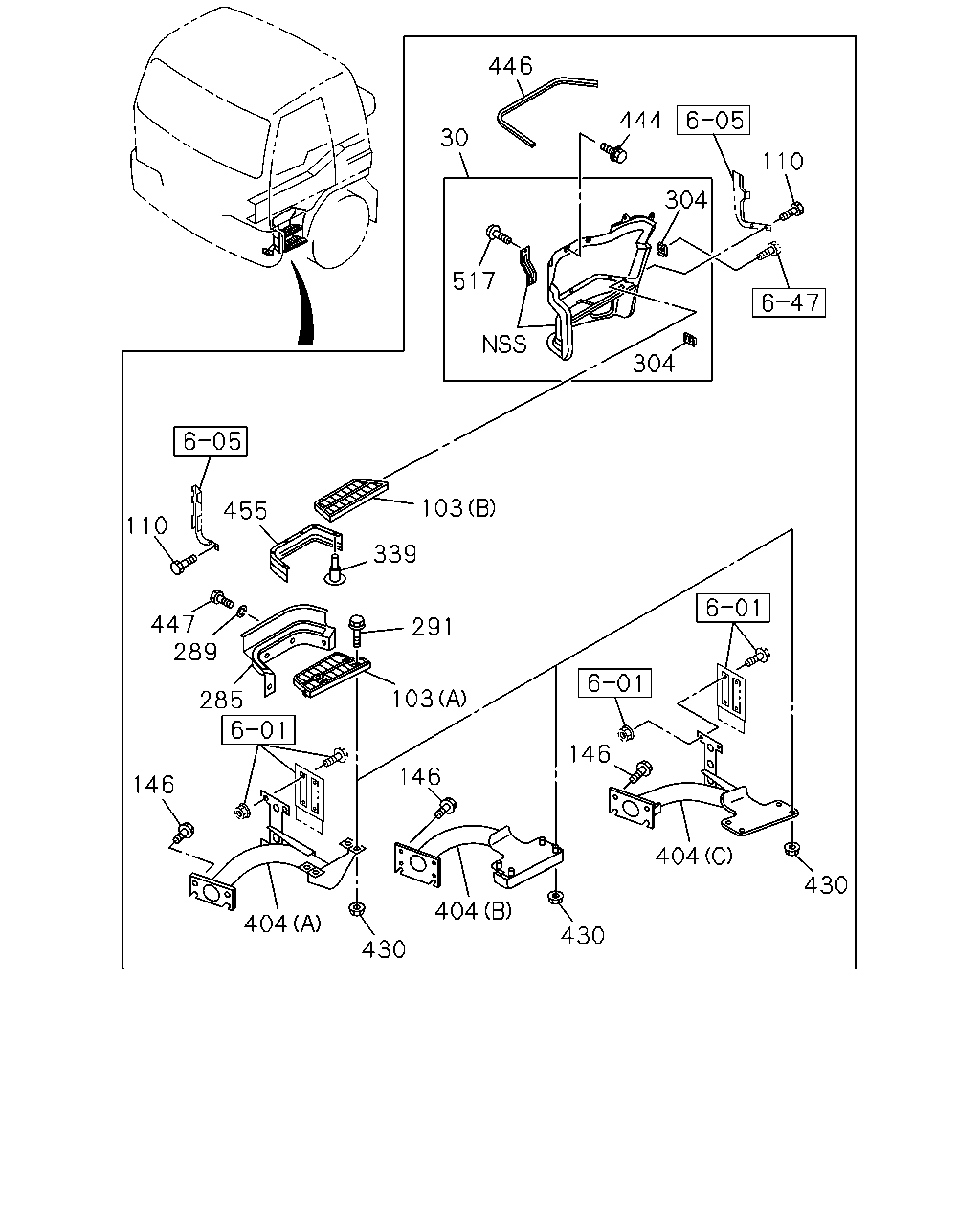

çizim 514618
30 446 444 517 304 304 110 103 339 291 103 146 404 430 404 146 285 289 447 110 455 146 430 404 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1512- ●
30 CLOSING; SIDE STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-239-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-239-0 01 1 1512- ●
30 CLOSING; SIDE STEP 8-98227-240-0 01 1 1303-1511 ●
30 CLOSING; SIDE STEP
TAIWAN EQUIPMENT(WW5) 		8-98227-240-0 01 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-174-1 02 1 1512- ●
103 PLATE; STEP
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(C) 		1-71907-249-1 02 1 1512- ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1512- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1303-1511 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1512- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-174-1 01 1 1512- ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1303-1511 ●
103 PLATE; STEP
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-249-1 01 1 1512- ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1303-1511 ●
110 BOLT; 1ST STEP PLATE
TAIWAN EQUIPMENT(WW5) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1512- ●
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 1303-1504 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1505-1511 ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1512- ● ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-947-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) 		8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-98227-948-1 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-528-0 01 1 1512- ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1303-1511 ●
285 PLATE; STEP,1ST STEP
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) 		8-97619-529-0 01 1 1512- ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1303-1511 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1512- ● ●
291 BOLT; STEP PLATE
EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5) M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X50 FLANGE 		0-28050-850-0 08 1 1512- ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28650-840-0 08 1 1303-1511 ●
291 BOLT; STEP PLATE
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) M8X40 FLANGE 		0-28650-840-0 08 1 1512- ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 1303-1511 ●
304 NUT; SPIRE
TAIWAN EQUIPMENT(WW5) M6 		1-09984-182-0 04 1 1512- ●
339 FASTENER; SIDE
EXC. TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1512- ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1303-1511 ●
339 FASTENER; SIDE
TAIWAN EQUIPMENT(WW5) ID=6X6 OD=8 		1-09987-194-0 12 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-032-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (C) 		8-98333-033-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-951-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98227-952-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1512- ●
404 BRACKET
(A) 		8-98118-456-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-456-1 01 1 1512- ●
404 BRACKET
(A) 		8-98118-457-1 01 1 1303-1511 ●
404 BRACKET
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) (A) 		8-98118-457-1 01 1 1512- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1303-1511 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1512- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1303-1511 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1303-1511 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1512- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1303-1511 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1512- ● ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-807-2 01 1 1512- ●
455 PROTECTOR; STEP
EXC. TAIWAN EQUIPMENT(WW5) 		8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 8-98125-808-2 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-837-1 01 1 1512- ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1303-1511 ●
455 PROTECTOR; STEP
TAIWAN EQUIPMENT(WW5) 		1-71907-838-1 01 1 1512- ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1303-1511 ●
517 SCREW; TAP
TAIWAN EQUIPMENT(WW5) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
