5-01 — FRAME AND OTHER PARTS (#115433) — 177 parça

23 23 25 23 439 25 23 26 25 25 26 25 24 13 255 255 13 11 11 35 35 36 37 44 23 26 24 25 25 26 25 23 39 25 46 25 46

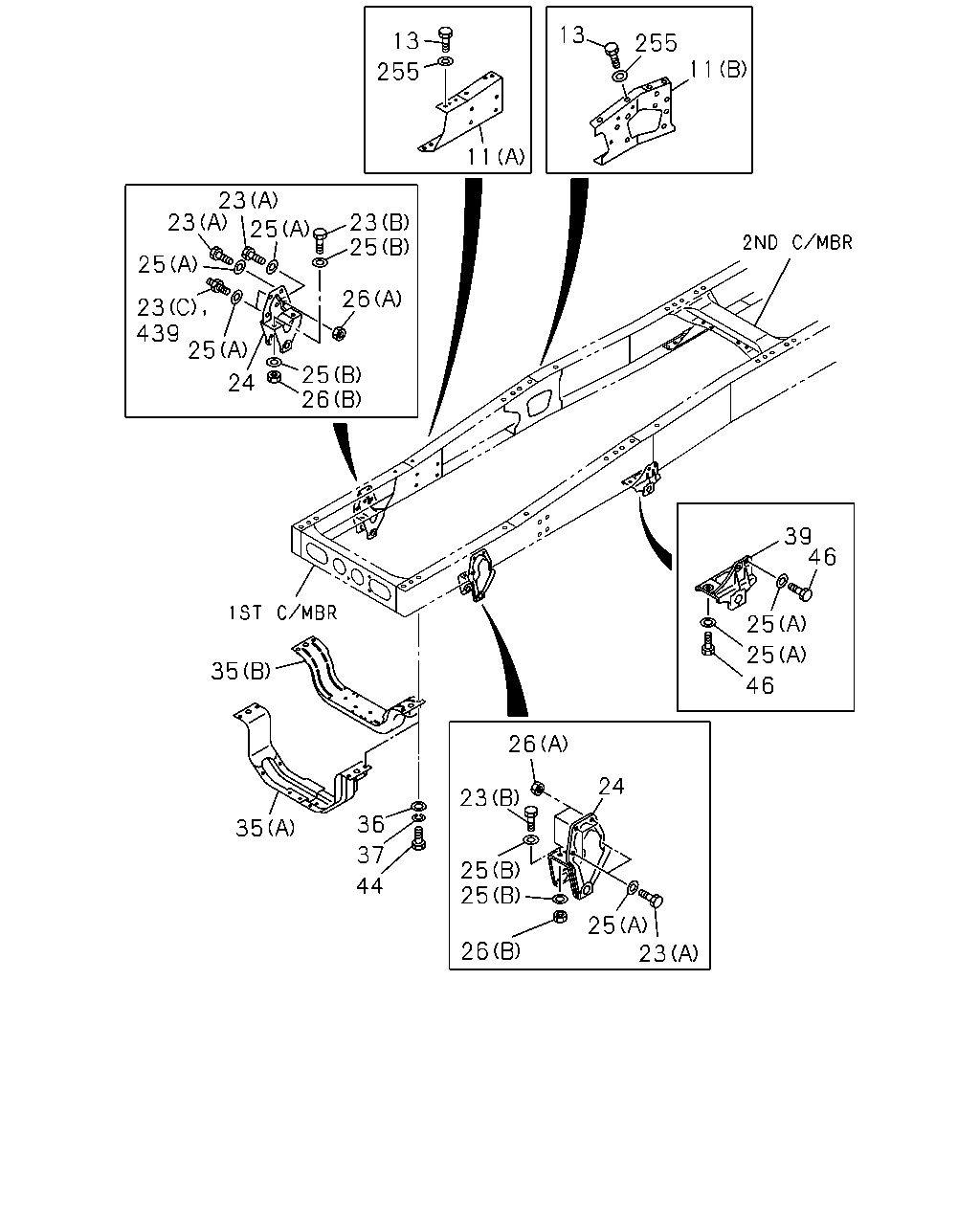

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-1	01	1	1512-	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	8-97618-424-1	01	1	1512-	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1303-1511		●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1512-	●	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1303-1511		●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1512-	●	●	●	●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	1303-1511		●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	1512-		●	●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-1	01	1	1512-	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	1303-1511		●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	1512-		●	●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-1	01	1	1512-	●
13	BOLT; BRKT,ENG MTG MJT7S M/T(Y3E),MJX16P M/T(Y3Z) M14X40	0-20951-440-0	04	1	1512-		●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1512-				●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1303-1511		●
13	BOLT; BRKT,ENG MTG MAP6U M/T(Y4B) M14X40	0-20951-440-0	06	1	1512-		●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1512-	●		●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	06	1	1303-1511		●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	06	1	1512-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1303-1511		●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1512-	●	●	●	●
23	BOLT; BRKT,SPR (C) M12X25,M14X45 L=81	1-09029-103-0	02	1	1303-1511		●
23	BOLT; BRKT,SPR MAP6U M/T(Y4B) (C) M12X25,M14X45 L=81	1-09029-103-0	02	1	1512-		●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1303-1511		●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1512-	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1303-1511		●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1512-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1303-1511		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1512-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1303-1511		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1512-	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	1303-1511		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	1512-	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1303-1511		●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1512-	●	●	●	●
35	MEMBER; UNDER SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> (B)	1-53174-263-2	01	1	1512-		●	●	●
35	MEMBER; UNDER FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-53174-263-2	01	1	1512-		●	●	●
35	MEMBER; UNDER FUEL TANK 400L<SDH> EXC. FRONT UNDER RUN PROTECTOR<EBE>,SILENCER LAYOUT REAR VAR1<JAZ>,FIRE TRUCK<RA9> (B)	1-53174-263-2	01	1	1512-		●	●	●
35	MEMBER; UNDER EXC. FUEL TANK 400L<SDH> (B)	1-53174-263-2	01	1	1512-		●	●	●
35	MEMBER; UNDER (B)	1-53174-263-2	01	1	1512-	●
35	MEMBER; UNDER (A)	1-53174-301-3	01	1	1303-1511		●
35	MEMBER; UNDER CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53174-301-3	01	1	1512-		●	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1303-1511		●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1512-	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1303-1511		●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1512-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1303-1511		●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1512-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1303-1511		●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1512-	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1303-1511		●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1512-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1303-1511		●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1512-	●	●	●	●
255	WASHER; PL,BRKT MJT7S M/T(Y3E),MJX16P M/T(Y3Z) ID=15	8-98010-627-1	08	1	1512-		●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1512-				●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	06	1	1303-1511		●
255	WASHER; PL,BRKT MAP6U M/T(Y4B) ID=15	8-98010-627-1	06	1	1512-		●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	06	1	1512-	●		●
439	STUD; BRKT,SPR MJT7S M/T(Y3E),MJX16P M/T(Y3Z) M12X25,M14X45 L=81	1-09029-103-0	02	1	1512-		●
439	STUD; BRKT,SPR M12X25,M14X45 L=81	1-09029-103-0	02	1	1512-	●		●	●

70 79 201 86 148 148 57 70 70 201 86 79 148 148 70 57 34 201 21 21 191 2 19 21 21 201 2 191 16 16 19

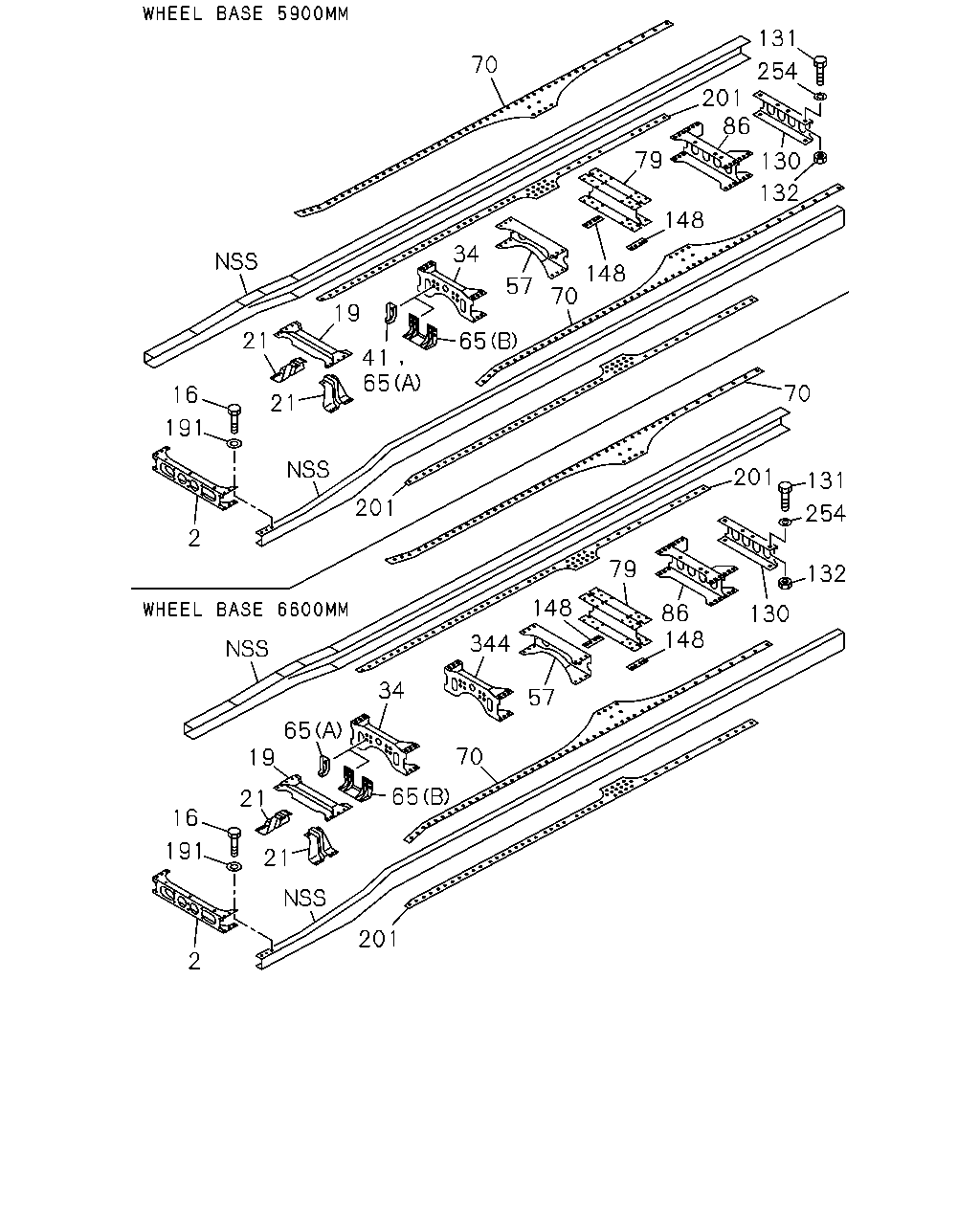

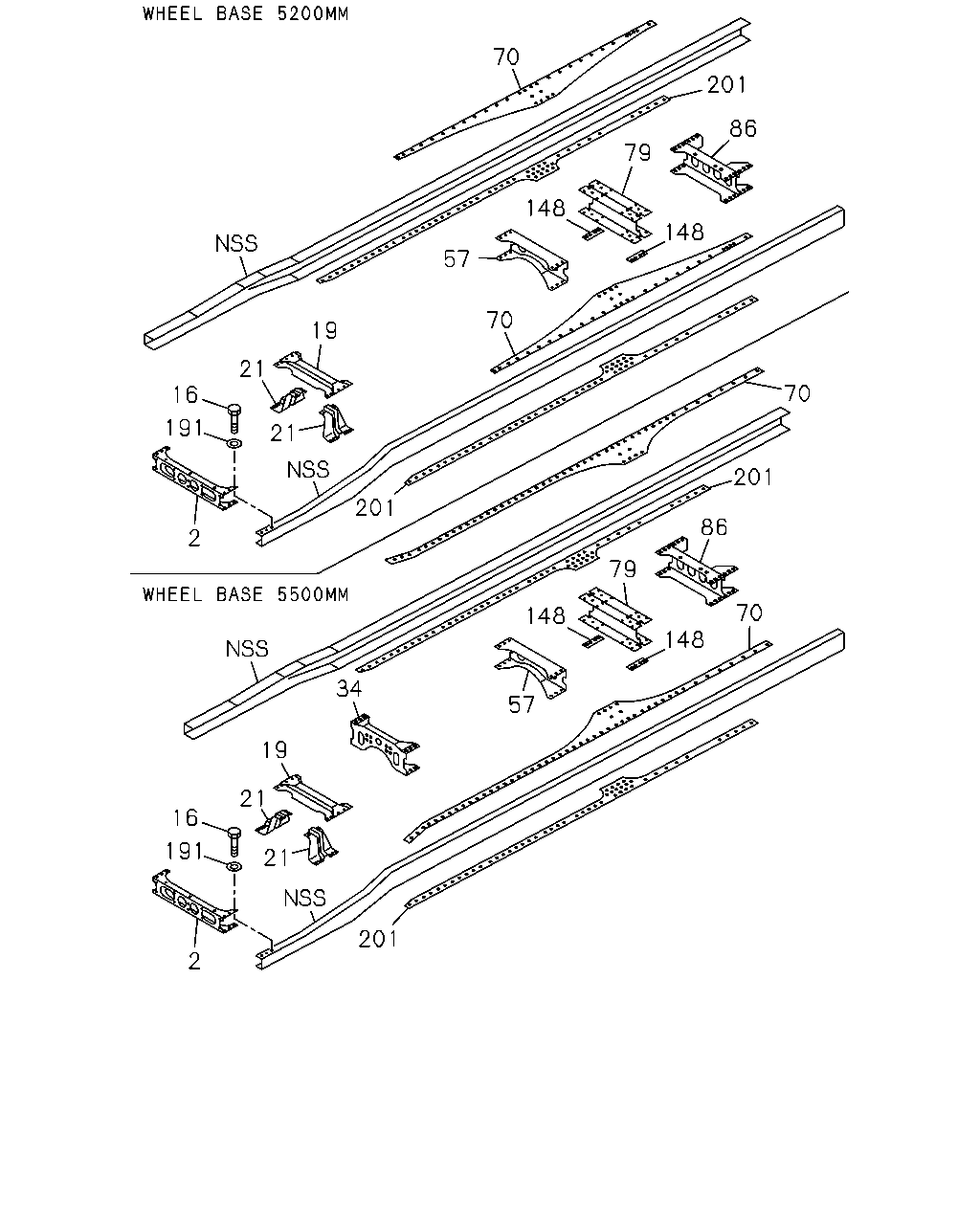

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-98226-877-0	01	1	1303-1511		●
2	MEMBER; CROSS,1ST	8-98226-877-0	01	1	1512-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1303-1511		●
16	BOLT; 1ST C/MBR TO S/MBR VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) M16X40	0-20951-640-0	02	1	1512-	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1303-1511		●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1512-	●	●	●	●
21	GUSSET; 2ND CROSS	8-98224-525-0	02	1	1303-1511		●
21	GUSSET; 2ND CROSS	8-98224-525-0	02	1	1512-	●	●	●	●
34	MEMBER; CROSS,3RD MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	8-98224-576-0	01	1	1512-		●
34	MEMBER; CROSS,3RD	8-98224-576-0	01	1	1512-			●	●
34	MEMBER; CROSS,3RD	8-98224-577-0	01	1	1303-1511		●
34	MEMBER; CROSS,3RD MAP6U M/T(Y4B)	8-98224-577-0	01	1	1512-		●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1303-1511		●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1512-	●	●	●	●
70	GUSSET; TRUNNION,UPR MIXER TRUCK<RA2>	8-98138-147-0	02	1	1512-	●
70	GUSSET; TRUNNION,UPR DUMP TRUCK<RA1>	8-98280-943-0	02	1	1512-	●
70	GUSSET; TRUNNION,UPR MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	8-98164-250-0	02	1	1512-		●
70	GUSSET; TRUNNION,UPR	8-98236-970-0	02	1	1512-				●
70	GUSSET; TRUNNION,UPR	8-98138-148-0	02	1	1512-			●
70	GUSSET; TRUNNION,UPR	8-98224-579-0	02	1	1303-1511		●
70	GUSSET; TRUNNION,UPR MAP6U M/T(Y4B)	8-98224-579-0	02	1	1512-		●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1303-1511		●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1512-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	8-98224-542-0	01	1	1303-1511		●
86	MEMBER; CROSS,RR SUSP RR	8-98224-542-0	01	1	1512-	●	●	●	●
148	SPACER; C/MBR	8-97623-199-0	02	1	1512-	●
148	SPACER; C/MBR	8-97623-202-0	02	1	1303-1511		●
148	SPACER; C/MBR	8-97623-202-0	02	1	1512-		●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-1511		●
191	WASHER; PL,1ST C/MBR TO S/MBR VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) ID=16.2	1-09503-316-0	02	1	1512-	●	●	●	●
201	GUSSET; C/MBR	8-98138-151-1	02	1	1512-	●
201	GUSSET; C/MBR MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	8-98138-153-1	02	1	1512-		●
201	GUSSET; C/MBR	8-98141-875-1	02	1	1512-				●
201	GUSSET; C/MBR	8-98138-152-0	02	1	1512-			●
201	GUSSET; C/MBR	8-98224-580-0	02	1	1303-1511		●
201	GUSSET; C/MBR MAP6U M/T(Y4B)	8-98224-580-0	02	1	1512-		●

70 79 201 254 131 86 130 132 148 148 70 57 34 65 70 201 131 254 132 130 148 86 79 148 344 57 70 34 65 65 19 21 21 201 191 16 2 2 191 16 21 21 19 41 65 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-98226-877-0	01	1	1303-1511		●
2	MEMBER; CROSS,1ST	8-98226-877-0	01	1	1512-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1303-1511		●
16	BOLT; 1ST C/MBR TO S/MBR VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) M16X40	0-20951-640-0	02	1	1512-	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1303-1511		●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1512-	●	●	●	●
21	GUSSET; 2ND CROSS	8-98224-525-0	02	1	1303-1511		●
21	GUSSET; 2ND CROSS	8-98224-525-0	02	1	1512-	●	●	●	●
34	MEMBER; CROSS,3RD MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	8-98224-576-0	01	1	1512-		●
34	MEMBER; CROSS,3RD	8-98224-576-0	01	1	1512-			●	●
34	MEMBER; CROSS,3RD	8-98224-577-0	01	1	1303-1511		●
34	MEMBER; CROSS,3RD MAP6U M/T(Y4B)	8-98224-577-0	01	1	1512-		●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97614-126-0	02	1	1303-1511		●
41	BRACKET; CENTER BRG,FRAME SIDE MAP6U M/T(Y4B)	8-97614-126-0	02	1	1512-		●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1303-1511		●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1512-	●	●	●	●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A)	8-97614-134-0	02	1	1512-		●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A)	8-97614-140-0	02	1	1512-				●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (B)	8-98140-252-0	01	1	1512-		●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (B)	8-98142-203-0	01	1	1512-				●
70	GUSSET; TRUNNION,UPR MIXER TRUCK<RA2>	8-98138-147-0	02	1	1512-	●
70	GUSSET; TRUNNION,UPR DUMP TRUCK<RA1>	8-98280-943-0	02	1	1512-	●
70	GUSSET; TRUNNION,UPR MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	8-98164-250-0	02	1	1512-		●
70	GUSSET; TRUNNION,UPR	8-98236-970-0	02	1	1512-				●
70	GUSSET; TRUNNION,UPR	8-98138-148-0	02	1	1512-			●
70	GUSSET; TRUNNION,UPR	8-98224-579-0	02	1	1303-1511		●
70	GUSSET; TRUNNION,UPR MAP6U M/T(Y4B)	8-98224-579-0	02	1	1512-		●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1303-1511		●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1512-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	8-98224-542-0	01	1	1303-1511		●
86	MEMBER; CROSS,RR SUSP RR	8-98224-542-0	01	1	1512-	●	●	●	●
130	MEMBER; CROSS,END	8-98224-587-0	01	1	1303-1511		●
130	MEMBER; CROSS,END	8-98224-587-0	01	1	1512-		●		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	02	1	1303-1511		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	02	1	1512-		●		●
131	BOLT; END C/MBR M14X50	0-20951-450-0	02	1	1303-1511		●
131	BOLT; END C/MBR M14X50	0-20951-450-0	02	1	1512-		●		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1303-1511		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1512-		●		●
148	SPACER; C/MBR	8-97623-199-0	02	1	1512-	●
148	SPACER; C/MBR	8-97623-202-0	02	1	1303-1511		●
148	SPACER; C/MBR	8-97623-202-0	02	1	1512-		●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-1511		●
191	WASHER; PL,1ST C/MBR TO S/MBR VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) ID=16.2	1-09503-316-0	02	1	1512-	●	●	●	●
201	GUSSET; C/MBR	8-98138-151-1	02	1	1512-	●
201	GUSSET; C/MBR MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	8-98138-153-1	02	1	1512-		●
201	GUSSET; C/MBR	8-98141-875-1	02	1	1512-				●
201	GUSSET; C/MBR	8-98138-152-0	02	1	1512-			●
201	GUSSET; C/MBR	8-98224-580-0	02	1	1303-1511		●
201	GUSSET; C/MBR MAP6U M/T(Y4B)	8-98224-580-0	02	1	1512-		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1303-1511		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1512-		●		●
344	MEMBER; CROSS,4TH	8-98224-576-0	01	1	1512-				●

84 84 83 82 80 84 83 82 81 80 84 81 83 82 81 84 82 80 82 84 84 81 81 80 84 79

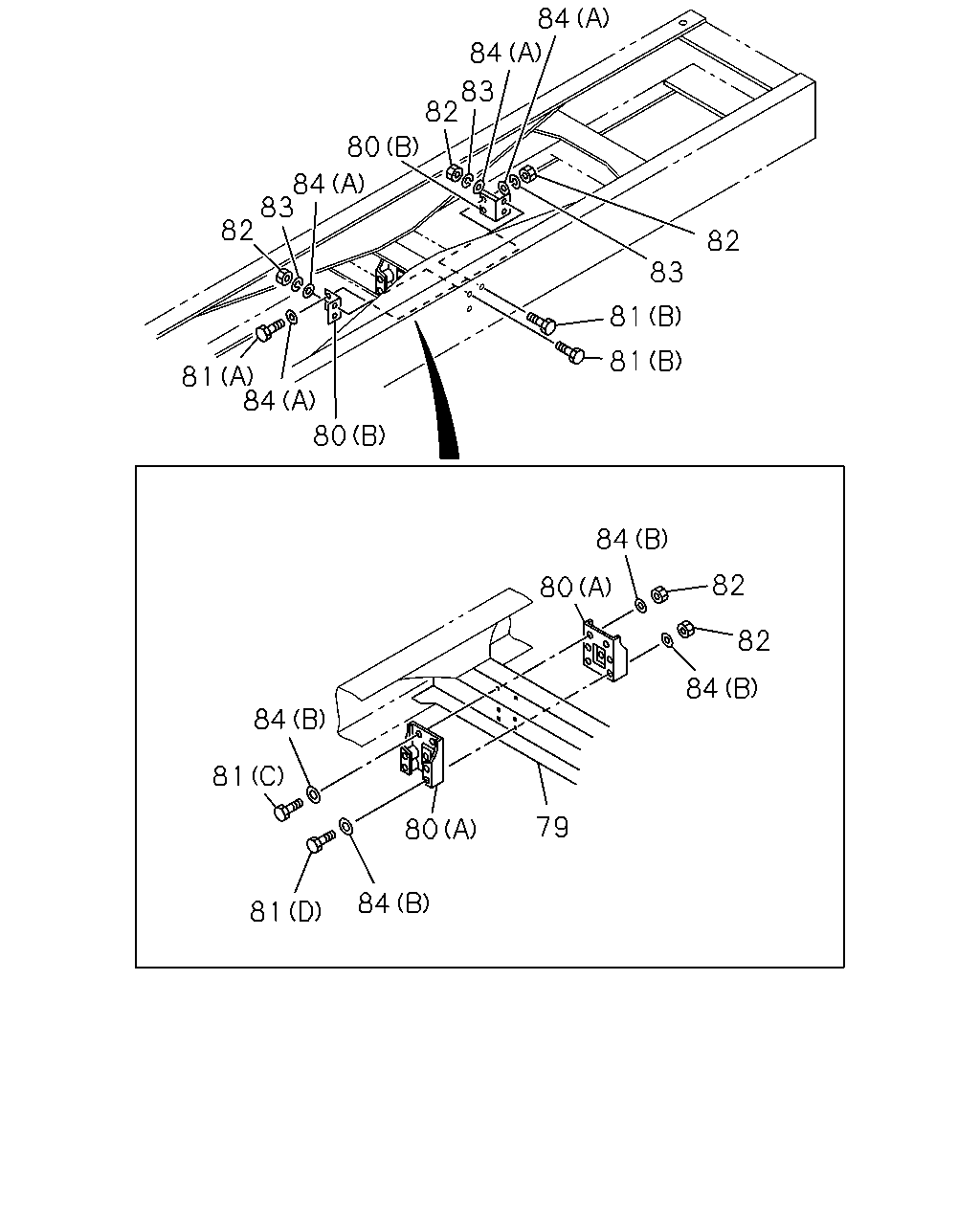

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1303-1511		●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1512-	●	●	●	●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	1303-1511		●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	1512-	●	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1303-1511		●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1512-	●	●	●	●
81	BOLT; BRKT (B) M14X45	0-20951-445-0	08	1	1303-1511		●
81	BOLT; BRKT (B) M14X45	0-20951-445-0	08	1	1512-	●	●	●	●
81	BOLT; BRKT (C) M14X50	0-20951-450-0	02	1	1303-1511		●
81	BOLT; BRKT (C) M14X50	0-20951-450-0	02	1	1512-	●	●	●	●
81	BOLT; BRKT (D) M14X205	1-09000-147-0	02	1	1303-1511		●
81	BOLT; BRKT (D) M14X205	1-09000-147-0	02	1	1512-	●	●	●	●
81	BOLT; BRKT (A) M14X60	0-20951-460-0	04	1	1303-1511		●
81	BOLT; BRKT (A) M14X60	0-20951-460-0	04	1	1512-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1511-1511		●
82	NUT; BRKT M14	0-91110-514-0	12	1	1512-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1303-1410		●
82	NUT; BRKT M14	0-91110-514-0	16	1	1411-1510		●
82	NUT; BRKT M14	0-91110-514-0	04	1	1511-1511		●
82	NUT; BRKT M14	0-91110-514-0	04	1	1512-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1303-1410		●
83	WASHER; LK,BRKT ID=14.2	0-91510-814-0	12	1	1303-1511		●
83	WASHER; LK,BRKT ID=14.2	0-91510-814-0	12	1	1512-	●	●	●	●
84	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	08	1	1303-1511		●
84	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	08	1	1512-	●	●	●	●
84	WASHER; PL,BRKT (A) ID=15 OD=26	0-91614-514-0	16	1	1303-1511		●
84	WASHER; PL,BRKT (A) ID=15 OD=26	0-91614-514-0	16	1	1512-	●	●	●	●
