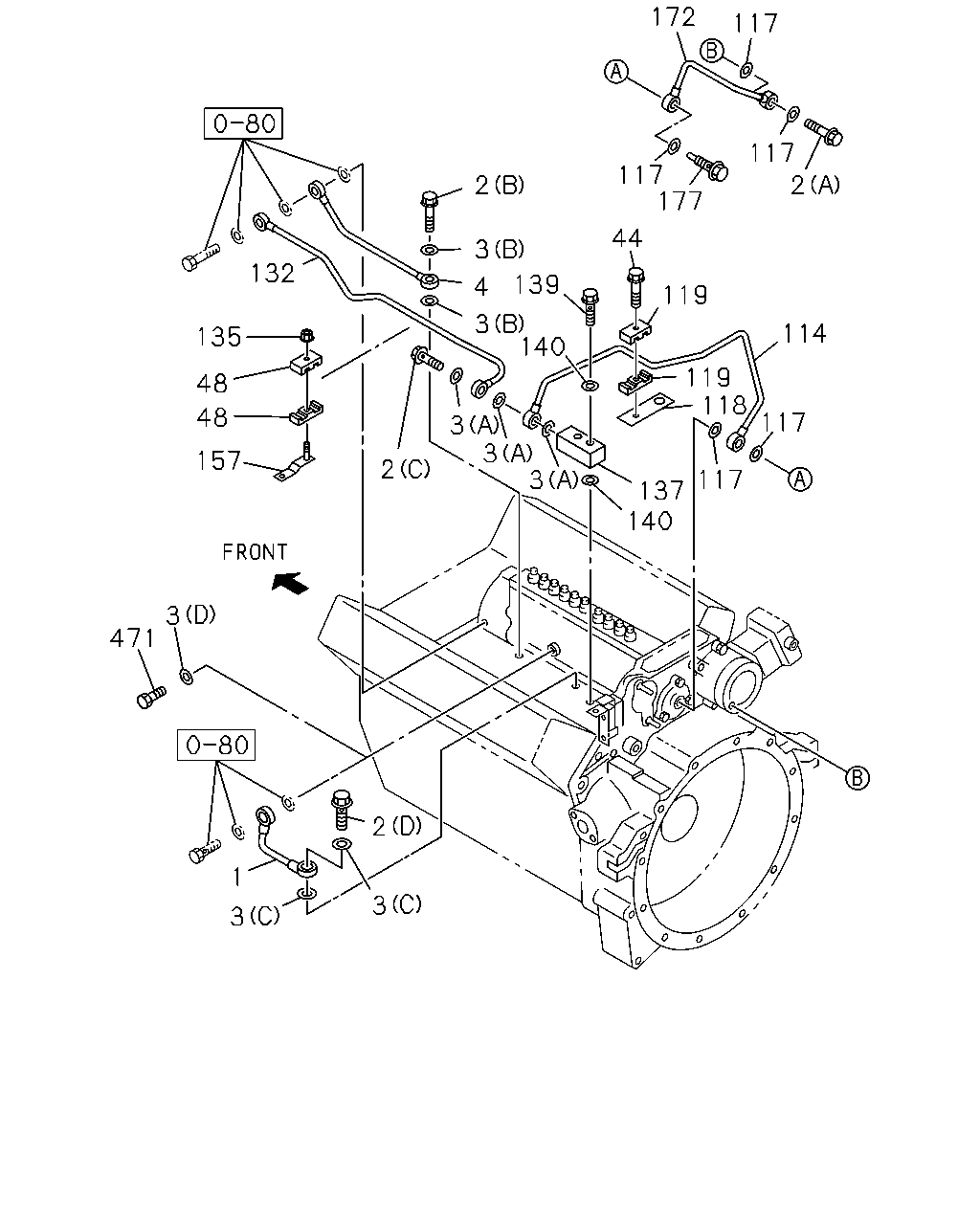

0-52 — OIL AND VACUUM PIPING; ENGINE (#11543) — 42 parça
çizim 21630
172 117 117 2 117 177 2 44 3 132 139 4 119 3 140 114 135 119 118 48 3 3 48 117 3 117 157 2 137 140 471 1 3 2 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 1-13313-495-0 01 1 0105- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 01 1 0105- ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0105- ● ●
2 BOLT; EYE,OIL PIPE
(C) M10X32 		1-09675-119-0 01 1 0105- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-085-0 01 1 0105- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2 		1-09630-084-0 01 1 0105- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 03 1 0105- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0105- ●
4 PIPE ASM; OIL,GOV TO C/BL 1-13313-618-0 01 1 0105- ●
4 PIPE ASM; OIL,GOV TO C/BL 1-13313-492-0 01 1 0105- ●
44 BOLT; CLIP,OIL PIPE
M6X25 FLANGE 		0-28080-625-0 01 1 0105- ● ●
48 CLIP; OIL PIPE
ID=15 L=30 		1-09701-132-1 02 1 0105- ●
114 PIPE ASM; OIL,BODY 1-13313-619-0 01 1 0105- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0105- ● ●
118 BRACKET; CLIP,OIL PIPE 1-13319-041-0 01 1 0105- ● ●
119 CLIP; OIL PIPE,BODY TO CMPR
ID=7 L=25 B=18 		1-09700-851-0 02 1 0105- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-386-1 01 1 0105- ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-607-0 01 1 0105- ●
135 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0105- ●
137 UNION; OIL PIPE 1-09664-256-0 01 1 0105- ● ●
139 BOLT; EYE,UNION
M14X39 FLANGE 		1-09675-089-0 01 1 0105- ● ●
140 GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105- ● ●
157 BRACKET; OIL PIPE 1-15419-622-0 01 1 0105- ●
172 PIPE; OIL,TIMER 1-13313-819-0 01 1 0105- ● ●
177 JET ASM; OIL,OIL PIPE 1-09679-010-0 01 1 0105- ● ●
471 PLUG; OIL
M12X10 		5-13265-001-0 01 1 0105- ●

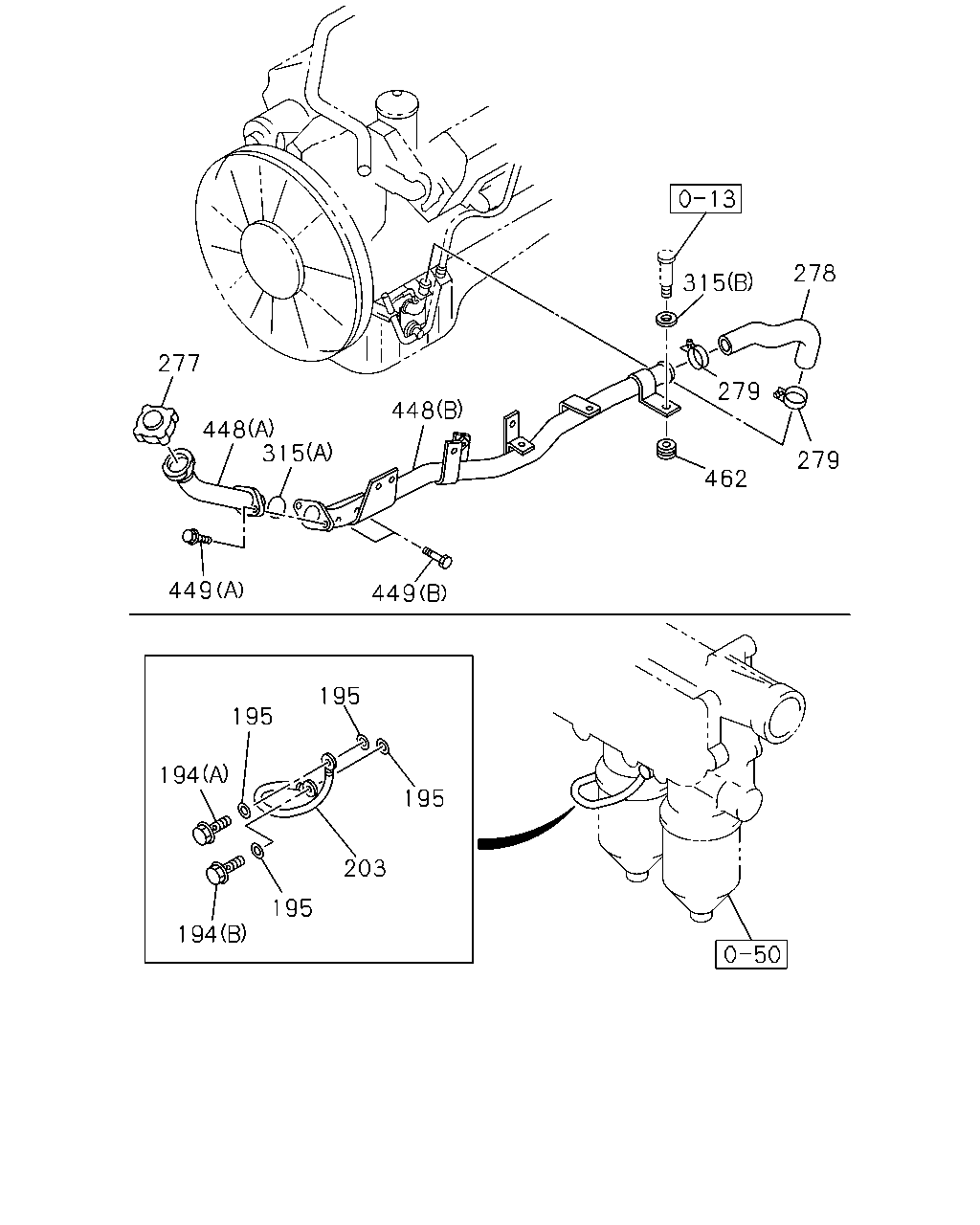

çizim 74481
278 315 277 279 448 448 315 279 462 449 449 195 195 194 195 203 195 194
BalonParca AdiParca NoAdetTipApplied Date A B
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(A) M14X45 		1-09675-023-1 01 1 0105- ● ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(B) M14X33 FLANGE 		1-09675-088-0 01 1 0105- ● ●
195 GASKET; EYE BOLT,PARTIAL FILTER
ID=14.2 OD=19.2 		1-09630-085-0 04 1 0105- ● ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=440 		1-09364-916-0 01 1 0105- ● ●
277 CAP; OIL FILLER 1-11750-020-0 01 1 0105- ● ●
278 HOSE; RUBBER,OIL FILLER 1-11749-149-0 01 1 0105-0108 ● ●
278 HOSE; RUBBER,OIL FILLER 1-11749-188-0 01 1 0109- ● ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0105- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7 		1-09623-299-0 01 1 0105- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.5 OD=26 		9-09160-612-0 01 1 0105- ● ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0105- ● ●
448 FILLER; OIL
(B) 		1-11741-192-1 01 1 0105- ● ●
449 BOLT; OIL FILLER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105- ● ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0105- ● ●
462 GROMMET 1-09332-117-0 01 1 0105- ● ●
