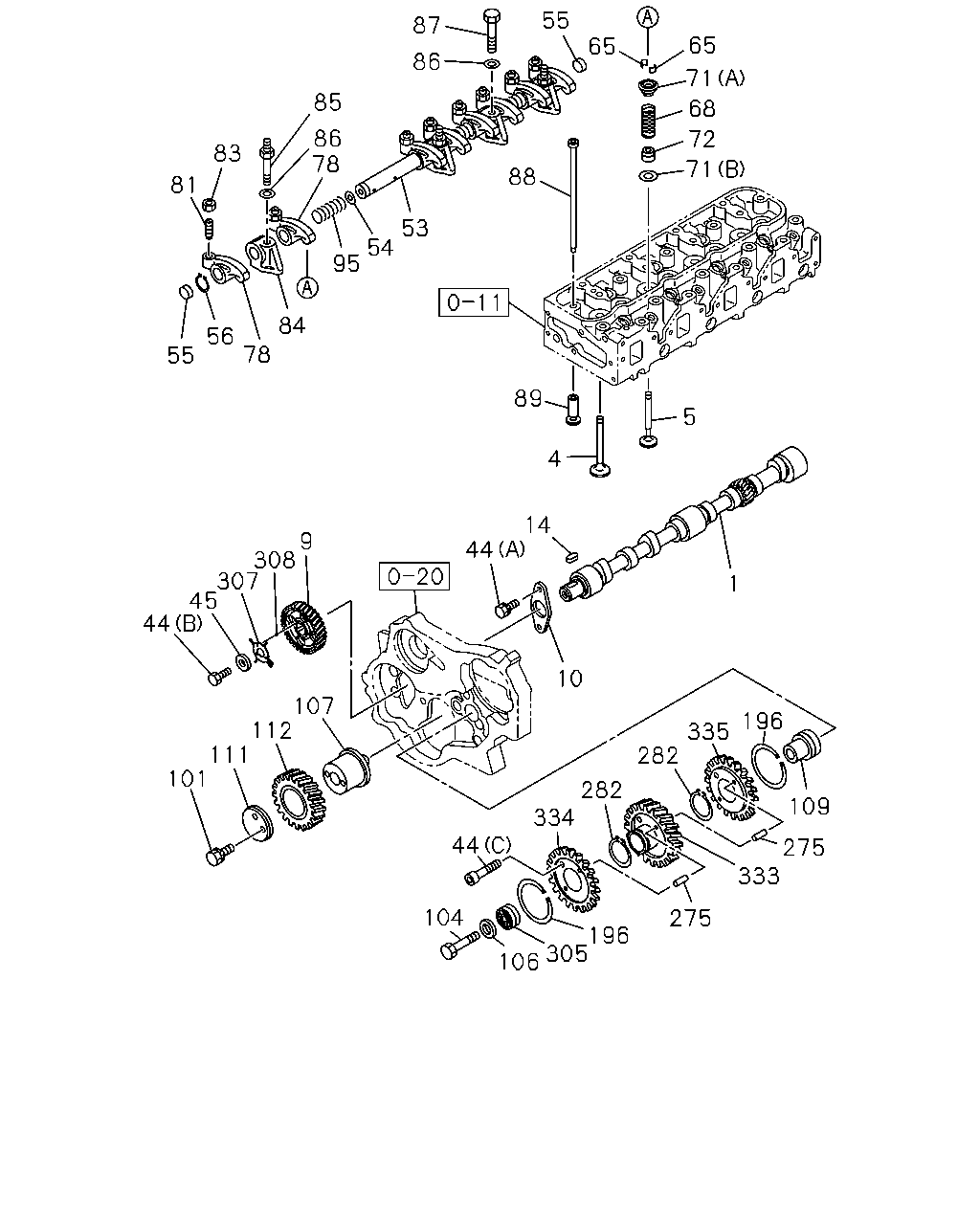

0-14 — CAMSHAFT AND VALVE (#115429) — 45 parça

87 55 86 65 65 68 71 72 88 71 85 83 86 81 78 53 54 95 84 78 56 55 89 5 4 1 14 44 10 9 308 307 45 44 107 112 111 101 196 335 109 282 282 275 333 275 196 44 104 305 106 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.519 CAMSHAFT	8-97287-657-1	01	1	1302-
4	00.296 VALVE; INL	8-97131-729-2	04	1	1302-
5	00.297 VALVE; EXH	8-97043-861-2	04	1	1302-
9	00.736 GEAR; CM/SHF	8-98178-258-0	01	1	1302-
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	1302-
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	1302-
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	1302-
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	1302-
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	1302-
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	1302-
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	1302-
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	1302-
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	1302-
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1302-
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1302-
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	1302-
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	1302-
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	1302-
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	1302-
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	1302-
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	1302-
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	1302-
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	1302-
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	1302-
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	1302-
88	00.426 ROD; PUSH	8-97071-673-0	08	1	1302-
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	1302-
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	1302-
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	1302-
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	1302-
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	1302-
107	00.724 SHAFT; IDLE GEAR	8-97943-224-0	01	1	1302-
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	1302-
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	1302-
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	1302-
196	00.724 RING; SNAP	8-97245-684-1	02	1	1302-
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	1302-
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	1302-
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	1302-
307	02.361 ROTOR; CAM ANGLE SENSOR	8-98224-887-0	01	1	1302-
308	02.361 PIN; ROTOR	9-08150-306-0	02	1	1302-
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	1302-
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	1302-
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	1302-
