◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#115425) — 444 parça

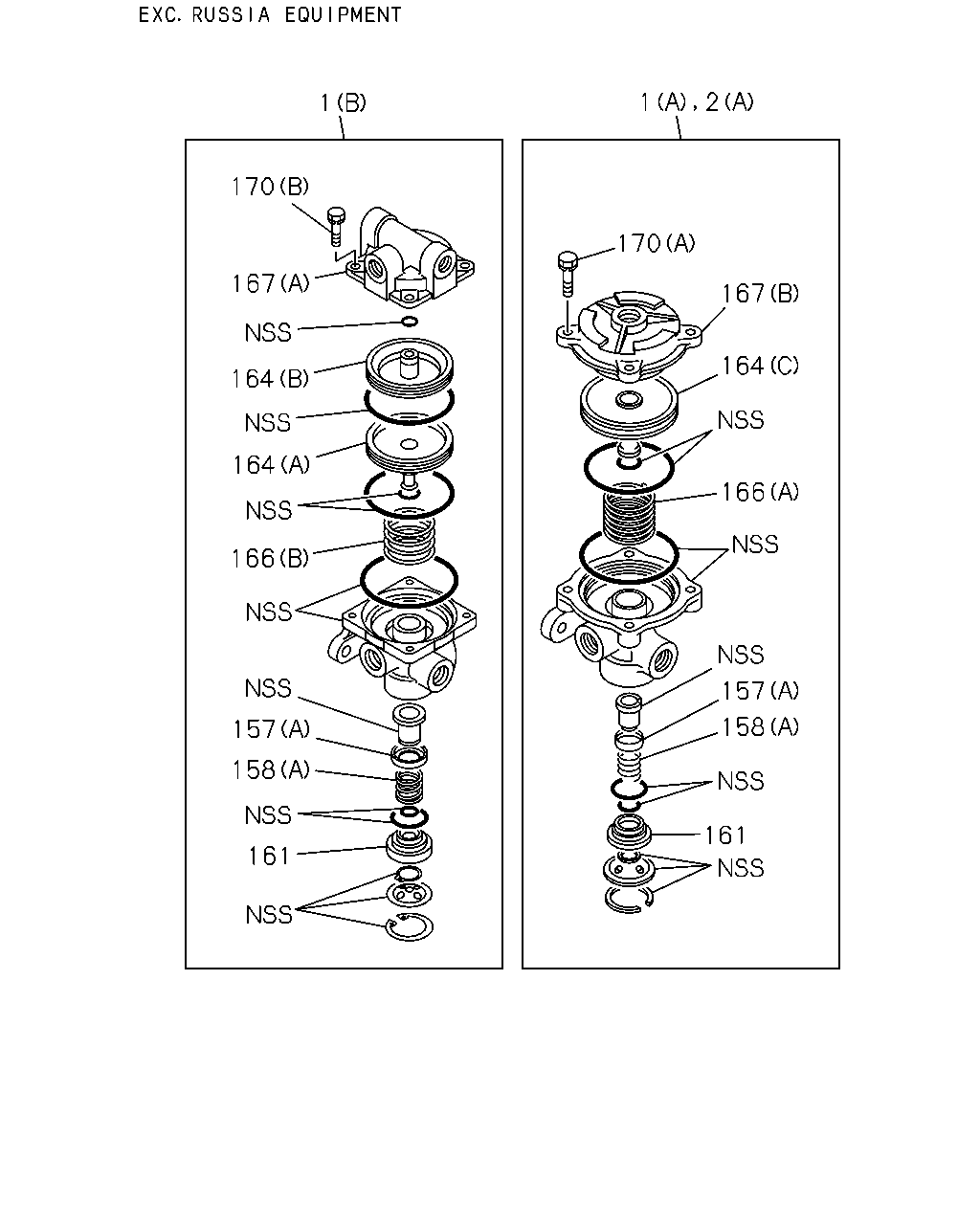

çizim 336297
1 170 167 164 164 166 157 158 161 1 2 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (C) 		1-48210-997-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (D) 		1-48240-469-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48240-041-1 01 1 1512- ● ●
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) (B) 		1-48210-997-0 01 1 1512- ● ●
2 VALVE; RELAY
(A) 		1-48210-875-0 01 1 1303-1511 ●
2 VALVE; RELAY
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
157 RETAINER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
MAP6U M/T(Y4B) (A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
158 SPRING; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1303-1511 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
MAP6U M/T(Y4B) (A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1303-1511 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1303-1511 ●
161 GUIDE; VALVE
MAP6U M/T(Y4B) 		1-48129-014-0 01 1 1303-1511 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1512- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1512- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1512- ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 1512- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 1512- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1512- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1512- ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 1303-1511 ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 1512- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1303-1511 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1303-1511 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1512- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1512- ●
167 COVER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		8-98043-421-0 02 1 1512- ●
167 COVER; VALVE
(C) 		8-98043-421-0 02 1 1512- ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1303-1511 ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1303-1511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1303-1511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1512- ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 1303-1511 ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 1512- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1303-1511 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1303-1511 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1512- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1512- ●

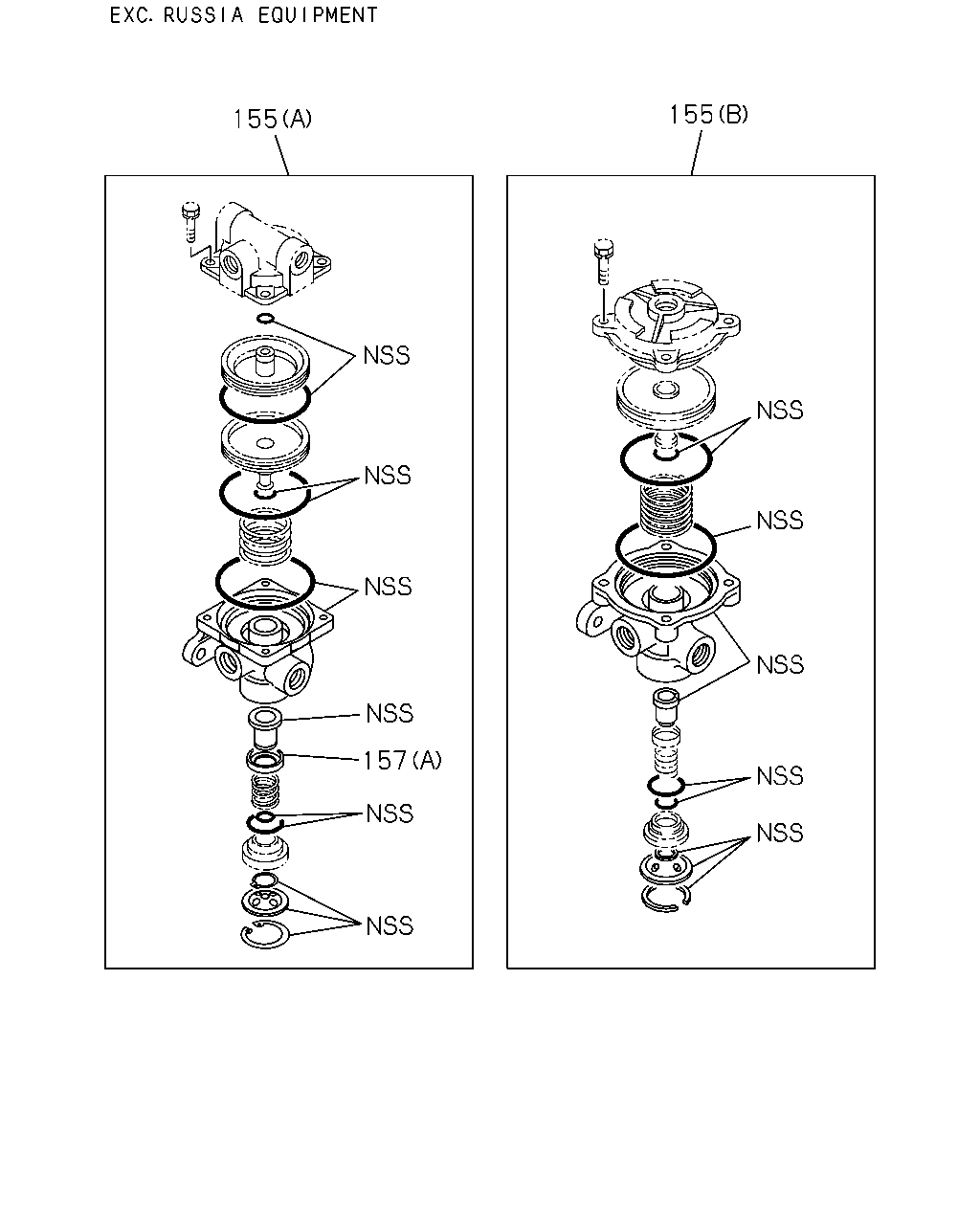

çizim 336298
155 155 157
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (D) 		1-85576-294-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (D) 		1-85576-294-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (C) 		1-85576-453-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 1303-1511 ●
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-85576-035-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 1303-1511 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 1303-1511 ●
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-85576-033-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-85576-033-0 01 1 1512- ● ●
157 RETAINER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
MAP6U M/T(Y4B) (A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●

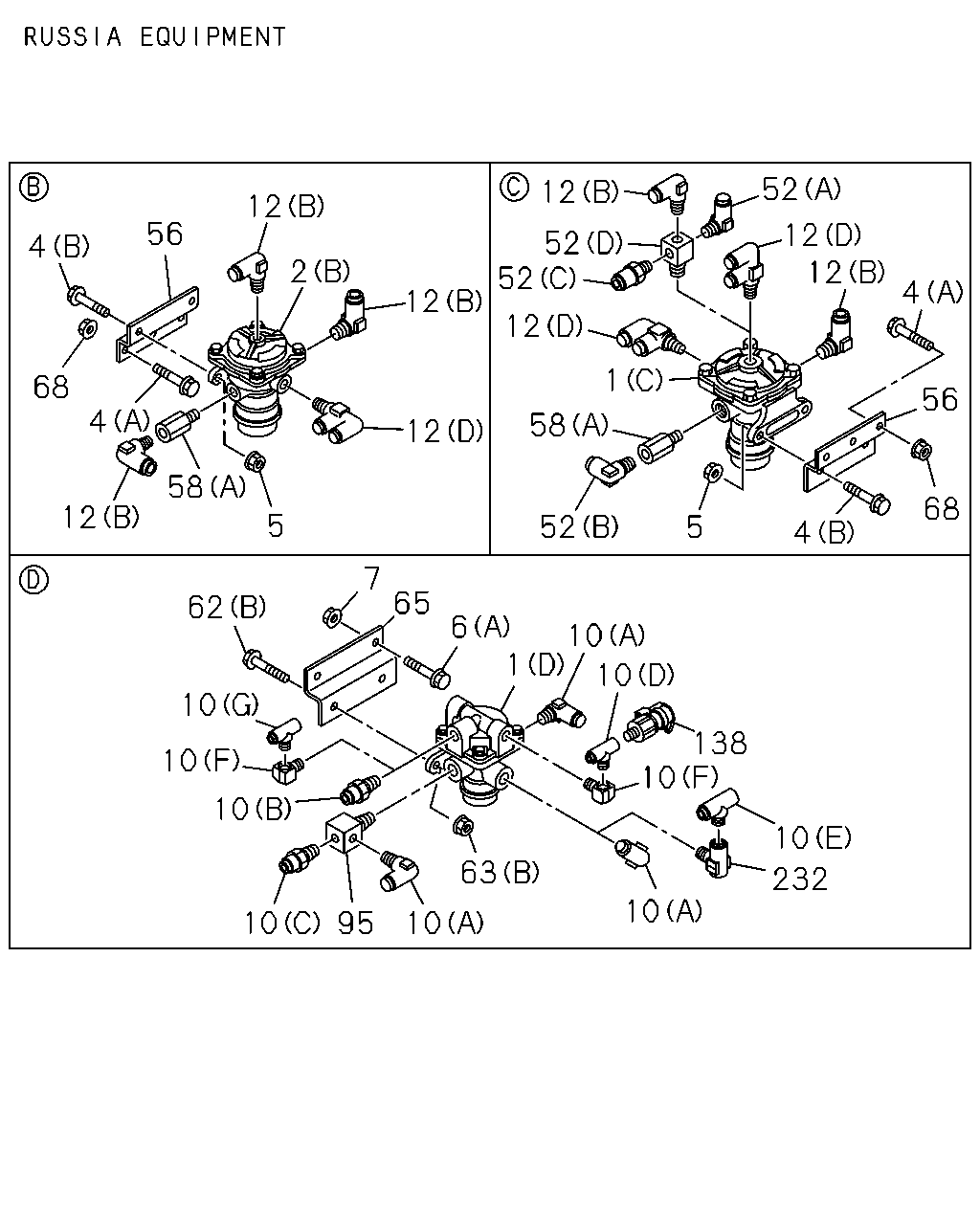

çizim 336301
4 68 12 4 56 58 12 2 5 12 12 62 10 10 0 10 7 95 10 65 63 1 6 10 10 10 10 138 10 232 12 52 52 12 58 1 52 5 68 1 56 1 12 12 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (C) 		1-48210-997-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (D) 		1-48240-469-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48240-041-1 01 1 1512- ● ●
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) (B) 		1-48210-997-0 01 1 1512- ● ●
2 VALVE; RELAY
(A) 		1-48210-875-0 01 1 1303-1511 ●
2 VALVE; RELAY
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1303-1511 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1512- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1303-1511 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1303-1511 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1512- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1512- ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1303-1511 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1511 ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
10 CONNECTOR
TAIWAN EQUIPMENT(WW5) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (F) PT3/8 ELBOW 		1-09660-696-0 01 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (G) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (E) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 1512- ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1303-1511 ●
10 CONNECTOR
EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1303-1511 ●
10 CONNECTOR
TAIWAN EQUIPMENT(WW5) (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
10 CONNECTOR
EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1303-1511 ●
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1512- ● ●
10 CONNECTOR
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1303-1511 ●
10 CONNECTOR
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1512- ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIWAN EQUIPMENT(WW5) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
12 CONNECTOR; RELAY VLV
EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1512- ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1512- ●
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
12 CONNECTOR; RELAY VLV
(A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1512- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ● ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512- ● ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512- ●
12 CONNECTOR; RELAY VLV
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512- ●
52 CONNECTOR; RELAY VLV
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1512- ●
52 CONNECTOR; RELAY VLV
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1512- ●
52 CONNECTOR; RELAY VLV
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1512- ●
52 CONNECTOR; RELAY VLV
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (D) PT3/8 4WAY 		1-09661-489-0 01 1 1512- ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1303-1511 ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1303-1511 ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1512- ● ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1512- ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (A) PT3/8 		1-48319-058-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (A) PT3/8 		1-48319-058-0 01 1 1512- ● ●
62 BOLT; BRKT FIX
EXC. TAIWAN EQUIPMENT(WW5) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
62 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1303-1511 ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512- ● ●
63 NUT; BRKT FIX
EXC. TAIWAN EQUIPMENT(WW5) (A) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1512- ● ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 1303-1511 ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 1512- ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 1303-1511 ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 1512- ● ●
95 UNION; AIR VLV
EXC. TAIWAN EQUIPMENT(WW5) PT3/8 3WAY 		1-09661-300-0 01 1 1512- ●
95 UNION; AIR VLV
PT3/8 3WAY 		1-09661-300-0 01 1 1512- ●
138 SWITCH; RELAY VALVE
STAMP 2.0 		8-98010-856-2 01 1 1303-1511 ●
138 SWITCH; RELAY VALVE
STAMP 2.0 		8-98010-856-2 01 1 1512- ● ●
232 VALVE; CHECK
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) 		1-48320-031-1 01 1 1512- ●

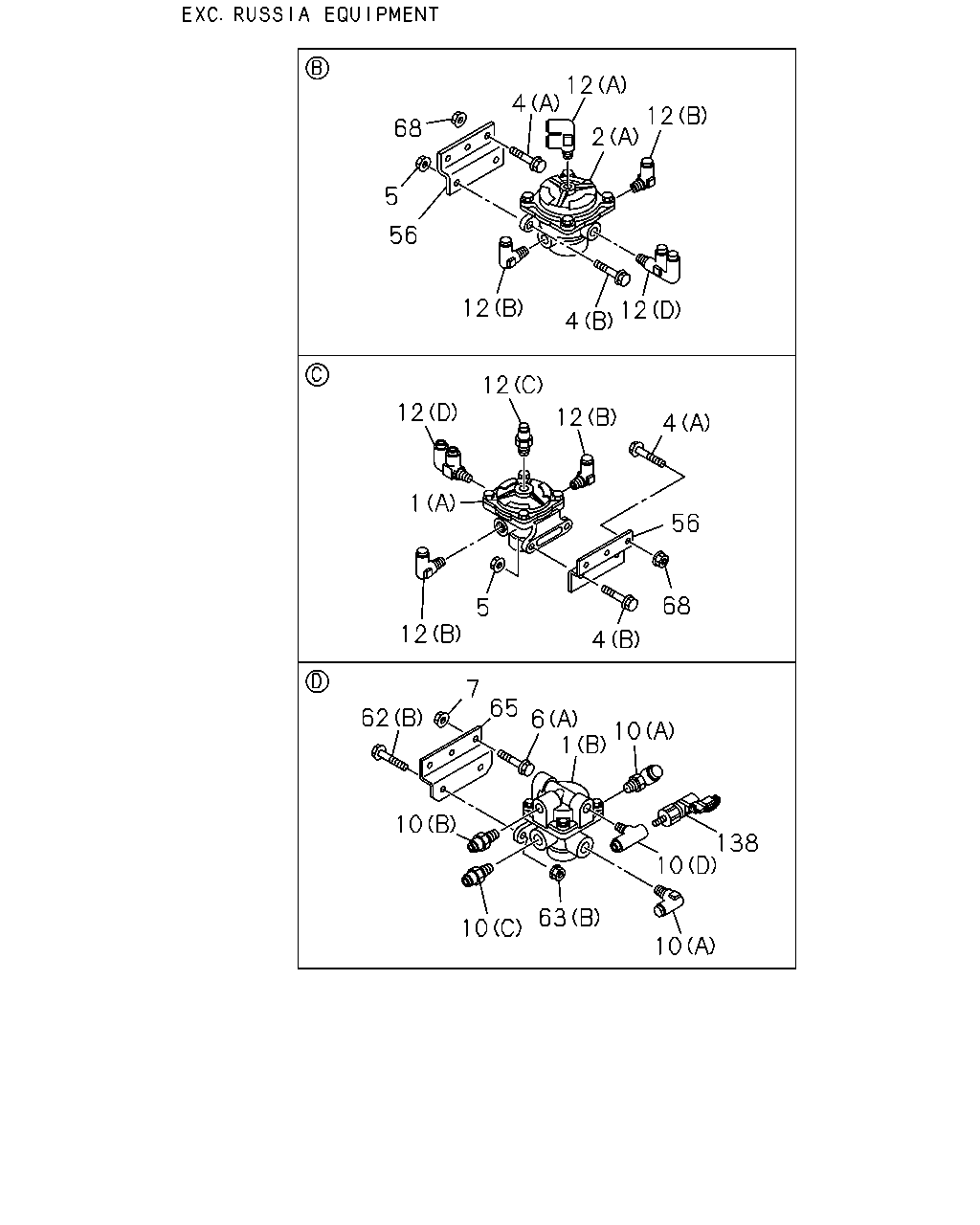

çizim 336302
12 2 12 12 4 12 56 5 68 4 12 12 4 56 68 4 1 12 5 12 62 65 6 1 10 10 63 10 10 7 10 138
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (C) 		1-48210-997-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (D) 		1-48240-469-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48240-041-1 01 1 1512- ● ●
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) (B) 		1-48210-997-0 01 1 1512- ● ●
2 VALVE; RELAY
(A) 		1-48210-875-0 01 1 1303-1511 ●
2 VALVE; RELAY
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1303-1511 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1512- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1303-1511 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1303-1511 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1512- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1512- ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1303-1511 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1511 ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
10 CONNECTOR
TAIWAN EQUIPMENT(WW5) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (F) PT3/8 ELBOW 		1-09660-696-0 01 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (G) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1512- ●
10 CONNECTOR
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (E) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 1512- ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1303-1511 ●
10 CONNECTOR
EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1303-1511 ●
10 CONNECTOR
TAIWAN EQUIPMENT(WW5) (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
10 CONNECTOR
EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1303-1511 ●
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1512- ● ●
10 CONNECTOR
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1303-1511 ●
10 CONNECTOR
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1512- ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIWAN EQUIPMENT(WW5) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512- ●
12 CONNECTOR; RELAY VLV
EXC. TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1512- ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1512- ●
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512- ●
12 CONNECTOR; RELAY VLV
(A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1512- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ● ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512- ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1511 ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512- ● ●
12 CONNECTOR; RELAY VLV
TAIWAN EQUIPMENT(WW5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512- ●
12 CONNECTOR; RELAY VLV
FULL TRAILER PIPING<Z25> EXC. TAIWAN EQUIPMENT(WW5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512- ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1303-1511 ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1303-1511 ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1512- ● ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1512- ●
62 BOLT; BRKT FIX
EXC. TAIWAN EQUIPMENT(WW5) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
62 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1303-1511 ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512- ● ●
63 NUT; BRKT FIX
EXC. TAIWAN EQUIPMENT(WW5) (A) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1512- ● ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 1303-1511 ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 1512- ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 1303-1511 ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 1512- ● ●
138 SWITCH; RELAY VALVE
STAMP 2.0 		8-98010-856-2 01 1 1303-1511 ●
138 SWITCH; RELAY VALVE
STAMP 2.0 		8-98010-856-2 01 1 1512- ● ●

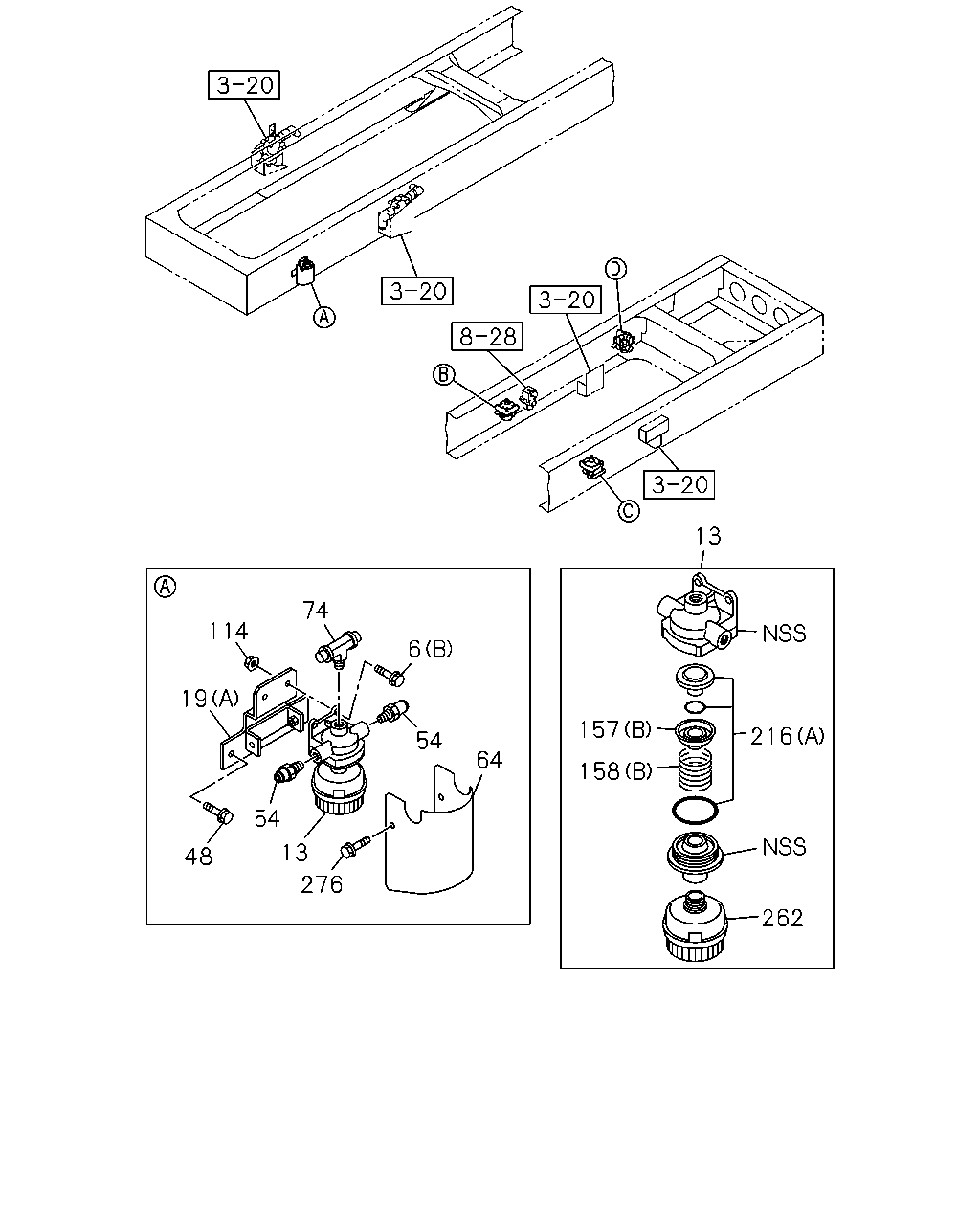

çizim 337131
13 216 262 157 158 114 6 19 74 54 64 13 54 48 276
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1303-1511 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1511 ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 1303-1511 ●
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 1512- ● ●
19 BRACKET; QUICK RELEASE VLV
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-47471-390-0 02 1 1512- ●
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47471-390-0 02 1 1512- ●
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 1303-1511 ●
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 1512- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1303-1511 ●
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1512- ● ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 1303-1511 ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 1512- ● ●
74 CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1303-1511 ●
74 CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1512- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
157 RETAINER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
MAP6U M/T(Y4B) (A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
158 SPRING; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1303-1511 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
MAP6U M/T(Y4B) (A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
216 REPAIR KIT; QUICK RELEASE VLV
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98171-596-0 02 1 1512- ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		8-98171-596-0 02 1 1512- ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1303-1511 ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
EXC. TAIWAN EQUIPMENT(WW5) 		1-48219-149-0 02 1 1512- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1512- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1303-1511 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 1303-1511 ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ●
çizim 512611
45 216 158 157 262
BalonParca AdiParca NoAdetTipApplied Date A B
45 VALVE; QUICK RELEASE
EXC. TAIWAN EQUIPMENT(WW5) 		8-98170-207-0 02 1 1512- ●
45 VALVE; QUICK RELEASE 8-98170-207-0 02 1 1512- ●
157 RETAINER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
MAP6U M/T(Y4B) (A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
158 SPRING; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1303-1511 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
MAP6U M/T(Y4B) (A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
216 REPAIR KIT; QUICK RELEASE VLV
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98171-596-0 02 1 1512- ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		8-98171-596-0 02 1 1512- ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1303-1511 ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
EXC. TAIWAN EQUIPMENT(WW5) 		1-48219-149-0 02 1 1512- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1512- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1303-1511 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●

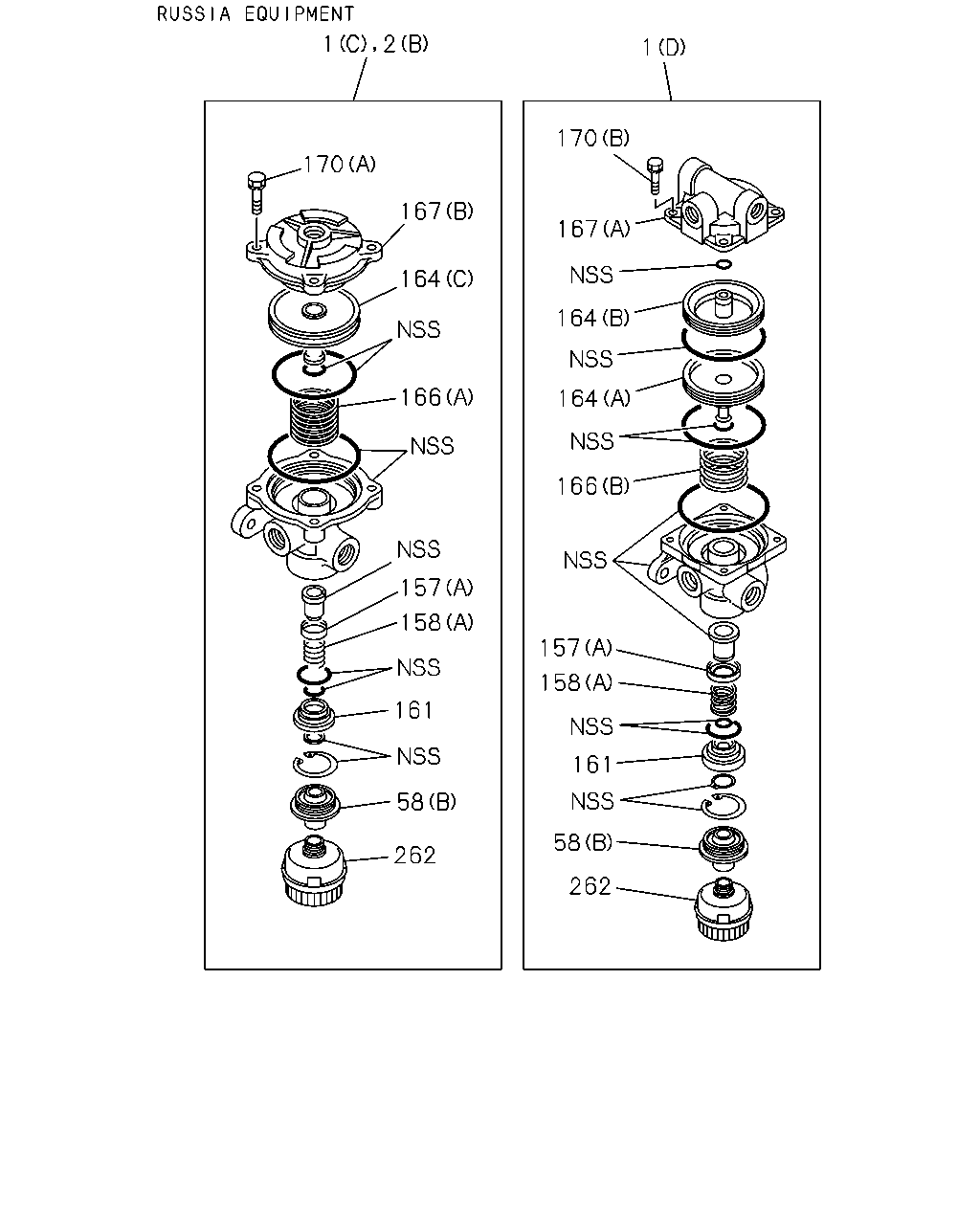

çizim 512895
1 2 1 170 167 164 166 157 158 161 58 262 262 58 161 158 157 166 164 164 167 170
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (C) 		1-48210-997-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (D) 		1-48240-469-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 1303-1511 ●
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48240-041-1 01 1 1512- ● ●
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) (B) 		1-48210-997-0 01 1 1512- ● ●
2 VALVE; RELAY
(A) 		1-48210-875-0 01 1 1303-1511 ●
2 VALVE; RELAY
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (A) PT3/8 		1-48319-058-0 01 1 1512- ● ●
58 ADAPTER
RUSSIA EQUIPMENT(B12) (A) PT3/8 		1-48319-058-0 01 1 1512- ● ●
157 RETAINER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1512- ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
MAP6U M/T(Y4B) (A) 		1-48213-002-0 01 1 1303-1511 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512- ●
158 SPRING; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1512- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1303-1511 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
MAP6U M/T(Y4B) (A) 		1-47819-089-0 01 1 1303-1511 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1303-1511 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1303-1511 ●
161 GUIDE; VALVE
MAP6U M/T(Y4B) 		1-48129-014-0 01 1 1303-1511 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1512- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1512- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1512- ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 1512- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 1512- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1303-1511 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1512- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1512- ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 1303-1511 ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 1512- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1303-1511 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1303-1511 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1512- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1512- ●
167 COVER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		8-98043-421-0 02 1 1512- ●
167 COVER; VALVE
(C) 		8-98043-421-0 02 1 1512- ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1303-1511 ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1303-1511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1303-1511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1512- ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 1303-1511 ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 1512- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1303-1511 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1303-1511 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1512- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1512- ●
262 SILENCER; RELAY VALVE
EXC. TAIWAN EQUIPMENT(WW5) 		1-48219-149-0 02 1 1512- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1512- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1303-1511 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512- ● ●

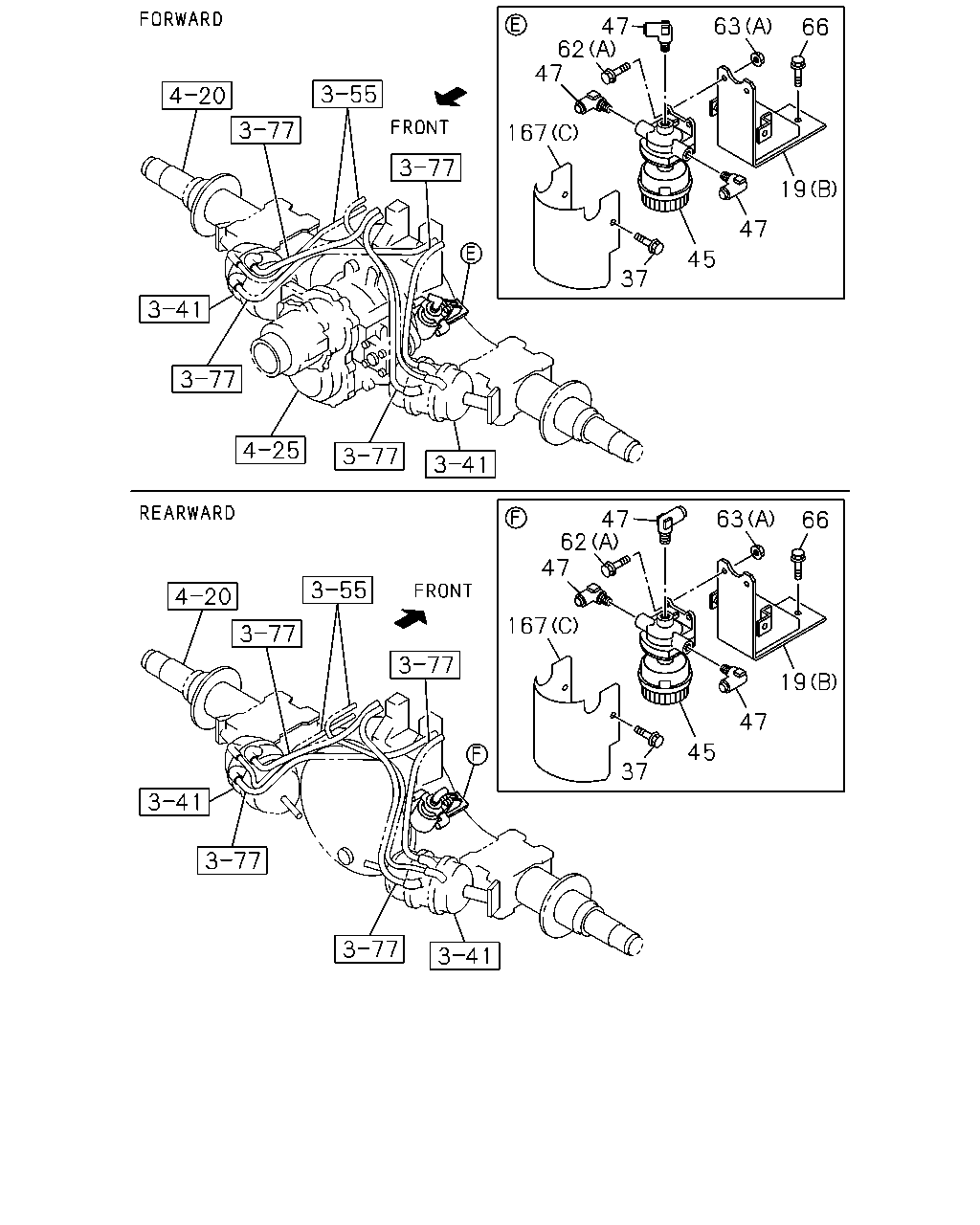

çizim 512918
167 47 62 47 63 66 19 47 45 37 167 47 47 62 37 47 45 19 63 66
BalonParca AdiParca NoAdetTipApplied Date A B
19 BRACKET; QUICK RELEASE VLV
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-47471-390-0 02 1 1512- ●
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47471-390-0 02 1 1512- ●
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 1303-1511 ●
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 1512- ● ●
37 BOLT; COVER
EXC. TAIWAN EQUIPMENT(WW5) M8X10 FLANGE 		0-28050-810-0 04 1 1512- ●
37 BOLT; COVER
M8X10 FLANGE 		0-28050-810-0 04 1 1512- ●
45 VALVE; QUICK RELEASE
EXC. TAIWAN EQUIPMENT(WW5) 		8-98170-207-0 02 1 1512- ●
45 VALVE; QUICK RELEASE 8-98170-207-0 02 1 1512- ●
47 CONNECTOR; RELAY VLV,CONT
EXC. TAIWAN EQUIPMENT(WW5) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1512- ●
47 CONNECTOR; RELAY VLV,CONT
DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1512- ●
62 BOLT; BRKT FIX
EXC. TAIWAN EQUIPMENT(WW5) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
62 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1303-1511 ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512- ● ●
63 NUT; BRKT FIX
EXC. TAIWAN EQUIPMENT(WW5) (A) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1512- ● ●
66 BOLT; BRKT,RELAY VLV RR
EXC. TAIWAN EQUIPMENT(WW5) M8X16 FLANGE 		0-28050-816-0 04 1 1512- ●
66 BOLT; BRKT,RELAY VLV RR
M8X16 FLANGE 		0-28050-816-0 04 1 1512- ●
167 COVER; VALVE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		8-98043-421-0 02 1 1512- ●
167 COVER; VALVE
(C) 		8-98043-421-0 02 1 1512- ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1303-1511 ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1303-1511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1303-1511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1512- ●

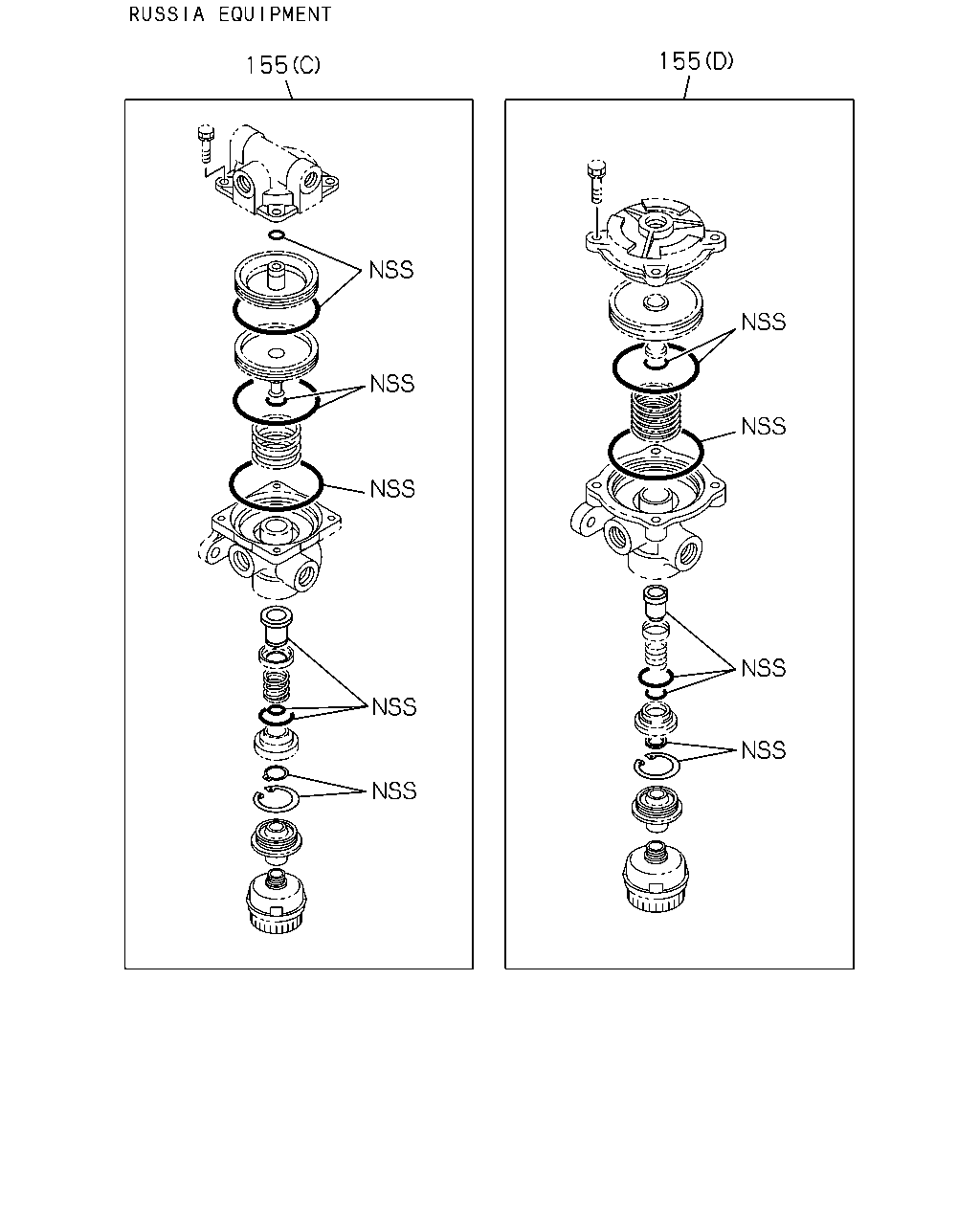

çizim 513569
155 155
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (D) 		1-85576-294-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (D) 		1-85576-294-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (C) 		1-85576-453-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 1303-1511 ●
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-85576-035-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 1303-1511 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 1303-1511 ●
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-85576-033-0 01 1 1512- ● ●
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-85576-033-0 01 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
