Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶
3-40 — FRONT BRAKE POWER CHAMBER
(#115424) — 58 parça
Tümü
A - CYZ6MC
B - CYZ6MF
◀

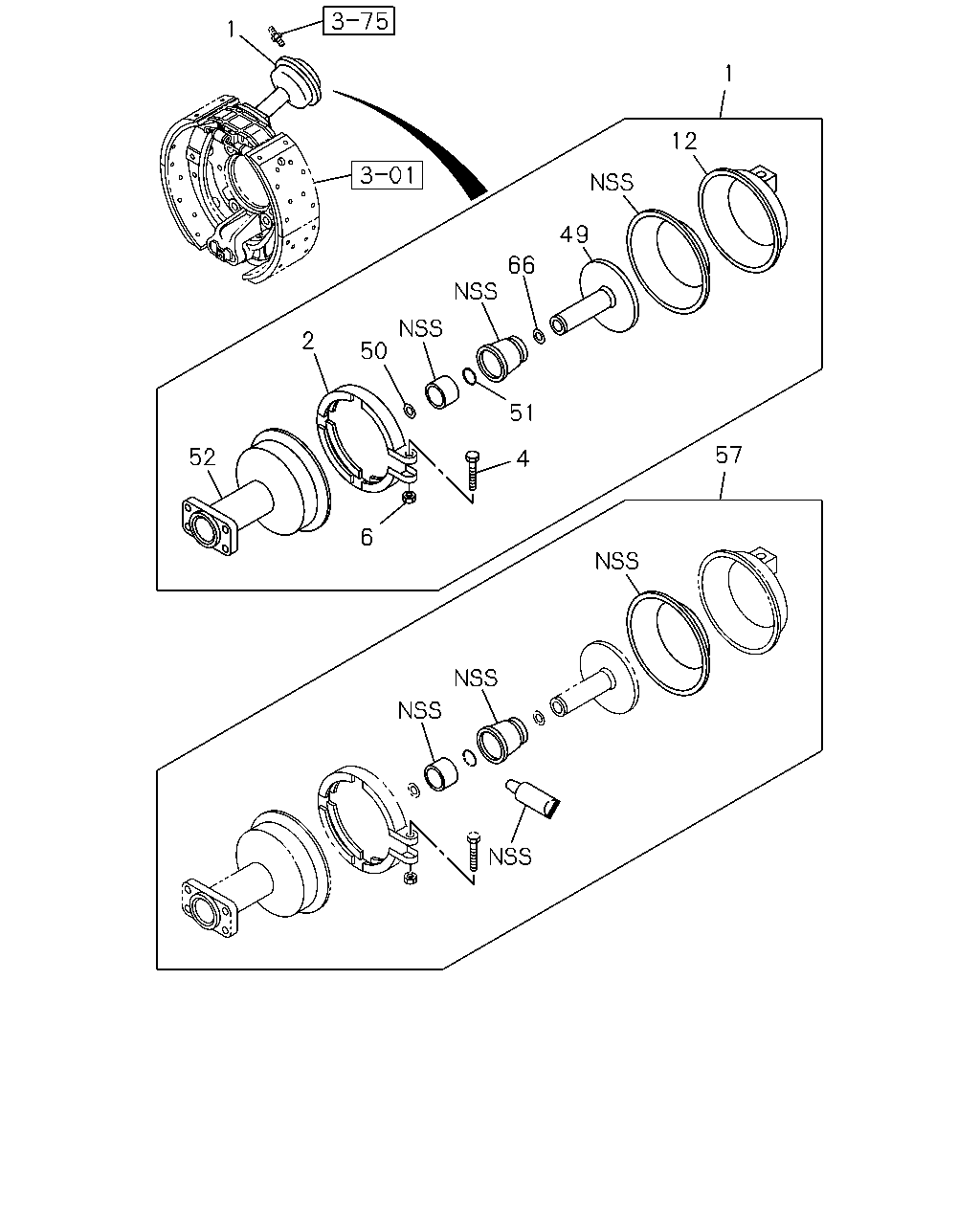

[340A] FRT BRK AIR D410 WEDGE-160-24/24 (29 parça)

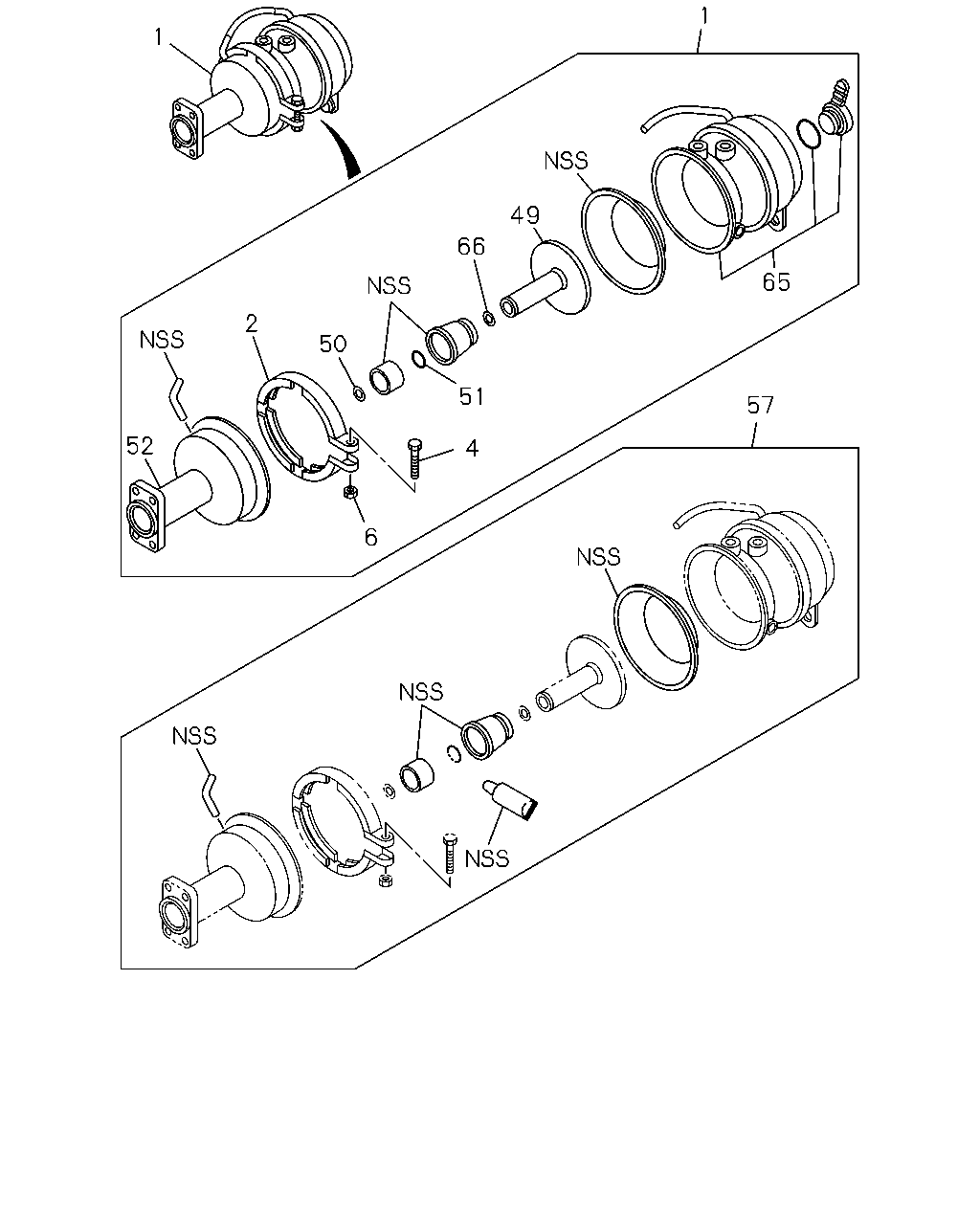

[340A] FRT BRK AIR D410 WEDGE-160-24 (29 parça)
▶
1
1
12
49
66
50
2
6
51
57
4
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; POWER,FRT BRK
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-87412-087-0
01
1
1512-
●
●
1
CHAMBER ASM; POWER,FRT BRK
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-87412-088-0
01
1
1512-
●
●
1
CHAMBER ASM; POWER,FRT BRK
8-98145-680-1
02
1
1303-1511
●
1
CHAMBER ASM; POWER,FRT BRK
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98145-680-1
02
1
1512-
●
●
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1303-1511
●
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1512-
●
●
4
BOLT; CLAMP RING
1-48269-257-0
02
1
1303-1511
●
4
BOLT; CLAMP RING
1-48269-257-0
02
1
1512-
●
●
6
NUT; CLAMP RING
1-48269-147-0
02
1
1303-1511
●
6
NUT; CLAMP RING
1-48269-147-0
02
1
1512-
●
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-103-0
02
1
1303-1511
●
12
COVER ASM; LWR,SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24<B7Q>
1-48251-103-0
02
1
1512-
●
●
49
ROD; PUSH,SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
8-98146-972-0
02
1
1512-
●
●
49
ROD; PUSH,SPR CHAMBER
8-98146-969-1
02
1
1303-1511
●
49
ROD; PUSH,SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98146-969-1
02
1
1512-
●
●
50
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1303-1511
●
50
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1512-
●
●
51
RING; SPR CHAMBER
8-98146-966-0
02
1
1303-1511
●
51
RING; SPR CHAMBER
8-98146-966-0
02
1
1512-
●
●
52
HOUSING; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-48251-078-1
01
1
1512-
●
●
52
HOUSING; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-48251-079-1
01
1
1512-
●
●
52
HOUSING; SPR CHAMBER
1-48251-195-1
02
1
1303-1403
●
52
HOUSING; SPR CHAMBER
8-98248-793-0
02
1
1404-1511
●
52
HOUSING; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98248-793-0
02
1
1512-
●
●
57
REPAIR KIT; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
8-98146-980-0
02
1
1512-
●
●
57
REPAIR KIT; SPR CHAMBER
8-98146-978-0
02
1
1303-1511
●
57
REPAIR KIT; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98146-978-0
02
1
1512-
●
●
66
SHIM
8-98146-965-0
AR
1
1303-1511
●
66
SHIM
8-98146-965-0
AR
1
1512-
●
●
1
2
52
50
66
49
1
6
4
51
65
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; POWER,FRT BRK
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-87412-087-0
01
1
1512-
●
●
1
CHAMBER ASM; POWER,FRT BRK
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-87412-088-0
01
1
1512-
●
●
1
CHAMBER ASM; POWER,FRT BRK
8-98145-680-1
02
1
1303-1511
●
1
CHAMBER ASM; POWER,FRT BRK
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98145-680-1
02
1
1512-
●
●
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1303-1511
●
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1512-
●
●
4
BOLT; CLAMP RING
1-48269-257-0
02
1
1303-1511
●
4
BOLT; CLAMP RING
1-48269-257-0
02
1
1512-
●
●
6
NUT; CLAMP RING
1-48269-147-0
02
1
1303-1511
●
6
NUT; CLAMP RING
1-48269-147-0
02
1
1512-
●
●
49
ROD; PUSH,SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
8-98146-972-0
02
1
1512-
●
●
49
ROD; PUSH,SPR CHAMBER
8-98146-969-1
02
1
1303-1511
●
49
ROD; PUSH,SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98146-969-1
02
1
1512-
●
●
50
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1303-1511
●
50
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1512-
●
●
51
RING; SPR CHAMBER
8-98146-966-0
02
1
1303-1511
●
51
RING; SPR CHAMBER
8-98146-966-0
02
1
1512-
●
●
52
HOUSING; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-48251-078-1
01
1
1512-
●
●
52
HOUSING; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-48251-079-1
01
1
1512-
●
●
52
HOUSING; SPR CHAMBER
1-48251-195-1
02
1
1303-1403
●
52
HOUSING; SPR CHAMBER
8-98248-793-0
02
1
1404-1511
●
52
HOUSING; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98248-793-0
02
1
1512-
●
●
57
REPAIR KIT; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
8-98146-980-0
02
1
1512-
●
●
57
REPAIR KIT; SPR CHAMBER
8-98146-978-0
02
1
1303-1511
●
57
REPAIR KIT; SPR CHAMBER
FRT BRK AIR D410 WEDGE-160-24<B7Q>
8-98146-978-0
02
1
1512-
●
●
65
CHAMBER; PIGGY BACK
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-87412-111-0
01
1
1512-
●
●
65
CHAMBER; PIGGY BACK
FRT BRK AIR D410 WEDGE-160-24/24<B7R>
1-87412-112-0
01
1
1512-
●
●
66
SHIM
8-98146-965-0
AR
1
1303-1511
●
66
SHIM
8-98146-965-0
AR
1
1512-
●
●
