Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#115422) — 26 parça
◀

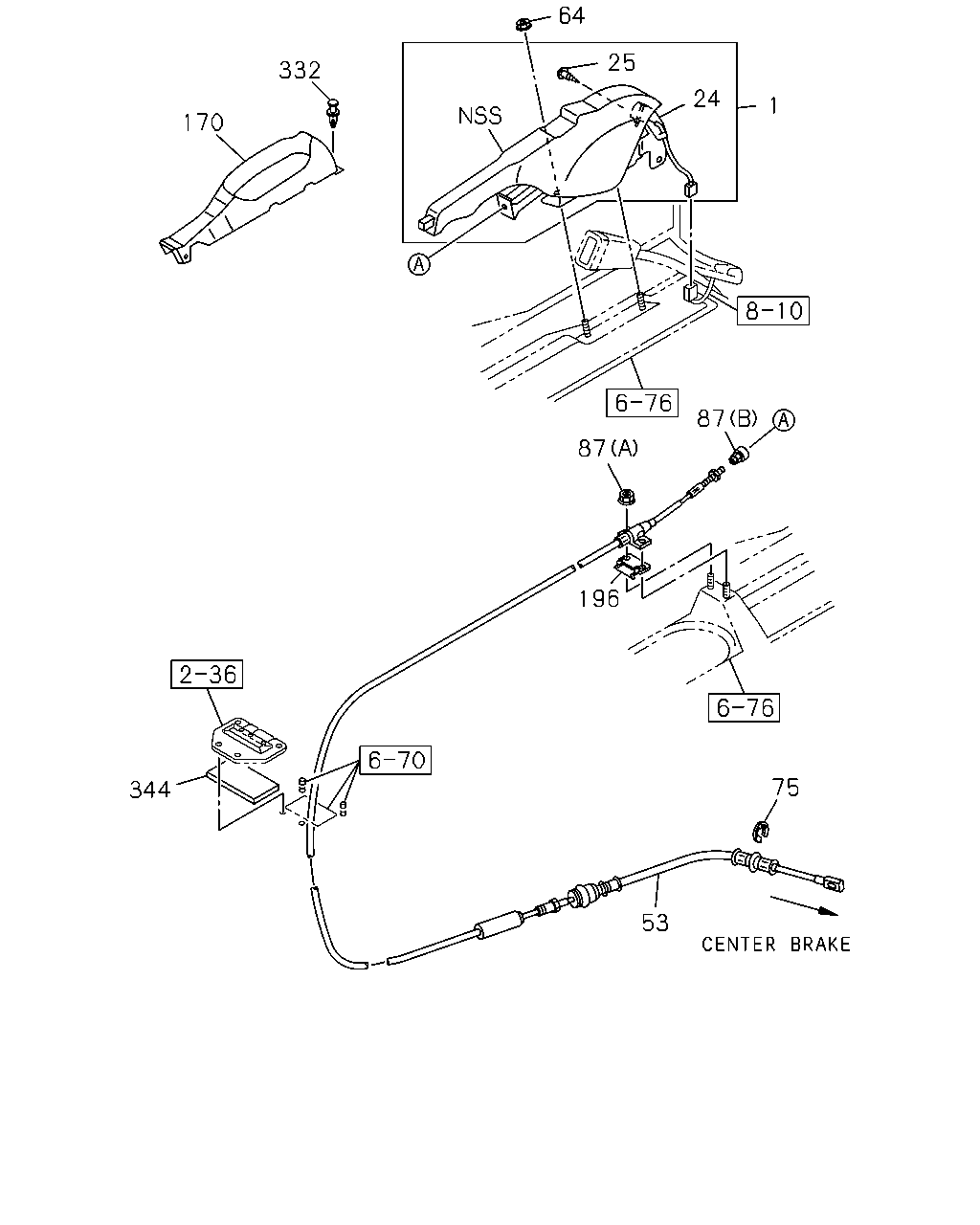

[311A] STEM AND CABLE (15 parça)

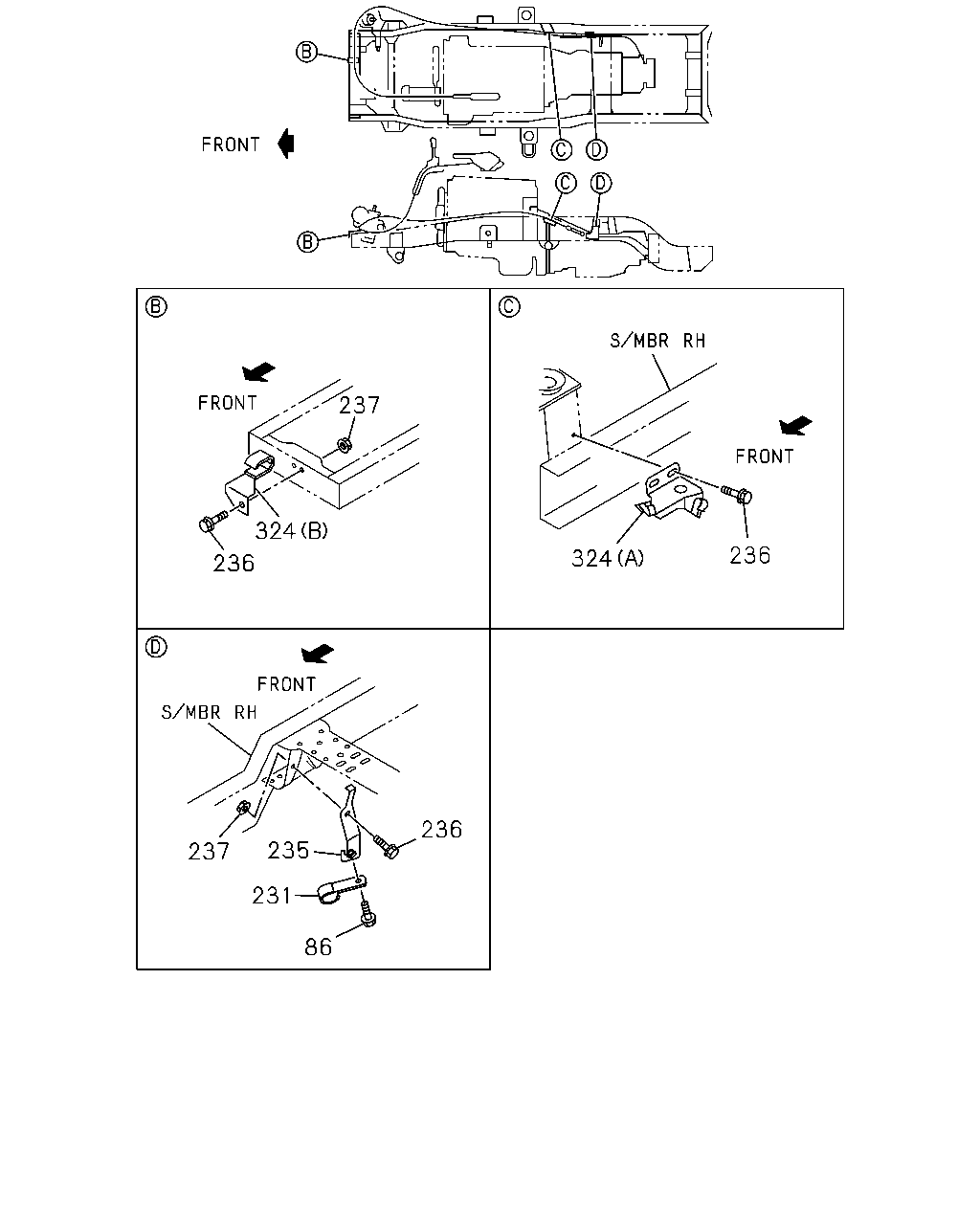

[311A] FIXING PARTS (11 parça)
▶
332
170
64
25
24
1
87
87
196
75
53
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97409-385-0
01
1
1302-1305
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97427-522-0
01
1
1306-
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
1302-1305
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1306-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
1302-
53
04.779 CABLE; PARK BRK,FRT LWR
8-98214-327-2
01
1
1302-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
1302-
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
1302-
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1302-
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
1302-
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97400-347-1
01
1
1302-
196
04.784 SPACER; CABLE TO LEVER
8-97095-464-2
01
1
1302-
332
04.785 CLIP; COVER
03.602 D6X12.5
8-94146-425-0
01
1
1302-
344
04.595 GASKET; DASH LWR
04.047
8-97096-753-0
01
1
1302-1308
344
04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047
8-97096-753-0
01
1
1309-
237
236
324
236
324
236
235
237
231
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
86
04.785 BOLT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1302-
231
04.785 CLIP; BAND,BRK CABLE
ID=14.5 L=20
1-09701-012-0
01
1
1302-
235
04.785 BRACKET; CONT CABLE TO FRAME
8-98214-340-3
01
1
1302-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1309-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1302-1308
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1309-
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
02
1
1302-1308
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
01
1
1309-
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
01
1
1309-
324
04.785 BRACKET
(B)
8-97101-815-2
01
1
1302-
324
04.785 BRACKET
(A)
8-98214-339-1
01
1
1302-
