Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#115418) — 269 parça
Tümü
A - MAP6U M/T
B - MJT7S M/T
C - MJX16P M/T
◀
[201A] MAP;BOOSTER AND BRACKET (56 parça)
[201A] MAP;DISC AND PLATE (48 parça)
[201A] MJX;DISC AND PLATE (30 parça)
[201A] MJT;DISC AND PLATE (48 parça)
[201A] MJT;BOOSTER AND BRACKET (50 parça)
[201A] MJX;BOOSTER AND BRACKET (37 parça)
▶
120
160
158
20
128
125
127
170
148
155
157
154
220
155
170
155
157
148
245
154
149
153
136
136
155
148
149
154
127

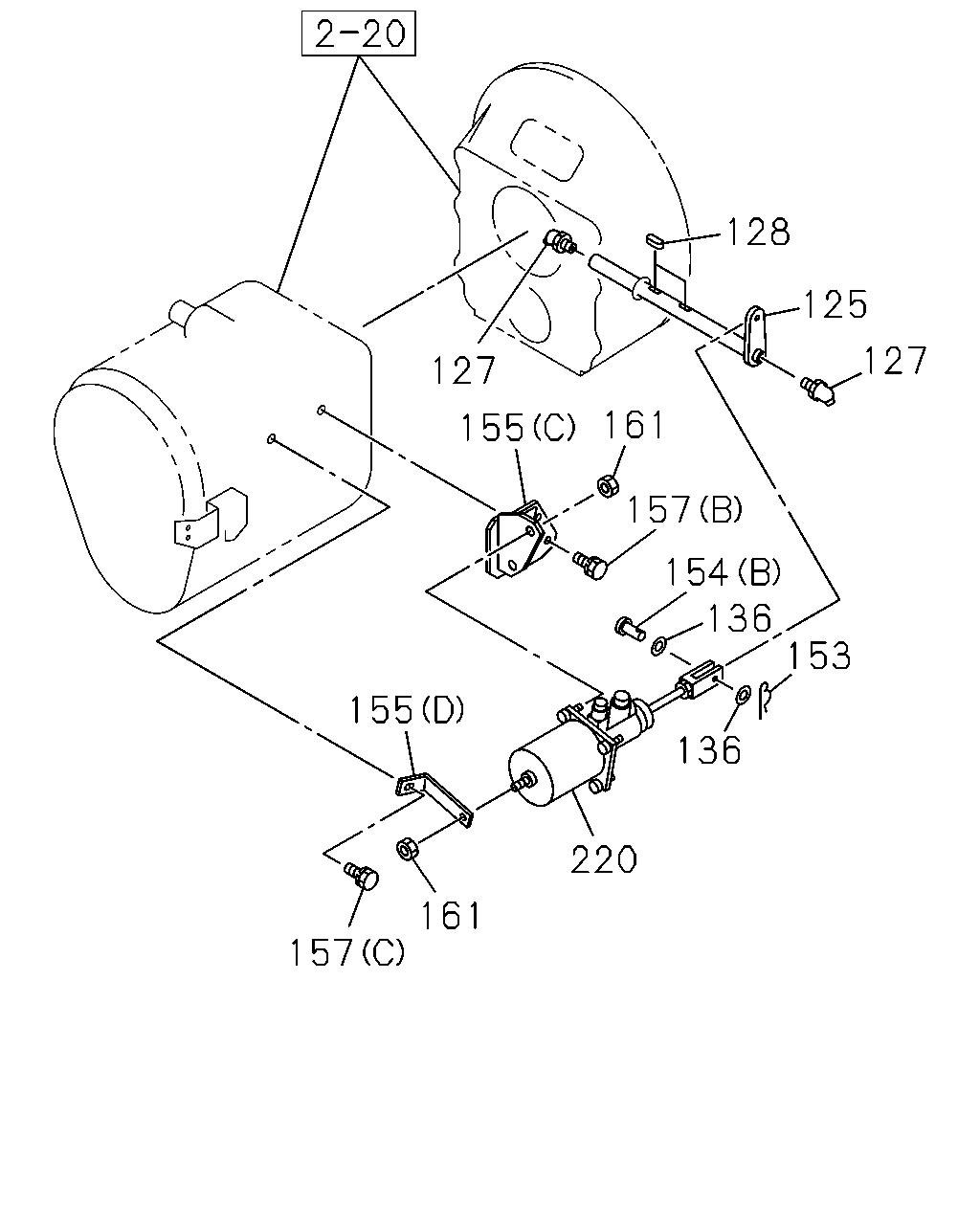

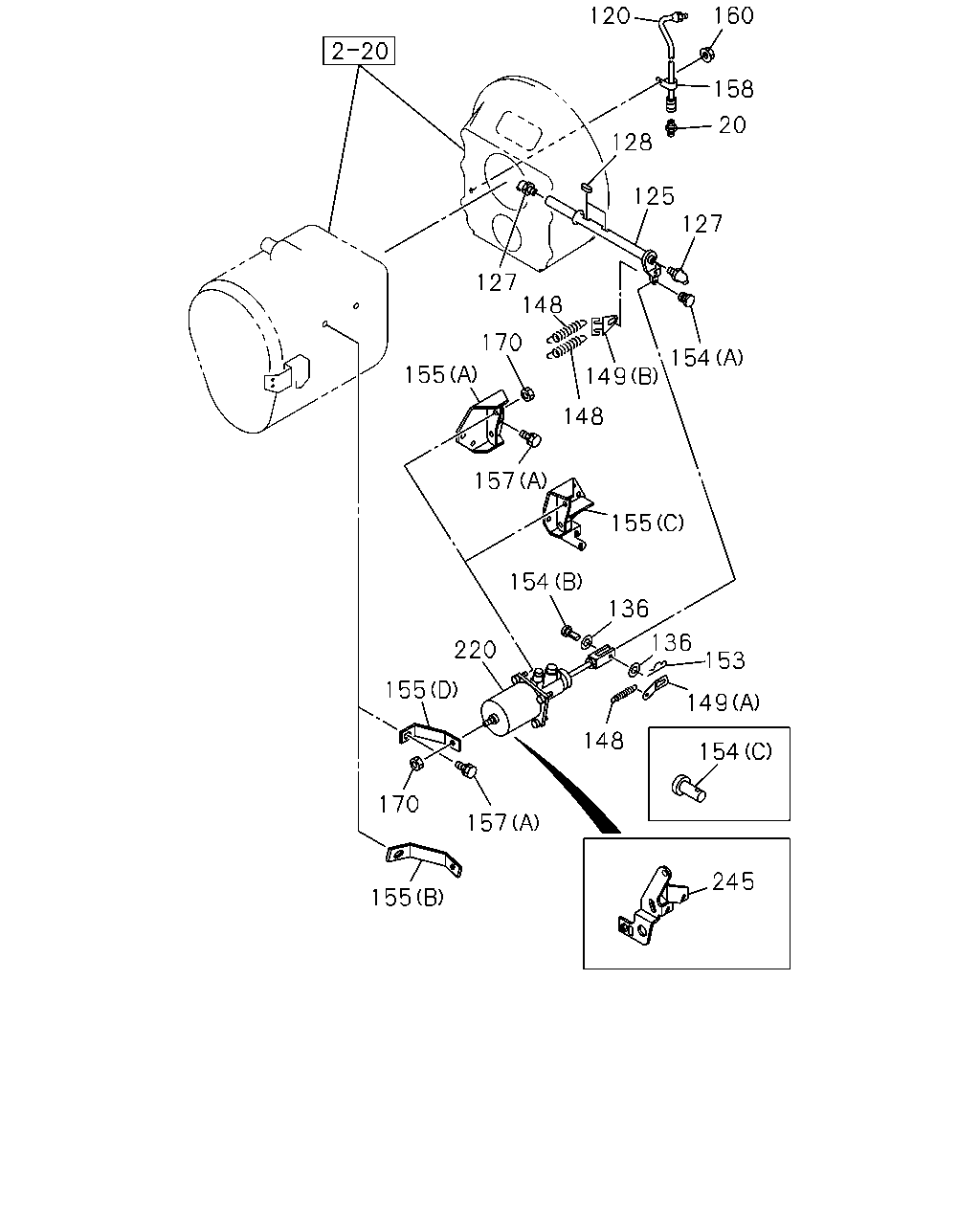

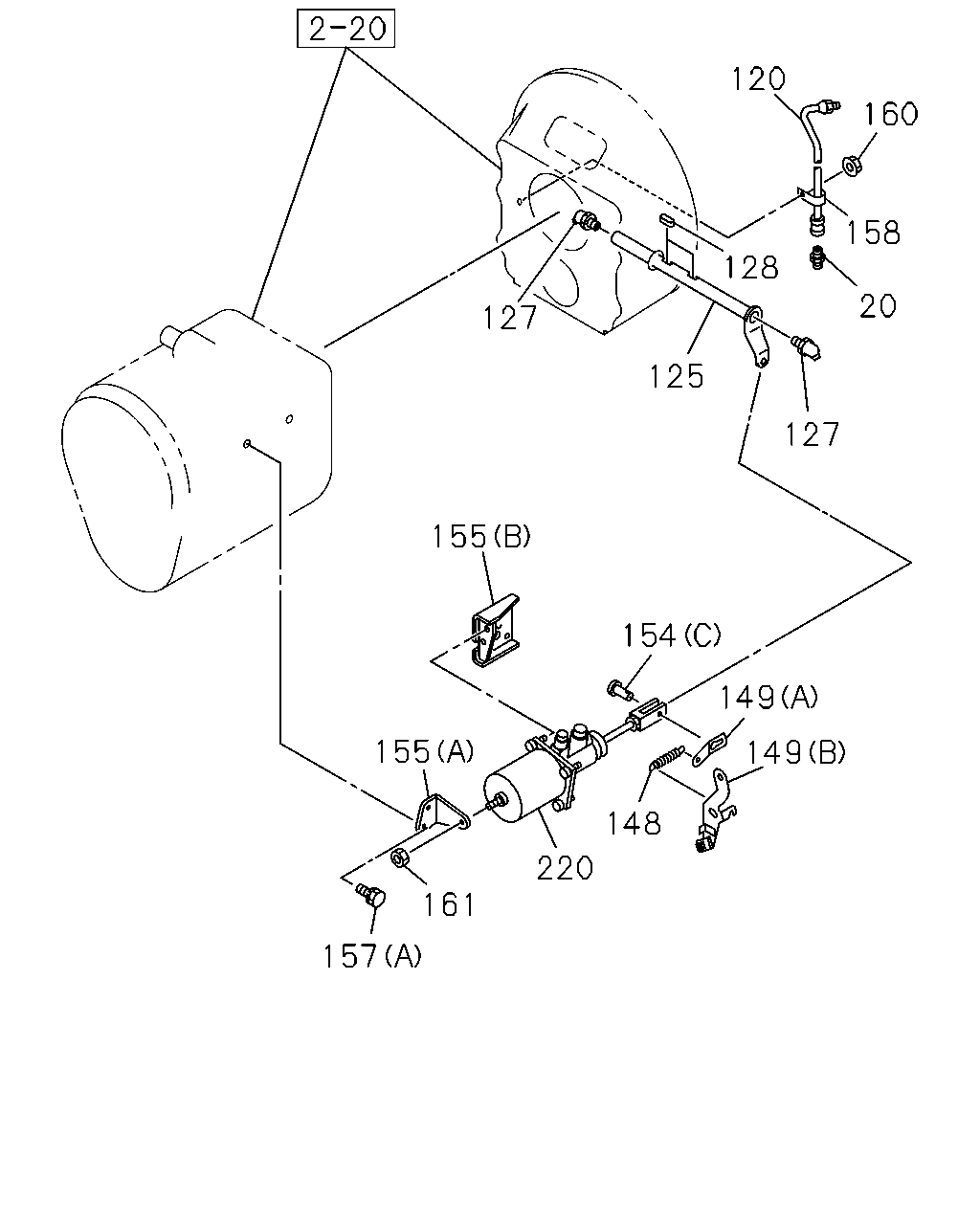

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
1303-1511
●
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
1512-
●
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=500
1-09364-651-0
01
1
1303-1511
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=500
1-09364-651-0
01
1
1512-
●
●
125
SHAFT; CLU
8-98242-405-0
01
1
1512-
●
125
SHAFT; CLU
1-31342-324-0
01
1
1512-
●
125
SHAFT; CLU
1-31342-311-1
01
1
1303-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1303-1511
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1512-
●
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1303-1511
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1512-
●
●
●
136
WASHER; PL
ID=15
0-91610-514-0
02
1
1303-1511
●
136
WASHER; PL
ID=15
0-91610-514-0
02
1
1512-
●
●
148
SPRING; CLU RETURN
L=192
1-09583-266-0
02
1
1303-
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1303-1511
●
148
SPRING; CLU RETURN
FIRE TRUCK<RA9> L=135
1-09583-305-0
01
1
1512-
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1512-
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-056-0
01
1
1512-
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-031-0
01
1
1303-
●
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-052-0
01
1
1303-1511
●
149
EYE; SPRING,RETURN SPRING
FIRE TRUCK<RA9> (A)
1-31426-052-0
01
1
1512-
●
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-052-0
01
1
1512-
●
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
1303-1511
●
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
1512-
●
●
154
PIN; JAW JOINT
(B) L=35
1-31424-003-0
01
1
1303-1511
●
154
PIN; JAW JOINT
(B) L=35
1-31424-003-0
01
1
1512-
●
●
154
PIN; JAW JOINT
(A) L=15.7
1-31424-005-0
01
1
1303-
●
154
PIN; JAW JOINT
(C)
1-31424-009-0
01
1
1303-1511
●
154
PIN; JAW JOINT
FIRE TRUCK<RA9> (C)
1-31424-009-0
01
1
1512-
●
154
PIN; JAW JOINT
(C)
1-31424-009-0
01
1
1512-
●
155
BRACKET; MINIPACK
(A)
1-31429-350-0
01
1
1512-
●
155
BRACKET; MINIPACK
(B)
1-31429-391-0
01
1
1512-
●
155
BRACKET; MINIPACK
(C)
1-31429-456-0
01
1
1512-
●
155
BRACKET; MINIPACK
(D)
1-31429-457-0
01
1
1512-
●
155
BRACKET; MINIPACK
(C)
1-31429-395-0
01
1
1303-
●
155
BRACKET; MINIPACK
(D)
1-31429-419-0
01
1
1303-
●
155
BRACKET; MINIPACK
(A)
1-31429-431-0
01
1
1303-1511
●
155
BRACKET; MINIPACK
FIRE TRUCK<RA9> (A)
1-31429-431-0
01
1
1512-
●
155
BRACKET; MINIPACK
(B)
1-31429-432-0
01
1
1303-1511
●
155
BRACKET; MINIPACK
FIRE TRUCK<RA9> (B)
1-31429-432-0
01
1
1512-
●
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
03
1
1512-
●
157
BOLT; BRKT
(C) M10X25 FLANGE
0-28751-025-0
01
1
1512-
●
157
BOLT; BRKT
(B) M10X30 FLANGE
0-28751-030-0
02
1
1512-
●
157
BOLT; BRKT
(A) M10X18 FLANGE
0-28181-018-0
04
1
1303-
●
158
CLIP; FLEX HOSE
9-09917-576-0
01
1
1303-1511
●
158
CLIP; FLEX HOSE
9-09917-576-0
01
1
1512-
●
●
160
NUT
M10 FLANGE
0-91180-210-0
01
1
1303-1511
●
160
NUT
M10 FLANGE
0-91180-210-0
01
1
1512-
●
●
170
NUT; BOOSTER FIX
M10 FLANGE
0-91180-210-0
03
1
1303-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-474-1
01
1
1512-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
1512-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-506-0
01
1
1303-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-092-0
01
1
1303-1511
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-092-0
01
1
1512-
●
●
245
BRACKET; HOSE
1-47478-722-0
01
1
1303-1511
●
245
BRACKET; HOSE
FIRE TRUCK<RA9>
1-47478-722-0
01
1
1512-
●
2
84
1
229
99
92
106
228
111
109
199
137
222
57
131
124
130

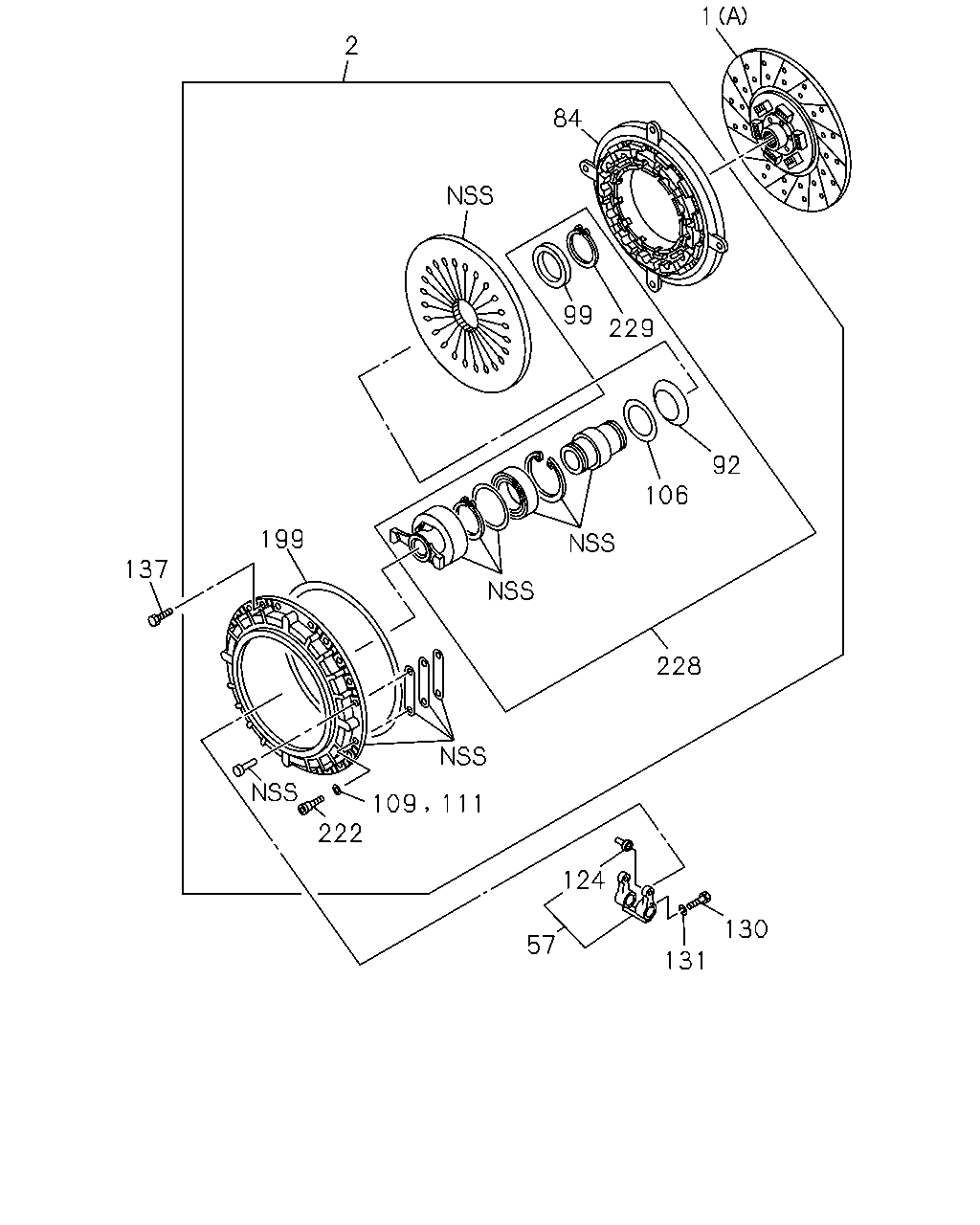

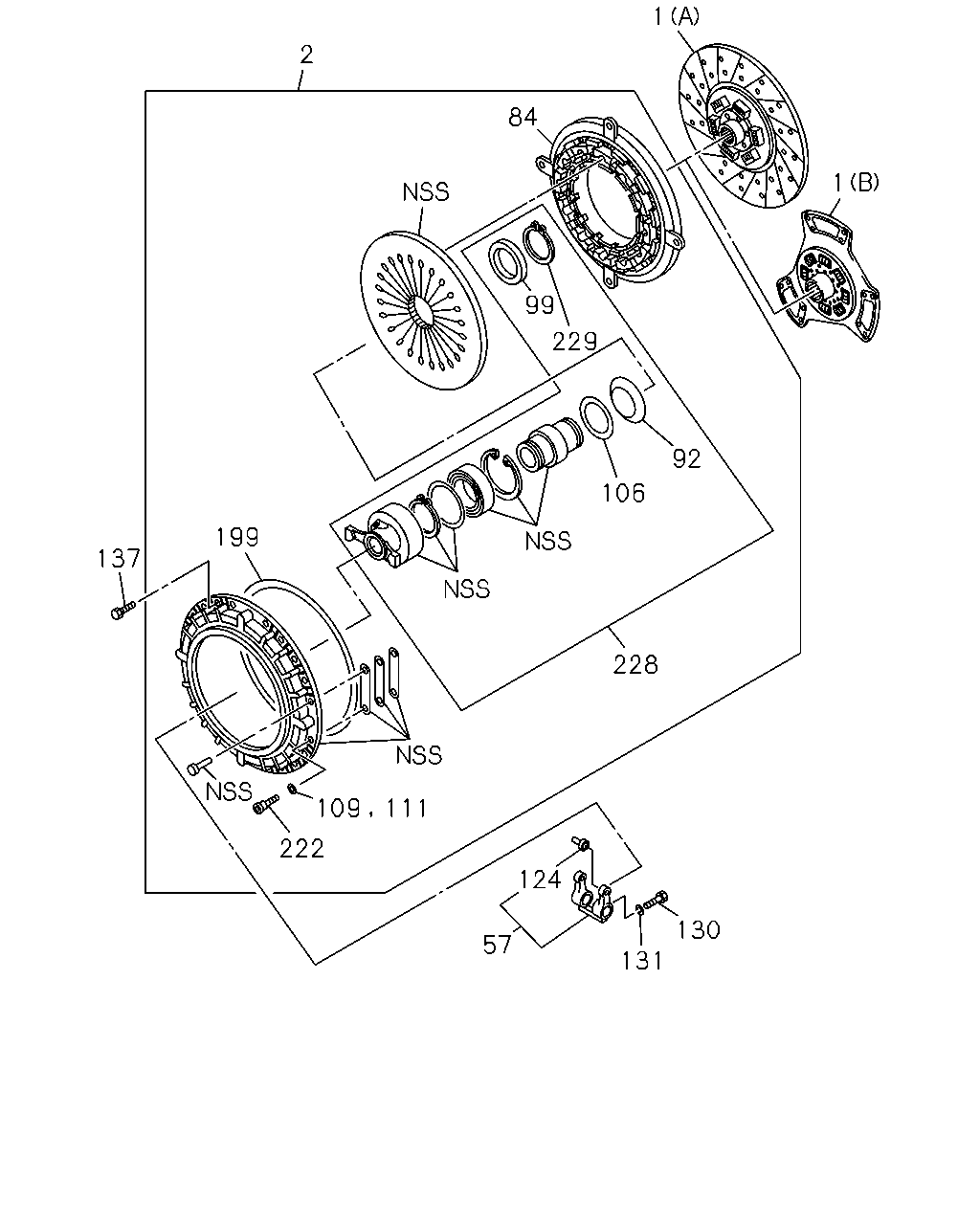

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DISC; CLUTCH
CLUTCH CERAMETALIX FACED DISC<WY5> (B) 17"
1-31260-029-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) 17"
1-31240-980-0
01
1
1512-
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17"
1-31240-980-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) BEST VALUE PARTS
1-87610-141-0
01
1
1512-
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS
1-87610-141-0
01
1
1512-
●
1
DISC; CLUTCH
(C) 15.5"
1-31240-976-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 43/7 17.5"(W3Y) (A) 17"
1-31240-864-1
01
1
1303-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) 17"
1-31240-980-0
01
1
1303-1511
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17"
1-31240-980-0
01
1
1303-1511
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) BEST VALUE PARTS
1-87610-141-0
01
1
1303-1511
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS
1-87610-141-0
01
1
1303-1511
●
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
1512-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-445-0
01
1
1303-1404
●
2
PLATE ASM; PRESSURE,CLU
1-31220-463-0
01
1
1405-1511
●
2
PLATE ASM; PRESSURE,CLU
1-31220-463-0
01
1
1512-
●
●
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
1512-
●
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
1303-1511
●
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
1512-
●
●
84
PLATE; PRESSURE
1-31221-141-0
01
1
1303-1511
●
84
PLATE; PRESSURE
1-31221-141-0
01
1
1512-
●
●
92
SPRING; CLU
1-31239-052-0
01
1
1303-1511
●
92
SPRING; CLU
1-31239-052-0
01
1
1512-
●
●
99
PLATE; RELEASE LEVER
1-31239-065-0
01
1
1303-1511
●
99
PLATE; RELEASE LEVER
1-31239-065-0
01
1
1512-
●
●
106
PLATE; LK,LEVER SUPPORT
1-31239-042-0
01
1
1303-1511
●
106
PLATE; LK,LEVER SUPPORT
1-31239-042-0
01
1
1512-
●
●
109
WASHER; LK,STRAP
ID=13
1-31239-038-0
04
1
1405-1511
●
109
WASHER; LK,STRAP
ID=13
1-31239-038-0
04
1
1512-
●
●
111
WASHER; PL,STRAP
ID=13
1-31239-038-0
04
1
1303-1404
●
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
1512-
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1303-1511
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1512-
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1303-1511
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1512-
●
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1303-1511
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1512-
●
●
●
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
1512-
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
1303-1511
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
1512-
●
●
199
RING; WIRE,DIAPH,CLU
1-31239-036-0
01
1
1303-1511
●
199
RING; WIRE,DIAPH,CLU
1-31239-036-0
01
1
1512-
●
●
222
BOLT; STRAP
1-31239-066-0
04
1
1303-1511
●
222
BOLT; STRAP
1-31239-066-0
04
1
1512-
●
●
228
BEARING; RELEASE
1-31310-023-0
01
1
1303-1404
●
228
BEARING; RELEASE
1-31310-029-0
01
1
1405-1511
●
228
BEARING; RELEASE
1-31310-029-0
01
1
1512-
●
●
229
RING
1-31239-064-0
01
1
1303-1511
●
229
RING
1-31239-064-0
01
1
1512-
●
●
2
1
137
643
57
124
130
118
131

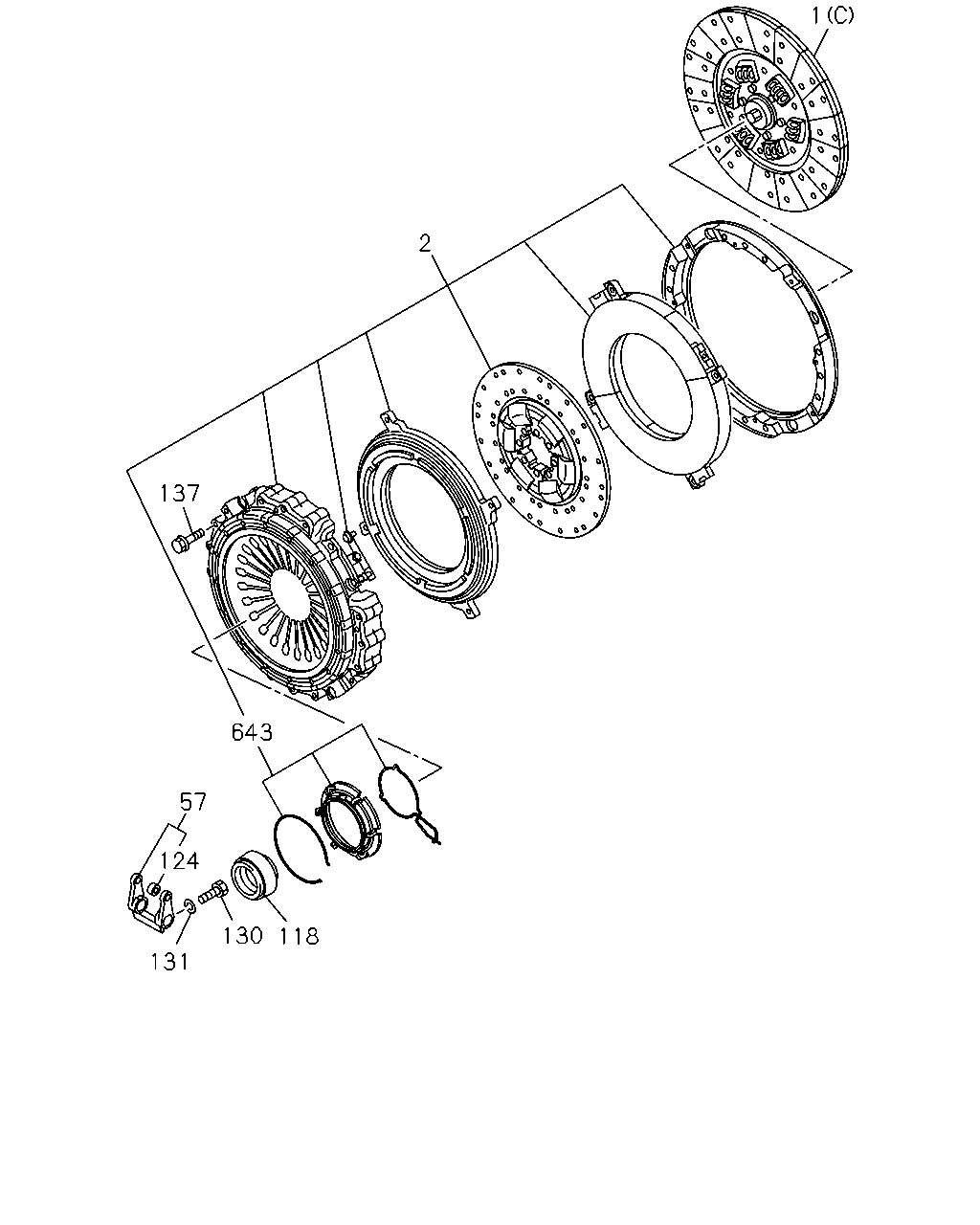

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DISC; CLUTCH
CLUTCH CERAMETALIX FACED DISC<WY5> (B) 17"
1-31260-029-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) 17"
1-31240-980-0
01
1
1512-
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17"
1-31240-980-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) BEST VALUE PARTS
1-87610-141-0
01
1
1512-
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS
1-87610-141-0
01
1
1512-
●
1
DISC; CLUTCH
(C) 15.5"
1-31240-976-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 43/7 17.5"(W3Y) (A) 17"
1-31240-864-1
01
1
1303-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) 17"
1-31240-980-0
01
1
1303-1511
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17"
1-31240-980-0
01
1
1303-1511
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) BEST VALUE PARTS
1-87610-141-0
01
1
1303-1511
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS
1-87610-141-0
01
1
1303-1511
●
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
1512-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-445-0
01
1
1303-1404
●
2
PLATE ASM; PRESSURE,CLU
1-31220-463-0
01
1
1405-1511
●
2
PLATE ASM; PRESSURE,CLU
1-31220-463-0
01
1
1512-
●
●
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
1512-
●
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
1303-1511
●
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
1512-
●
●
118
BEARING; CLU RELEASE
1-31310-028-0
01
1
1512-
●
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
1512-
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1303-1511
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1512-
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1303-1511
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1512-
●
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1303-1511
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1512-
●
●
●
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
1512-
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
1303-1511
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
1512-
●
●
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
1512-
●
1
2
84
1
229
99
92
106
228
130
131
57
124
111
109
222
199
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DISC; CLUTCH
CLUTCH CERAMETALIX FACED DISC<WY5> (B) 17"
1-31260-029-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) 17"
1-31240-980-0
01
1
1512-
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17"
1-31240-980-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) BEST VALUE PARTS
1-87610-141-0
01
1
1512-
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS
1-87610-141-0
01
1
1512-
●
1
DISC; CLUTCH
(C) 15.5"
1-31240-976-0
01
1
1512-
●
1
DISC; CLUTCH
FINAL GEAR 43/7 17.5"(W3Y) (A) 17"
1-31240-864-1
01
1
1303-
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) 17"
1-31240-980-0
01
1
1303-1511
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17"
1-31240-980-0
01
1
1303-1511
●
1
DISC; CLUTCH
FINAL GEAR 39/7 17.5"(W3Z) (A) BEST VALUE PARTS
1-87610-141-0
01
1
1303-1511
●
1
DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS
1-87610-141-0
01
1
1303-1511
●
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
1512-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-445-0
01
1
1303-1404
●
2
PLATE ASM; PRESSURE,CLU
1-31220-463-0
01
1
1405-1511
●
2
PLATE ASM; PRESSURE,CLU
1-31220-463-0
01
1
1512-
●
●
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
1512-
●
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
1303-1511
●
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
1512-
●
●
84
PLATE; PRESSURE
1-31221-141-0
01
1
1303-1511
●
84
PLATE; PRESSURE
1-31221-141-0
01
1
1512-
●
●
92
SPRING; CLU
1-31239-052-0
01
1
1303-1511
●
92
SPRING; CLU
1-31239-052-0
01
1
1512-
●
●
99
PLATE; RELEASE LEVER
1-31239-065-0
01
1
1303-1511
●
99
PLATE; RELEASE LEVER
1-31239-065-0
01
1
1512-
●
●
106
PLATE; LK,LEVER SUPPORT
1-31239-042-0
01
1
1303-1511
●
106
PLATE; LK,LEVER SUPPORT
1-31239-042-0
01
1
1512-
●
●
109
WASHER; LK,STRAP
ID=13
1-31239-038-0
04
1
1405-1511
●
109
WASHER; LK,STRAP
ID=13
1-31239-038-0
04
1
1512-
●
●
111
WASHER; PL,STRAP
ID=13
1-31239-038-0
04
1
1303-1404
●
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
1512-
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1303-1511
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1512-
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1303-1511
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1512-
●
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1303-1511
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1512-
●
●
●
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
1512-
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
1303-1511
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
1512-
●
●
199
RING; WIRE,DIAPH,CLU
1-31239-036-0
01
1
1303-1511
●
199
RING; WIRE,DIAPH,CLU
1-31239-036-0
01
1
1512-
●
●
222
BOLT; STRAP
1-31239-066-0
04
1
1303-1511
●
222
BOLT; STRAP
1-31239-066-0
04
1
1512-
●
●
228
BEARING; RELEASE
1-31310-023-0
01
1
1303-1404
●
228
BEARING; RELEASE
1-31310-029-0
01
1
1405-1511
●
228
BEARING; RELEASE
1-31310-029-0
01
1
1512-
●
●
229
RING
1-31239-064-0
01
1
1303-1511
●
229
RING
1-31239-064-0
01
1
1512-
●
●
120
160
158
20
127
125
127
155
154
149
149
148
220
161
157
155
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
1303-1511
●
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
1512-
●
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=500
1-09364-651-0
01
1
1303-1511
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=500
1-09364-651-0
01
1
1512-
●
●
125
SHAFT; CLU
8-98242-405-0
01
1
1512-
●
125
SHAFT; CLU
1-31342-324-0
01
1
1512-
●
125
SHAFT; CLU
1-31342-311-1
01
1
1303-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1303-1511
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1512-
●
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1303-1511
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1512-
●
●
●
148
SPRING; CLU RETURN
L=192
1-09583-266-0
02
1
1303-
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1303-1511
●
148
SPRING; CLU RETURN
FIRE TRUCK<RA9> L=135
1-09583-305-0
01
1
1512-
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1512-
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-056-0
01
1
1512-
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-031-0
01
1
1303-
●
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-052-0
01
1
1303-1511
●
149
EYE; SPRING,RETURN SPRING
FIRE TRUCK<RA9> (A)
1-31426-052-0
01
1
1512-
●
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-052-0
01
1
1512-
●
154
PIN; JAW JOINT
(B) L=35
1-31424-003-0
01
1
1303-1511
●
154
PIN; JAW JOINT
(B) L=35
1-31424-003-0
01
1
1512-
●
●
154
PIN; JAW JOINT
(A) L=15.7
1-31424-005-0
01
1
1303-
●
154
PIN; JAW JOINT
(C)
1-31424-009-0
01
1
1303-1511
●
154
PIN; JAW JOINT
FIRE TRUCK<RA9> (C)
1-31424-009-0
01
1
1512-
●
154
PIN; JAW JOINT
(C)
1-31424-009-0
01
1
1512-
●
155
BRACKET; MINIPACK
(A)
1-31429-350-0
01
1
1512-
●
155
BRACKET; MINIPACK
(B)
1-31429-391-0
01
1
1512-
●
155
BRACKET; MINIPACK
(C)
1-31429-456-0
01
1
1512-
●
155
BRACKET; MINIPACK
(D)
1-31429-457-0
01
1
1512-
●
155
BRACKET; MINIPACK
(C)
1-31429-395-0
01
1
1303-
●
155
BRACKET; MINIPACK
(D)
1-31429-419-0
01
1
1303-
●
155
BRACKET; MINIPACK
(A)
1-31429-431-0
01
1
1303-1511
●
155
BRACKET; MINIPACK
FIRE TRUCK<RA9> (A)
1-31429-431-0
01
1
1512-
●
155
BRACKET; MINIPACK
(B)
1-31429-432-0
01
1
1303-1511
●
155
BRACKET; MINIPACK
FIRE TRUCK<RA9> (B)
1-31429-432-0
01
1
1512-
●
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
03
1
1512-
●
157
BOLT; BRKT
(C) M10X25 FLANGE
0-28751-025-0
01
1
1512-
●
157
BOLT; BRKT
(B) M10X30 FLANGE
0-28751-030-0
02
1
1512-
●
157
BOLT; BRKT
(A) M10X18 FLANGE
0-28181-018-0
04
1
1303-
●
158
CLIP; FLEX HOSE
9-09917-576-0
01
1
1303-1511
●
158
CLIP; FLEX HOSE
9-09917-576-0
01
1
1512-
●
●
160
NUT
M10 FLANGE
0-91180-210-0
01
1
1303-1511
●
160
NUT
M10 FLANGE
0-91180-210-0
01
1
1512-
●
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1512-
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-474-1
01
1
1512-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
1512-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-506-0
01
1
1303-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-092-0
01
1
1303-1511
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-092-0
01
1
1512-
●
●
127
155
161
157
154
136
153
127
125
128
155
220
136
157
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
125
SHAFT; CLU
8-98242-405-0
01
1
1512-
●
125
SHAFT; CLU
1-31342-324-0
01
1
1512-
●
125
SHAFT; CLU
1-31342-311-1
01
1
1303-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1303-1511
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1512-
●
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1303-1511
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1512-
●
●
●
136
WASHER; PL
ID=15
0-91610-514-0
02
1
1303-1511
●
136
WASHER; PL
ID=15
0-91610-514-0
02
1
1512-
●
●
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
1303-1511
●
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
1512-
●
●
154
PIN; JAW JOINT
(B) L=35
1-31424-003-0
01
1
1303-1511
●
154
PIN; JAW JOINT
(B) L=35
1-31424-003-0
01
1
1512-
●
●
154
PIN; JAW JOINT
(A) L=15.7
1-31424-005-0
01
1
1303-
●
154
PIN; JAW JOINT
(C)
1-31424-009-0
01
1
1303-1511
●
154
PIN; JAW JOINT
FIRE TRUCK<RA9> (C)
1-31424-009-0
01
1
1512-
●
154
PIN; JAW JOINT
(C)
1-31424-009-0
01
1
1512-
●
155
BRACKET; MINIPACK
(A)
1-31429-350-0
01
1
1512-
●
155
BRACKET; MINIPACK
(B)
1-31429-391-0
01
1
1512-
●
155
BRACKET; MINIPACK
(C)
1-31429-456-0
01
1
1512-
●
155
BRACKET; MINIPACK
(D)
1-31429-457-0
01
1
1512-
●
155
BRACKET; MINIPACK
(C)
1-31429-395-0
01
1
1303-
●
155
BRACKET; MINIPACK
(D)
1-31429-419-0
01
1
1303-
●
155
BRACKET; MINIPACK
(A)
1-31429-431-0
01
1
1303-1511
●
155
BRACKET; MINIPACK
FIRE TRUCK<RA9> (A)
1-31429-431-0
01
1
1512-
●
155
BRACKET; MINIPACK
(B)
1-31429-432-0
01
1
1303-1511
●
155
BRACKET; MINIPACK
FIRE TRUCK<RA9> (B)
1-31429-432-0
01
1
1512-
●
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
03
1
1512-
●
157
BOLT; BRKT
(C) M10X25 FLANGE
0-28751-025-0
01
1
1512-
●
157
BOLT; BRKT
(B) M10X30 FLANGE
0-28751-030-0
02
1
1512-
●
157
BOLT; BRKT
(A) M10X18 FLANGE
0-28181-018-0
04
1
1303-
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1512-
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-474-1
01
1
1512-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
1512-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-506-0
01
1
1303-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-092-0
01
1
1303-1511
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-092-0
01
1
1512-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
