◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#115417) — 51 parça

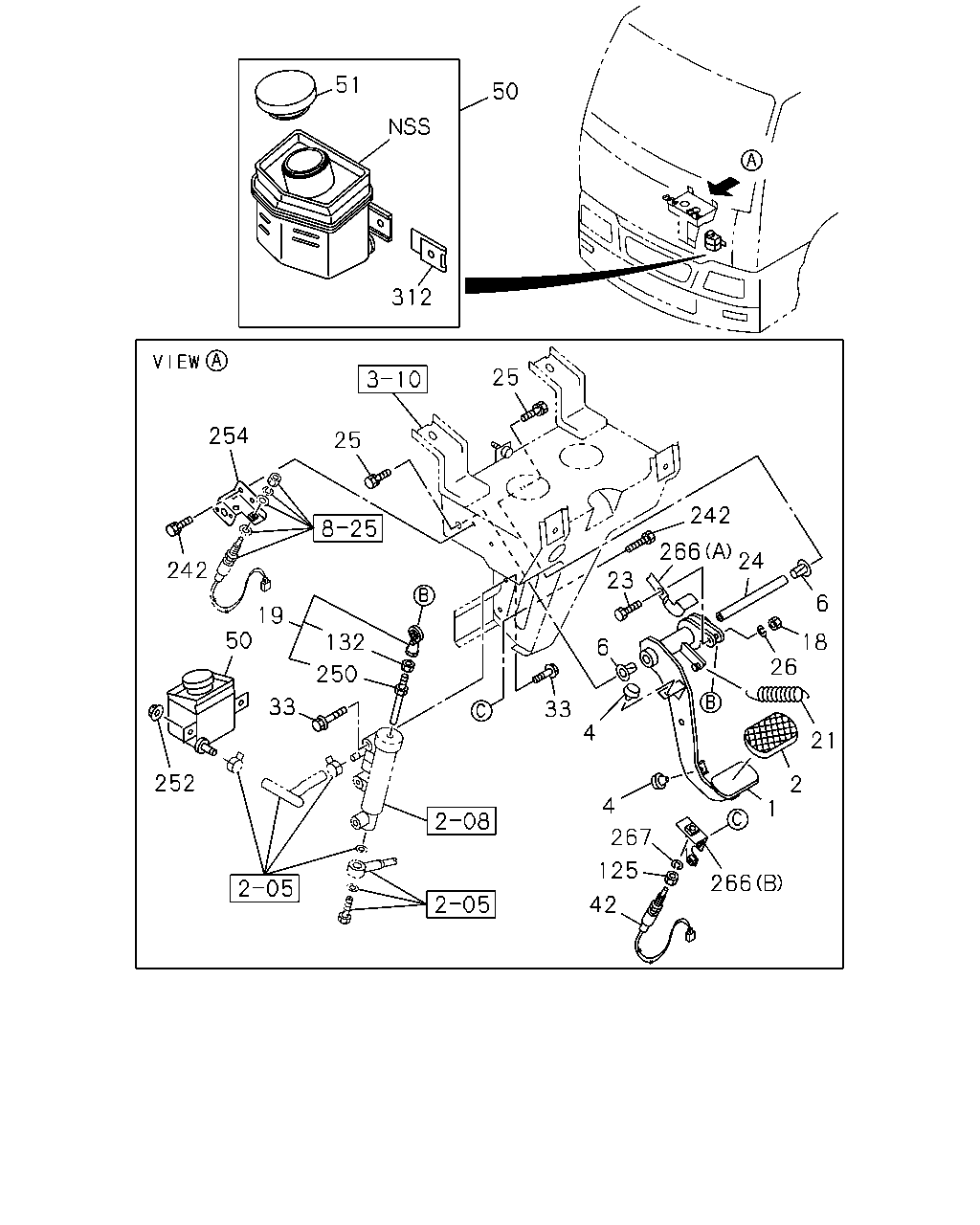

çizim 336188
242 24 266 23 6 4 33 26 6 18 21 2 1 267 4 125 42 266 252 50 33 132 250 19 242 254 25 312 51 50 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
MJX16P M/T(Y3Z) 		1-73907-472-2 01 1 1512- ● ●
1 PEDAL; CLU 1-73907-440-2 01 1 1303-1511 ●
1 PEDAL; CLU
MJT7S M/T(Y3E),MAP6U M/T(Y4B) 		1-73907-440-2 01 1 1512- ●
1 PEDAL; CLU
MJT7S M/T(Y3E) 		1-73907-440-2 01 1 1512- ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1303-1511 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1512- ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1303-1511 ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1512- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1303-1511 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1512- ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1303-1511 ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1512- ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1303-1511 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1512- ● ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) 		1-73907-445-0 01 1 1512- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1303-1511 ●
21 SPRING; RETURN,CLU PEDAL
MJT7S M/T(Y3E),MAP6U M/T(Y4B) 		1-73908-265-0 01 1 1512- ●
21 SPRING; RETURN,CLU PEDAL
MJT7S M/T(Y3E) 		1-73908-265-0 01 1 1512- ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1303-1511 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1512- ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1303-1511 ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1512- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1303-1511 ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1512- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1303-1511 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1512- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1303-1511 ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1512- ● ●
42 SWITCH; CLU
MJX16P M/T(Y3Z) 		1-82380-114-3 01 1 1512- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 1303-1511 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 1512- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 1303-1511 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 1512- ● ●
125 NUT; CLU SWITCH
MJX16P M/T(Y3Z) M10 		0-91110-510-0 01 1 1512- ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1303-1511 ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1512- ● ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) M6X16 W/LK WASHER 		0-50040-616-0 04 1 1512- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 1303-1511 ●
242 BOLT; BRKT,CLUTCH
MJT7S M/T(Y3E),MAP6U M/T(Y4B) M6X16 W/LK WASHER 		0-50040-616-0 02 1 1512- ●
242 BOLT; BRKT,CLUTCH
MJT7S M/T(Y3E) M6X16 W/LK WASHER 		0-50040-616-0 02 1 1512- ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1303-1511 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1512- ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1303-1511 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1512- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1303-1511 ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1512- ● ●
266 BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) (A) 		1-73907-395-1 01 1 1512- ● ●
266 BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) (B) 		1-73908-354-0 01 1 1512- ● ●
267 WASHER; LK,CLU SWITCH
MJX16P M/T(Y3Z) ID=10.2 		0-91510-510-0 01 1 1512- ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 1303-1511 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 1512- ● ●
