Sayfa 1-55 - Isuzu EPC

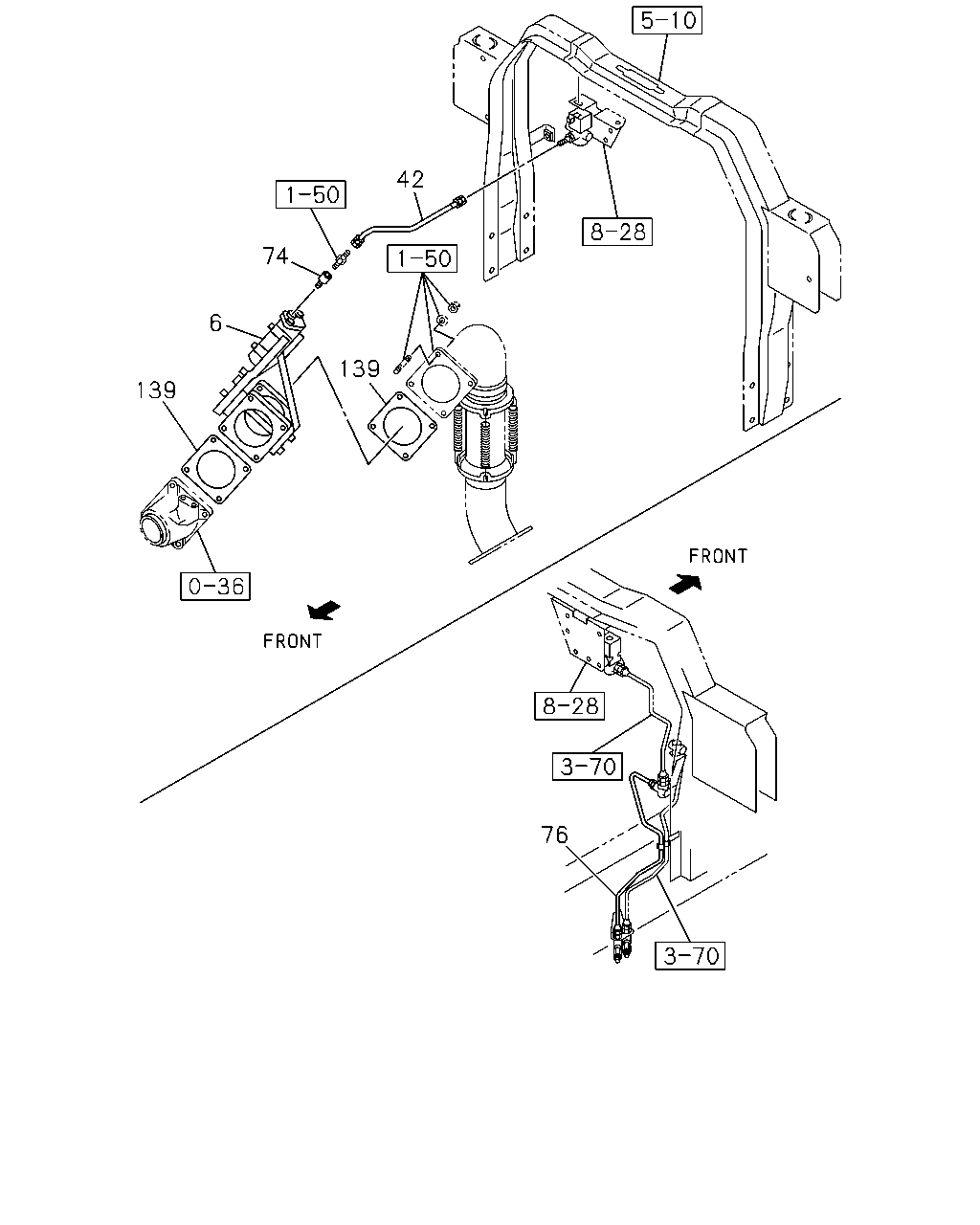

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#115416) — 8 parça

74 6 139 139 42 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE	8-97629-737-3	01	1	1303-
42	HOSE; FLEX,EXH BRK L=400	1-09363-743-0	01	1	1303-
74	CONNECTOR; EXH BRK VLV R1/4 & RC1/4	1-09664-211-0	01	1	1303-
76	PIPE ASM; AIR UNION TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=603 SERVICED BY L=650	1-47428-810-0	01	1	1512-
76	PIPE ASM; AIR UNION TO UNION BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) L=558 SERVICED BY L=600	1-47428-809-0	01	1	1512-
76	PIPE ASM; AIR UNION TO UNION L=704 SERVICED BY L=800	1-47428-812-0	01	1	1303-1511
76	PIPE ASM; AIR UNION TO UNION TAIWAN EQUIPMENT(WW5) L=704 SERVICED BY L=800	1-47428-812-0	01	1	1512-
139	GASKET; EXH BRK VLV ID=100	1-14145-175-0	02	1	1303-
