◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#115414) — 226 parça

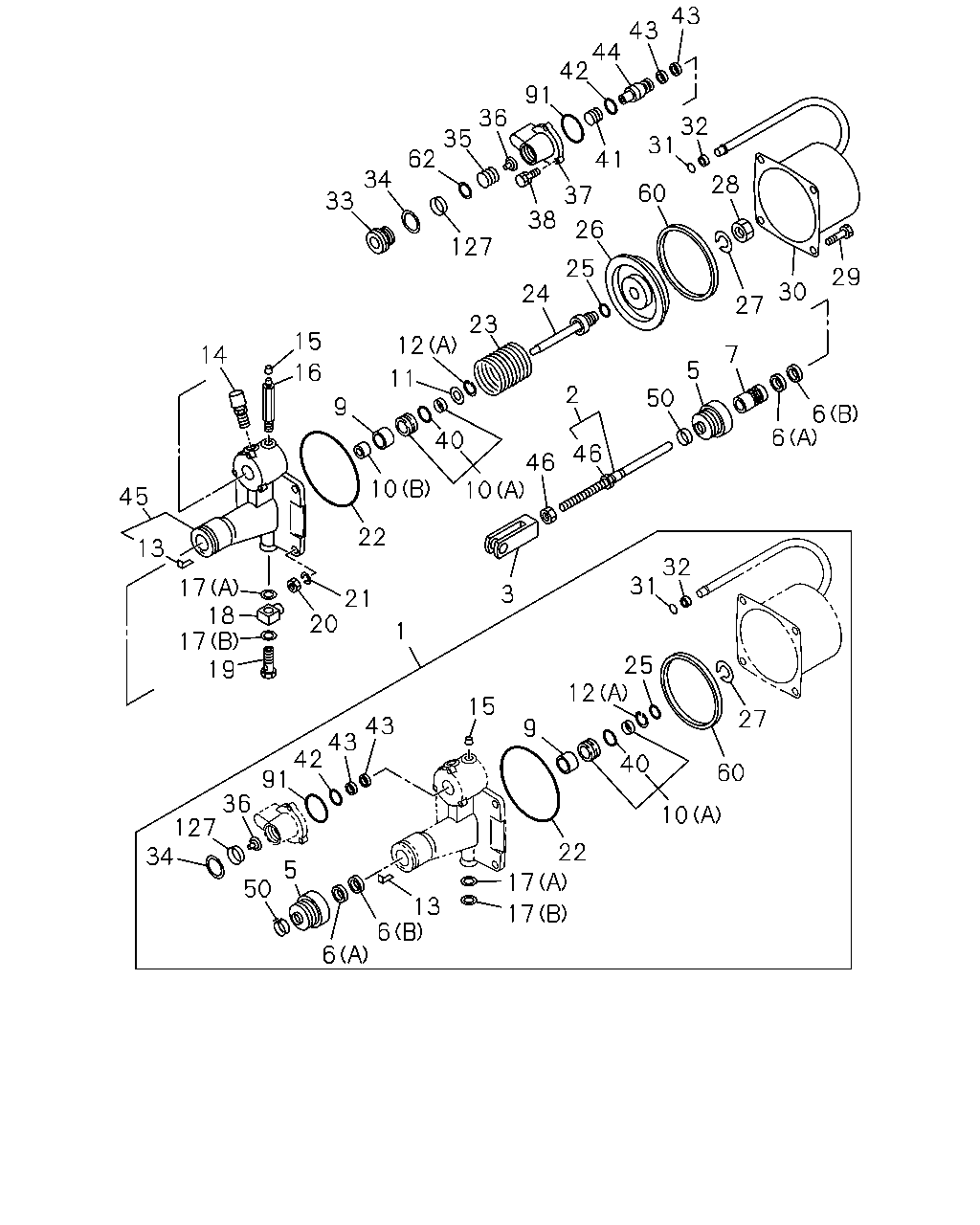

çizim 337129
33 34 62 35 36 91 42 44 43 43 14 15 9 16 45 13 17 18 17 19 20 22 21 1 3 10 40 11 12 23 24 25 26 127 38 37 41 31 32 28 29 30 27 7 5 50 2 46 46 10 127 34 36 42 50 43 91 43 5 6 13 6 17 17 22 9 15 12 10 40 25 27 60 31 6 32 6 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1512- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1303-1511 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1512- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1512- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1512- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-210-0 01 1 1303- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1303-1511 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1512- ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1512- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1303-1511 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1512- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1303-1511 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1512- ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1303-1511 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1512- ● ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1303-1511 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1512- ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1303-1511 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1512- ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1303-1511 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1512- ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1303-1511 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1512- ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1303-1511 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1512- ● ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1512- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1303-1511 ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1512- ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 1303-1511 ●
13 PIN; SPR 1-31829-109-0 01 1 1512- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1512- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1303-1511 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1512- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1303-1511 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1512- ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1303-1511 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1512- ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1303-1511 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1512- ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1303-1511 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1512- ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1303-1511 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1512- ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1303-1511 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1512- ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1303-1511 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1512- ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1303-1511 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1512- ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1303-1511 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1512- ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1512- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1303-1511 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1512- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1512- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1303-1511 ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1512- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1303-1511 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1512- ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1512- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1303-1511 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1512- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1303-1511 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1512- ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1303-1511 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1512- ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1303-1511 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1512- ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1512- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1303-1511 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1512- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1303-1511 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1512- ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1303-1511 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1512- ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1303-1511 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1512- ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1303-1511 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1512- ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1512- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1303-1511 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1512- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1512- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1303-1511 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1512- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1303-1511 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1512- ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1303-1511 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1512- ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1303-1511 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1512- ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1303-1511 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1512- ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1303-1511 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1512- ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1303-1511 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1512- ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1303-1511 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1512- ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1512- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1303-1511 ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1512- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1512- ● ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 1303- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1303-1511 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1512- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1512- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1303-1511 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1512- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1303-1511 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1512- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1303-1511 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1512- ● ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1303-1511 ●
127 FILTER; POPPET 1-31829-488-0 01 1 1512- ● ●

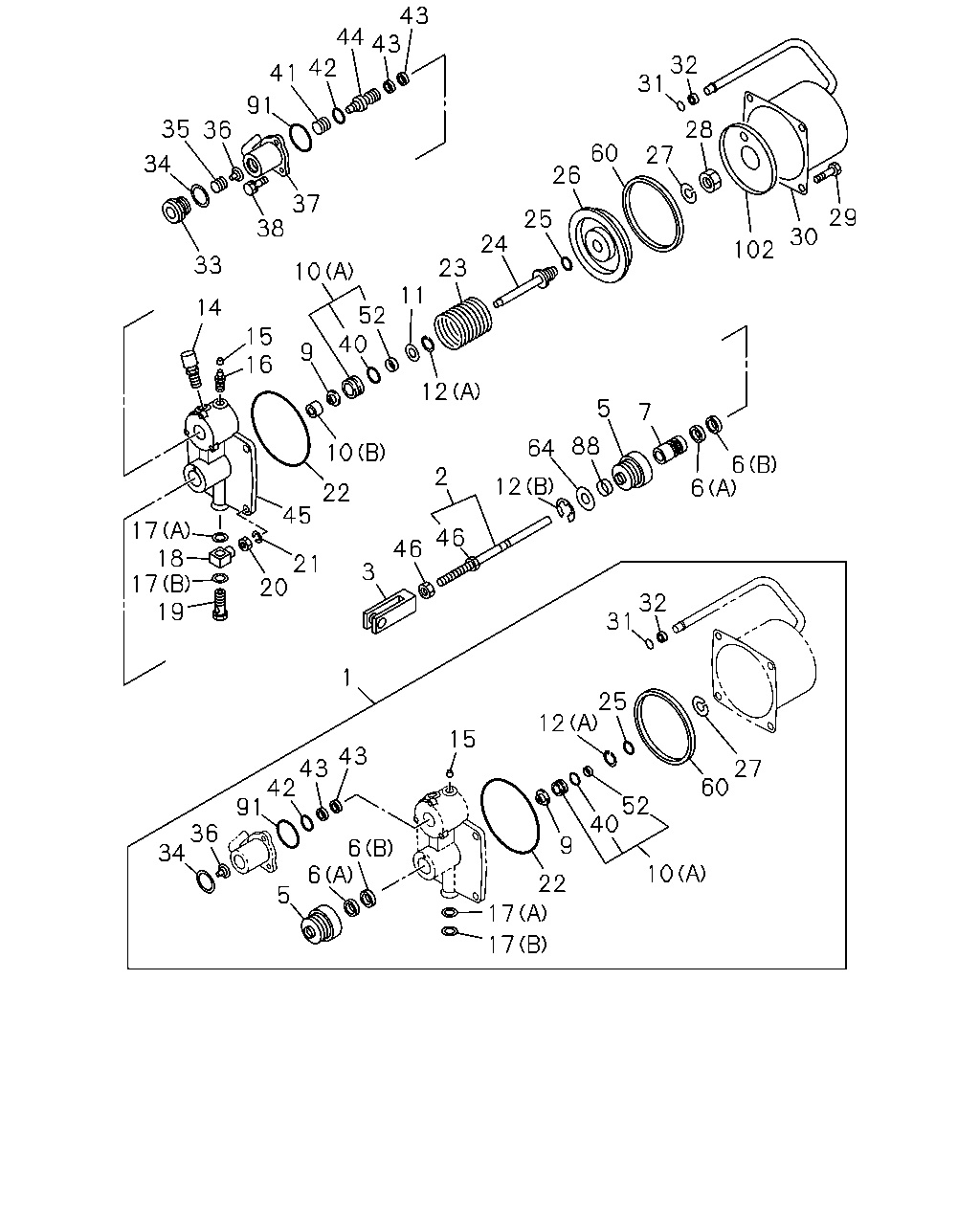

çizim 513560
34 35 36 91 41 42 44 43 43 33 38 37 14 15 16 17 17 18 19 20 21 45 22 10 9 10 40 52 11 23 12 24 25 26 60 27 31 32 28 1 3 46 46 2 12 64 88 5 7 102 30 29 6 6 34 36 91 42 43 43 5 6 6 15 17 17 22 9 40 52 12 25 10 60 27 31 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1512- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1303-1511 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1512- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1512- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1512- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-210-0 01 1 1303- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1303-1511 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1512- ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1512- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1303-1511 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1512- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1303-1511 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1512- ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1303-1511 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1512- ● ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1303-1511 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1512- ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1303-1511 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1512- ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1303-1511 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1512- ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1303-1511 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1512- ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1303-1511 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1512- ● ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1512- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1303-1511 ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1512- ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1512- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1303-1511 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1512- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1303-1511 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1512- ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1303-1511 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1512- ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1303-1511 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1512- ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1303-1511 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1512- ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1303-1511 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1512- ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1303-1511 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1512- ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1303-1511 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1512- ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1303-1511 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1512- ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1303-1511 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1512- ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1512- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1303-1511 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1512- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1512- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1303-1511 ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1512- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1303-1511 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1512- ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1512- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1303-1511 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1512- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1303-1511 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1512- ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1303-1511 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1512- ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1303-1511 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1512- ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1512- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1303-1511 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1512- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1303-1511 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1512- ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1303-1511 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1512- ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1303-1511 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1512- ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1303-1511 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1512- ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1512- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1303-1511 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1512- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1512- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1303-1511 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1512- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1303-1511 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1512- ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1303-1511 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1512- ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1303-1511 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1512- ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1303-1511 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1512- ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1303-1511 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1512- ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1303-1511 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1512- ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1303-1511 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1512- ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1512- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1303-1511 ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1512- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1512- ● ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 1303- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1512- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1512- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1303-1511 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1512- ● ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 1512- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 1512- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1303-1511 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1512- ● ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
