Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

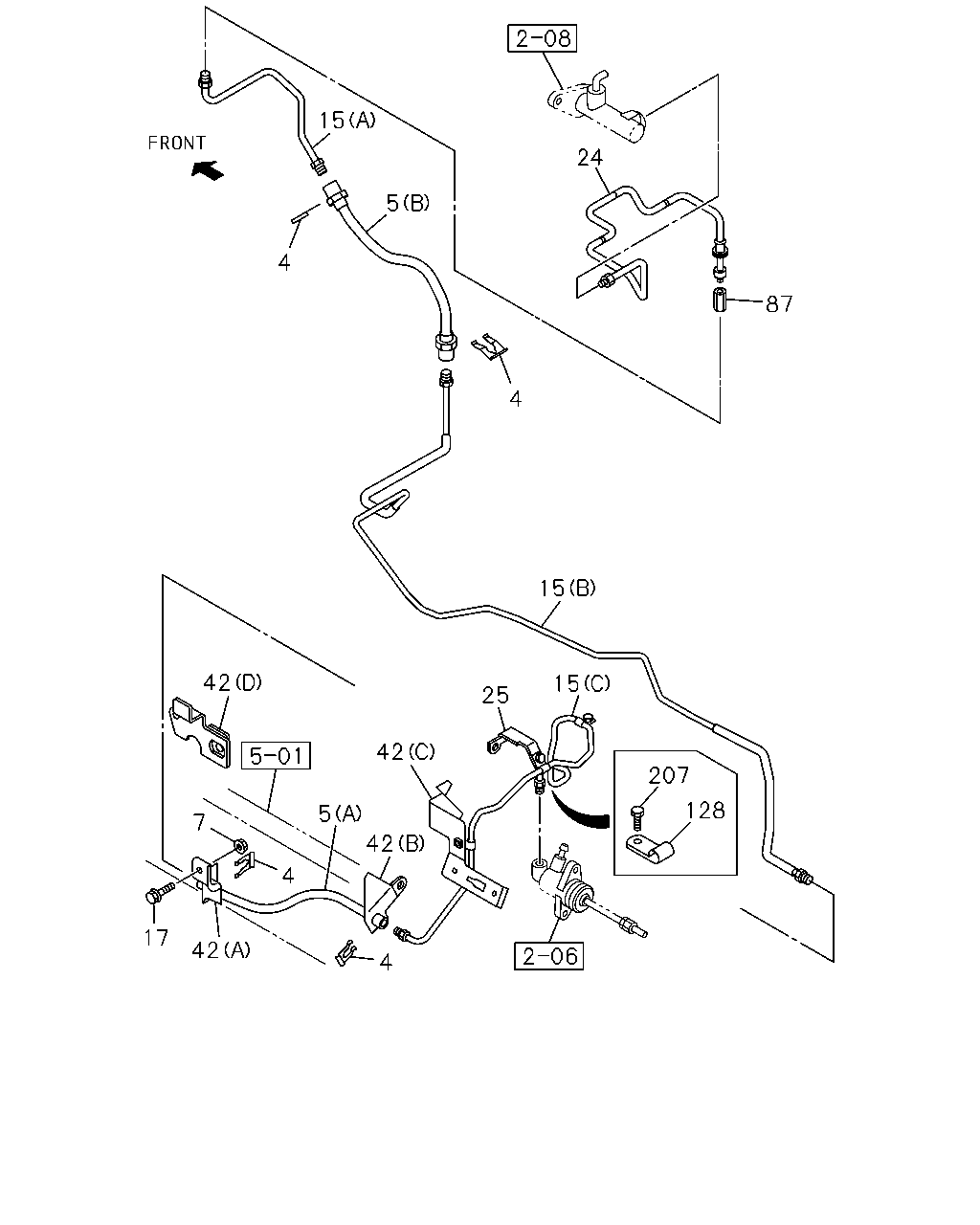

2-05 — CLUTCH PIPING
(#115413) — 17 parça
87
4
15
15
207
128
25
42
5
42
4
4
7
42
17
42
4
15
5
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
00.785 CLIP; FLEX HOSE,CLU CONT
04.681
8-97365-304-0
04
1
1302-
5
00.785 HOSE; FLEX,CLU PIPE
(B)
8-98090-655-0
01
1
1302-
5
00.785 HOSE; FLEX,CLU PIPE
(A)
8-98227-954-1
01
1
1302-
7
00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE
0-91180-108-0
01
1
1302-
15
00.785 PIPE; CLU,FLEX HOSE
(A)
8-97328-481-0
01
1
1302-
15
00.785 PIPE; CLU,FLEX HOSE
(C)
8-98184-196-0
01
1
1302-
15
00.785 PIPE; CLU,FLEX HOSE
(B)
8-98188-224-0
01
1
1302-
17
00.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1302-
24
00.785 PIPE ASM; CLU,M/CYL TO UNION
8-97094-343-2
01
1
1302-
25
00.785 BRACKET; OIL PIPE
8-97013-211-1
01
1
1302-
42
00.785 BRACKET; FLEX HOSE,CLU CONT
(A)
8-97063-755-0
01
1
1302-
42
00.785 BRACKET; FLEX HOSE,CLU CONT
(B)
8-98184-203-1
01
1
1302-1401
42
00.785 BRACKET; FLEX HOSE,CLU CONT
(D)
8-98272-480-0
01
1
1402-
42
00.785 BRACKET; FLEX HOSE,CLU CONT
(C)
8-98214-640-0
01
1
1302-
87
00.785 UNION; OIL PIPE
M12 STRAIGHT
0-92107-006-0
01
1
1302-
128
00.785 CLIP; AIR PIPE
ID=7 L=16
0-95234-622-0
03
1
1302-
207
00.785 BOLT; CLIP
03.162 M6X12 FLANGE
0-28050-612-0
03
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
