Isuzu WW
▶
TRUCKS
▶
CYH
▶
11289 - CYH RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25A - SPEEDOMETER DRIVEN GEAR
▶
2-25A — SPEEDOMETER DRIVEN GEAR
(#115404) — 46 parça
Tümü
A - MJT7S M/T
B - MJX12P M/T SMOOTHER-G
◀

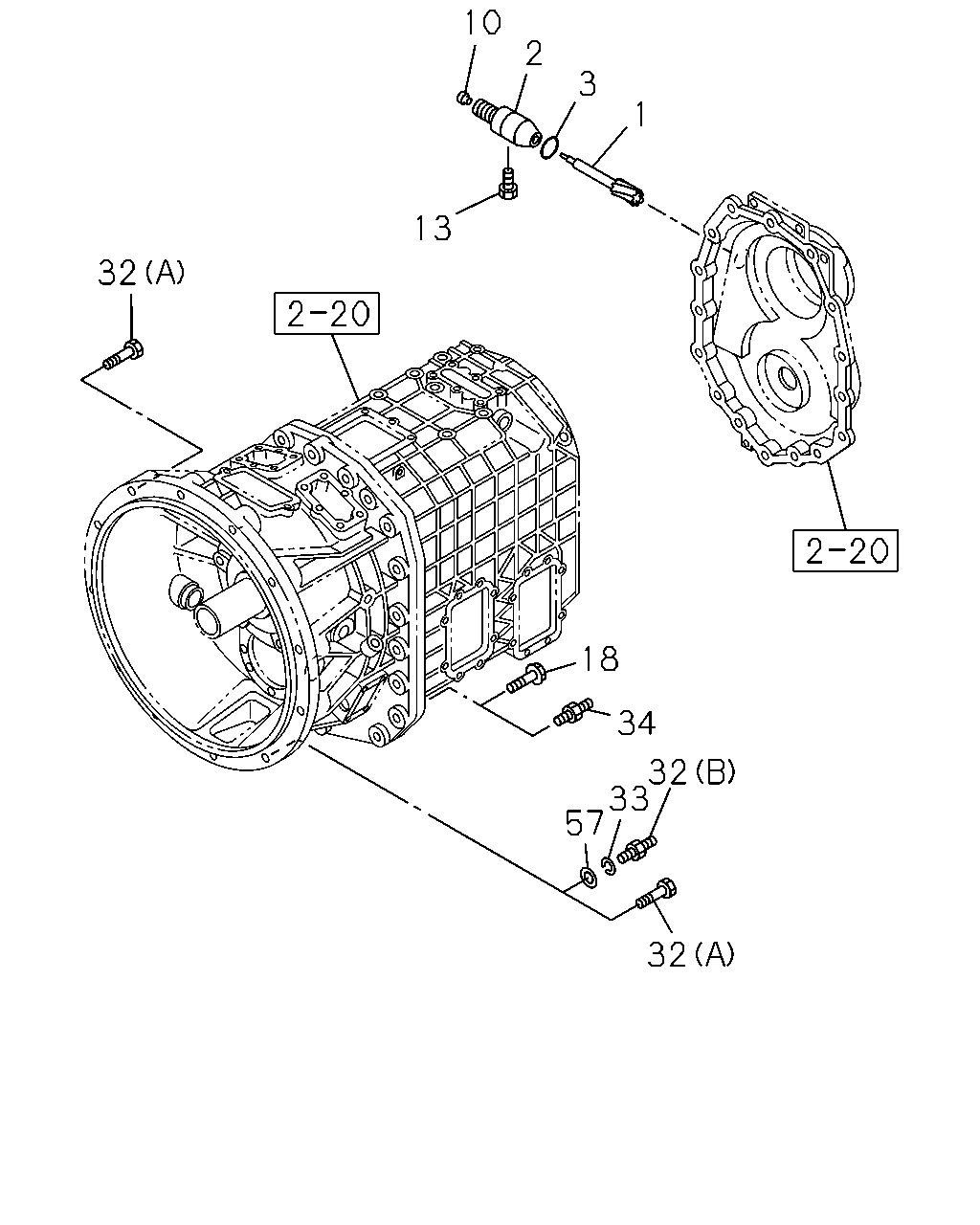

[225A] MJT (23 parça)

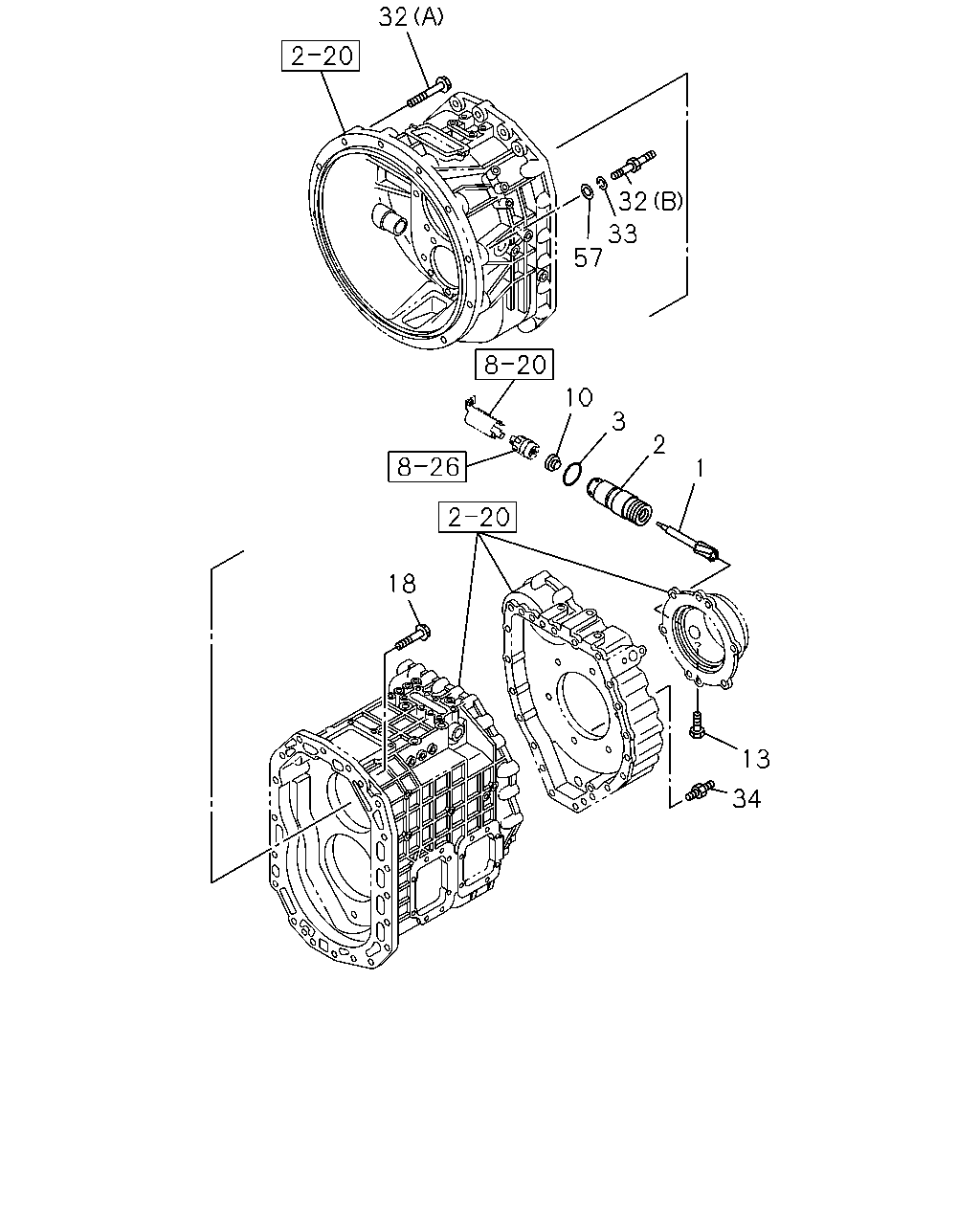

[225A] MJX (23 parça)
▶
18
34
32
33
57
32
13
1
3
2
10
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
1009-
●
1
GEAR; DRIVEN,SPD
Z=17
1-33372-120-4
01
1
1009-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
1009-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-084-0
01
1
1009-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1009-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-069-0
01
1
1009-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1009-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1009-
●
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
17
1
1009-
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
18
1
1009-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X70 FLANGE
0-28151-270-0
11
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X70 L=97.7
1-09049-038-1
01
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE
0-28151-260-0
11
1
1009-1103
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE
0-28151-260-0
11
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
01
1
1009-1103
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
01
1
1104-
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
01
1
1009-1103
●
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
01
1
1104-1302
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
01
1
1303-
●
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
02
1
1009-
●
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
01
1
1009-
●
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
01
1
1009-1103
●
●
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
01
1
1104-
●
32
32
33
57
10
1
2
3
18
13
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
1009-
●
1
GEAR; DRIVEN,SPD
Z=17
1-33372-120-4
01
1
1009-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
1009-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-084-0
01
1
1009-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1009-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-069-0
01
1
1009-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1009-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1009-
●
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
17
1
1009-
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
18
1
1009-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X70 FLANGE
0-28151-270-0
11
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X70 L=97.7
1-09049-038-1
01
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE
0-28151-260-0
11
1
1009-1103
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE
0-28151-260-0
11
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
01
1
1009-1103
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
01
1
1104-
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
01
1
1009-1103
●
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
01
1
1104-1302
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
01
1
1303-
●
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
02
1
1009-
●
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
01
1
1009-
●
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
01
1
1009-1103
●
●
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
01
1
1104-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
