2-39 — POWER ASSISTOR (#115403) — 62 parça

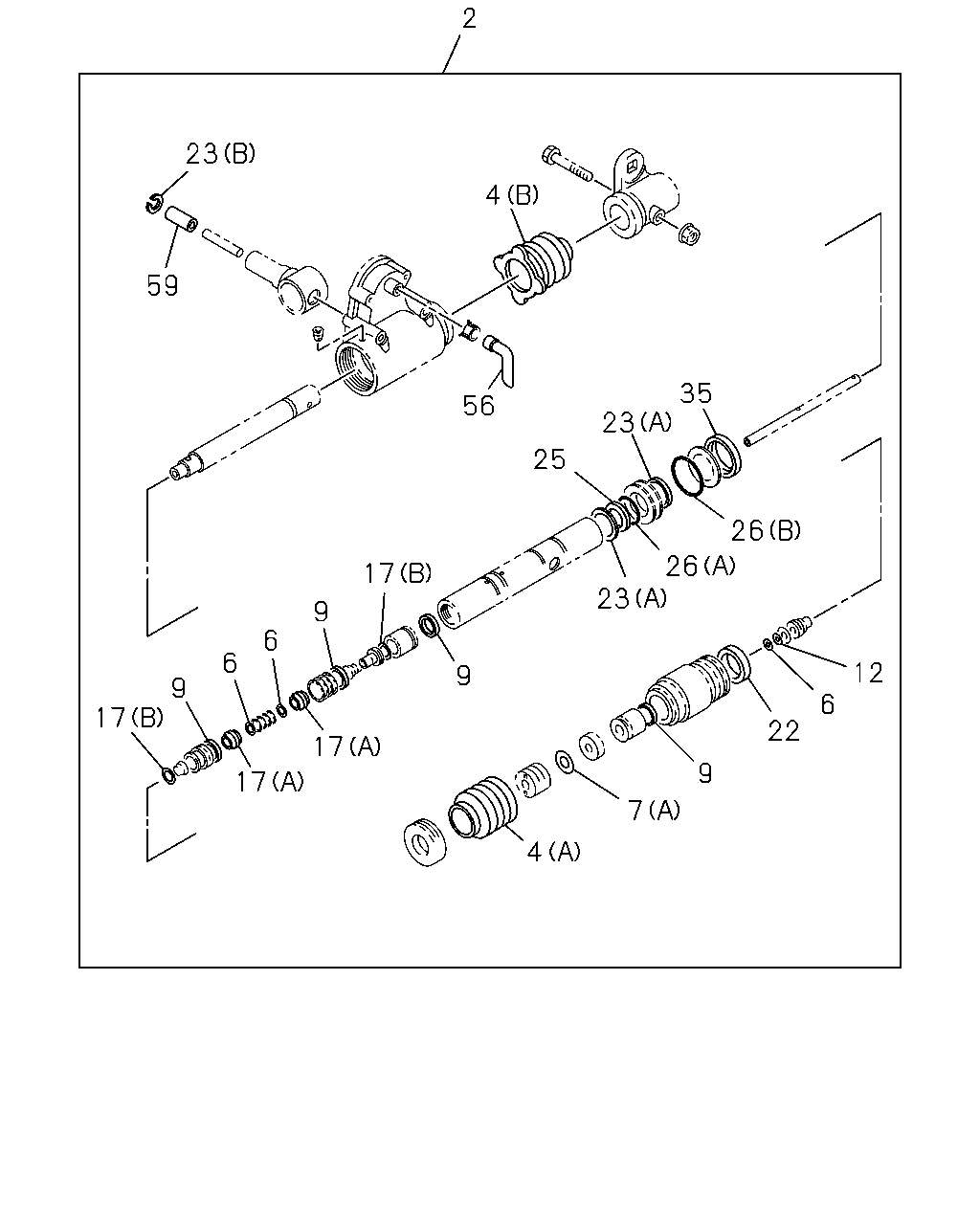

2 23 4 59 56 23 35 25 26 26 23 9 17 9 6 6 9 17 17 17 4 9 7 22 6 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33738-106-0	01	1	1303-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33738-101-0	01	1	1303-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-038-0	01	1	1303-
6	GASKET TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-013-0	03	1	1303-
7	FILTER; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33738-036-0	01	1	1303-
7	FILTER; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-033-0	01	1	1303-
9	RING; SQUARE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-086-0	04	1	1303-
12	RING; RET TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-016-0	01	1	1303-
17	SEAL ASM; VALVE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-012-0	02	1	1303-
17	SEAL ASM; VALVE TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	9-83335-055-0	02	1	1303-
22	SEAL; OIL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-353-0	01	1	1303-
23	RING; RET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-022-0	02	1	1303-
23	RING; RET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33739-564-0	01	1	1303-
25	RING; "X",PISTON TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-613-0	01	1	1303-
26	GASKET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-124-0	01	1	1303-
26	GASKET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33739-604-0	01	1	1303-
35	GASKET; CUP TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-073-0	01	1	1303-
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-570-0	01	1	1303-
59	SHIM; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33738-102-0	01	1	1303-

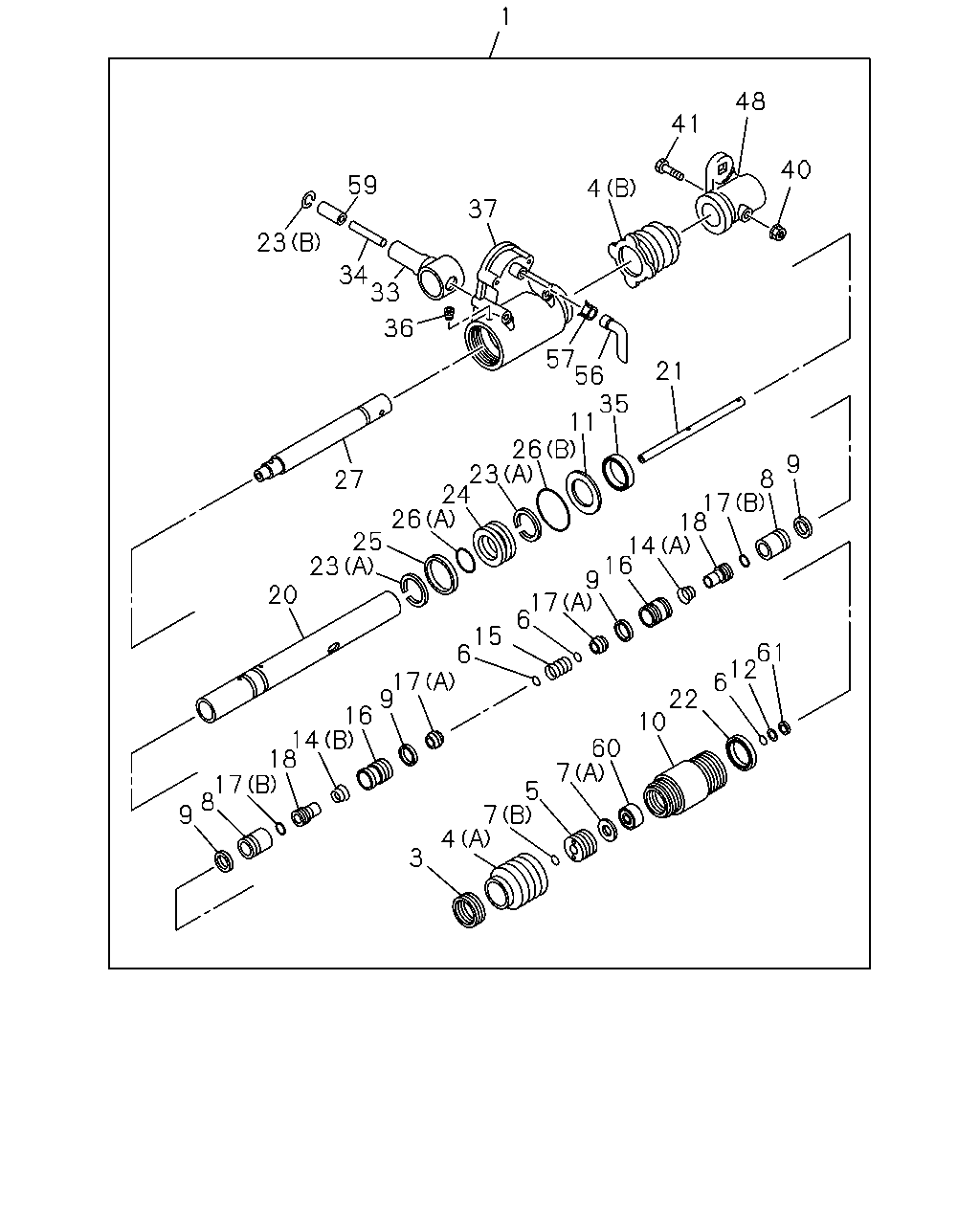

1 48 41 4 37 59 23 34 33 36 40 57 56 35 21 11 26 23 24 26 25 23 20 27 9 8 17 18 14 16 9 17 6 15 6 17 16 14 18 17 8 9 61 12 6 22 10 60 7 5 7 4 3 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33730-270-1	01	1	1303-
3	NUT; LK,ROD TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-025-0	01	1	1303-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33738-101-0	01	1	1303-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-038-0	01	1	1303-
5	CONNECTOR; CYL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-596-0	01	1	1303-
6	GASKET TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-013-0	03	1	1303-
7	FILTER; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33738-036-0	01	1	1303-
7	FILTER; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-033-0	01	1	1303-
8	TUBE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-560-0	02	1	1303-
9	RING; SQUARE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-086-0	04	1	1303-
10	CYLINDER; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-605-0	01	1	1303-
11	PLATE; CYL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-600-0	01	1	1303-
12	RING; RET TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-016-0	01	1	1303-
14	SPRING; VALVE LIFTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-347-0	01	1	1303-
14	SPRING; VALVE LIFTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33739-354-0	01	1	1303-
15	SPRING; VALVE SEAL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-014-0	01	1	1303-
16	SEAT; VALVE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-067-0	02	1	1303-
17	SEAL ASM; VALVE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-012-0	02	1	1303-
17	SEAL ASM; VALVE TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	9-83335-055-0	02	1	1303-
18	LIFTER; VALVE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-586-0	02	1	1303-
20	ROD ASM; W/CAP TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-599-0	01	1	1303-
21	PIPE; AIR,POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-598-0	01	1	1303-
22	SEAL; OIL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-353-0	01	1	1303-
23	RING; RET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-022-0	02	1	1303-
23	RING; RET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33739-564-0	01	1	1303-
24	PISTON TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-601-0	01	1	1303-
25	RING; "X",PISTON TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-613-0	01	1	1303-
26	GASKET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33739-124-0	01	1	1303-
26	GASKET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33739-604-0	01	1	1303-
27	ROD; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-597-0	01	1	1303-
33	STRIKER; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-609-0	01	1	1303-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-575-0	01	1	1303-
35	GASKET; CUP TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-073-0	01	1	1303-
36	SCREW; SET TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-040-0	01	1	1303-
37	HOUSING; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-603-0	01	1	1303-
40	NUT; LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-940-0	01	1	1303-
41	BOLT; SET,LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-939-0	01	1	1303-
48	LEVER; CONT,CABLE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-591-1	01	1	1303-
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-570-0	01	1	1303-
57	CLAMP; HOSE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-569-0	01	1	1303-
59	SHIM; POWER SHIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33738-102-0	01	1	1303-
60	COLLAR; CYL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-595-0	01	1	1303-
61	PLATE; VLV LIFTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33739-581-0	01	1	1303-
