2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#115400) — 62 parça

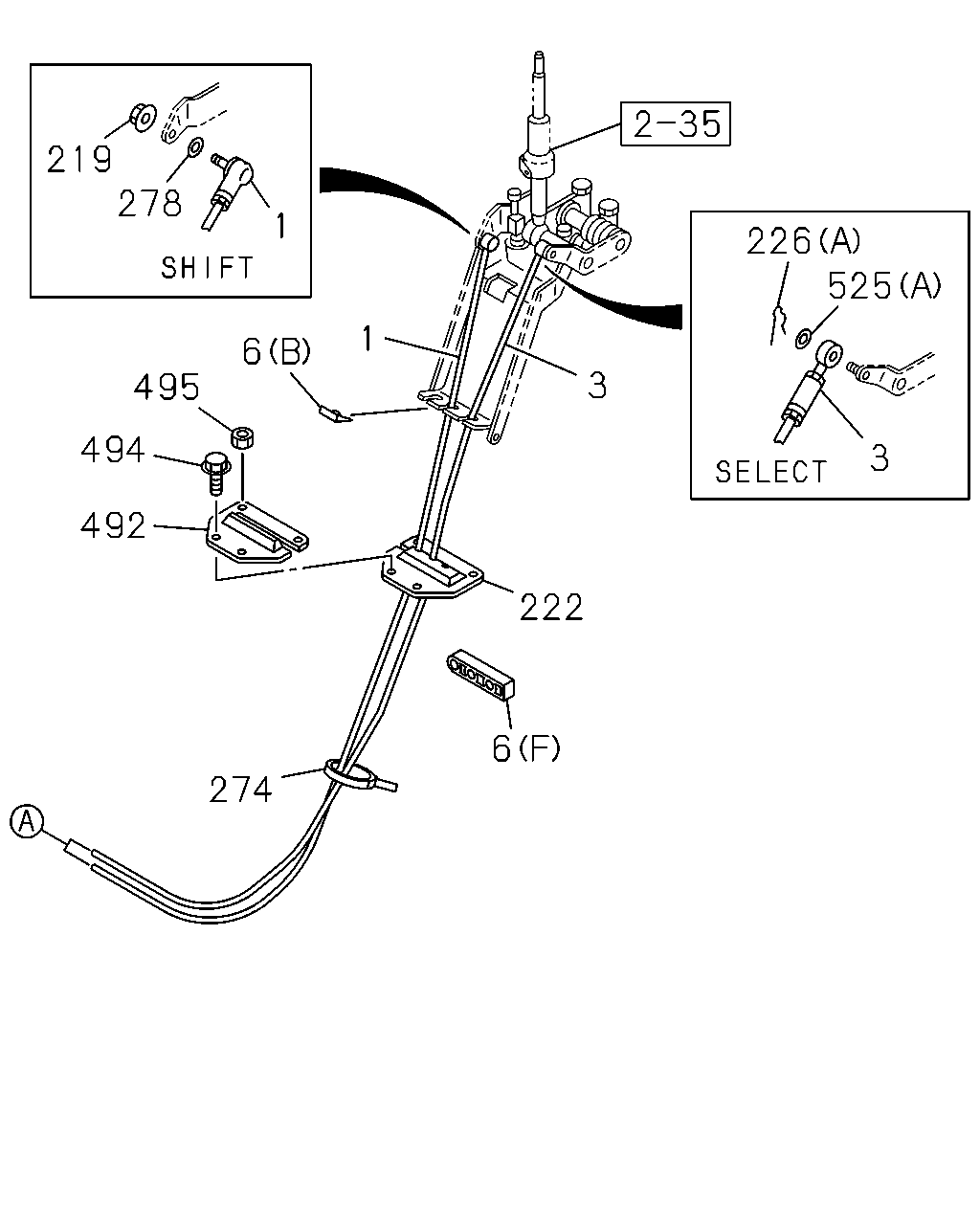

çizim 336234
219 278 1 6 1 495 494 492 274 3 222 6 3 226 525
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT 8-98184-250-1 01 1 1302-
3 00.852 CABLE; SELECT,TRANS CONT 8-98184-251-1 01 1 1302-
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (F) 		8-97093-491-1 01 1 1309-
6 04.047 CLIP; CABLE
04.686 (D) ID=21 L=24 		8-94176-807-1 01 1 1302-
6 04.047 CLIP; CABLE
04.785 (E) 		8-94458-385-1 01 1 1302-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 1302-
6 04.047 CLIP; CABLE
(C) 		8-97036-333-1 01 1 1302-
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 1302-
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1302-
222 04.010 GROMMET; CABLE 8-97089-851-0 01 1 1302-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1302-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1302-
274 04.008 CLIP; CONT CABLE
03.162 L=140 		5-09707-031-1 01 1 1302-
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1302-
492 04.010 RETAINER; GROMMET
04.047 		8-97048-319-1 01 1 1302-
494 04.010 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1302-
495 04.010 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1302-
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1302-
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1302-

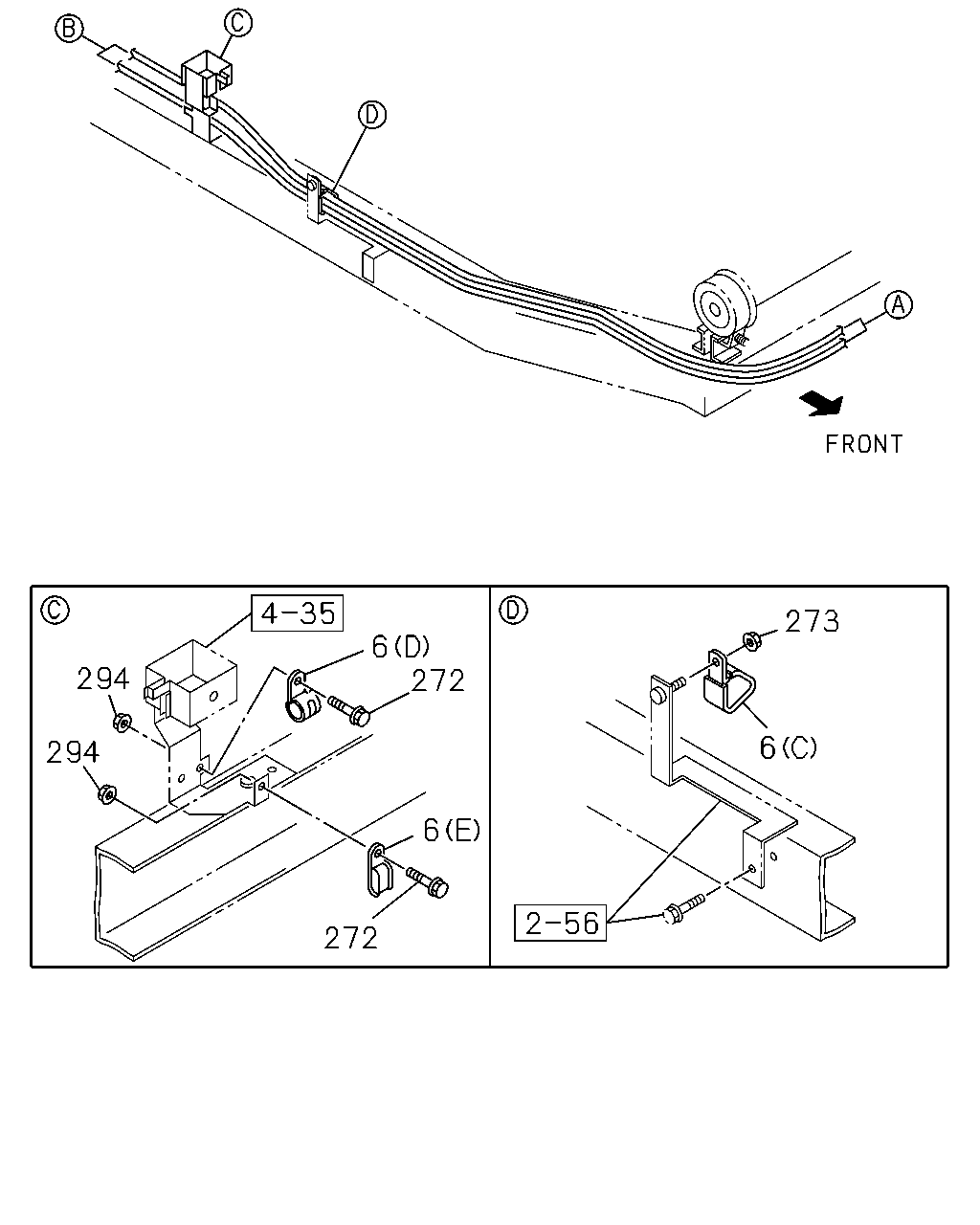

çizim 336238
294 294 6 272 6 272 273 6
BalonParca AdiParca NoAdetTipApplied Date
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (F) 		8-97093-491-1 01 1 1309-
6 04.047 CLIP; CABLE
04.686 (D) ID=21 L=24 		8-94176-807-1 01 1 1302-
6 04.047 CLIP; CABLE
04.785 (E) 		8-94458-385-1 01 1 1302-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 1302-
6 04.047 CLIP; CABLE
(C) 		8-97036-333-1 01 1 1302-
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 1302-
272 04.047 BOLT; CLIP,CONT CABLE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1302-
272 04.047 BOLT; CLIP,CONT CABLE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1302-
273 04.047 NUT; CONT CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1302-
294 00.854 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1302-

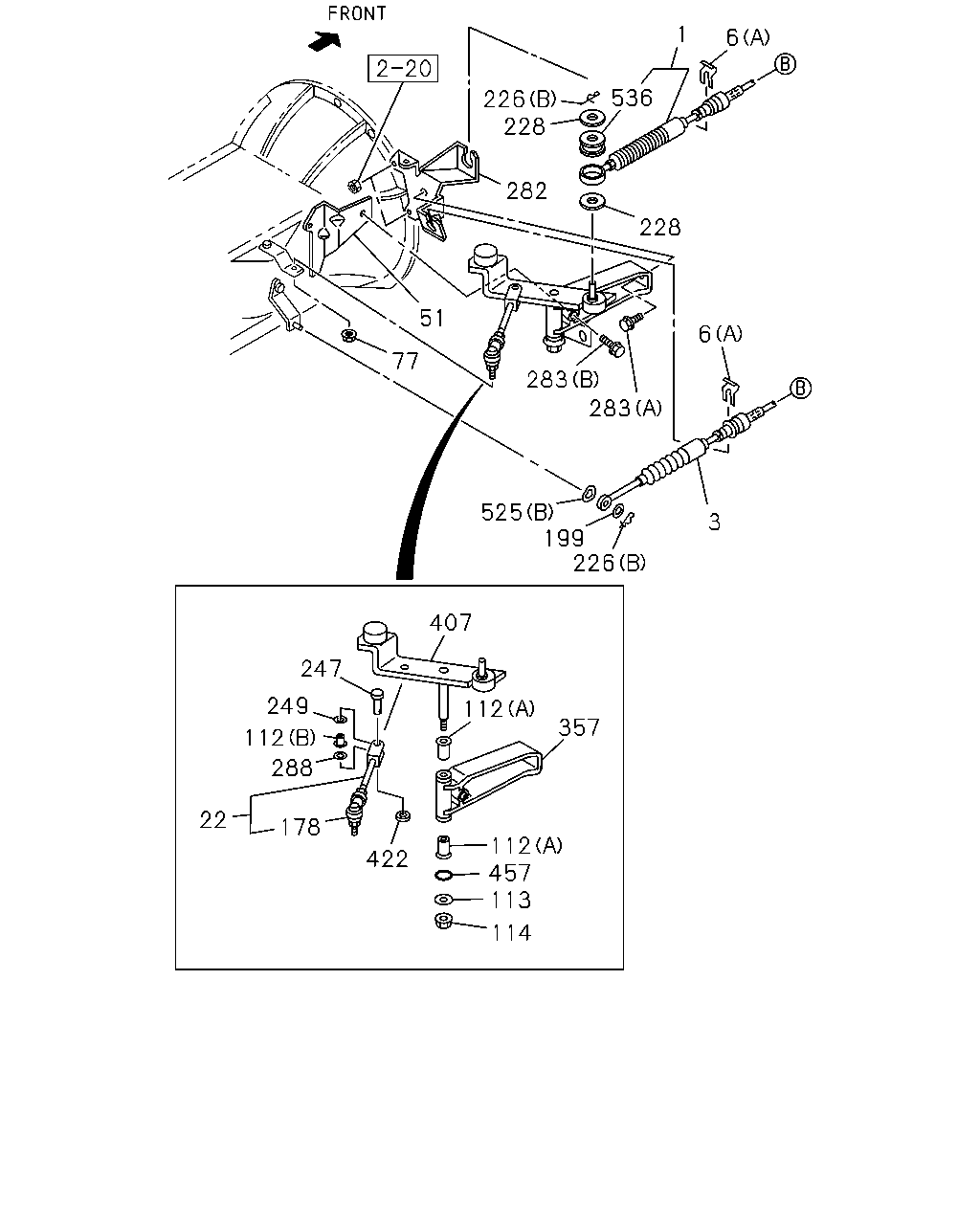

çizim 336242
1 6 536 226 282 228 51 77 283 6 3 283 525 199 226 407 112 357 112 457 113 114 422 178 288 112 247 249 22 228
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT 8-98184-250-1 01 1 1302-
3 00.852 CABLE; SELECT,TRANS CONT 8-98184-251-1 01 1 1302-
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (F) 		8-97093-491-1 01 1 1309-
6 04.047 CLIP; CABLE
04.686 (D) ID=21 L=24 		8-94176-807-1 01 1 1302-
6 04.047 CLIP; CABLE
04.785 (E) 		8-94458-385-1 01 1 1302-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 1302-
6 04.047 CLIP; CABLE
(C) 		8-97036-333-1 01 1 1302-
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 1302-
22 04.035 ROD; CONT,SHIFT 8-97134-286-1 01 1 1302-
51 04.010 BRACKET; GEAR CONT 8-98189-335-1 01 1 1302-
77 04.037 NUT; LK,BALL JOINT,CONT ROD 8-97358-973-0 01 1 1302-
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 1302-
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 1302-
113 04.046 WASHER; RELAY LEVER
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1302-
114 04.037 NUT; RELAY LEVER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1302-
178 04.040 JOINT; BALL,LINK ROD
04.037 L=45.5 		1-09760-118-1 01 1 1302-
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1302-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1302-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1302-
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1302-
247 04.010 PIN; CONT ROD TO LEVER 8-97373-728-0 01 1 1302-
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 1302-
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 1302-
283 04.037 BOLT; RELAY LEVER
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1302-
283 04.037 BOLT; RELAY LEVER
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1302-
288 04.047 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 1302-
357 04.010 BRACKET; RELAY LEVER 8-97182-166-0 01 1 1302-
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 1302-
422 04.032 NUT; CONT ROD TO LEVER
04.047 		8-97373-729-0 01 1 1302-
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 1302-
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1302-
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1302-
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1302-
