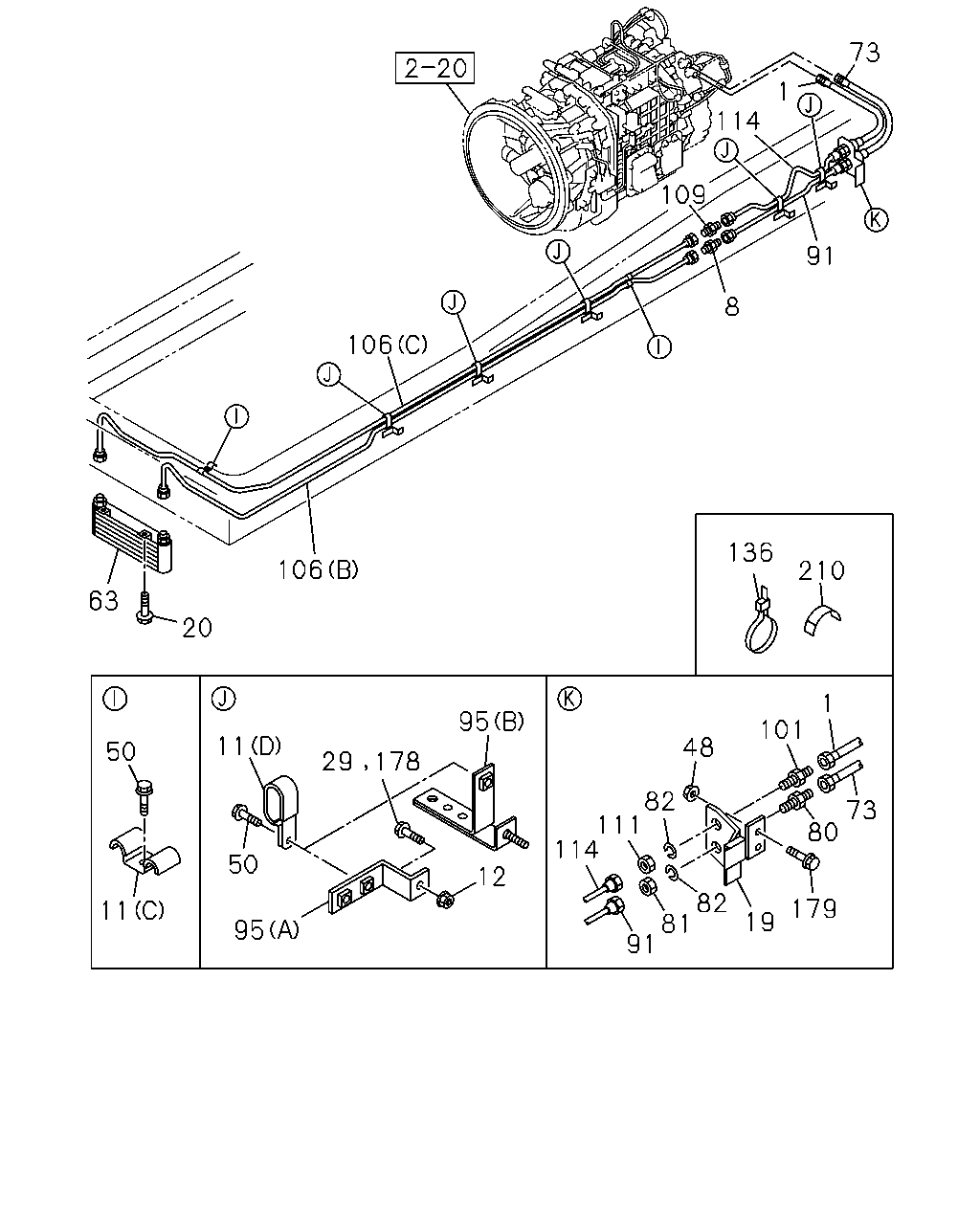

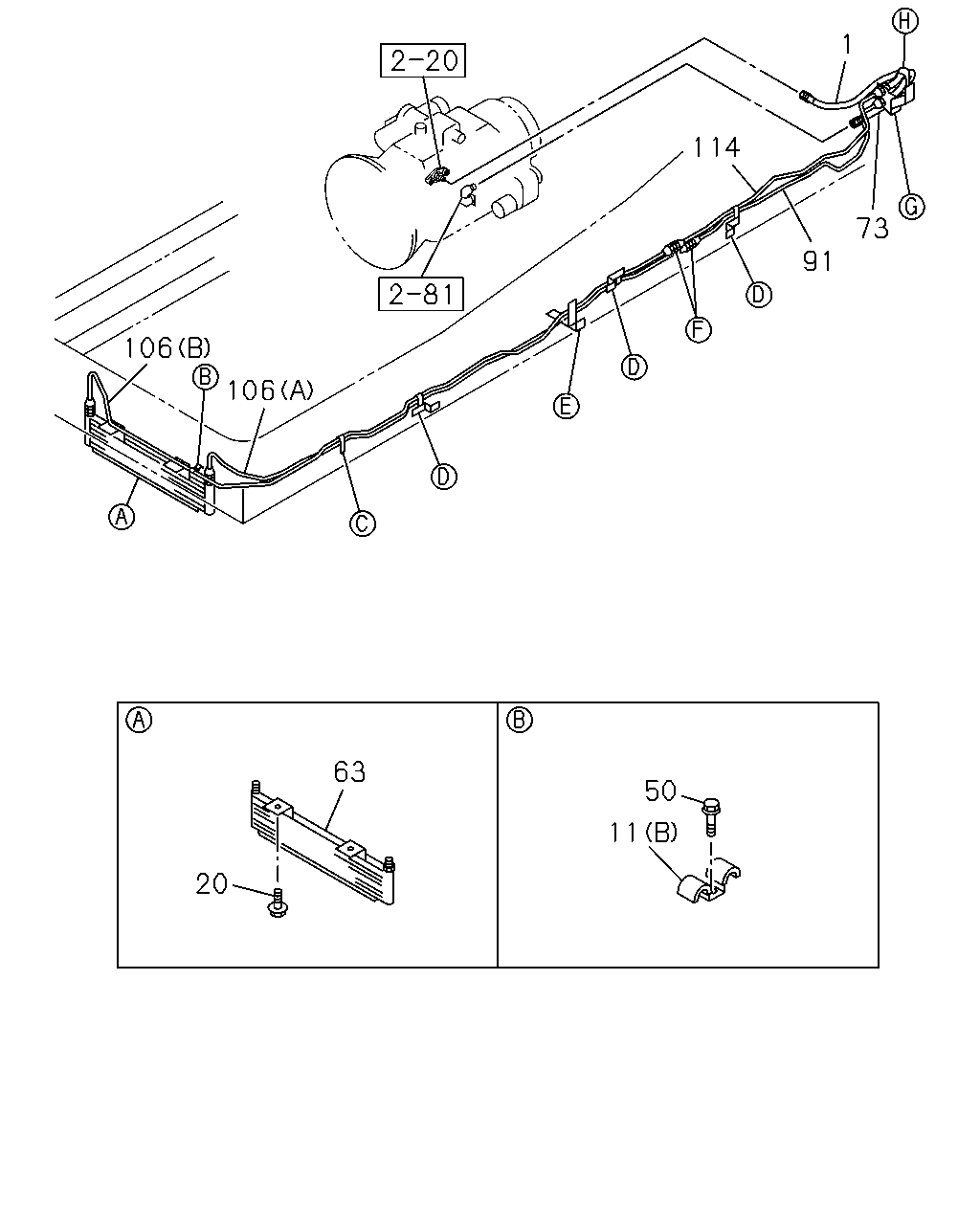

2-53 — TRANSMISSION OIL COOLER SYSTEM (#115397) — 189 parça

106 106 20 63 114 1 91 73 11 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1512-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1512-	●	●
1	HOSE; ATF MAP6U M/T(Y4B) L=500	1-09365-150-0	01	1	1303-		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1512-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1512-	●	●
11	CLIP; PIPE MAP6U M/T(Y4B) (A) ID=11X2 L=20	0-95325-035-0	05	1	1303-1511		●
11	CLIP; PIPE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) ID=11X2 L=20	0-95325-035-0	05	1	1512-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	05	1	1512-	●
11	CLIP; PIPE MAP6U M/T(Y4B) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1303-1511		●
11	CLIP; PIPE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1512-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1512-	●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1303-1511		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1512-	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511		●
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-1511		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1512-	●	●
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1512-	●	●
63	COOLER; OIL	8-98199-221-0	01	1	1303-1303		●
63	COOLER; OIL MAP6U M/T(Y4B)	8-98240-506-0	01	1	1303-1405		●
63	COOLER; OIL MAP6U M/T(Y4B)	8-98269-767-0	01	1	1406-1511		●
63	COOLER; OIL MJT7S M/T(Y3E),MAP6U M/T(Y4B)	8-98269-767-0	01	1	1512-		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1512-	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1512-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1512-	●	●
73	HOSE; FLEX,TRANS MAP6U M/T(Y4B) L=500	1-09365-150-0	01	1	1303-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1512-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1512-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MAP6U M/T(Y4B) L=799 SERVICED BY L=800	1-47428-872-0	01	1	1303-		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98233-260-0	01	1	1512-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C)	8-98233-261-0	01	1	1512-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MAP6U M/T(Y4B) (A)	8-98240-380-0	01	1	1303-1511		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A)	8-98240-380-0	01	1	1512-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A)	8-98240-380-0	01	1	1512-	●
106	PIPE ASM; OIL,COOLER TO UNION MAP6U M/T(Y4B) (B)	8-98240-384-0	01	1	1303-1511		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) (B)	8-98240-384-0	01	1	1512-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98240-384-0	01	1	1512-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1512-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1512-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MAP6U M/T(Y4B) L=849 SERVICED BY L=900	1-47428-873-0	01	1	1303-		●

11 50 11 50 95 179 117 116 77 19 73 1 48 12 76 91 114 136 210 109 8 50 95 12 178 29 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1512-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1512-	●	●
1	HOSE; ATF MAP6U M/T(Y4B) L=500	1-09365-150-0	01	1	1303-		●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1512-	●	●
8	UNION MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-1511		●
8	UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1512-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1512-	●	●
11	CLIP; PIPE MAP6U M/T(Y4B) (A) ID=11X2 L=20	0-95325-035-0	05	1	1303-1511		●
11	CLIP; PIPE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) ID=11X2 L=20	0-95325-035-0	05	1	1512-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	05	1	1512-	●
11	CLIP; PIPE MAP6U M/T(Y4B) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1303-1511		●
11	CLIP; PIPE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1512-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1512-	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-1511		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1512-	●	●
19	BRACKET; FLEX HOSE MAP6U M/T(Y4B)	1-47479-559-0	01	1	1303-1511		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B)	1-47479-559-0	01	1	1512-		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1512-	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511		●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511		●
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-1511		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1512-	●	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1512-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1512-	●	●
73	HOSE; FLEX,TRANS MAP6U M/T(Y4B) L=500	1-09365-150-0	01	1	1303-		●
76	NUT; FLEX HOSE MAP6U M/T(Y4B) M16	0-91111-516-0	01	1	1303-1511		●
76	NUT; FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B) M16	0-91111-516-0	01	1	1512-		●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1512-	●
77	WASHER; LK MAP6U M/T(Y4B) ID=16.2	0-91510-516-0	01	1	1303-1511		●
77	WASHER; LK MJT7S M/T(Y3E),MAP6U M/T(Y4B) ID=16.2	0-91510-516-0	01	1	1512-		●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1512-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1512-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1512-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MAP6U M/T(Y4B) L=799 SERVICED BY L=800	1-47428-872-0	01	1	1303-		●
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1303-1511		●
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1512-	●	●
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1303-1511		●
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1512-	●	●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1512-	●	●
109	UNION MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-1511		●
109	UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1512-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1512-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MAP6U M/T(Y4B) L=849 SERVICED BY L=900	1-47428-873-0	01	1	1303-		●
116	NUT; BRKT,FLEX HOSE MAP6U M/T(Y4B) M16	0-91111-516-0	01	1	1303-1511		●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B) M16	0-91111-516-0	01	1	1512-		●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1512-	●
117	WASHER; LK,FLEX HOSE MAP6U M/T(Y4B) ID=16.2	0-91510-516-0	01	1	1303-1511		●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B) ID=16.2	0-91510-516-0	01	1	1512-		●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1512-	●
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1512-	●	●
136	CLIP; FLEX HOSE MAP6U M/T(Y4B) L=350	1-09707-183-0	01	1	1303-1511		●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B) L=350	1-09707-183-0	01	1	1512-		●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1512-	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-1511		●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511		●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1512-	●	●
210	BAND; FLEX HOSE MAP6U M/T(Y4B) L=175	1-09707-178-0	01	1	1303-1511		●
210	BAND; FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B) L=175	1-09707-178-0	01	1	1512-		●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1512-	●

91 73 1 114 109 106 106 20 63 11 50 29 178 12 50 95 11 95 136 210 101 73 1 179 80 19 82 81 91 114 111 48 82 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1512-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1512-	●	●
1	HOSE; ATF MAP6U M/T(Y4B) L=500	1-09365-150-0	01	1	1303-		●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1512-	●	●
8	UNION MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-1511		●
8	UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1512-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1512-	●	●
11	CLIP; PIPE MAP6U M/T(Y4B) (A) ID=11X2 L=20	0-95325-035-0	05	1	1303-1511		●
11	CLIP; PIPE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) ID=11X2 L=20	0-95325-035-0	05	1	1512-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	05	1	1512-	●
11	CLIP; PIPE MAP6U M/T(Y4B) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1303-1511		●
11	CLIP; PIPE MJT7S M/T(Y3E),MAP6U M/T(Y4B) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1512-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1512-	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-1511		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1512-	●	●
19	BRACKET; FLEX HOSE MAP6U M/T(Y4B)	1-47479-559-0	01	1	1303-1511		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B)	1-47479-559-0	01	1	1512-		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1512-	●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1303-1511		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1512-	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511		●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1511		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1511		●
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-1511		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1512-	●	●
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1512-	●	●
63	COOLER; OIL	8-98199-221-0	01	1	1303-1303		●
63	COOLER; OIL MAP6U M/T(Y4B)	8-98240-506-0	01	1	1303-1405		●
63	COOLER; OIL MAP6U M/T(Y4B)	8-98269-767-0	01	1	1406-1511		●
63	COOLER; OIL MJT7S M/T(Y3E),MAP6U M/T(Y4B)	8-98269-767-0	01	1	1512-		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1512-	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1512-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1512-	●	●
73	HOSE; FLEX,TRANS MAP6U M/T(Y4B) L=500	1-09365-150-0	01	1	1303-		●
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1512-	●	●
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1512-	●	●
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1512-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1512-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1512-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MAP6U M/T(Y4B) L=799 SERVICED BY L=800	1-47428-872-0	01	1	1303-		●
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1303-1511		●
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1512-	●	●
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1303-1511		●
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1512-	●	●
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1512-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98233-260-0	01	1	1512-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C)	8-98233-261-0	01	1	1512-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MAP6U M/T(Y4B) (A)	8-98240-380-0	01	1	1303-1511		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A)	8-98240-380-0	01	1	1512-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A)	8-98240-380-0	01	1	1512-	●
106	PIPE ASM; OIL,COOLER TO UNION MAP6U M/T(Y4B) (B)	8-98240-384-0	01	1	1303-1511		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) (B)	8-98240-384-0	01	1	1512-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98240-384-0	01	1	1512-	●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1512-	●	●
109	UNION MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-1511		●
109	UNION MJT7S M/T(Y3E),MAP6U M/T(Y4B) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1512-	●
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1512-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1512-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1512-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MAP6U M/T(Y4B) L=849 SERVICED BY L=900	1-47428-873-0	01	1	1303-		●
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1512-	●	●
136	CLIP; FLEX HOSE MAP6U M/T(Y4B) L=350	1-09707-183-0	01	1	1303-1511		●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B) L=350	1-09707-183-0	01	1	1512-		●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1512-	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-1511		●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511		●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1512-	●	●
210	BAND; FLEX HOSE MAP6U M/T(Y4B) L=175	1-09707-178-0	01	1	1303-1511		●
210	BAND; FLEX HOSE MJT7S M/T(Y3E),MAP6U M/T(Y4B) L=175	1-09707-178-0	01	1	1512-		●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
