Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#115396) — 117 parça
Tümü
A - CYZ6MC
B - CYZ6MF
◀

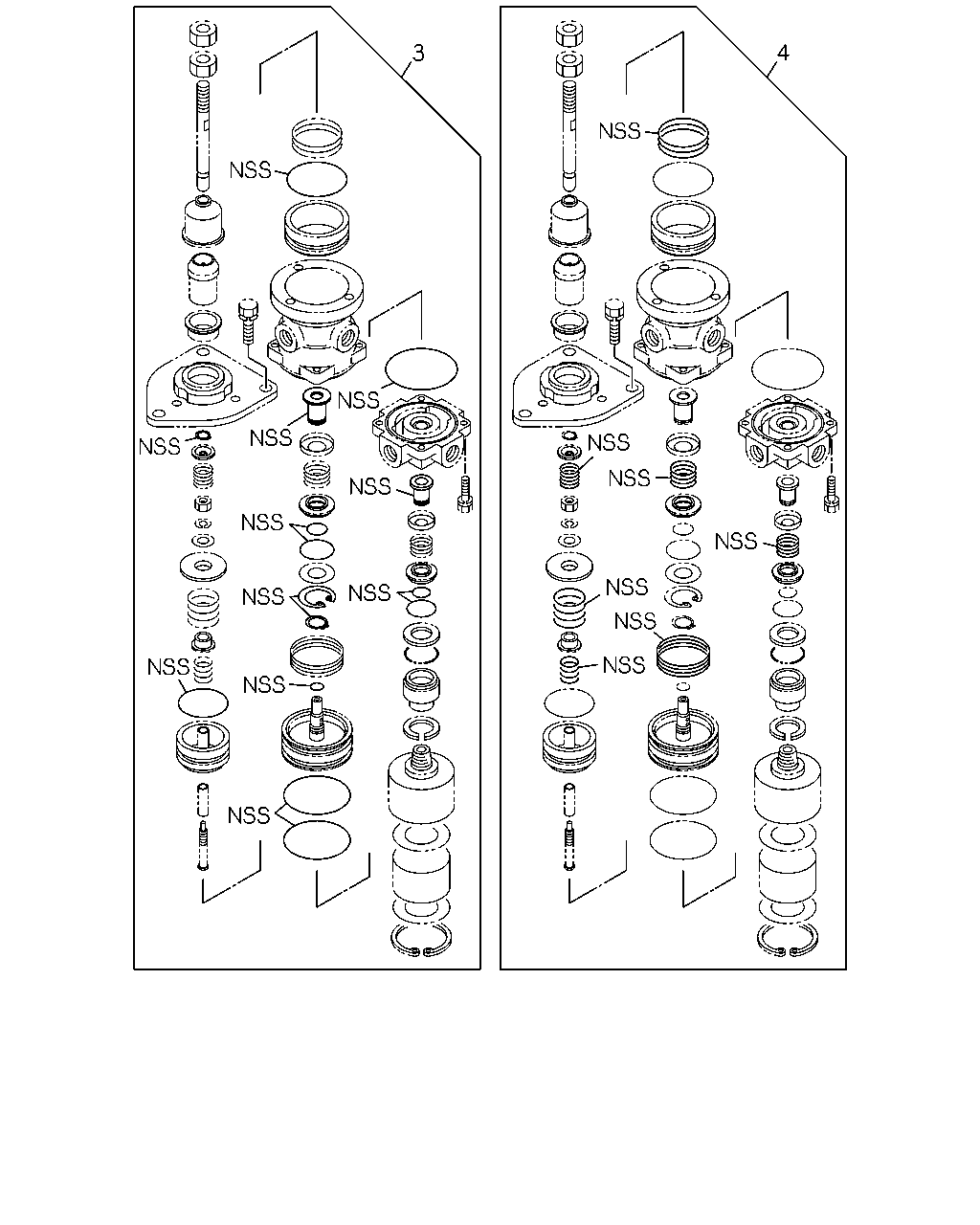

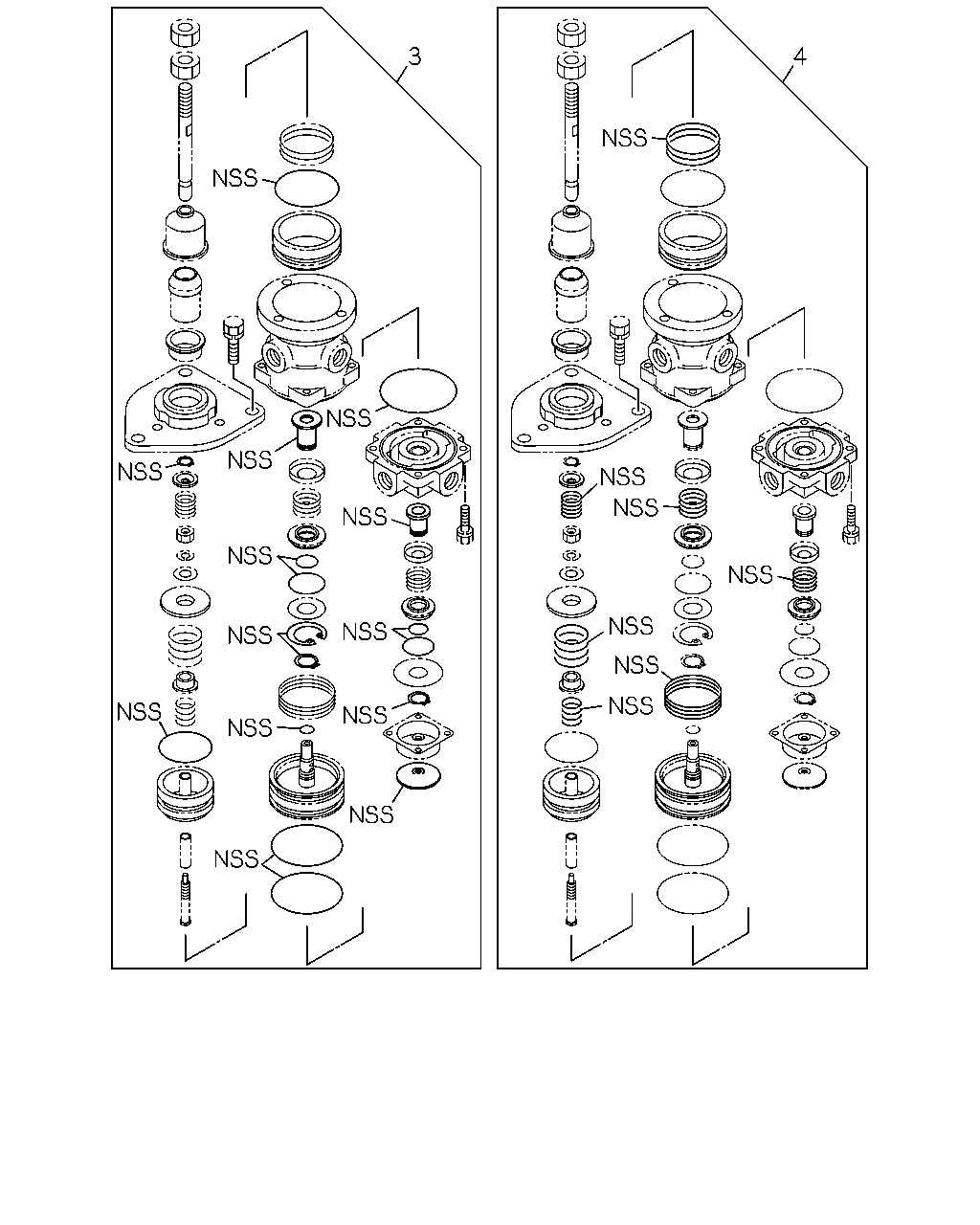

[334A] REPAIR KIT;EXC.RUSSIA EQUIPMENT (5 parça)

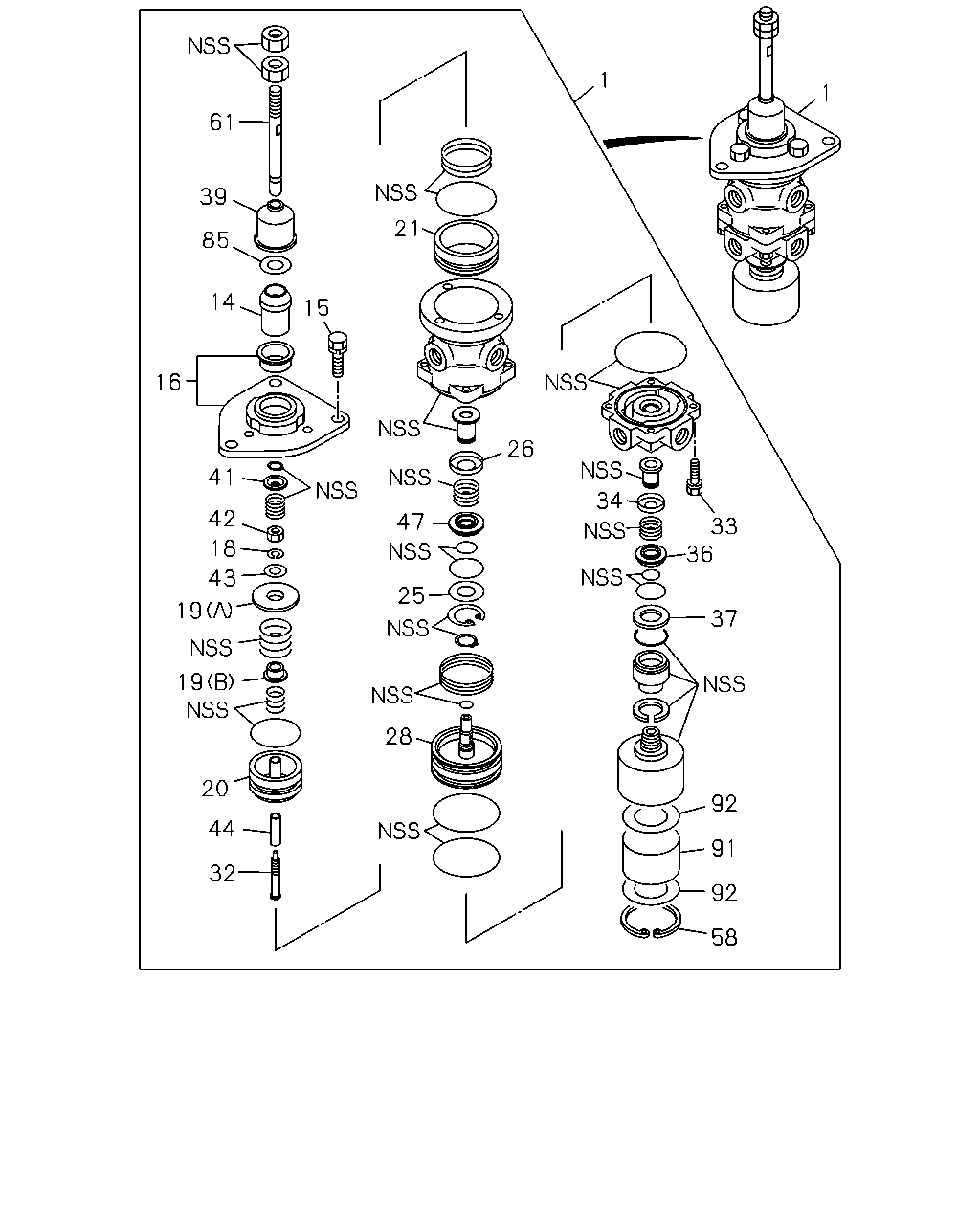

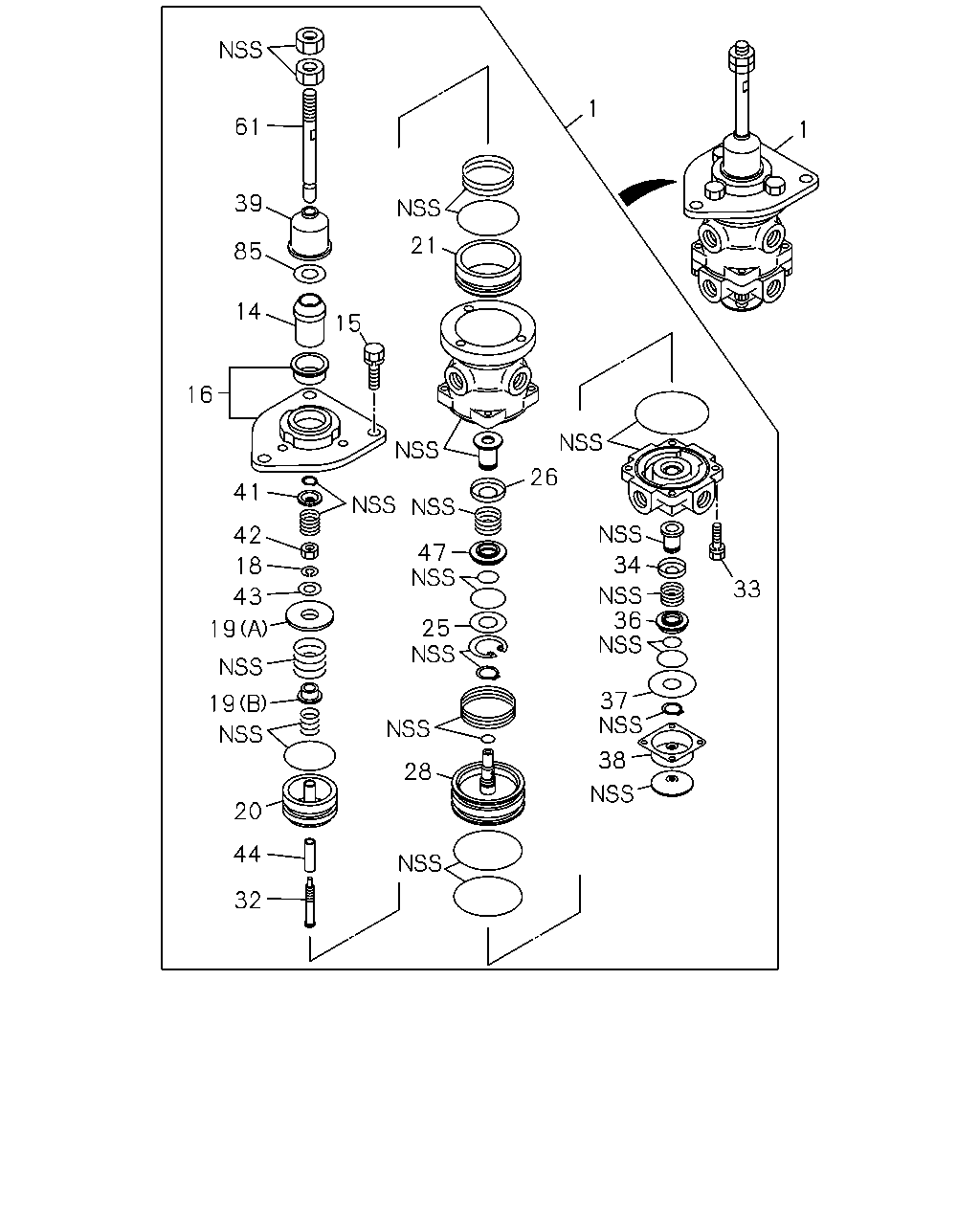

[334A] COMPONENT;EXC.RUSSIA EQUIPMENT (53 parça)
[334A] REPAIR KIT;RUSSIA EQUIPMENT (5 parça)
[334A] COMPONENT;RUSSIA EQUIPMENT (54 parça)
▶
4
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
REPAIR KIT; RUBBER,BRK VLV
RUSSIA EQUIPMENT(B12)
8-98140-081-0
01
1
1512-
●
●
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-391-0
01
1
1303-1511
●
3
REPAIR KIT; RUBBER,BRK VLV
EXC. RUSSIA EQUIPMENT(B12)
1-85576-391-0
01
1
1512-
●
●
4
REPAIR KIT; SPRING,BRK VLV
1-85576-179-0
01
1
1303-1511
●
4
REPAIR KIT; SPRING,BRK VLV
1-85576-179-0
01
1
1512-
●
●
61
39
85
14
16
41
42
18
43
19
19
20
44
32
21
26
47
25
28
34
33
36
37
38
1
1
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; BRK
RUSSIA EQUIPMENT(B12)
8-98139-251-1
01
1
1512-
●
●
1
VALVE; BRK
8-98166-520-0
01
1
1303-1511
●
1
VALVE; BRK
EXC. RUSSIA EQUIPMENT(B12)
8-98166-520-0
01
1
1512-
●
●
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
1303-1511
●
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
1512-
●
●
15
BOLT; PLATE,BRK VLV
1-48119-232-1
03
1
1303-1511
●
15
BOLT; PLATE,BRK VLV
1-48119-232-1
03
1
1512-
●
●
16
PLATE; MTG,BRKT VLV
1-48119-364-3
01
1
1303-1511
●
16
PLATE; MTG,BRKT VLV
1-48119-364-2
01
1
1512-
●
●
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
1303-1511
●
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
1512-
●
●
19
SEAT; SPRING,BRK VLV
(B)
1-48119-370-1
01
1
1303-1511
●
19
SEAT; SPRING,BRK VLV
(B)
1-48119-370-1
01
1
1512-
●
●
19
SEAT; SPRING,BRK VLV
(A)
1-48119-371-0
01
1
1303-1511
●
19
SEAT; SPRING,BRK VLV
(A)
1-48119-371-0
01
1
1512-
●
●
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
1303-1511
●
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
1512-
●
●
21
BUSHING; UPR BODY
1-48119-317-0
01
1
1303-1511
●
21
BUSHING; UPR BODY
1-48119-317-0
01
1
1512-
●
●
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
1303-1511
●
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
1512-
●
●
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
1303-1511
●
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
1512-
●
●
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
1303-1511
●
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
1512-
●
●
32
SCREW; BRK VLV
1-48119-323-0
01
1
1303-1511
●
32
SCREW; BRK VLV
1-48119-323-0
01
1
1512-
●
●
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
1303-1511
●
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
1512-
●
●
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
1303-1511
●
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
1512-
●
●
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
1303-1511
●
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
1512-
●
●
37
WASHER; VLV LWR,BRK VLV
1-48129-321-0
01
1
1303-1511
●
37
WASHER; VLV LWR,BRK VLV
1-48129-321-0
01
1
1512-
●
●
38
COVER; EXH,BRK VLV
1-48119-597-0
01
1
1303-1511
●
38
COVER; EXH,BRK VLV
EXC. RUSSIA EQUIPMENT(B12)
1-48119-597-0
01
1
1512-
●
●
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
1303-1511
●
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
1512-
●
●
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
1303-1511
●
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
1512-
●
●
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
1303-1511
●
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
1512-
●
●
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
1303-1511
●
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
1512-
●
●
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
1303-1511
●
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
1512-
●
●
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
1303-1511
●
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
1512-
●
●
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
1303-1511
●
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
1512-
●
●
85
WASHER; PUSH ROD
1-48119-366-0
01
1
1303-1511
●
85
WASHER; PUSH ROD
1-48119-366-0
01
1
1512-
●
●
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
REPAIR KIT; RUBBER,BRK VLV
RUSSIA EQUIPMENT(B12)
8-98140-081-0
01
1
1512-
●
●
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-391-0
01
1
1303-1511
●
3
REPAIR KIT; RUBBER,BRK VLV
EXC. RUSSIA EQUIPMENT(B12)
1-85576-391-0
01
1
1512-
●
●
4
REPAIR KIT; SPRING,BRK VLV
1-85576-179-0
01
1
1303-1511
●
4
REPAIR KIT; SPRING,BRK VLV
1-85576-179-0
01
1
1512-
●
●
61
39
85
14
15
21
26
16
41
18
42
43
19
19
20
44
32
34
33
36
37
92
91
92
58
28
25
47
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; BRK
RUSSIA EQUIPMENT(B12)
8-98139-251-1
01
1
1512-
●
●
1
VALVE; BRK
8-98166-520-0
01
1
1303-1511
●
1
VALVE; BRK
EXC. RUSSIA EQUIPMENT(B12)
8-98166-520-0
01
1
1512-
●
●
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
1303-1511
●
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
1512-
●
●
15
BOLT; PLATE,BRK VLV
1-48119-232-1
03
1
1303-1511
●
15
BOLT; PLATE,BRK VLV
1-48119-232-1
03
1
1512-
●
●
16
PLATE; MTG,BRKT VLV
1-48119-364-3
01
1
1303-1511
●
16
PLATE; MTG,BRKT VLV
1-48119-364-2
01
1
1512-
●
●
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
1303-1511
●
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
1512-
●
●
19
SEAT; SPRING,BRK VLV
(B)
1-48119-370-1
01
1
1303-1511
●
19
SEAT; SPRING,BRK VLV
(B)
1-48119-370-1
01
1
1512-
●
●
19
SEAT; SPRING,BRK VLV
(A)
1-48119-371-0
01
1
1303-1511
●
19
SEAT; SPRING,BRK VLV
(A)
1-48119-371-0
01
1
1512-
●
●
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
1303-1511
●
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
1512-
●
●
21
BUSHING; UPR BODY
1-48119-317-0
01
1
1303-1511
●
21
BUSHING; UPR BODY
1-48119-317-0
01
1
1512-
●
●
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
1303-1511
●
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
1512-
●
●
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
1303-1511
●
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
1512-
●
●
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
1303-1511
●
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
1512-
●
●
32
SCREW; BRK VLV
1-48119-323-0
01
1
1303-1511
●
32
SCREW; BRK VLV
1-48119-323-0
01
1
1512-
●
●
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
1303-1511
●
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
1512-
●
●
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
1303-1511
●
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
1512-
●
●
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
1303-1511
●
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
1512-
●
●
37
WASHER; VLV LWR,BRK VLV
1-48129-321-0
01
1
1303-1511
●
37
WASHER; VLV LWR,BRK VLV
1-48129-321-0
01
1
1512-
●
●
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
1303-1511
●
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
1512-
●
●
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
1303-1511
●
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
1512-
●
●
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
1303-1511
●
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
1512-
●
●
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
1303-1511
●
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
1512-
●
●
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
1303-1511
●
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
1512-
●
●
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
1303-1511
●
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
1512-
●
●
58
RING; RET,EXH,BRK VLV
RUSSIA EQUIPMENT(B12)
8-98140-079-0
01
1
1512-
●
●
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
1303-1511
●
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
1512-
●
●
85
WASHER; PUSH ROD
1-48119-366-0
01
1
1303-1511
●
85
WASHER; PUSH ROD
1-48119-366-0
01
1
1512-
●
●
91
FILTER; SILENCER
RUSSIA EQUIPMENT(B12)
8-98140-078-0
01
1
1512-
●
●
92
PLATE; FILTER
RUSSIA EQUIPMENT(B12)
8-98140-077-0
02
1
1512-
●
●
