3-41 — REAR BRAKE POWER CHAMBER (#115392) — 102 parça

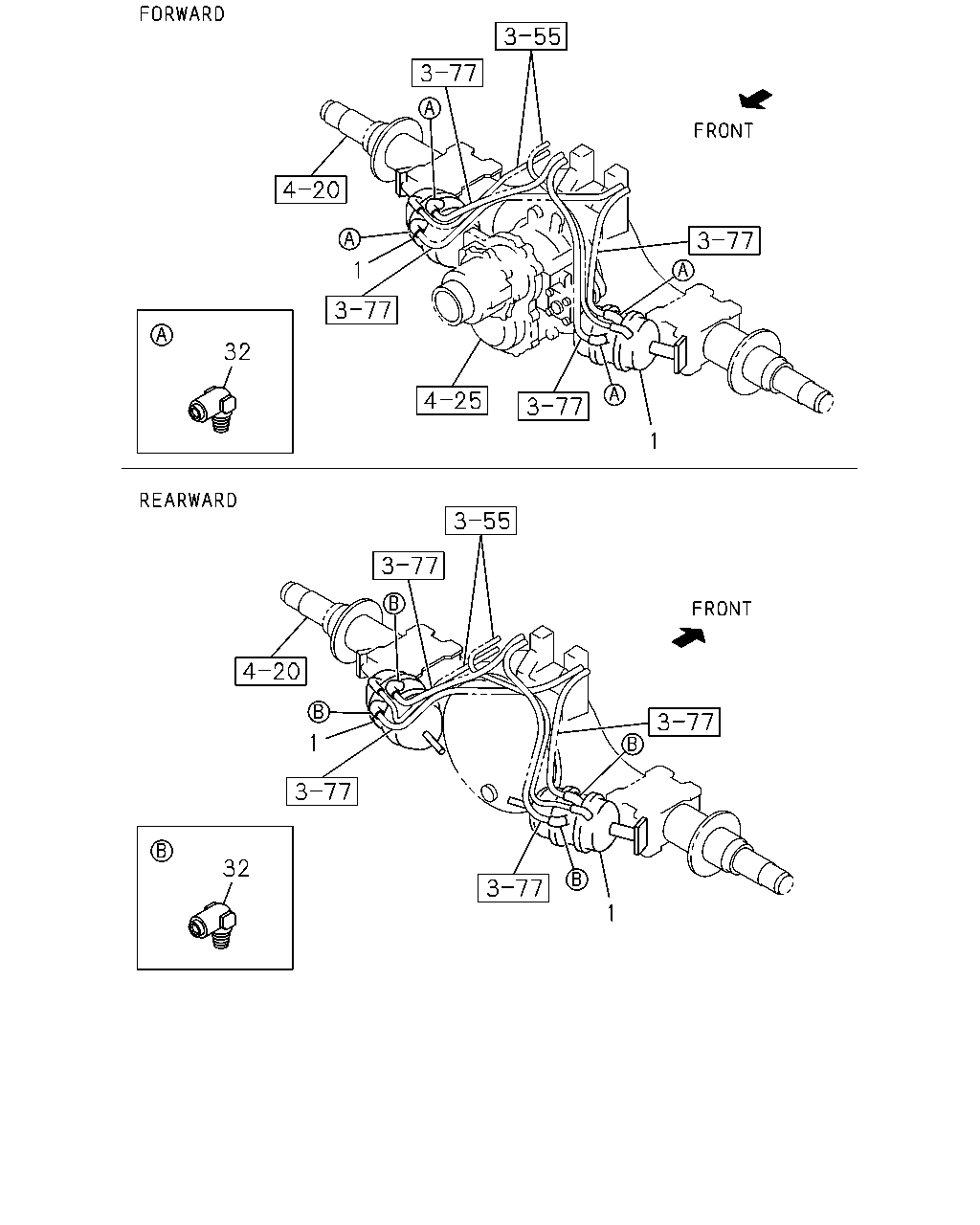

1 1 32 1 1 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER RUSSIA EQUIPMENT(B12) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER RUSSIA EQUIPMENT(B12) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1303-1511		●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1303-1511		●
32	CONNECTOR; SPR CHAMBER RUSSIA EQUIPMENT(B12) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●	●

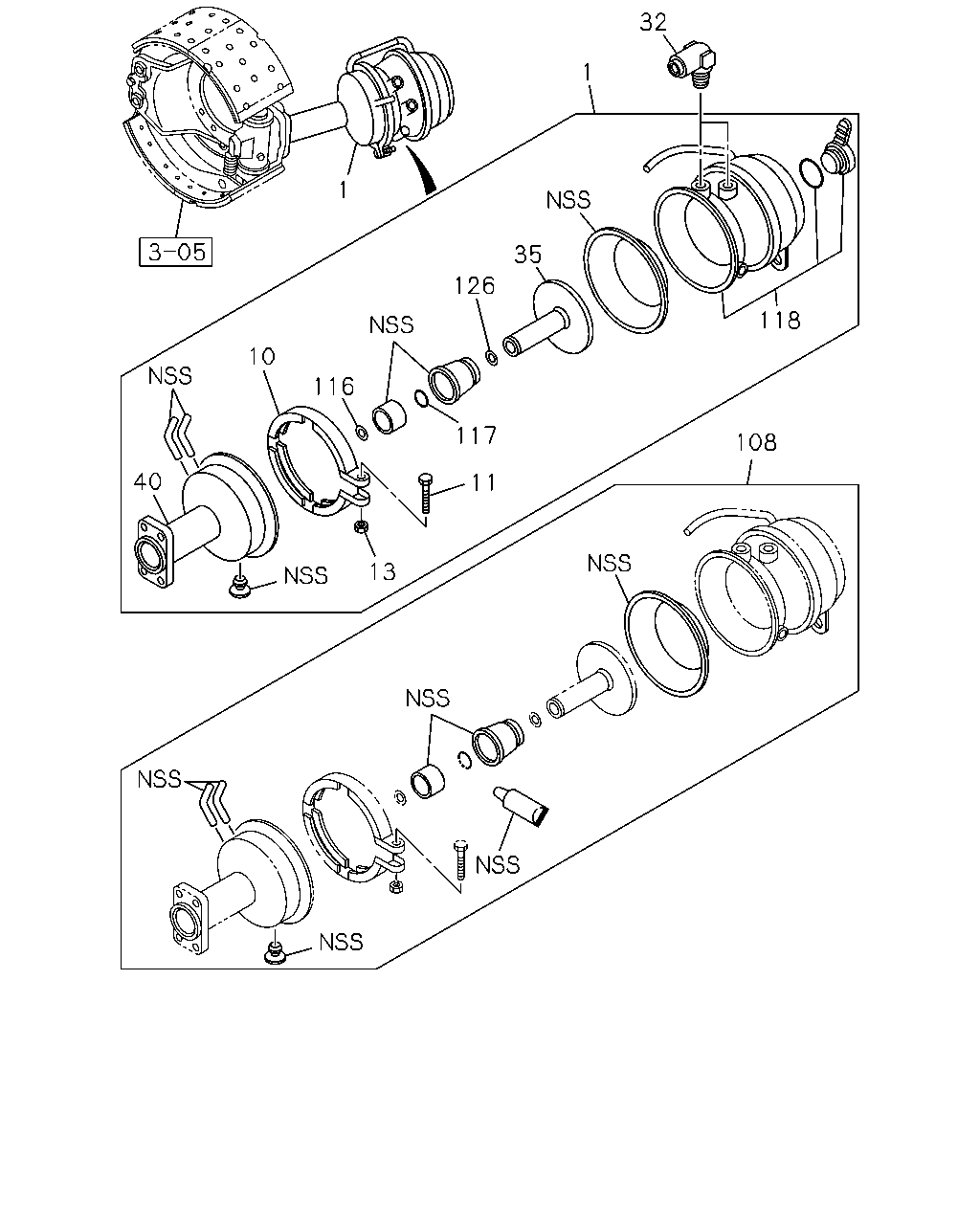

1 40 10 116 126 35 1 32 117 11 13 118 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1303-1511		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1512-	●	●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-256-0	02	1	1512-	●	●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-256-0	02	1	1512-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1303-1511		●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1303-1511		●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-150-0	02	1	1512-	●	●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-150-0	02	1	1512-	●	●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-257-0	02	1	1512-	●	●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-257-0	02	1	1512-	●	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1303-1511		●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1303-1511		●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-146-0	04	1	1512-	●	●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-146-0	04	1	1512-	●	●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-147-0	02	1	1512-	●	●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-147-0	02	1	1512-	●	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1303-1511		●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1303-1511		●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-147-0	04	1	1512-	●	●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-147-0	04	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER RUSSIA EQUIPMENT(B12) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER RUSSIA EQUIPMENT(B12) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1303-1511		●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1303-1511		●
32	CONNECTOR; SPR CHAMBER RUSSIA EQUIPMENT(B12) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-974-0	02	1	1512-	●	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-974-0	02	1	1512-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1303-1511		●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1303-1511		●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-975-0	02	1	1512-	●	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-975-0	02	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-48251-155-1	01	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-48251-155-1	01	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-48251-156-1	01	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-48251-156-1	01	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1303-1511		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1303-1511		●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1303-1511		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1303-1511		●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1512-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1512-	●	●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-982-0	02	1	1512-	●	●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-982-0	02	1	1512-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1303-1511		●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1303-1511		●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-983-0	02	1	1512-	●	●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-983-0	02	1	1512-	●	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1303-1511		●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1303-1511		●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1512-	●	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1512-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1303-1511		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1303-1511		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1512-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-115-0	01	1	1512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-115-0	01	1	1512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-116-0	01	1	1512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-116-0	01	1	1512-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1303-1511		●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1303-1511		●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1512-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1303-1511		●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1303-1511		●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1512-	●	●
126	SHIM	8-98146-965-0	AR	1	1303-1511		●
126	SHIM	8-98146-965-0	AR	1	1303-1511		●
126	SHIM	8-98146-965-0	AR	1	1512-	●	●
126	SHIM	8-98146-965-0	AR	1	1512-	●	●
