◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11534 - CYJ RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#115389) — 147 parça

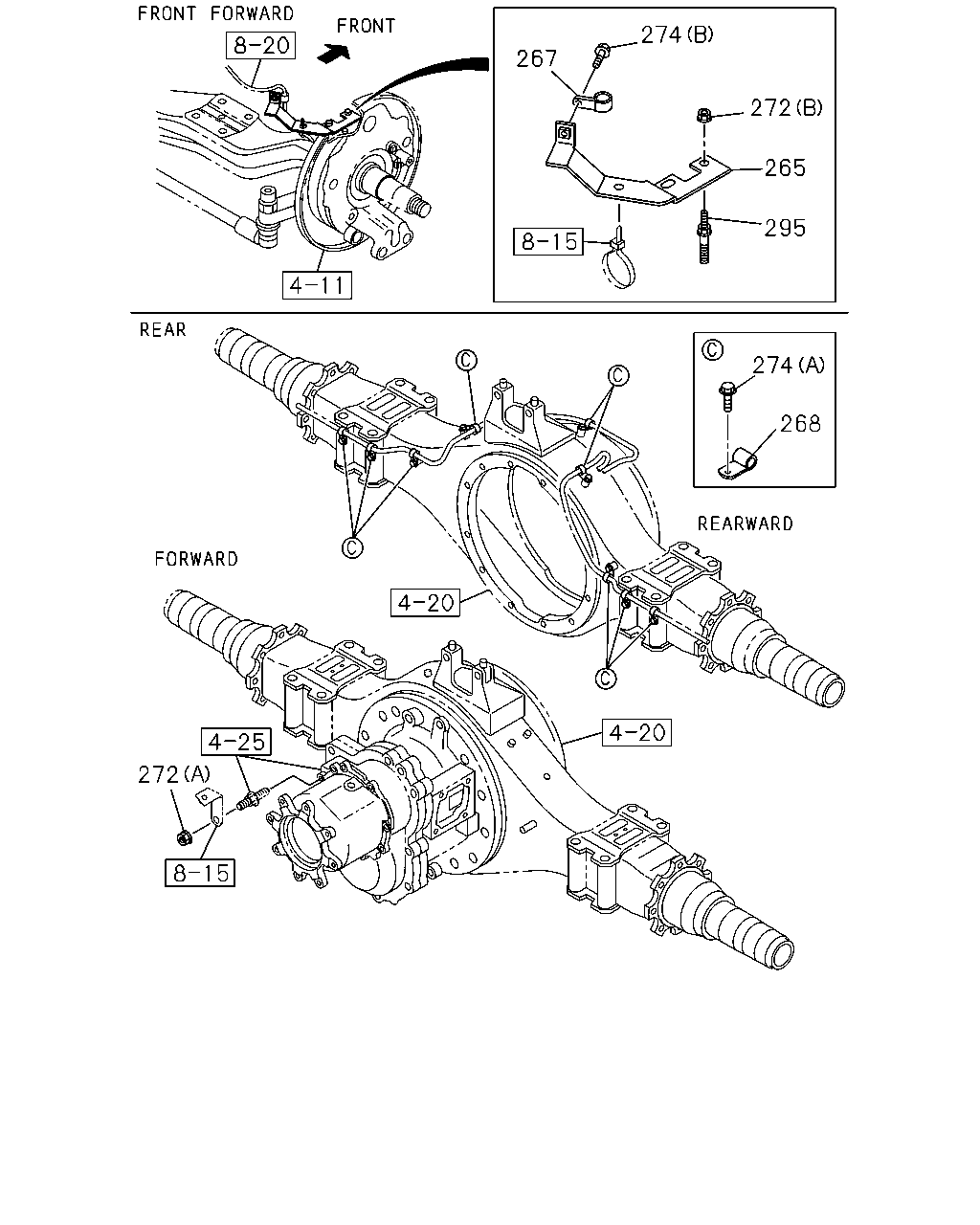

çizim 336408
267 274 272 265 295 274 268 272
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-426-0 01 1 1303-
265 BRACKET; CLIP I BEAM 1-82698-427-0 01 1 1303-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1303-
268 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 09 1 1303-
272 NUT; CLIP
(B) M10 FLANGE 		0-91180-110-0 04 1 1303-
272 NUT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 FLANGE 		0-91180-212-0 01 1 1303-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1303-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1303-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1303-

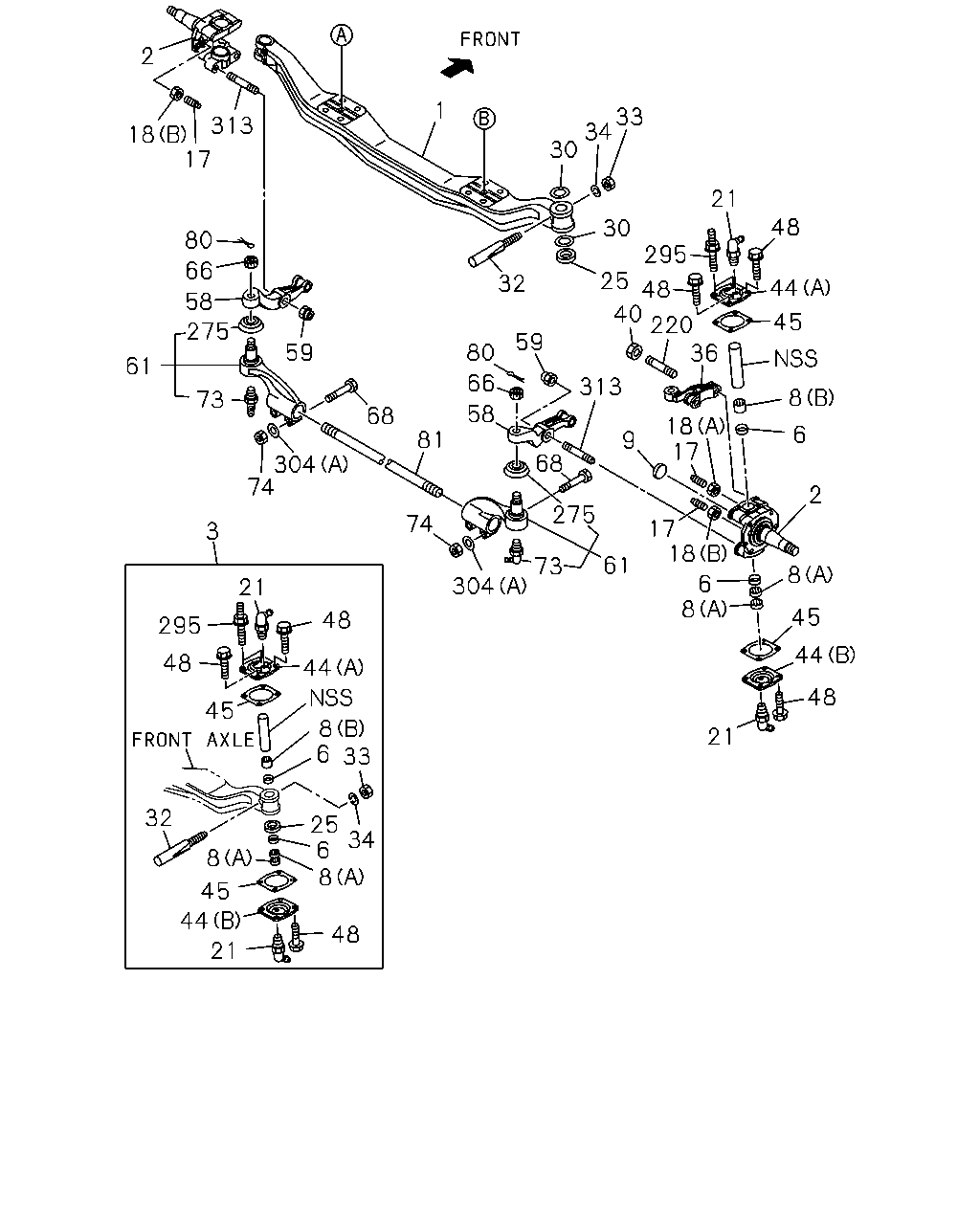

çizim 337094
33 34 30 1 313 17 18 2 80 66 58 275 61 73 59 304 68 74 3 21 32 80 59 66 313 68 74 81 304 73 275 61 17 18 6 8 8 45 44 48 21 2 6 8 45 44 48 21 295 25 48 220 40 30 9 18 17 48 295 48 44 8 6 33 25 34 6 8 8 32 45 44 21 48 45 36 58
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-177-4 01 1 1303-
1 AXLE; FRT 1-43111-177-4 01 1 1303-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1303-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1303-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1303-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1303-
3 KING PIN SET 1-87831-349-2 02 1 1303-
3 KING PIN SET 1-87831-349-2 02 1 1303-
6 SEAL; KING PIN 9-09926-024-0 04 1 1303-
6 SEAL; KING PIN 9-09926-024-0 04 1 1303-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1303-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1303-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1303-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1303-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1303-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 1303-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 1303-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 1303-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 1303-
18 NUT; STOPPER BOLT,KNUCKLE
(B) HEXAGON M18 		0-91110-518-0 02 1 1303-
18 NUT; STOPPER BOLT,KNUCKLE
(B) HEXAGON M18 		0-91110-518-0 02 1 1303-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1303-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1303-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1303-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1303-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1303-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1303-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1303-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1303-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1303-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1303-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1303-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1303-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1303-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1303-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1303-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1303-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1303-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1303-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1303-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1303-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1303-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1303-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1303-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1303-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1303-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 16 1 1303-
58 ARM; TIE ROD
FORWARD 		1-43134-049-4 01 1 1303-
58 ARM; TIE ROD
REARWARD 		1-43134-060-2 01 1 1303-
58 ARM; TIE ROD
FORWARD 		1-43135-049-4 01 1 1303-
58 ARM; TIE ROD
REARWARD 		1-43135-060-2 01 1 1303-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1303-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1303-
61 ROD END; TIE ROD 8-98096-753-0 01 1 1303-1306
61 ROD END; TIE ROD 8-98096-753-0 01 1 1303-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98096-754-0 01 1 1303-1306
61 ROD END; TIE ROD 8-98096-754-0 01 1 1303-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1303-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1303-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1303-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1303-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1303-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1303-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1303-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1303-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1303-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1303-
81 ROD; TIE 8-98105-064-0 01 1 1303-
81 ROD; TIE 8-98105-064-0 01 1 1303-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1303-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1303-
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1303-1306
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1303-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1303-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1303-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1303-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1303-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1303-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1303-

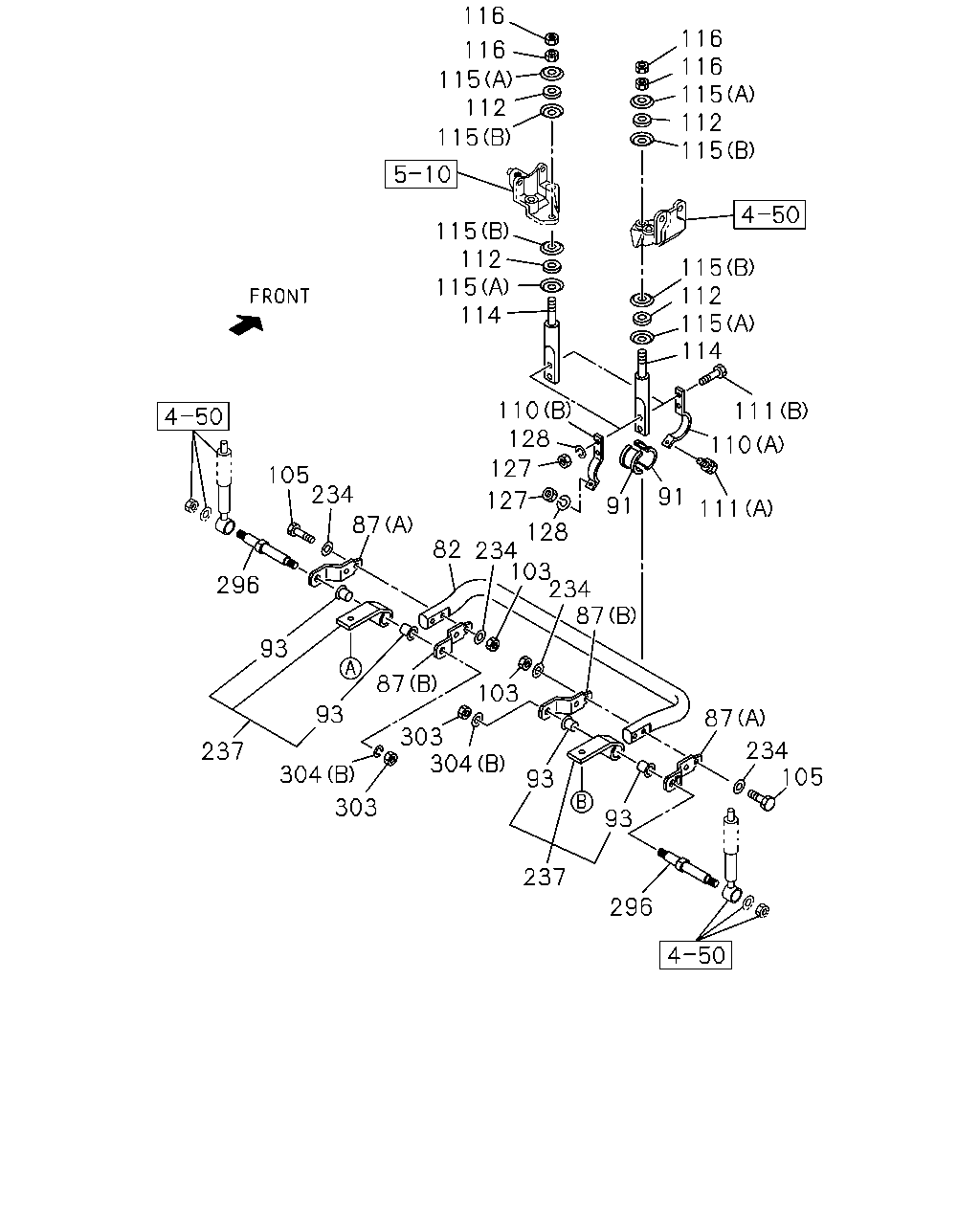

çizim 337155
296 237 93 105 234 87 93 304 303 304 237 93 303 103 87 93 296 87 234 103 234 82 87 234 105 111 91 91 128 127 127 128 110 110 111 114 115 112 115 114 115 112 115 115 112 115 116 116 116 116 115 112 115
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-134-1 01 1 1303-
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1303-
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1303-
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1303-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1303-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1303-
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1303-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1303-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1303-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1303-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1303-
112 BUSHING; ROD 9-51631-039-0 04 1 1303-
114 ROD; STAB BAR 1-51773-072-2 02 1 1303-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 1303-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 1303-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1303-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1303-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1303-
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1303-
237 SUPPORT; STAB BAR 1-51681-842-0 02 1 1303-
296 PIN; STAB 8-98022-874-1 02 1 1303-
303 NUT; PIN
M20 		0-91110-520-0 02 1 1303-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1303-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1303-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1303-
