Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#115385) — 17 parça
◀

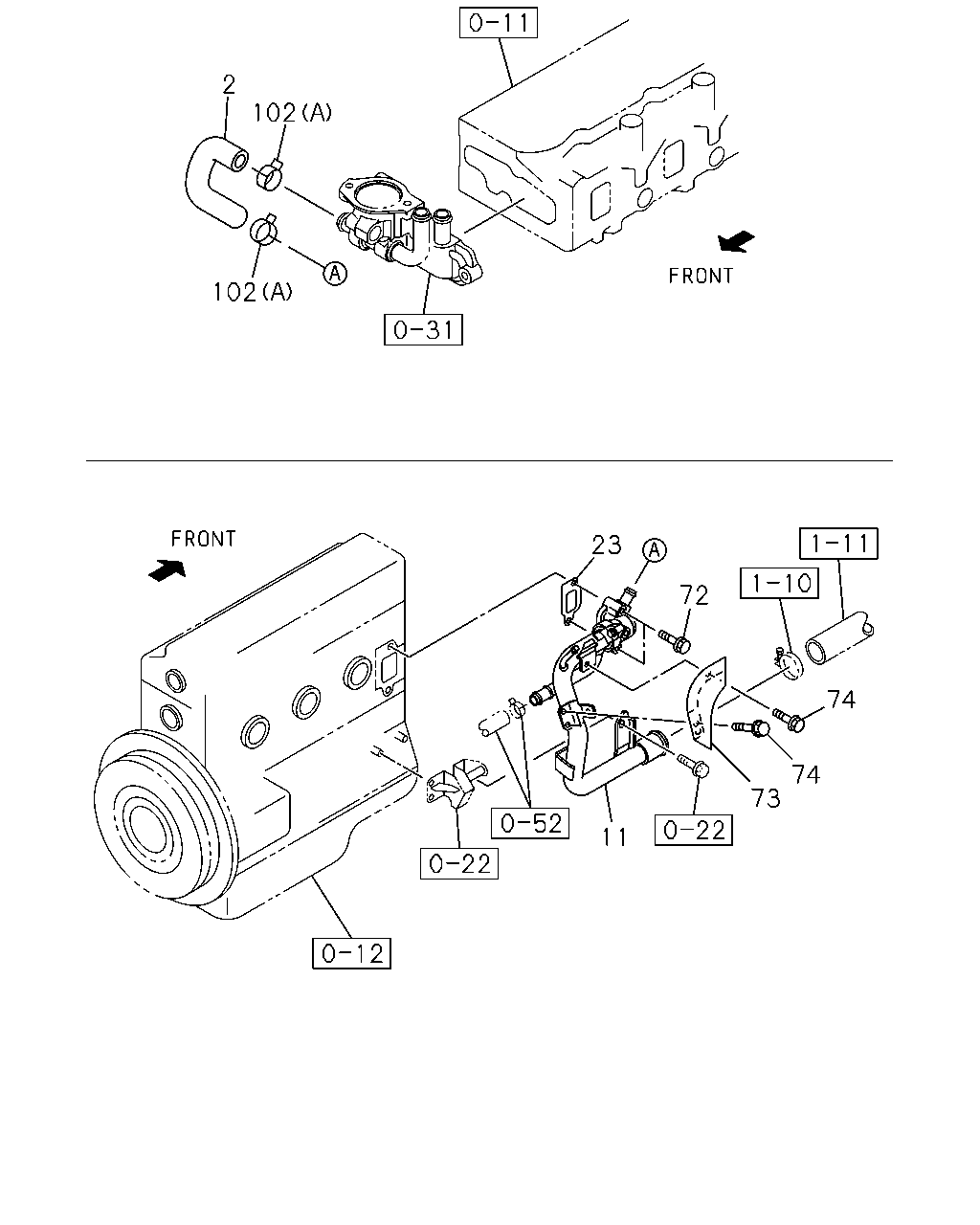

[032A] NO.1 (9 parça)
[032A] NO.2 (8 parça)
▶
102
2
102
23
72
74
74
73
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
01.097 HOSE; WATER,BY-PASS
8-98214-089-0
01
1
1302-
11
01.097 PIPE; INL,WATER PUMP
8-98208-925-0
01
1
1302-
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1302-
72
00.206 BOLT; WATER PIPE
M8X50 W/LK WASHER
0-50540-850-0
02
1
1302-
73
01.097 PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
1302-1403
73
01.097 PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1404-
74
01.097 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
1302-
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1302-
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1302-
37
97
155
102
11
102
102
155
37
102
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
01.097 PIPE; INL,WATER PUMP
8-98208-925-0
01
1
1302-
37
01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=20.0
8-98113-762-0
02
1
1302-
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1302-1503
97
04.866 BOLT; WATER PIPE
06.308 M6X14 FLANGE
8-97136-157-0
02
1
1504-
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1302-
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1302-
155
01.153 PIPE ASM; WATER
(A)
8-98214-061-1
01
1
1302-
155
01.153 PIPE ASM; WATER
(B)
8-98214-062-1
01
1
1302-
