◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11534 - CYJ RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#115382) — 54 parça

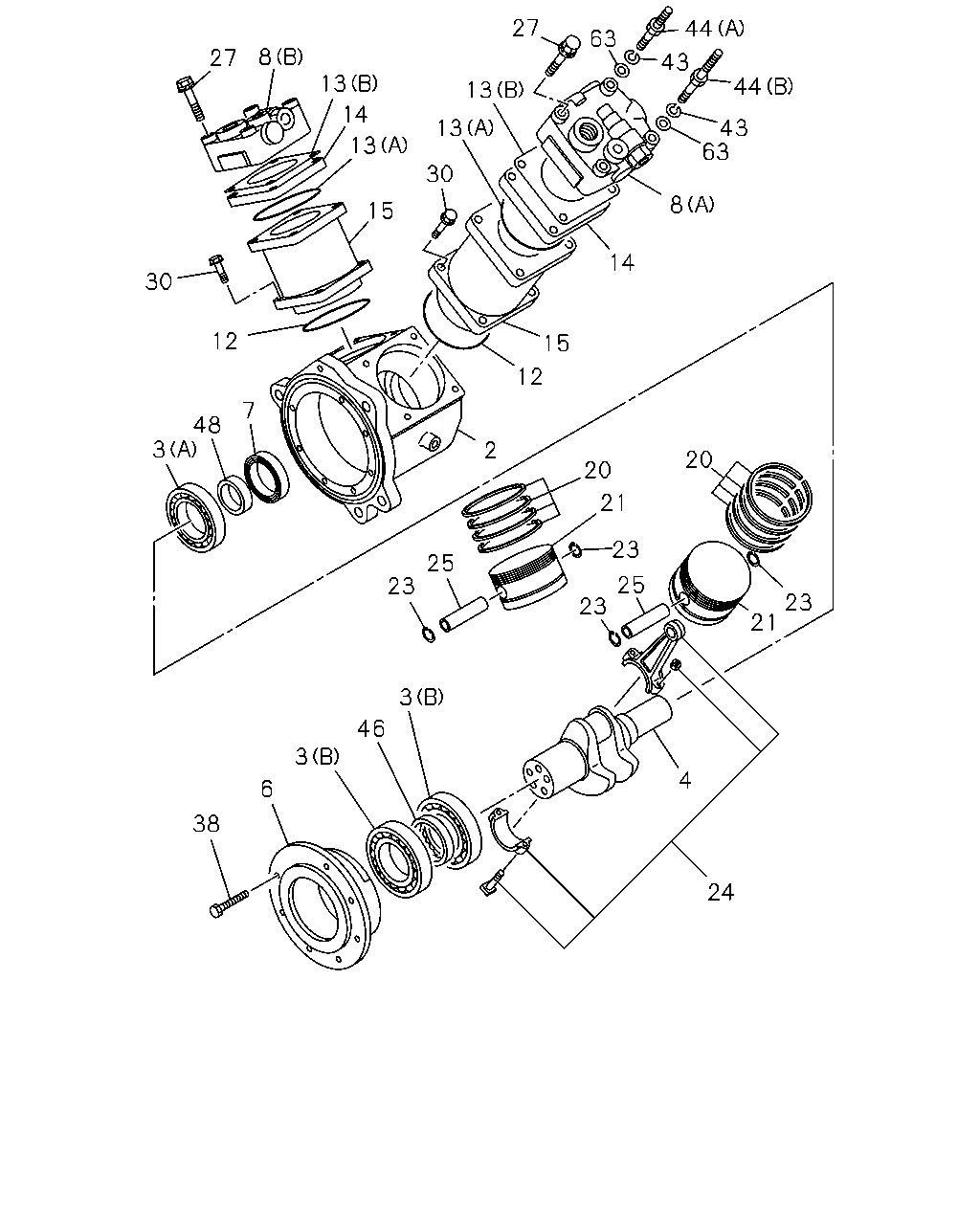

çizim 337175
27 44 63 44 43 43 63 13 13 30 8 14 15 15 13 14 13 8 27 30 12 7 48 3 12 2 20 23 21 20 23 21 25 23 4 24 25 23 3 46 3 6 38
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 1303-
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 1303-
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 1303-1406
4 CRANKSHAFT; AIR CMPR 1-19171-088-0 01 1 1303-1406
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 1303-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 1303-
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 1303-
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 1303-
12 GASKET; AIR CMPR 8-98192-459-0 02 1 1303-
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 1303-
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 02 1 1303-
14 PLATE; AIR CMPR 8-98208-785-0 02 1 1303-
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 1303-
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 1303-
21 PISTON; AIR CMPR 1-19161-026-0 02 1 1303-
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1303-
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 1303-
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 1303-
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1303-
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 1303-
38 BOLT; COVER FIX 1-19159-016-0 07 1 1303-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 1303-
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 1303-
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 1303-
46 SPACER; BRG 1-19179-016-0 01 1 1303-
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 1303-
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 1303-

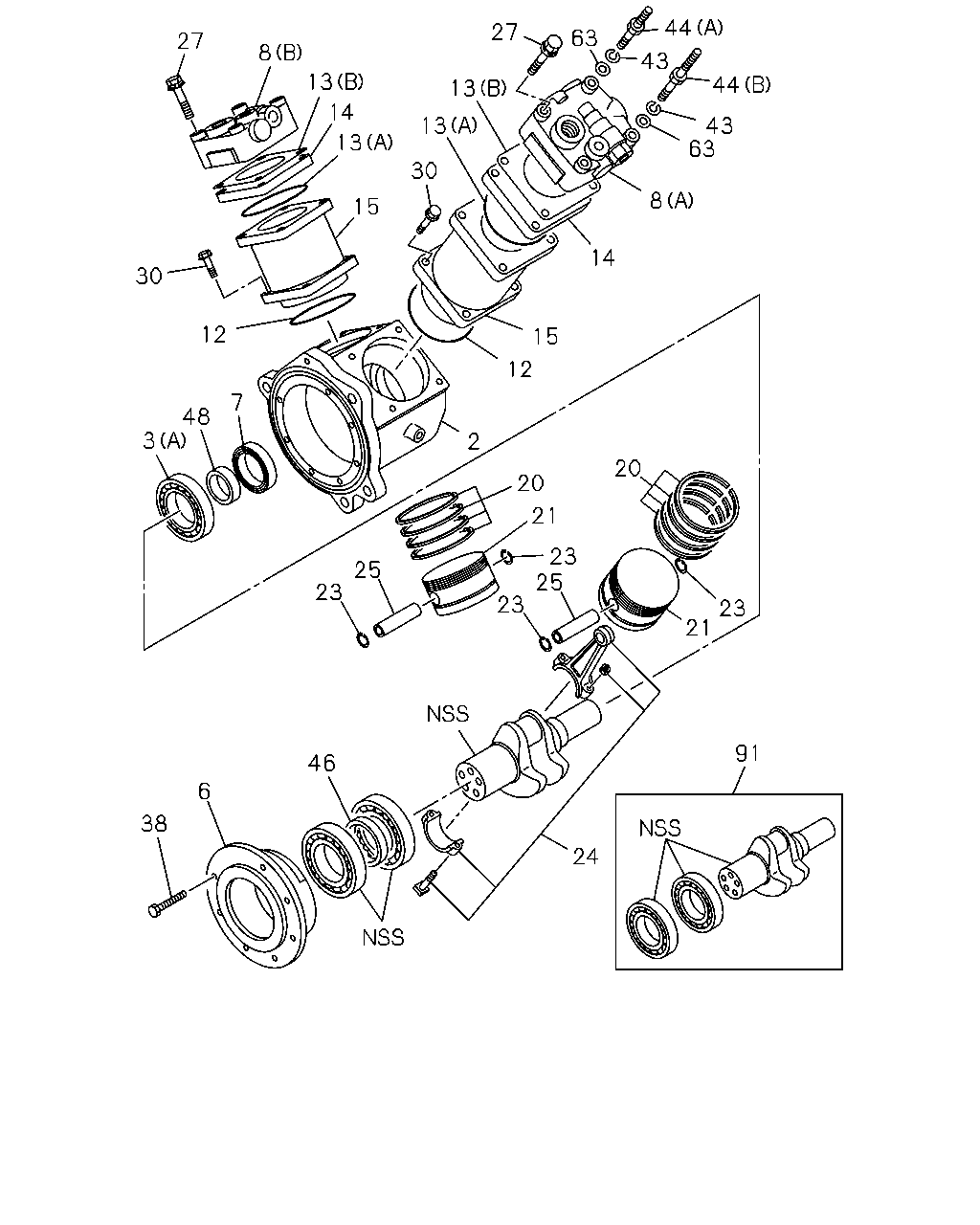

çizim 448984
27 27 8 13 14 13 15 30 12 48 7 3 30 13 13 63 44 43 44 43 63 8 14 15 12 2 20 20 21 23 25 23 25 23 21 23 91 24 46 6 38
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 1303-
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 1303-
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 1303-1406
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 1303-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 1303-
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 1303-
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 1303-
12 GASKET; AIR CMPR 8-98192-459-0 02 1 1303-
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 1303-
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 02 1 1303-
14 PLATE; AIR CMPR 8-98208-785-0 02 1 1303-
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 1303-
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 1303-
21 PISTON; AIR CMPR 1-19161-026-0 02 1 1303-
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1303-
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 1303-
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 1303-
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1303-
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 1303-
38 BOLT; COVER FIX 1-19159-016-0 07 1 1303-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 1303-
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 1303-
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 1303-
46 SPACER; BRG 1-19179-016-0 01 1 1303-
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 1303-
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 1303-
91 SHAFT KIT; CRANK 8-98277-387-0 01 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
