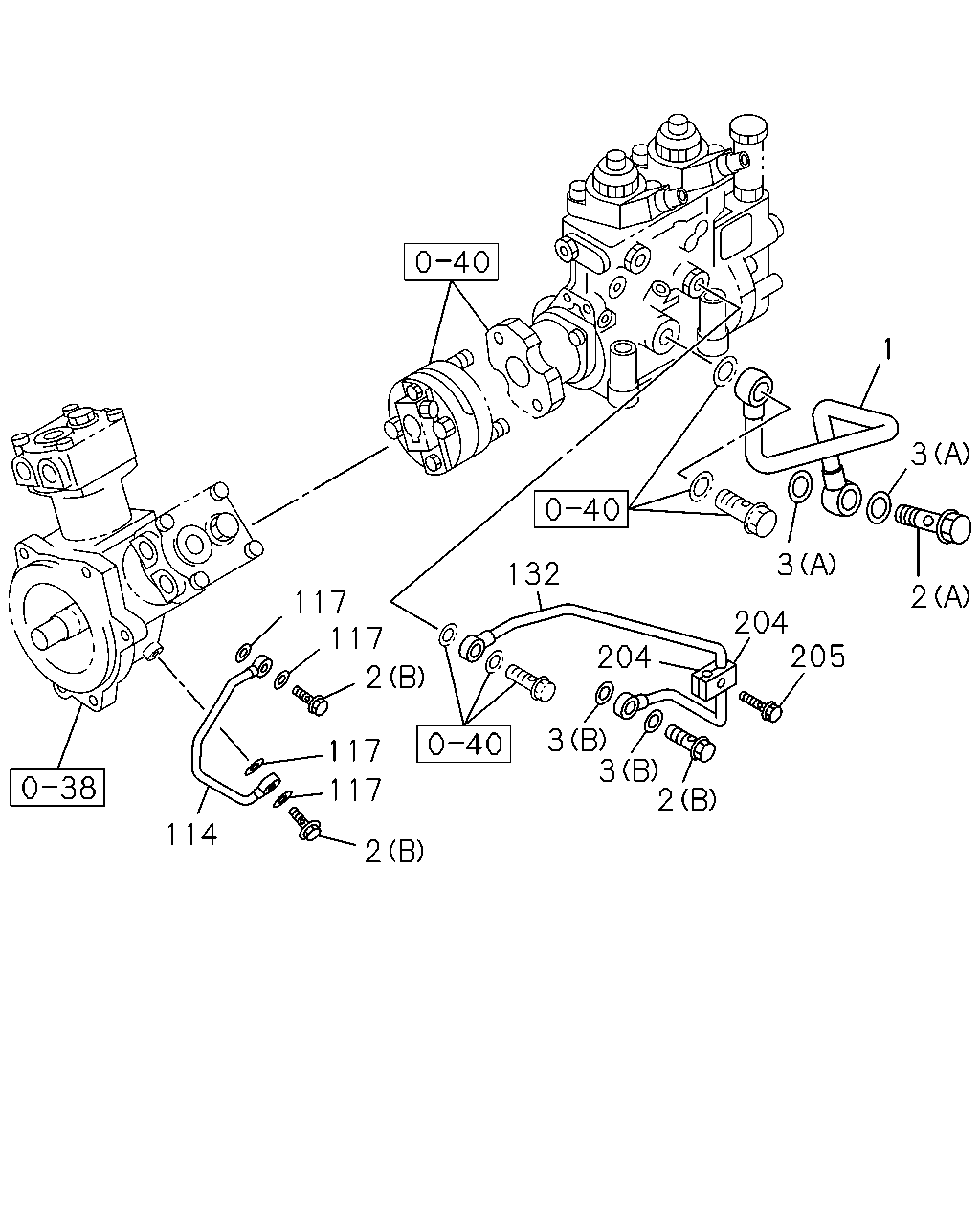

0-52 — OIL AND VACUUM PIPING; ENGINE (#115376) — 71 parça

117 117 2 117 117 114 2 132 204 3 3 2 204 205 3 3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	8-97610-911-0	01	1	1303-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	01	1	1512-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1303-1511
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1512-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1512-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	03	1	1303-
2	BOLT; EYE,OIL PIPE (C) M12X28	8-97388-295-0	01	1	1303-
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1303-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	1303-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	1303-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1303-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	9-09571-412-0	02	1	1303-
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	1303-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	1303-
132	PIPE ASM; OIL,INJ PUMP FEED	8-97610-910-1	01	1	1303-
204	CLIP; OIL PIPE	1-09701-240-0	02	1	1303-
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1303-

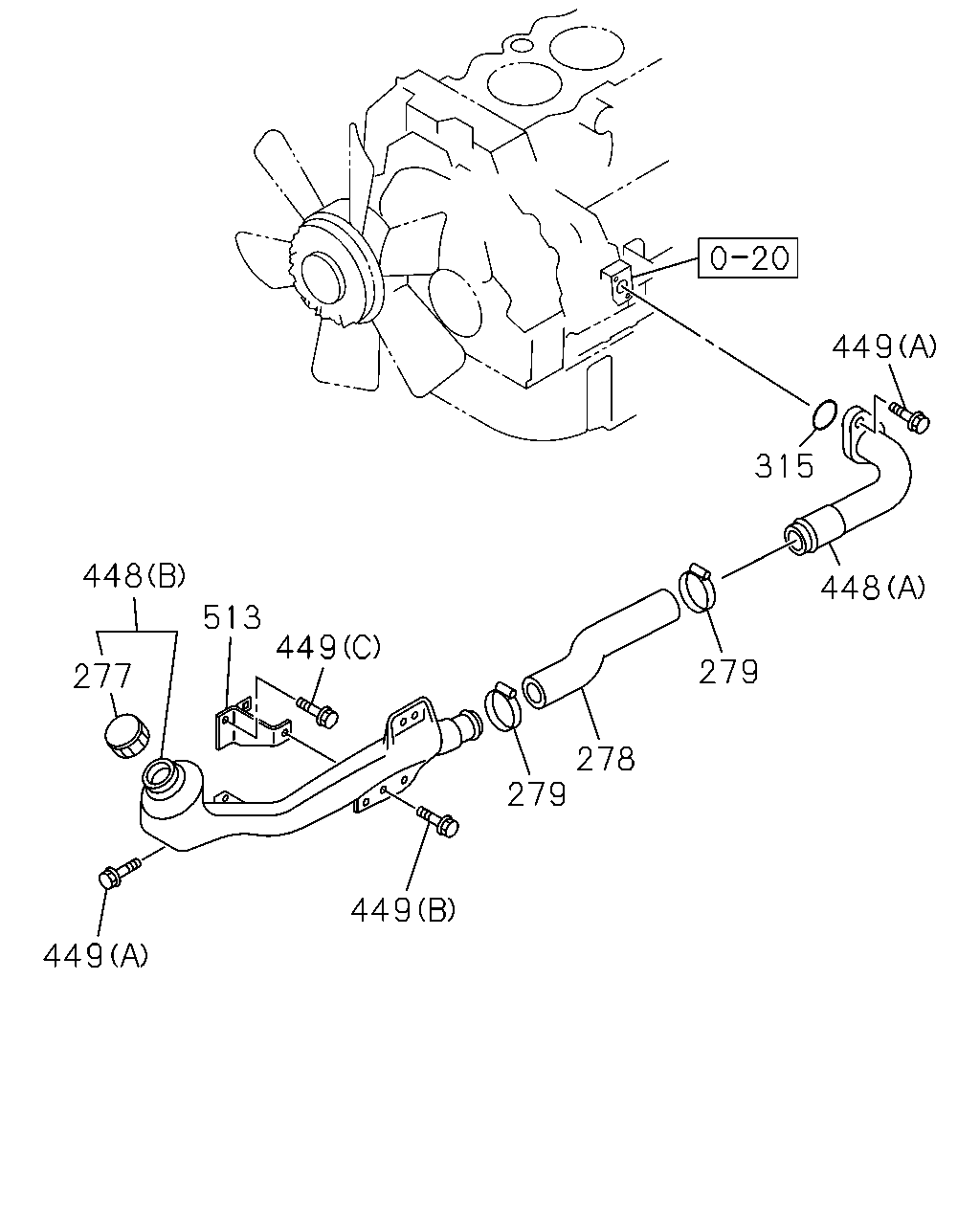

448 277 449 449 279 278 279 448 449 315 449 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
277	CAP; OIL FILLER	8-97629-367-0	01	1	1303-
278	HOSE; RUBBER,OIL FILLER	8-97631-599-0	01	1	1303-
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	1303-
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	1303-
448	FILLER; OIL (A)	1-11740-227-2	01	1	1303-
448	FILLER; OIL (B)	8-97634-069-1	01	1	1303-
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-
449	BOLT; OIL FILLER (B) M8X20 FLANGE	0-28650-820-0	02	1	1303-
449	BOLT; OIL FILLER (C) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1303-
513	BRACKET; OIL FILLER	8-98210-104-0	01	1	1303-

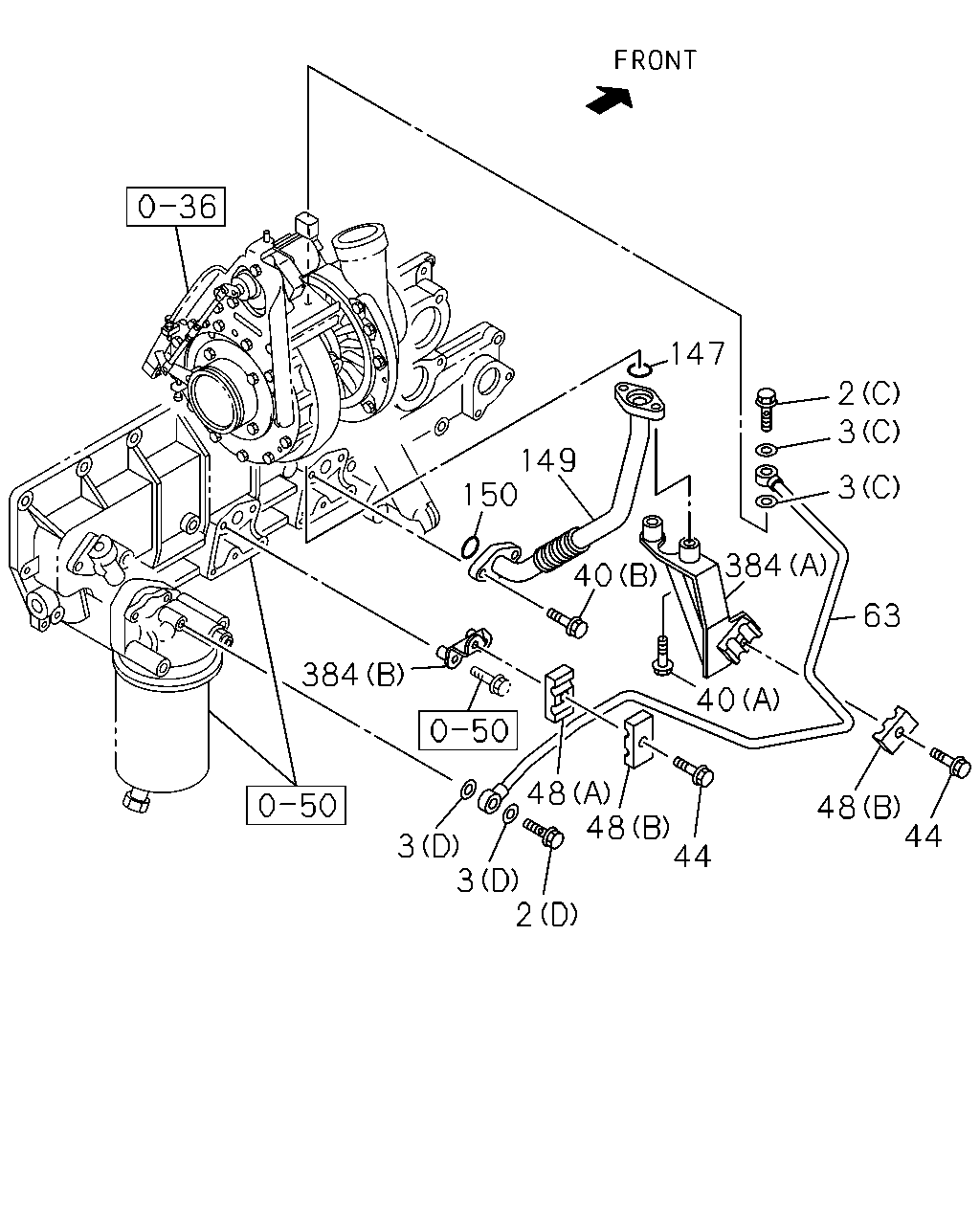

147 149 150 384 40 384 40 3 3 2 48 48 44 48 44 2 3 3 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	01	1	1512-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1303-1511
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1512-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1512-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	03	1	1303-
2	BOLT; EYE,OIL PIPE (C) M12X28	8-97388-295-0	01	1	1303-
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1303-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	1303-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	1303-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1303-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	9-09571-412-0	02	1	1303-
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	1303-
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	1303-
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28050-635-0	02	1	1303-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	02	1	1512-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (D) ID=5.5 L=10.5	8-98029-953-1	02	1	1512-
48	CLIP; OIL PIPE (A) ID=7 & 11 L=28	1-09701-231-1	01	1	1303-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1303-
63	PIPE; OIL,TURBOCHARGER FEED	8-97609-509-0	01	1	1303-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	1303-
149	PIPE; OIL RETURN,TURBOCHARGER	1-13314-024-1	01	1	1303-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	1303-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-216-0	01	1	1303-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-225-1	01	1	1303-

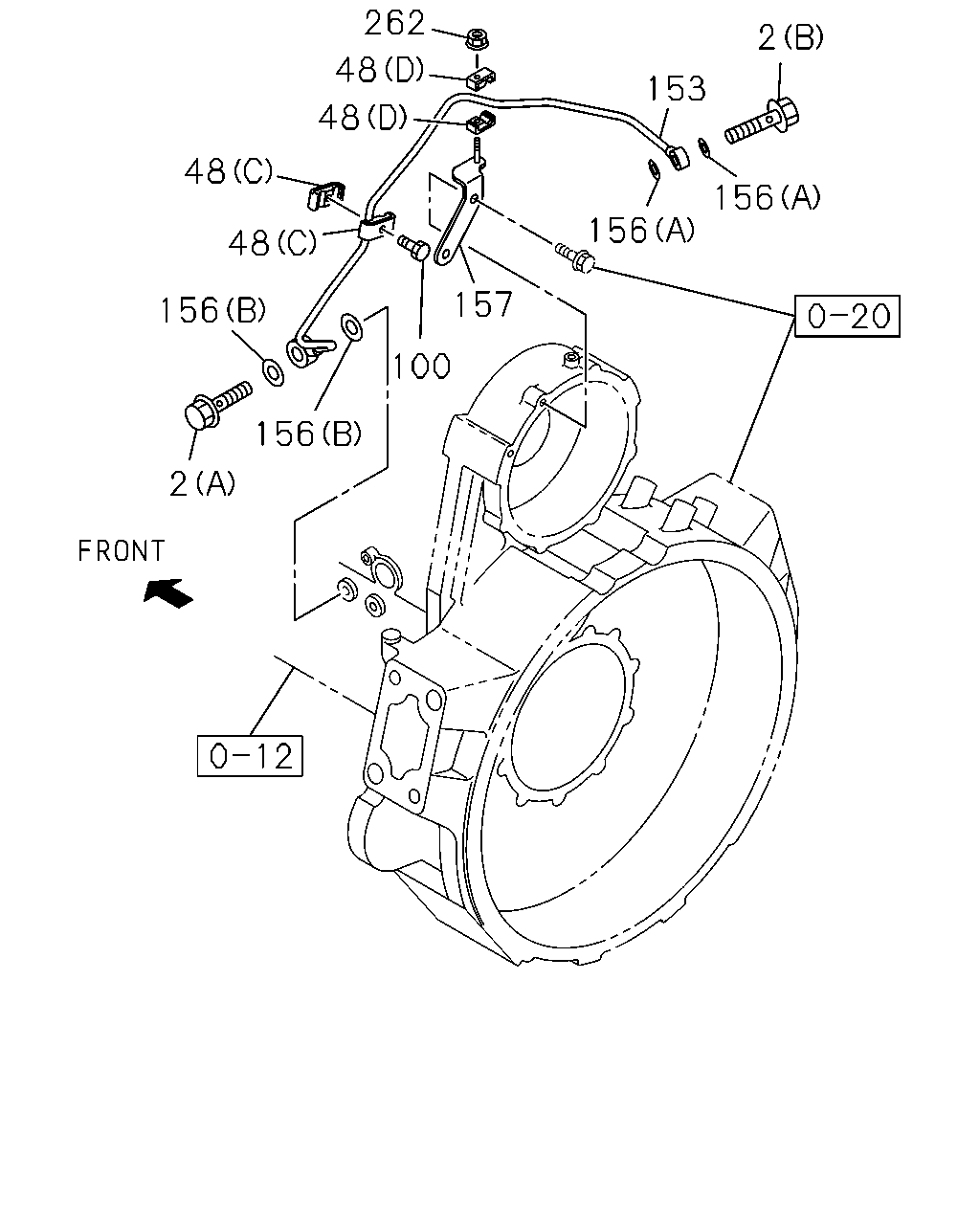

262 48 48 48 48 156 2 156 100 157 156 156 2 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	01	1	1512-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1303-1511
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1512-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1512-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	03	1	1303-
2	BOLT; EYE,OIL PIPE (C) M12X28	8-97388-295-0	01	1	1303-
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1303-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	02	1	1512-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (D) ID=5.5 L=10.5	8-98029-953-1	02	1	1512-
48	CLIP; OIL PIPE (A) ID=7 & 11 L=28	1-09701-231-1	01	1	1303-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1303-
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	01	1	1512-
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-97611-055-0	01	1	1512-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1512-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1512-
157	BRACKET; OIL PIPE ENGINE REAR PTO(SV1)	8-97621-112-0	01	1	1512-
262	NUT; CLIP,OIL PIPE ENGINE REAR PTO(SV1) M6 FLANGE	0-91180-106-0	01	1	1512-
