0-66 — GENERATOR (#115369) — 150 parça

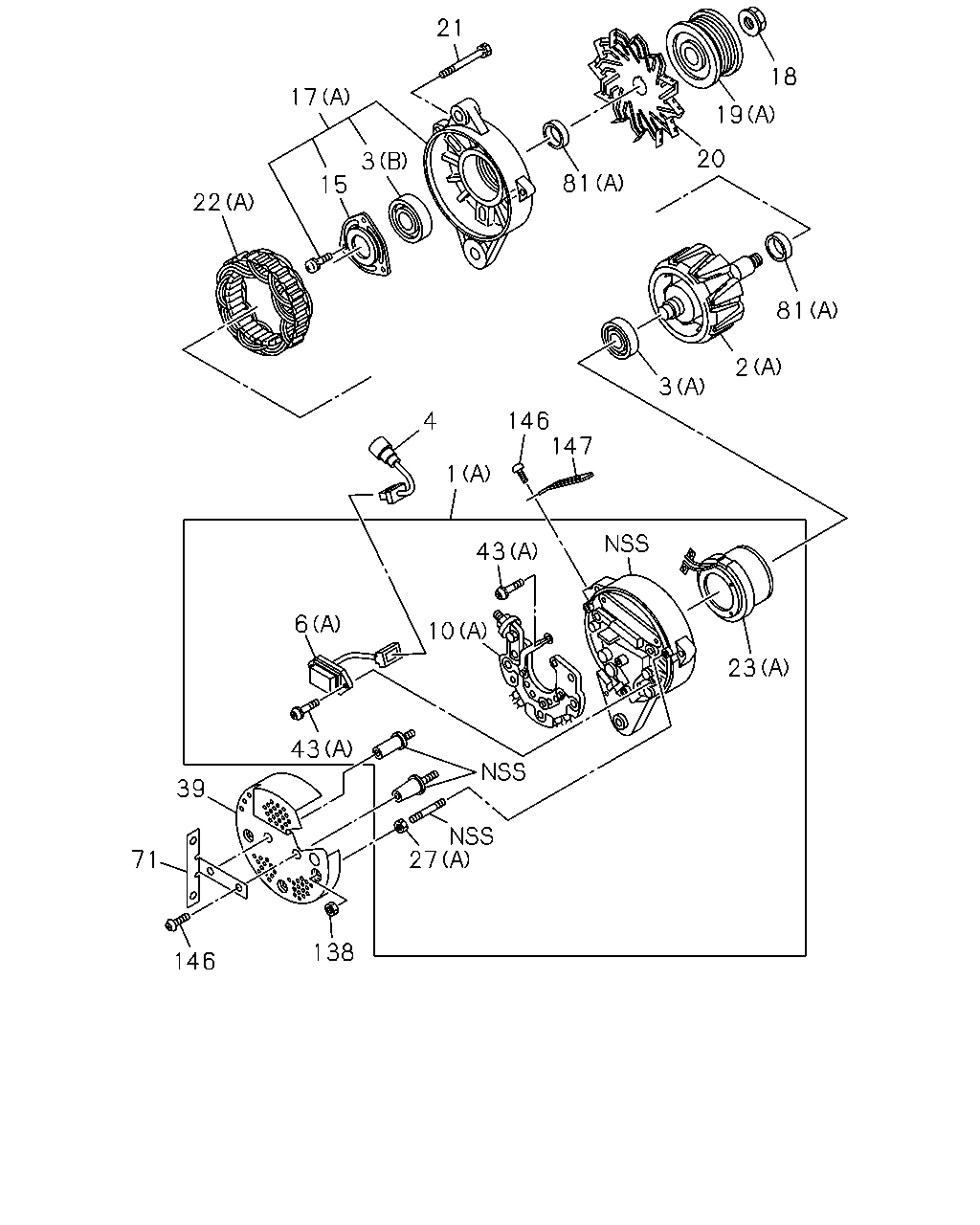

23 43 146 1 4 147 10 6 43 27 138 146 71 39 22 17 15 3 21 81 20 19 18 3 2 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN (B) ASM PART: A = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN (C) ASM PART: B = 8-98127-496-0	8-98140-797-0	01	1	-
1	COVER ASM; RR,GEN (A) ASM PART: C = 8-98201-083-3	8-98181-100-1	01	1	-
2	ROTOR; GEN (B) ASM PART: A = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN (C) ASM PART: B = 8-98127-496-0	1-81221-106-0	01	1	-
2	ROTOR; GEN (A) ASM PART: C = 8-98201-083-3	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-98201-083-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-98201-083-3	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-816-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: C = 8-98201-083-3	8-98181-104-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-98201-083-3	8-98040-688-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: A = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: B = 8-98127-496-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 8-98127-496-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (D) ASM PART: B = 8-98127-496-0	8-98047-084-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 8-98201-083-3	8-98181-102-0	01	1	-1511
10	RECTIFIER; GEN (A) ASM PART: C = 8-98201-083-3	8-98335-685-0	01	1	1512-
15	RETAINER; ROTOR,GEN ASM PART: C = 8-98201-083-3	1-81229-760-1	01	1	-
17	COVER ASM; FRT,GEN (C) ASM PART: B = 8-98127-496-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN (B) ASM PART: A = 8-98127-495-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN (A) ASM PART: C = 8-98201-083-3	8-97382-872-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: C = 8-98201-083-3	8-98040-643-0	01	1	-
19	PULLEY; GEN (B) ASM PART: A = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN (C) ASM PART: B = 8-98127-496-0	1-81222-149-3	01	1	-
19	PULLEY; GEN (A) ASM PART: C = 8-98201-083-3	8-98181-099-0	01	1	-
20	FAN; GEN ASM PART: C = 8-98201-083-3	8-97382-874-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-98201-083-3	1-81229-382-0	03	1	-
22	STATOR; GEN (C) ASM PART: B = 8-98127-496-0	1-81211-132-1	01	1	-
22	STATOR; GEN (B) ASM PART: A = 8-98127-495-0	1-81211-135-0	01	1	-
22	STATOR; GEN (A) ASM PART: C = 8-98201-083-3	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN (C) ASM PART: B = 8-98127-496-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN (B) ASM PART: A = 8-98127-495-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN (A) ASM PART: C = 8-98201-083-3	8-98040-645-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: C = 8-98201-083-3	8-98040-687-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: C = 8-98201-083-3	8-98181-103-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: C = 8-98201-083-3	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-817-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: C = 8-98201-083-3	8-98203-925-0	01	1	-
81	SPACER; ROTOR,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN (A) ASM PART: C = 8-98201-083-3	8-97382-870-0	02	1	-
138	NUT; COVER,GENERATOR ASM PART: C = 8-98201-083-3	8-98040-690-0	03	1	-
146	SCREW; HOLDER ASM PART: C = 8-98201-083-3	1-81229-469-0	03	1	-
147	CLIP; GEN ASM PART: C = 8-98201-083-3	8-98212-483-0	01	1	-

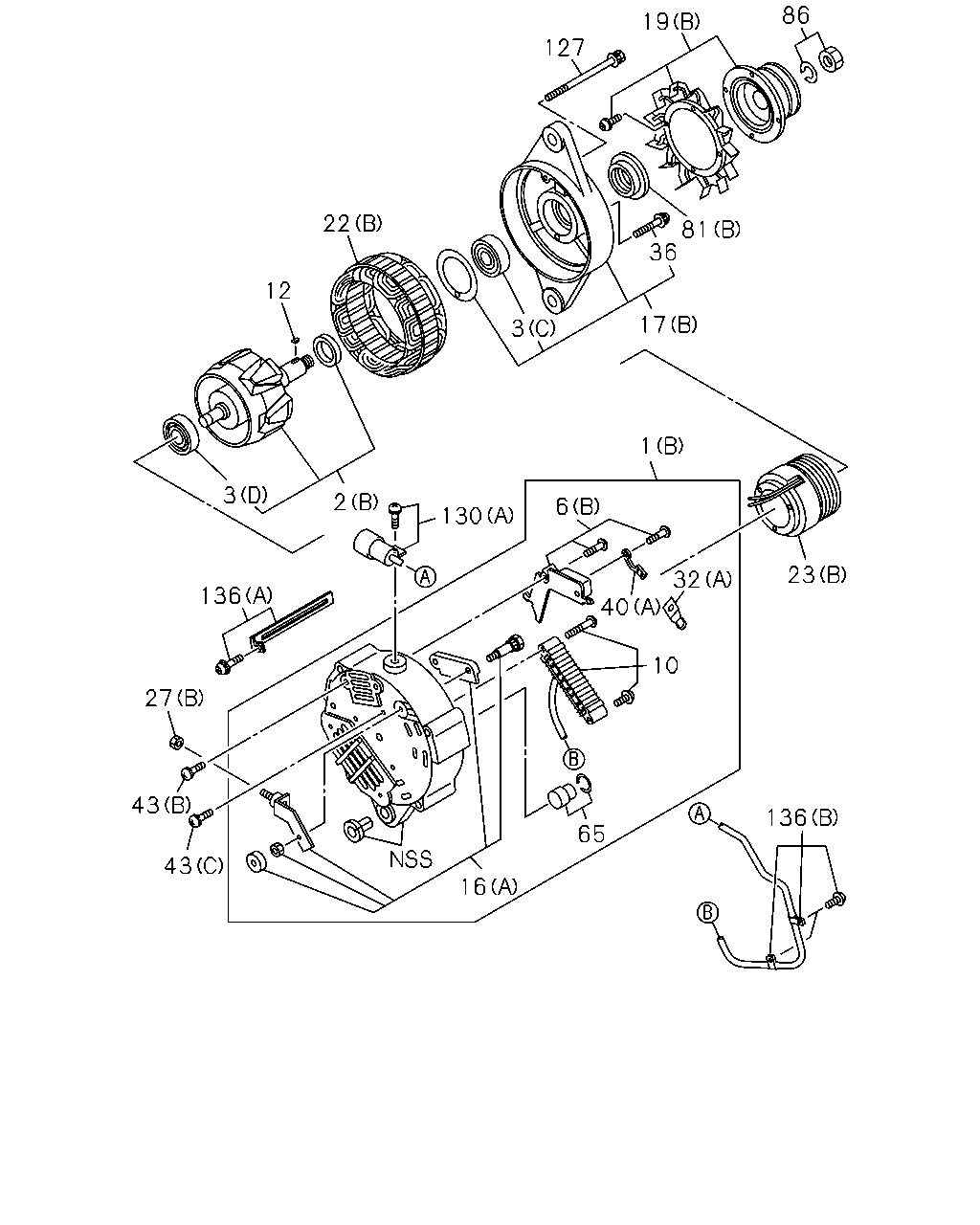

86 19 127 81 36 17 3 22 12 3 136 27 43 43 130 2 1 6 40 10 32 23 136 65 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN (B) ASM PART: A = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN (C) ASM PART: B = 8-98127-496-0	8-98140-797-0	01	1	-
1	COVER ASM; RR,GEN (A) ASM PART: C = 8-98201-083-3	8-98181-100-1	01	1	-
2	ROTOR; GEN (B) ASM PART: A = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN (C) ASM PART: B = 8-98127-496-0	1-81221-106-0	01	1	-
2	ROTOR; GEN (A) ASM PART: C = 8-98201-083-3	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-98201-083-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-98201-083-3	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-98201-083-3	8-98040-688-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: A = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: B = 8-98127-496-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 8-98127-496-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (D) ASM PART: B = 8-98127-496-0	8-98047-084-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 8-98201-083-3	8-98181-102-0	01	1	-1511
10	RECTIFIER; GEN (A) ASM PART: C = 8-98201-083-3	8-98335-685-0	01	1	1512-
12	KEY; ROTOR,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN (B) ASM PART: B = 8-98127-496-0	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN (A) ASM PART: A = 8-98127-495-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN (C) ASM PART: B = 8-98127-496-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN (B) ASM PART: A = 8-98127-495-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN (A) ASM PART: C = 8-98201-083-3	8-97382-872-0	01	1	-
19	PULLEY; GEN (B) ASM PART: A = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN (C) ASM PART: B = 8-98127-496-0	1-81222-149-3	01	1	-
19	PULLEY; GEN (A) ASM PART: C = 8-98201-083-3	8-98181-099-0	01	1	-
22	STATOR; GEN (C) ASM PART: B = 8-98127-496-0	1-81211-132-1	01	1	-
22	STATOR; GEN (B) ASM PART: A = 8-98127-495-0	1-81211-135-0	01	1	-
22	STATOR; GEN (A) ASM PART: C = 8-98201-083-3	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN (C) ASM PART: B = 8-98127-496-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN (B) ASM PART: A = 8-98127-495-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN (A) ASM PART: C = 8-98201-083-3	8-98040-645-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: C = 8-98201-083-3	8-98040-687-0	01	1	-
32	TERMINAL; RECTIFIER,GEN (A) ASM PART: A = 8-98127-495-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN (B) ASM PART: B = 8-98127-496-0	8-98047-089-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER (B) ASM PART: B = 8-98127-496-0	1-81222-163-0	01	1	-
40	PLATE; RR COVER (A) ASM PART: A = 8-98127-495-0	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (A) ASM PART: C = 8-98201-083-3	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-817-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-98127-495-0	1-84132-016-0	01	1	-
81	SPACER; ROTOR,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN (A) ASM PART: C = 8-98201-083-3	8-97382-870-0	02	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN (B) ASM PART: B = 8-98127-496-0	1-81229-892-0	01	1	-
130	CONNECTOR; GEN (A) ASM PART: A = 8-98127-495-0	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-495-0	1-81229-897-0	01	1	-

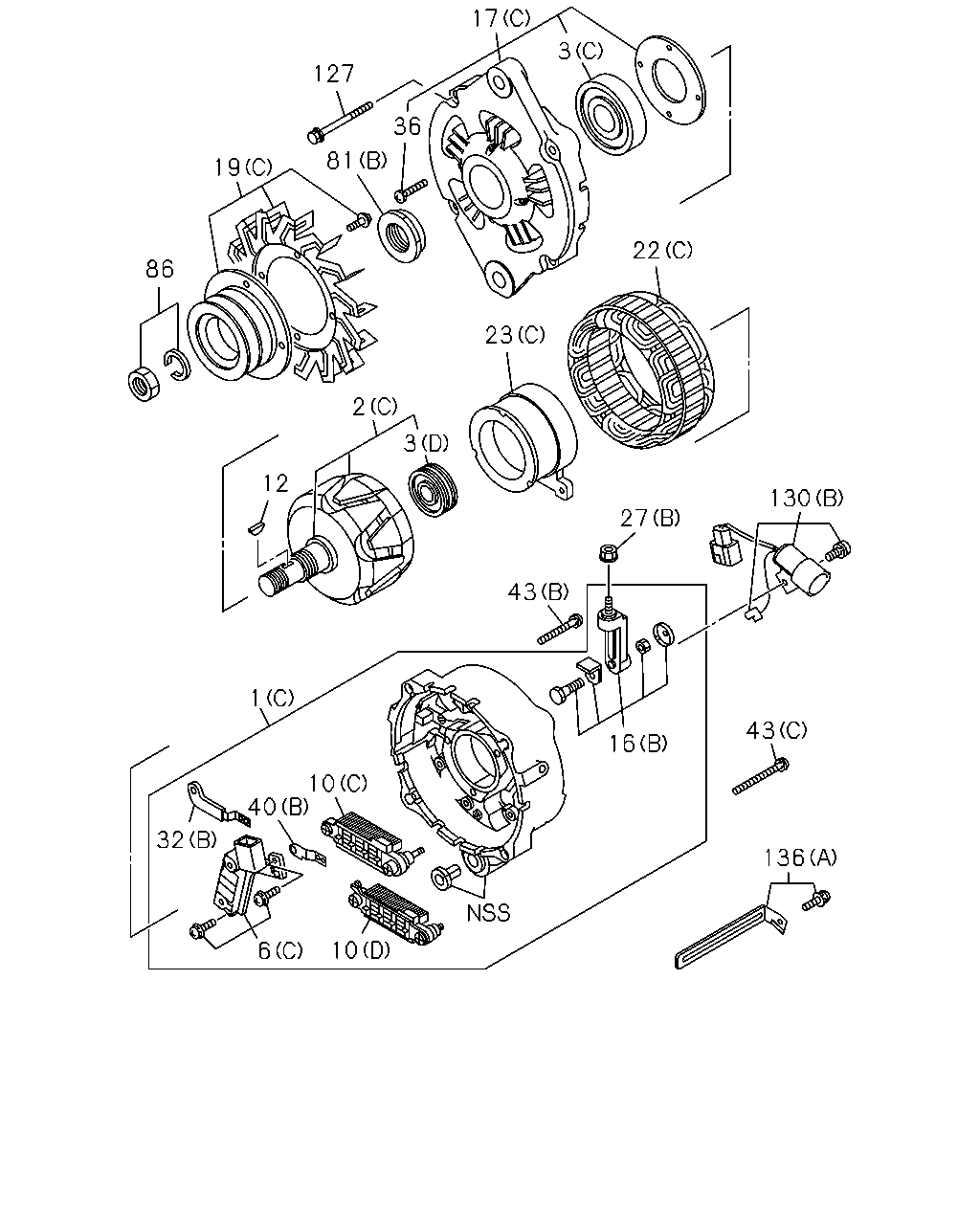

17 127 36 3 22 23 2 12 3 81 19 86 27 43 130 43 136 16 10 6 40 1 10 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN (B) ASM PART: A = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN (C) ASM PART: B = 8-98127-496-0	8-98140-797-0	01	1	-
1	COVER ASM; RR,GEN (A) ASM PART: C = 8-98201-083-3	8-98181-100-1	01	1	-
2	ROTOR; GEN (B) ASM PART: A = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN (C) ASM PART: B = 8-98127-496-0	1-81221-106-0	01	1	-
2	ROTOR; GEN (A) ASM PART: C = 8-98201-083-3	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-98201-083-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-98201-083-3	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-98201-083-3	8-98040-688-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: A = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: B = 8-98127-496-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 8-98127-496-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (D) ASM PART: B = 8-98127-496-0	8-98047-084-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 8-98201-083-3	8-98181-102-0	01	1	-1511
10	RECTIFIER; GEN (A) ASM PART: C = 8-98201-083-3	8-98335-685-0	01	1	1512-
12	KEY; ROTOR,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN (B) ASM PART: B = 8-98127-496-0	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN (A) ASM PART: A = 8-98127-495-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN (C) ASM PART: B = 8-98127-496-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN (B) ASM PART: A = 8-98127-495-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN (A) ASM PART: C = 8-98201-083-3	8-97382-872-0	01	1	-
19	PULLEY; GEN (B) ASM PART: A = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN (C) ASM PART: B = 8-98127-496-0	1-81222-149-3	01	1	-
19	PULLEY; GEN (A) ASM PART: C = 8-98201-083-3	8-98181-099-0	01	1	-
22	STATOR; GEN (C) ASM PART: B = 8-98127-496-0	1-81211-132-1	01	1	-
22	STATOR; GEN (B) ASM PART: A = 8-98127-495-0	1-81211-135-0	01	1	-
22	STATOR; GEN (A) ASM PART: C = 8-98201-083-3	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN (C) ASM PART: B = 8-98127-496-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN (B) ASM PART: A = 8-98127-495-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN (A) ASM PART: C = 8-98201-083-3	8-98040-645-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: C = 8-98201-083-3	8-98040-687-0	01	1	-
32	TERMINAL; RECTIFIER,GEN (A) ASM PART: A = 8-98127-495-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN (B) ASM PART: B = 8-98127-496-0	8-98047-089-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER (B) ASM PART: B = 8-98127-496-0	1-81222-163-0	01	1	-
40	PLATE; RR COVER (A) ASM PART: A = 8-98127-495-0	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (A) ASM PART: C = 8-98201-083-3	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-817-0	01	1	-
81	SPACER; ROTOR,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN (A) ASM PART: C = 8-98201-083-3	8-97382-870-0	02	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN (B) ASM PART: B = 8-98127-496-0	1-81229-892-0	01	1	-
130	CONNECTOR; GEN (A) ASM PART: A = 8-98127-495-0	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-495-0	1-81229-897-0	01	1	-
