Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

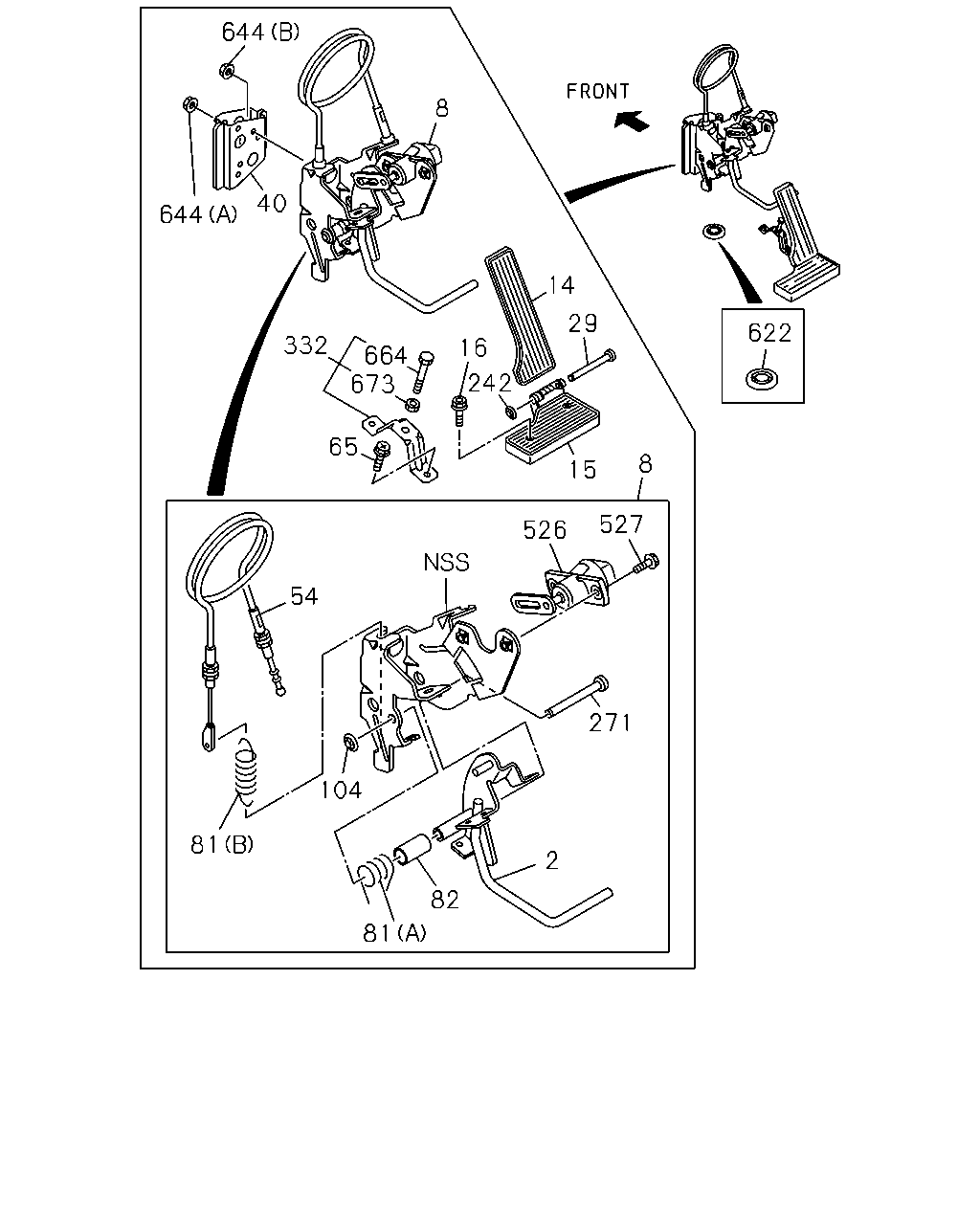

1-01 — ACCELERATOR PEDAL AND CONTROL
(#115368) — 23 parça
644
644
40
332
664
673
65
242
16
14
29
15
8
8
527
526
54
81
81
82
104
2
271
622
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-73996-593-1
01
1
1303-
8
LINK ASM; ENG CONT
8-98133-476-1
01
1
1303-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
1303-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
1303-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
1303-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
1303-
40
BRACKET; ENG CONT CABLE
1-71907-269-0
01
1
1303-
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
1303-
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1303-
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
1303-
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
1303-
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
1303-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
1303-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
1303-
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
1303-
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
1303-
526
SENSOR; ACCEL
8-98131-263-0
01
1
1303-
527
BOLT; ACCEL SENSOR
M5X16
8-98111-511-0
01
1
1303-
622
GROMMET; ACCEL CONT CABLE
OD=30
8-94107-655-0
01
1
1303-
644
NUT; LINK,ENG CONT
(B) M8 FLANGE
0-91180-108-0
02
1
1303-
644
NUT; LINK,ENG CONT
(A) M8 FLANGE W/RUBBER
1-09984-176-0
03
1
1303-
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
1303-
673
NUT; STOPPER
M8
0-91111-508-0
01
1
1303-
