Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11534 - CYJ RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#115367) — 29 parça
◀

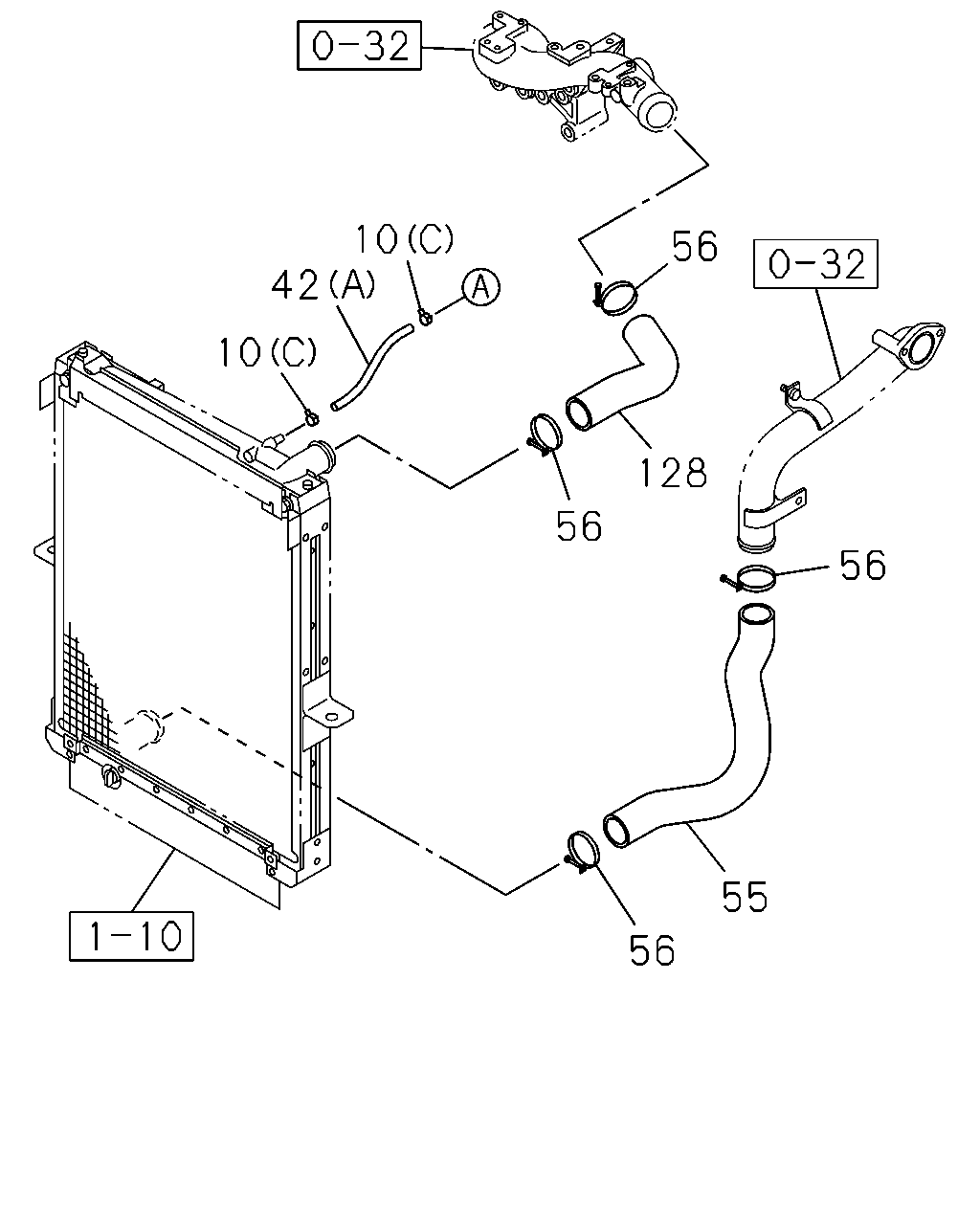

[111A] RADIATOR SIDE (8 parça)

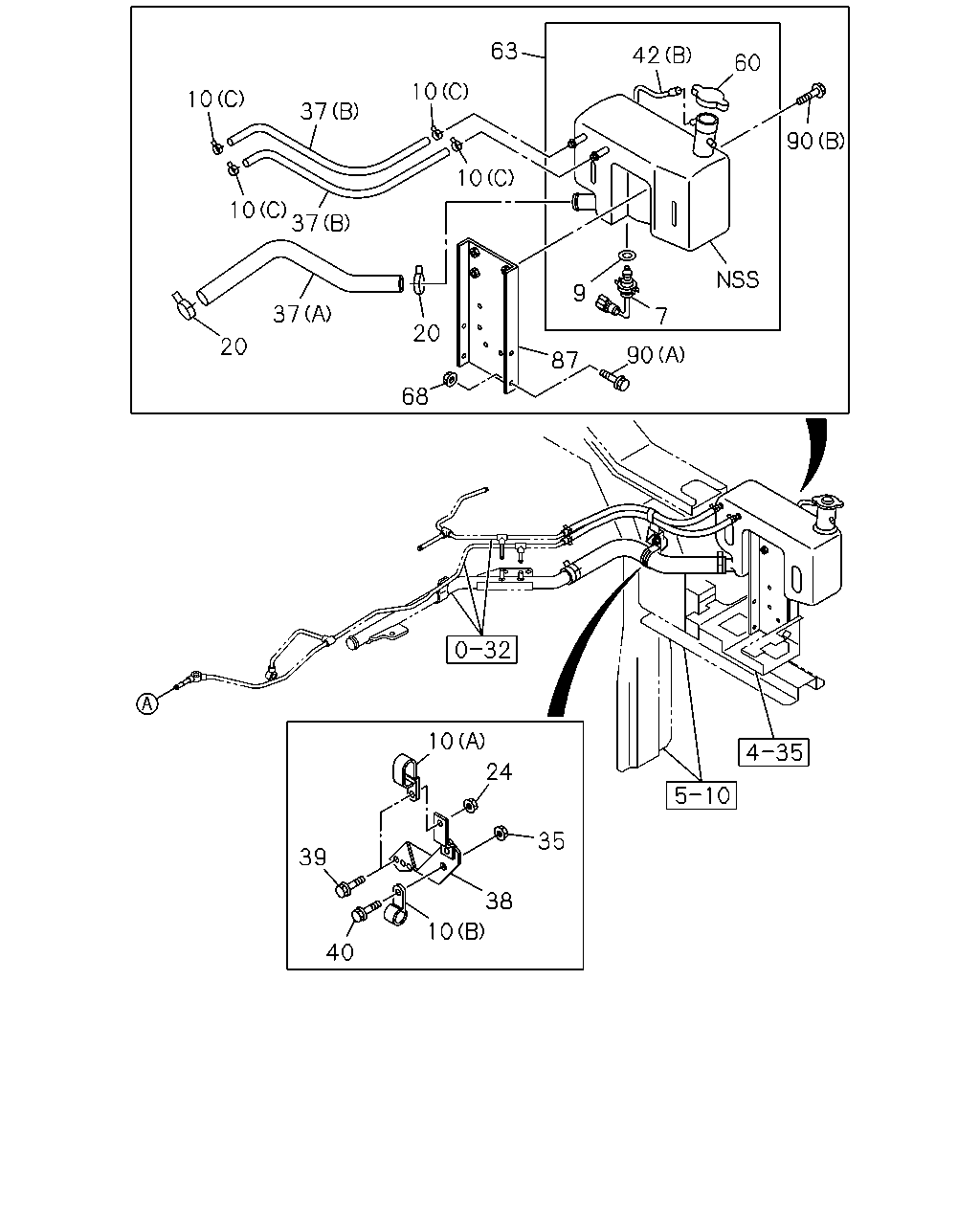

[111A] SUB TANK SIDE (21 parça)
▶
56
56
55
56
128
56
10
42
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(A) ID=16X2 L=20
0-95325-535-0
01
1
1303-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
1303-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1303-
42
HOSE; RUBBER
(A) L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1303-
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1303-
55
HOSE; WATER,RAD OUTLET
1-21430-201-1
01
1
1303-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
1303-
128
HOSE; WATER,RAD INL
1-21430-200-0
01
1
1303-
90
60
42
63
10
37
10
37
37
20
68
87
90
7
9
10
20
10
24
35
38
10
40
39
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1303-
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
1303-
10
CLIP; RUBBER HOSE
(A) ID=16X2 L=20
0-95325-535-0
01
1
1303-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
1303-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1303-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1303-
24
NUT
M8 FLANGE
0-91180-108-0
01
1
1303-
35
NUT
M10 FLANGE
0-91180-210-0
01
1
1303-
37
HOSE; RUBBER
(A)
1-21430-207-0
01
1
1303-
37
HOSE; RUBBER
(B)
8-98061-808-1
02
1
1303-
38
BRACKET; RUBBER HOSE
1-21489-202-2
01
1
1303-
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
1303-
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
1303-
42
HOSE; RUBBER
(A) L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1303-
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1303-
60
CAP; SUB TANK
1-21450-137-0
01
1
1303-
63
TANK ASM; SUB
1-21481-147-2
01
1
1303-
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1303-
87
BRACKET; SUB TANK
1-21489-193-2
01
1
1303-
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
1303-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1303-
