◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51429 - NKR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#115366) — 16 parça

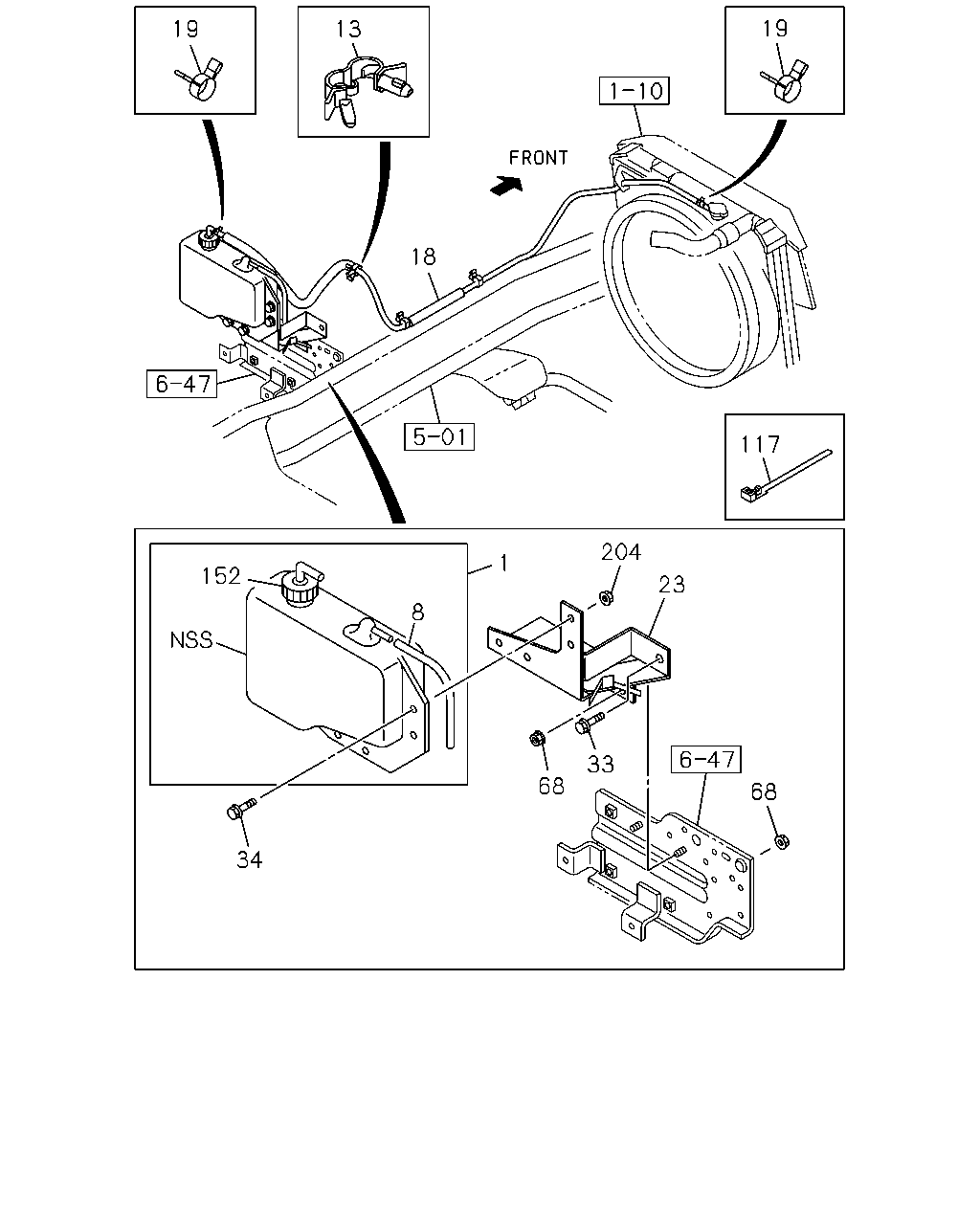

çizim 336125
68 33 23 204 68 1 8 34 152 117 19 18 13 19
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD 8-97205-136-1 01 1 1302-
8 01.166 HOSE; VINYL
01.240 L=500 		1-09366-179-0 01 1 1302-
13 01.240 CLIP; HOSE,SURGE TANK
03.162 ID=13-18 L=14.5 		1-09709-290-0 02 1 1302-
18 01.240 HOSE; RAD TO SURGE TANK 8-98213-355-0 01 1 1302-
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1302-
23 01.219 BRACKET; RESERVE TANK 8-97225-271-1 01 1 1302-
33 01.277 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1302-
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1302-
68 01.219 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 03 1 1302-
117 01.240 CLIP; BAND
02.559 L=250 		5-09707-030-1 02 1 1302-
152 01.203 CAP ASM; SURGE TANK 8-97217-799-0 01 1 1302-
204 01.219 NUT; RESERVE TANK
01.062 M8 FLANGE 		0-91180-108-0 04 1 1302-
çizim 336138
56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-97260-187-2 01 1 1302-
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 03 1 1302-
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=42 		8-98133-958-0 01 1 1302-
128 01.159 HOSE; WATER,RAD INL 8-97289-369-1 01 1 1302-
