1-31 — AIR DUCT (#115365) — 80 parça

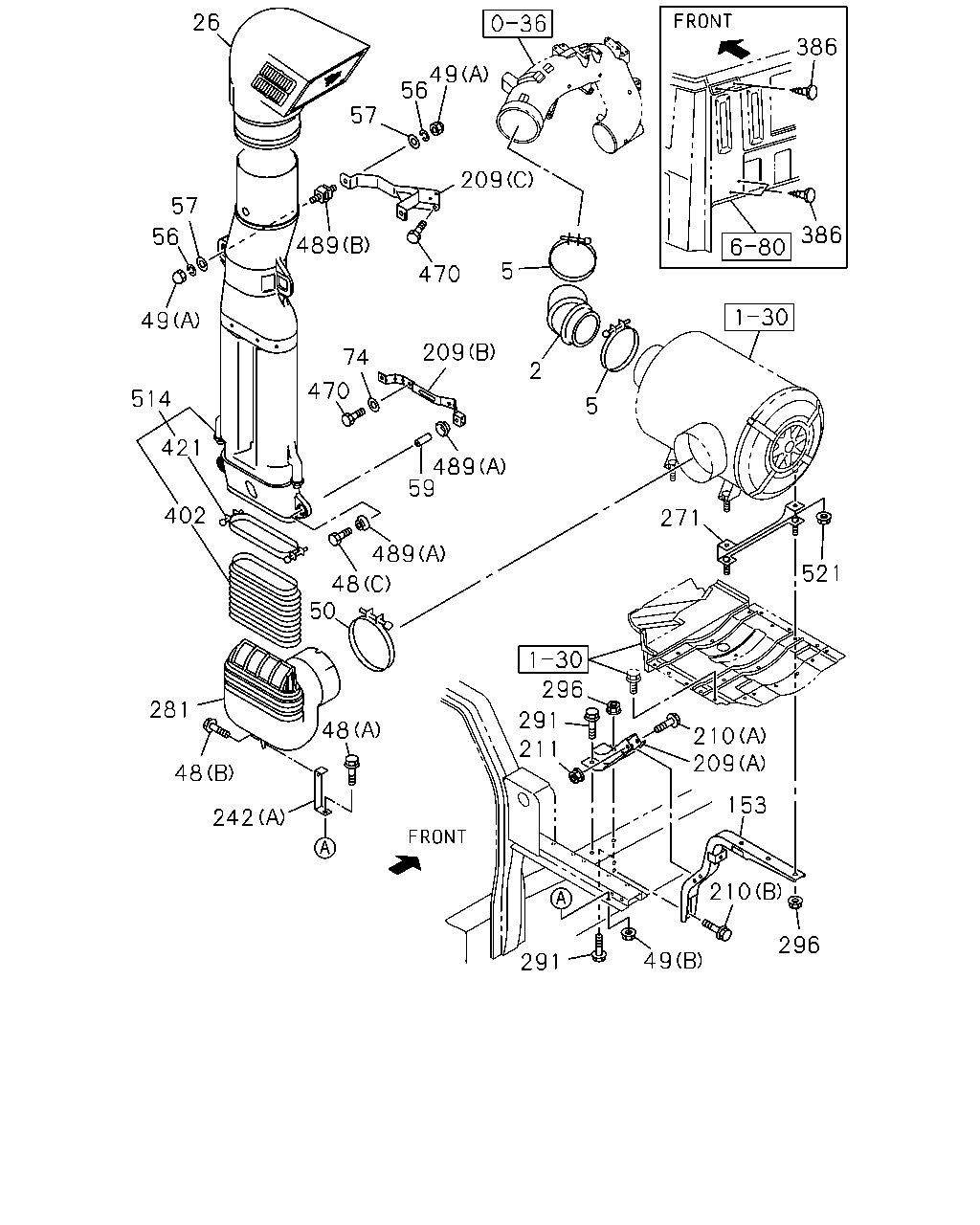

çizim 337075
26 57 56 49 209 386 386 5 2 5 271 521 489 470 296 210 209 291 211 153 210 296 49 291 242 48 48 281 489 50 59 48 489 470 74 209 402 421 514 49 56 57
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1303-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1303-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1303-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1303-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1303-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1303-
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1303-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1303-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1303-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1303-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1303-
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1303-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1303-
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 1303-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 1303-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1303-
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 1303-
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1303-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1303-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1303-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1303-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1303-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1303-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (C) 		8-98041-994-1 01 1 1303-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1303-
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 1303-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1303-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1303-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1303-
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-2 01 1 1303-
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 1303-
470 BOLT; BRKT
PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 04 1 1303-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1303-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 1303-
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-1 01 1 1303-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1303-

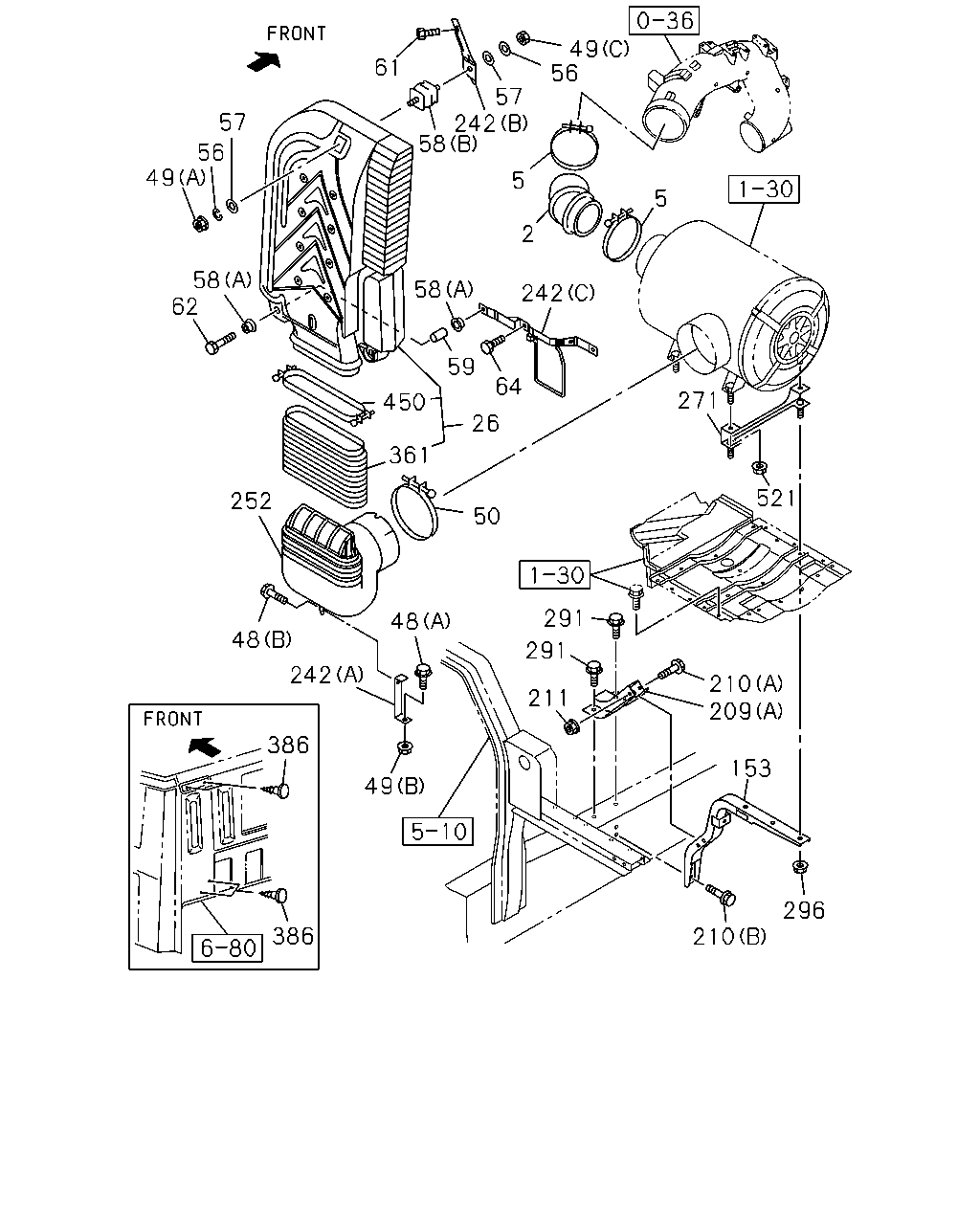

çizim 337198
57 56 49 58 62 58 58 242 61 57 56 49 5 5 2 242 59 64 26 450 361 50 252 48 48 291 291 242 49 386 386 210 296 153 209 210 521 271 211
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1303-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1303-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1303-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1303-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1303-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1303-
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1303-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1303-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1303-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1303-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1303-
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1303-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1303-
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 1303-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 1303-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1303-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		8-97080-149-0 01 1 1303-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1303-
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1303-
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 1303-
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1303-
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1303-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1303-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1303-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1303-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1303-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1303-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (C) 		8-98041-994-1 01 1 1303-
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 1303-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1303-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1303-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1303-
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-2 01 1 1303-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1303-
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 1303-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1303-
